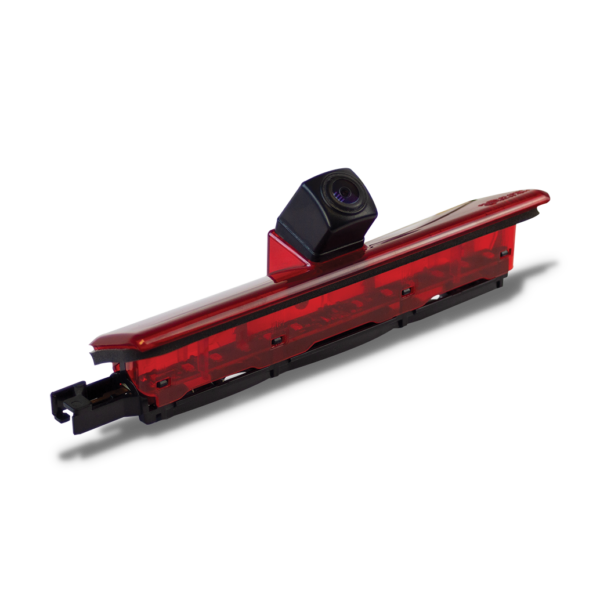

Volkswagen Caddy Barn Door Brake Light Reversing Camera Parksafe PSC45

The vehicle specific reversing camera has been specifically designed for the Volkswagen model vehicle.

Volkswagen Caddy Barn Door Brake Light Camera

  PAL / NTSC Switch

Specification:

• Image Type – 1/3” CMOS

• TV System – PAL/NTSC with Switchable

• Lens Angle (Deg.) – 170 degree

• IP Rating – IP69K

• Vibration Rate – 10G

• Connector 4P BMW to 4P lock connector

• Effective Pixels N: 5N: 510×492 pixels P: 500×582 pixels

• Horizontal Resolution 700TVL

• White Balance Auto White Balance (Auto)

• B.L.C Back light Compensation (Auto)

• Minimum Illumination 0Lux (LED ON)

• S/N Ratio 48dB

• Electronic Shutter 1/60~1/100,000 Sec

• Power consumption <3W

• Built-in Lens f: 2.8mm

• Power Consumption DC 12V (+/-10%)

• Operation Temperature -30℃~+70℃.RH95% Max

• Storage Temperature -40℃~+80℃.RH95% Max

• 4 Pin connector 10m cable

Certificates: FCC, CE, E-mark, ISO9001, TS16984 & RoHS
