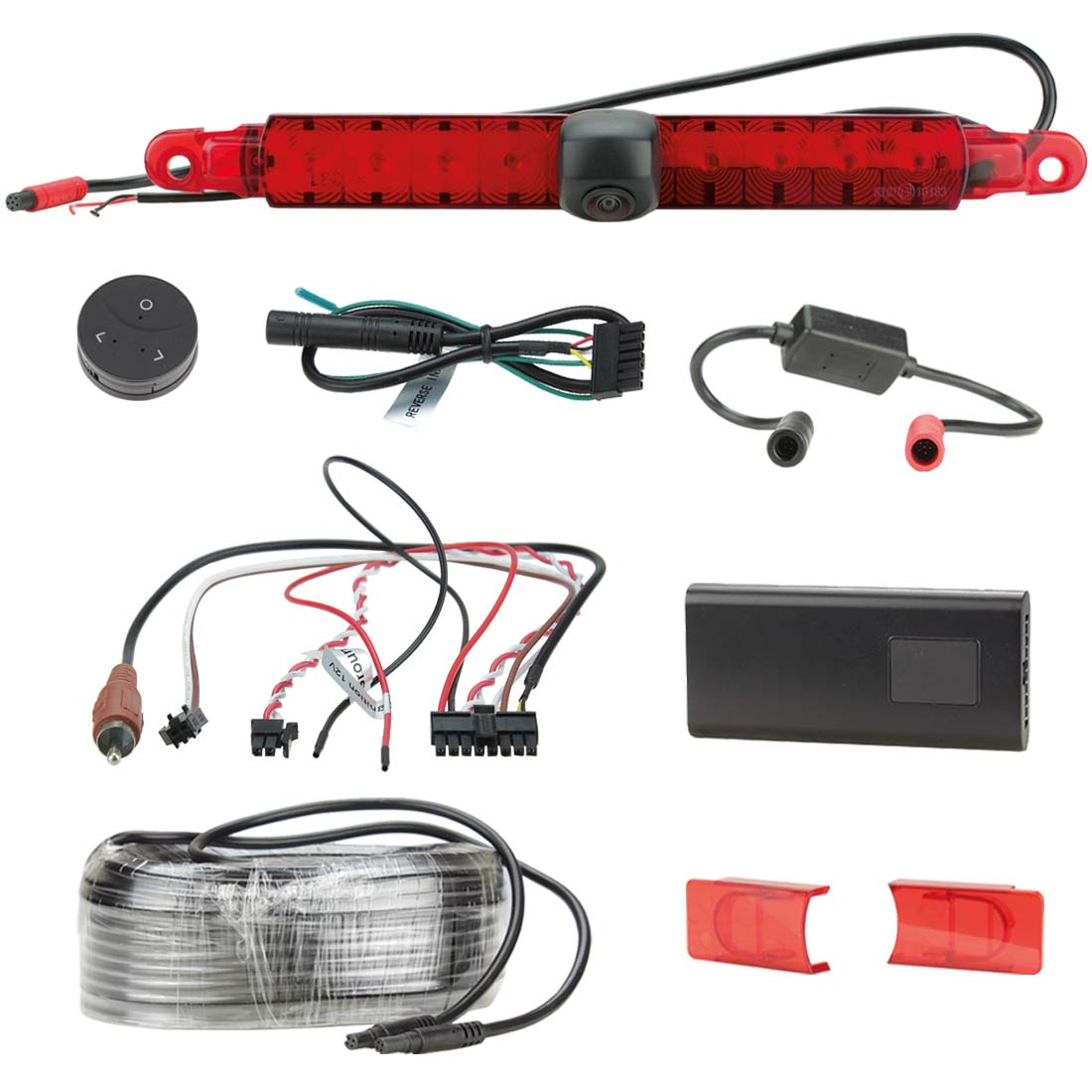

Universal Brake Light Camera with Multiple Viewing Modes CAM-40

Connects2 CAM-40 Universal Brake Light Camera with Multiple Viewing Modes

The CAM-40 is a wide-angle universal brake light camera, suitable for fitment to most cars and vans. The camera has a resolution of 720 x 480 and a field of view of 210 degrees giving the driver a clear view of the rear of the vehicle. The CAM-40 also utilises several different camera views to assist the driver in manoeuvres including, Birds eye, wide angle, reversing blind spots and standard driving mode. The camera is also IP67 rated so is capable of withstanding standard weather events.

Product Features:

• Image Sensor: 1/4”
• TV Lines: 480
• Resolution: 720 x 480
• Minimum Illumination: 0.1 Lux
• TV System: NTSC
• Waterproof Rating: IP67
• Viewing Angle: 210 Degrees (Horizontal) 140 Degrees (Vertical)
• Parking Lines: Yes (Removable)
• Image Adjustment: Yes (up to 5 different viewing modes)
• Enhanced Performance In Low Light: Yes
• Operating Voltage: 12-24V DC (Negative Ground)
• Operating Temperature: -20 Degrees C to +75 Degrees C
