Pioneer GM-D8701 + TS-WX306B 12" sub +Amp deal
The passive TS-WX306B houses a durable woofer that is built with an extended aluminium voice coil with an enlarged diameter for heat dissipation and durability, and Pioneer’s patented lightweight IMPP composite seamless cone to maintain reliable power handling.
Compact Power GM-D8701 Mono 1600W Class-D Car Amp, with Bass Boost Remote - An amplifier shouldn’t take up too much space, especially in your car. This Class-D amp might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and superior high-power output.
Package Consist of the following:

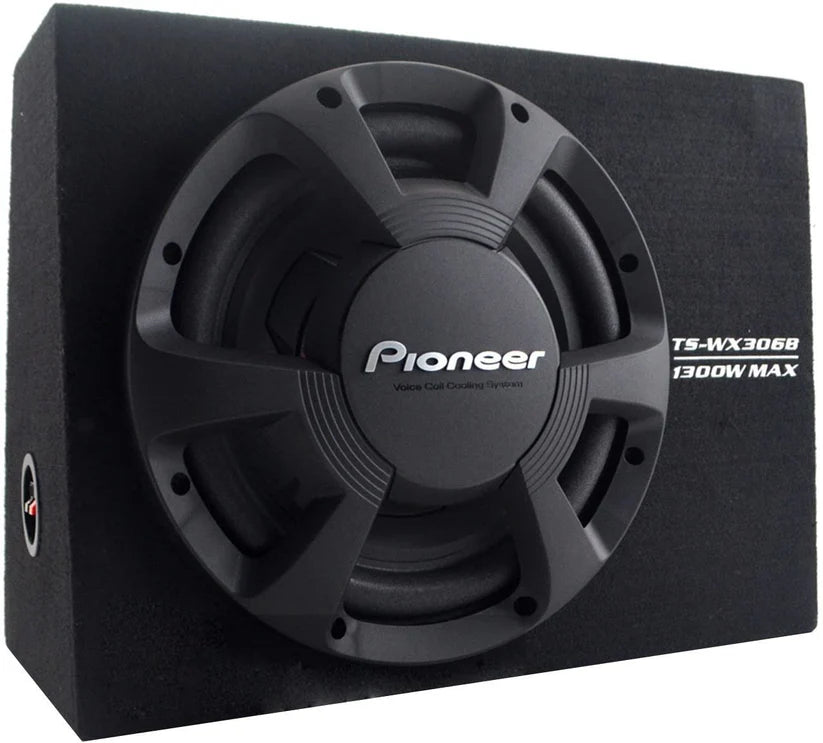

- Pioneer TS-WX306B - 12" Car Subwoofer In Original Enclosure 1300W
- Pioneer GM-D8701 - Mono D Class Bass Car Amplifier 1600W
- 8 Gauge Wiring Kit
TS-WX306B Specifications
- Frequency response 20 - 125 Hz
- Size 30 cm
- Sensitivity 94 dB
- Maximum power input 1300
- Nominal input power 350 W
- Woofer material
- Injection-moulded polypropylene (IMPP)
GM-D8701 Specifications
- Maximum Output Power: 1 x 600 W (4Ω) or 1 x 1000 W (2Ω) or 1 x 1600 W (1Ω)
- RMS Power: 1 x 300 W RMS (4Ω) or 1 x 500 W RMS (2Ω) or 1 x 800 W RMS (1Ω)
- Frequency response 10 - 240 Hz
- Distortion 10 W, 100 Hz ref. < 0.5 %
- S/N ratio > 100 dB
- Bass Boost: Remote Control, Frequency 50Hz, Level 0-18dB
- LPF 40 - 240 Hz (-12 dB/oct)
- RCA Input terminals
- Speaker Terminals Block-type
- Speaker line input sensor Turn-on sensor
- Input level control RCA (0.2V - 6.5V), SP (0.8V - 16V)
- Max. current consumption (A/4Ω) 24 A
- Chassis size (W x H x D) 265 x 60 x 200 mm
- Unit weight 2.7 kg
Our experienced TEC Team has curated cost-effective packages. These tried-and-tested offerings will alleviate concerns regarding the compatibility of various components, such as power, size, and efficiency, ultimately saving you money.
