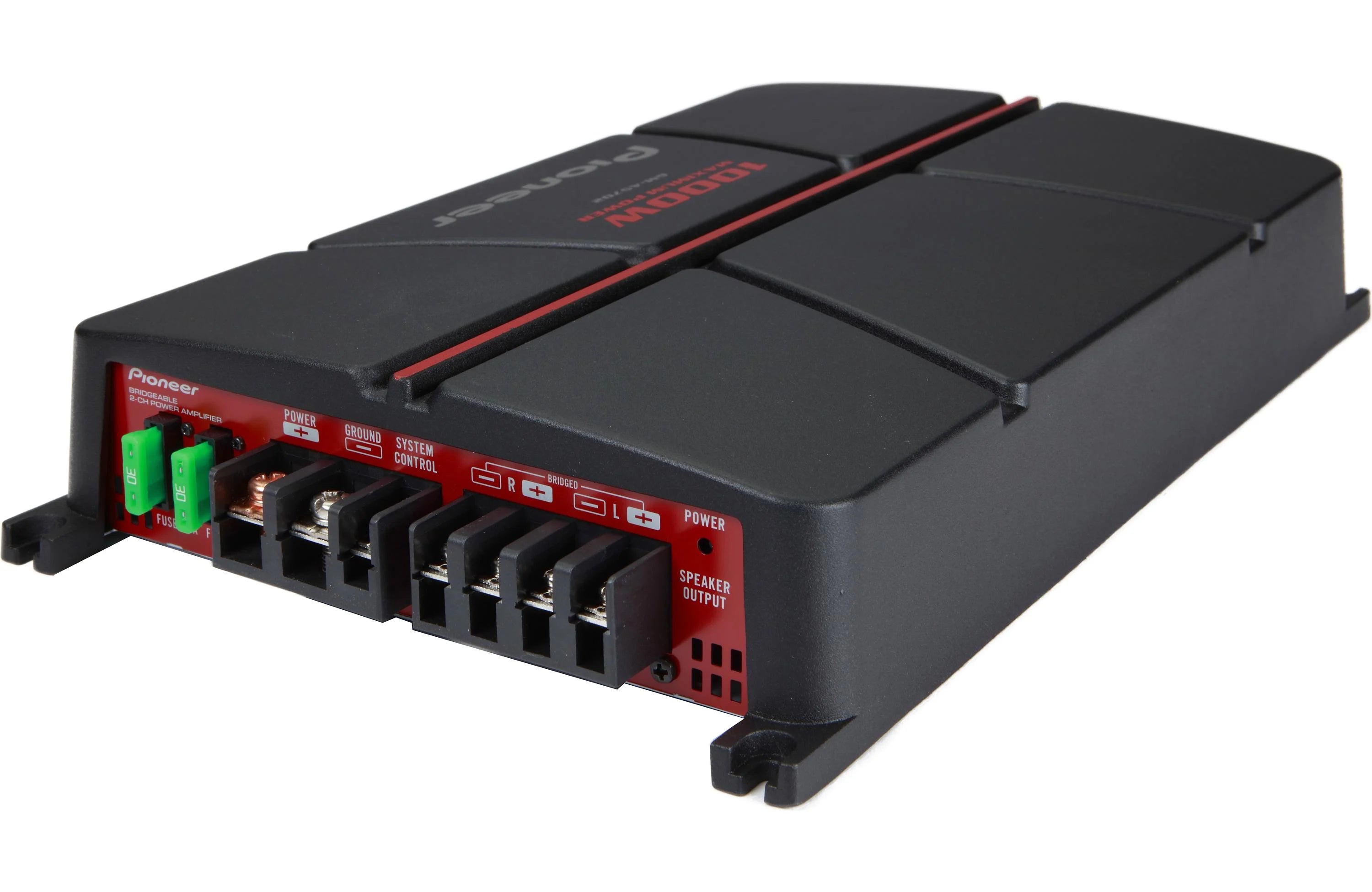

Pioneer GM-A5702 2 Channel 150 watts RMS x 2 Bridgeable 1000W Car Audio Amplifier

Configure Your Perfect Audio Setup

Designed to enhance your in-car audio experience, the powerful GM-A5702 gives you total installation freedom and very low distortion. With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you’re looking for.

The GM-A5702 offers support for 2 Ohm and 4 Ohm speakers, and can produce a massive power of 1000 W.

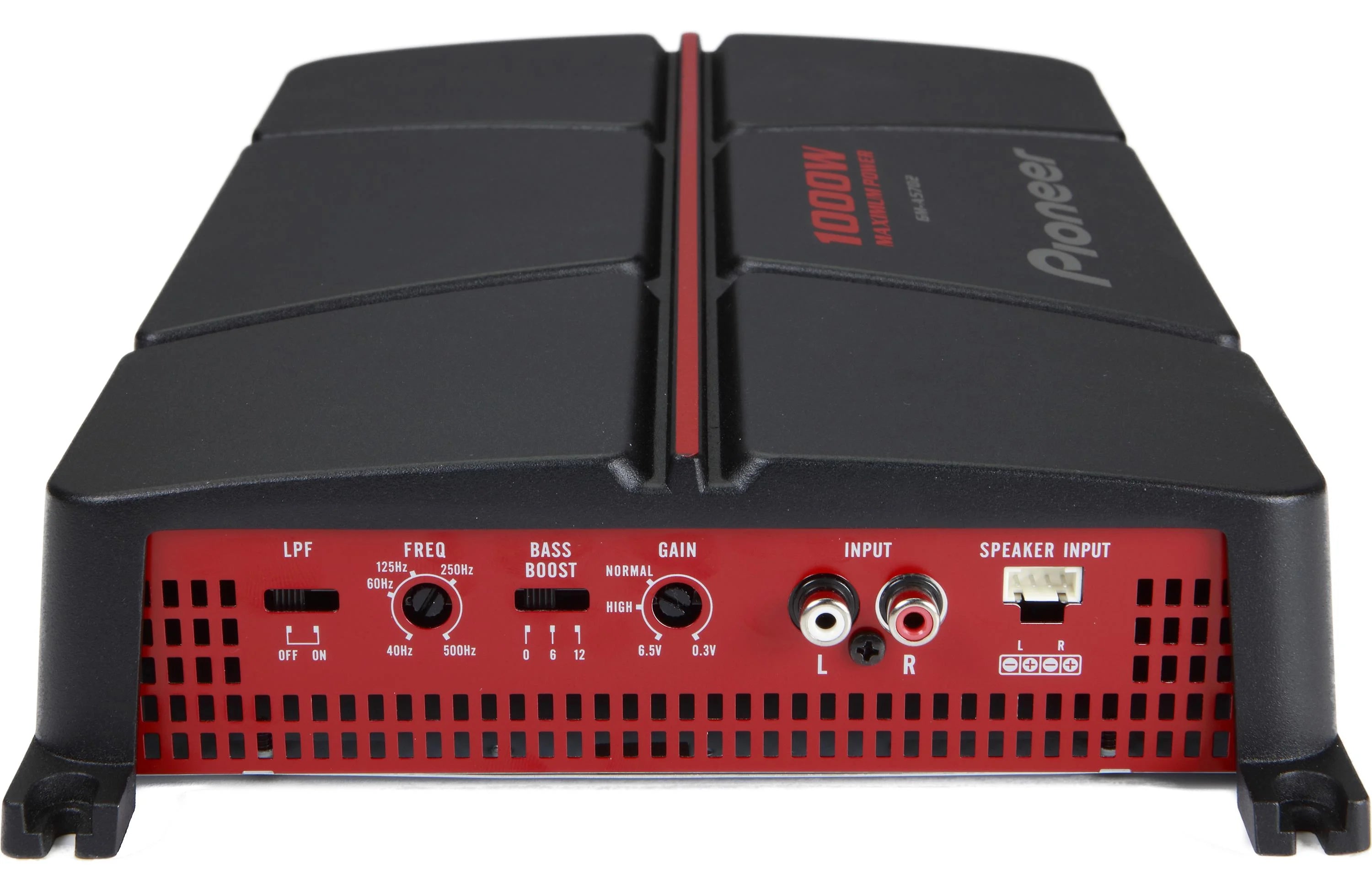

Variable LPF

adjust your low-pass filter frequency for greater audio system flexibility.

Main Features

• Chassis size (W x H x D) 356(W) X 60(H) X 215(D) mm
• Unit weight 2.2
• Maximum power input 1000W (Bridged) or 2 x 300W (4 Ω) or 2 x 500 W (2 Ω)
• 2-channel
• CEA 2006 Power 2 x 150W (4 Ω)
• Continuous power output 2 x 150W (4 Ω) or 1 x 480W (4Ω bridged) or 2 x 240 W (2 Ω)
• Load impedance capability 2-8 ohm allowable (stereo)
• Frequency response 10Hz ~ 70kHz (+0dB , -3dB) Hz
• Distortion < 0.05 %
• S/N ratio > 96 dB
• Bass Boost 50Hz; 0/6/12dB
• LPF 40-500 Hz (-12 dB/oct)
• Speaker Terminals Screw-type
• Speaker Input Level 3 - 26 V
• Max. current consumption 36A

Connections

• High Voltage Output 300 mV - 6.5 V
