Kenwood DMX7525DABS CAMPER 6.8" HD Double DIN Wireless Carplay, Android Auto DAB Stereo

By connecting your smartphone and DMX7722DABS-C wirelessly, your driving time will be more fun and convenient: Safe, Smart and Comprehensive Control with Apple CarPlay™ & Android Auto™ and the USB Mirroring allows you to display and control your Android smartphone on the KENWOOD receiver screen. Furthermore, enjoy the Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment and an optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

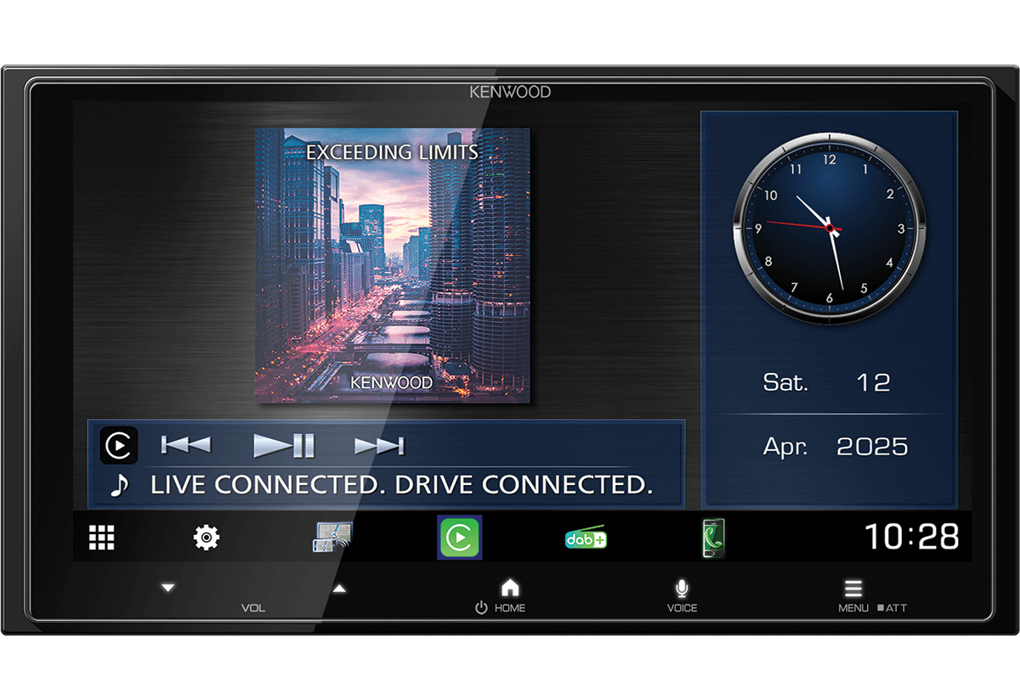

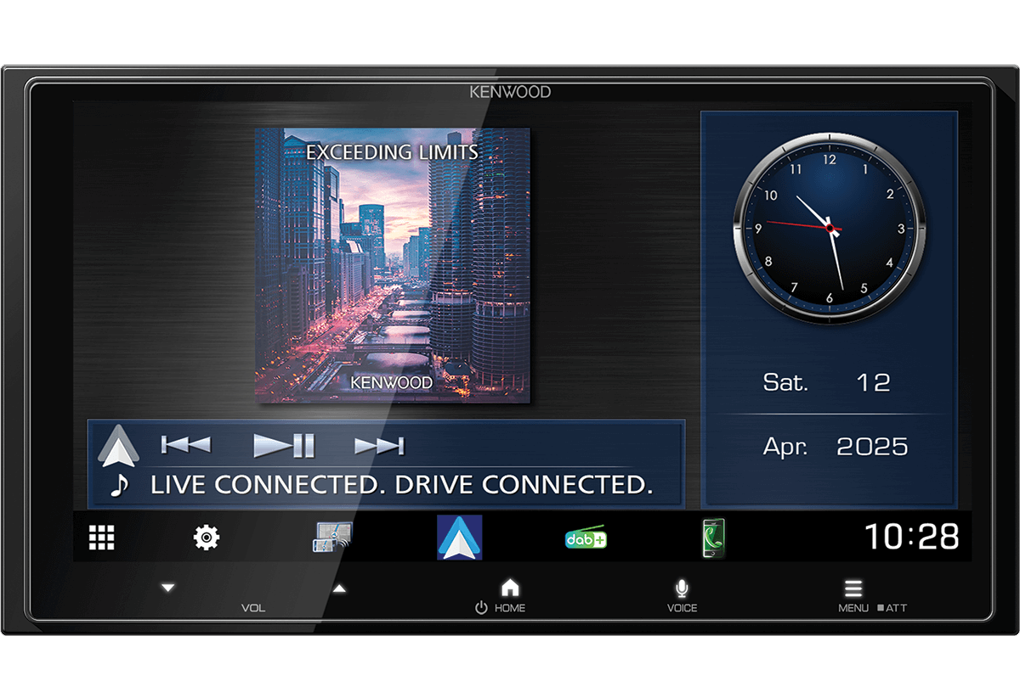

With a bright 6.8″ high-definition capacitive touchscreen, this unit delivers an intuitive and responsive user experience, making every drive more enjoyable.

Key Features

• 6.8" High Definition screen with high luminance LED backlight and superior wide viewing angles.

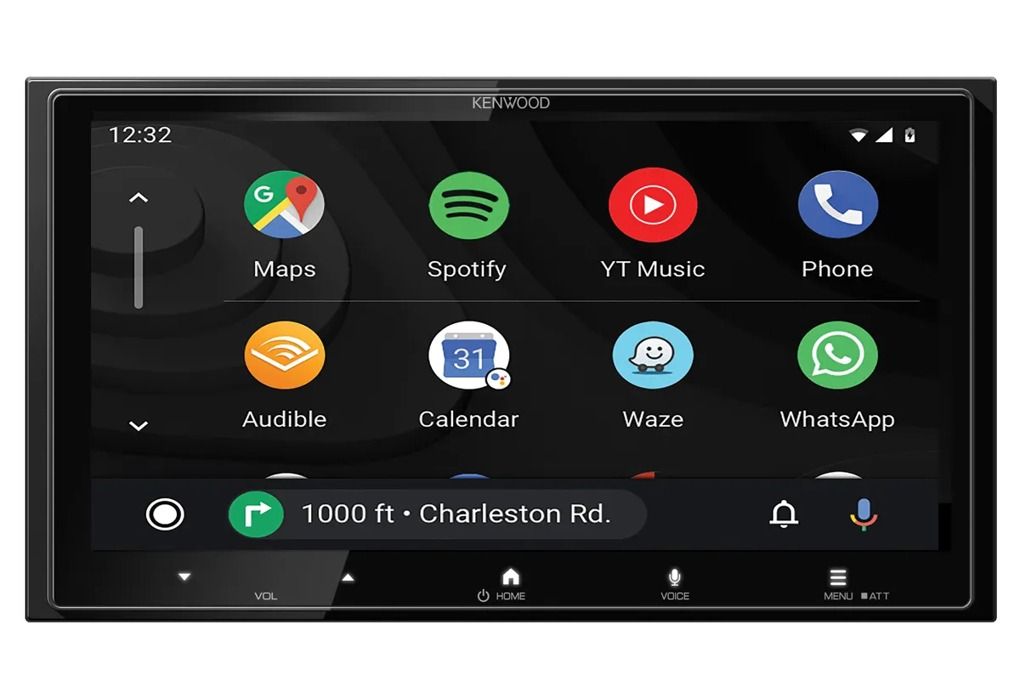

• Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.

• Wireless & Wired iPhone & Android Screen Mirroring with Car-EasyConnection app (Touch control via USB wired Android only)

• DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,

• Built-in Bluetooth® Hands-free calling & Audio Streaming.

• High Speed USB Type-A terminal for your compatible USB- enabled devices. (2.1A Max)

• 3 Preouts (3.0V) to customise & upgrade your audio system

• 13 Band EQ & Digital Time Alignment to optimise the sound performance

• Rear View Camera Input with Parking Guidelines, compatible with HD camera

• 2DIN Short Chassis Design for more flexible installation

General Features

• DIN Size - 2 DIN

• Smooth GUI

• Selectable GUI Background Wallpaper

• Key Illumination White colour

• Attenuator with Smooth Volume Return

• Touch Sensor Tone

• Optional IR remote controller - Yes, (KNA-RCDV331)

• Digital Clock (24H)

• Built-in Bluetooth

• DAB Tuner Built-in

• Wifi built-in

• Made for iPhone

• Apple CarPlay – Connect Wirelessly or via USB

• Android Auto™ – Connect Wirelessly or via USB

• Wired & Wireless screen-mirroring for IOS & Android - with CarbitLink-Easy Connection app

• Firmware upgradable

• Gyro Sensor Built-in

Monitor Features

• Screen Type - 6.92" High Definition

• Display Type - Glare

• Display Panel - Capacitive

• Display film - Anti Fingerprint

• High Definition Display

• LCD backlight - White LED

• Display Mode - 3 Mode (Full(default)/Auto/Normal)

• Screen Adjustments - Colour / Contrast / Backlight

• Dimmer function - SYNC by Illumination line

• Dimmer Level - Auto/On/Off

• Visual Source Mode - Mirorring / CarPlay / Android Auto.

• Mechanism type - Fixed

• NTSC/PAL judge - Yes (Auto)

• Display Off Mode

Multimedia GUI Features

• OSDC Type - Graphic

• Menu text - available languages:

• ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Portuguese ► Arabic ► Greek ► Polish ► Czech ► Hungarian

• Demonstration Mode

• Top Menu Customize

• Opening Screen Type - KENWOOD

• Wallpaper customizable Preset x4

• R-CAM interrupt

• R-CAM Parking Guide Lines - Built-in, customizable

• Network & Wifi features

• WiFi built-in - built-in

• Frequency Range - 5 GHz (5,745– 5,825 GHz)

• Output Power - 5GHz / SISO: 13.78 dBm

• Wireless connection for Apple CarPlay

• Wireless connection for Android Auto

• Wireless connection for iPhone & Android Mirroring - with CarbitLink-Easy Connection app

Tuner Features

• FM Reception

• AM (MW/LW) Reception

• Tuning mode - Auto1/Auto2/Manual

• Up/Down Seek/Scan

• Tuner Presets (FM/AM) - 20 Presets (15FM / 5AM)

• Automatic Memory Entry (AME)

• Radio Data System

• Radio Text Plus

• Traffic Information

• Local search

• AF Regional - Selectable: AF/AF Reg/OFF

• Enhanced Other Networks Function (EON)

• Program Type Function (PTY)

CE DAB tuner features

• DAB+ tuner built-in

• DAB/DAB+ Band - Band III

• DAB-DAB/DAB-FM auto switch

• Seamless DAB-FM blending

• Tuning mode / Seek mode - Auto1/Auto2/Manual

• Service preset - 15 ch * 1 bank presets,

• Alphabet Search

• Service list by alphabet order

• Intelligent seek

• Announcement Switching (ASW) Select

• DLS (Dynamic Label)

• PTY (Programme Type) search

• Slide Show

• Soft linking

• Antenna power supply on/off switch

• Digital Radio Certification Mark

Bluetooth General Features

• Hands Free Profile (HPF) - V1.7

• 2 phones full-time connection

• Audio Streaming (A2DP) - (SBC/AAC)

• Serial Port Profile (SPP)

• Simple Secure Pairing (SSP)

• Phonebook Access Profile (PBAP)

• PBAP call history - Up to 20 entries of dialed, received and missed calls

• Audio/Video Remote Control Profile (AVRCP) - V1.5

• Wireless Music Browsing (AVRCP)

• Private mode

• Interrupt call request

• Alphabet Search (Phonebook)

• Voice Control

• Noise Canceller

• Echo Canceller

• High-quality noise-canceling microphone - Included (rear wired)

• Bluetooth firmware upgradeable - Yes, Included in system updates

Playable Audio File

• AAC (*.aac) files are playable - USB

• MP3 files are playable - USB

• WMA (.wma) files are playable - USB

• WAV (.wav) files are playable - USB

• FLAC files are playable - USB

CE_Playable Video file

• MPEG1/2 files are playable - USB

• MPEG4 files are playable - USB

• WMV files are playable - USB

• H.264 files are playable - USB

• mkv files are playable - USB

USB Features

• USB Type - Type-A (2.0 High speed)

• Drive Change

• File System - FAT16 / FAT32 / exFAT / NTFS

• Works with Android Auto

• Works with Apple CarPlay

• USB Screen Mirroring - with CarbitLink-Easy Connection app

• Tag Information Display

• Album Art Display

• Repeat Play - Folder/File/All

• Random play - Folder

• Category search

• Link Search

• Last Position Memory / Resume

• Time code display

• USB ports maximum output current - 2.1A

iPhone Features

• Connection via: USB / Bluetooth

• Plug & Play

• Made for iPhone

• Tag Information Display

• Time Code Display

• List Access

• Album art support

• Random Play

• Repeat Play

• Skip

• iAP over Bluetooth

• Works with Apple CarPlay - Wired & Wireless

Android Phone Control

• Connection via - USB / Bluetooth

• Works with Android Auto - Wired & Wireless

• Android Open Accessory Protocol - Yes (For Android Auto)

Audio features

• Max. Output Power - 4 x 50W

• Primary Power Output - 4 x 22W

• Pre-out 3RCA: Front/Rear/Subwoofer

• Pre-out Output Level - 3V

• Volume Offset

• Volume Type - DSP

• Built-in Amplifier Off

• Balance/Fader Control

• Beep On/Off

Multimedia DSP Features

• Position Control

• Position Preset - 4 Presets

• Graphic Equalizer - 13 bands

• G-EQ manual setting

• G-EQ adjustable level - +9db / -9dB

• Time Alignment - 0 ~ 610cm

• HPF Cut Off Frequency - 14 steps

• HPF Cut Slope Level - 4 steps

• Low Pass Filter (LPF) - (Non-Fading)

• LPF Cut Off Frequency - 14 steps

• LPF Cut Slope Level - 4 steps

• X'over

• Speaker Size Control

• Channel Level Control

• Loudness

• Tweeter volume

• Bass Boost

• Source Volulme Offset - source independent

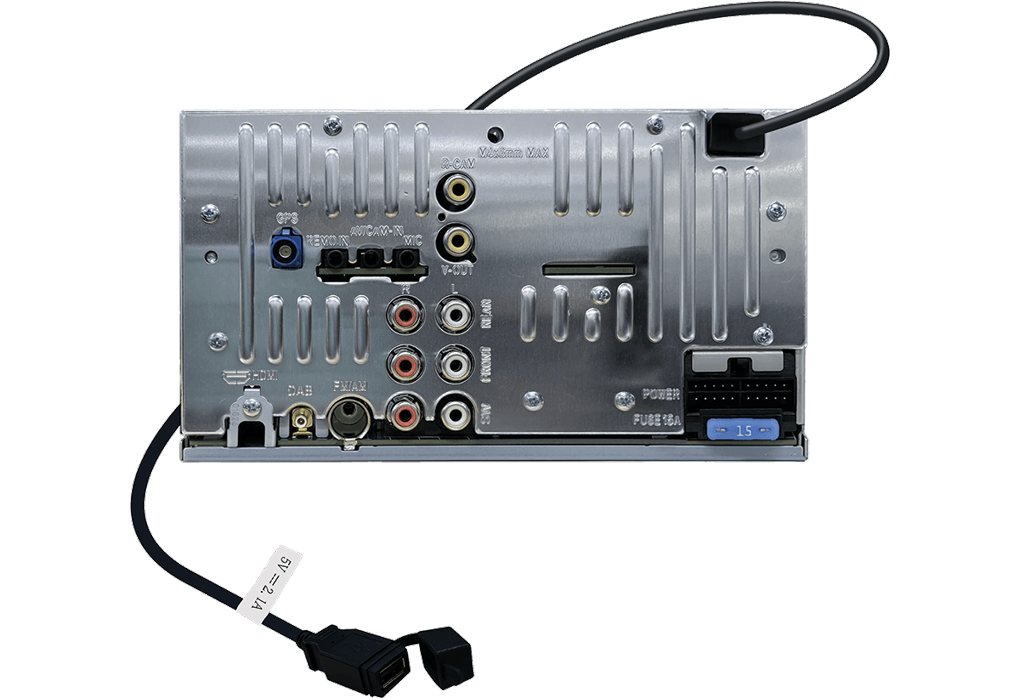

Connectivity

• DC-Cord - 22pin (New Type) to ISO

• Reverse sensor wire

• Parking sensor (handbrake) wire

• Power Control (P.CON) wire

• Dimmer control wire

• Preout 2 x RCA (Front/rear) + Sub (mono)

• AV-Input (Non Switchable) - (Mini-jack) audio & video

• Video Out - RCA x1 (Source: USB)

• Rear View Camera Input Dedicated RCA Video-in

• GPS Aerial Input - GPS antenna included

• FM Antenna Input - JASO connector

• DAB Aerial input - SMB

• External microphone input - 3,5mm mini-jack

• OEM Wired Remote Control ready - Optional interface needed

• Learning Steering Remote Function

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)

• FM Usable Sensitivity - 1.8μV/75ohm (S/N 30dBf)

• FM Frequency Response - 30Hz ~ 14kHz (± 3dB)

• FM Signal to noise ratio (Mono) - 75dB

• FM Stereo Separation (1kHz) - 40dB

• MW range: 531kHz - 1611kHz (9kHz step)

• MW Usable Sensitivity - 29μV

DAB Tuner specifications

• Band III - Frequency range - 174.928 MHz - 239.2MHz

• Mode - Band III

• Sensitivity - 97.7dBm

• Signal to noise ratio - 78dB

• Audio format - MPEG1 Audio Layer II, MPEG4 HE-AAC V2

• Output Voltage - 14V (10.5V to 16V allowable)

• Maximum Current - < 100 mA

Bluetooth specifications

• Technology - Bluetooth V5.3

• Frequency - 2.402 - 2.48 GHz

• Output power - +9 dBm (max), Power Class 1

• Maximum range - Line of sight approx. 10 meter

• Handsfree profile (HFP) - V1.7

• Serial port profile (SPP) - V1.2

• Advanced audio distribution profile (A2DP) - V 1.4

• Audio Codec - SBC/AAC

• Audio/Video remote control profile (AVRCP) - V1.6

• Phonebook access profile (PBAP) - V1.2

USB Specifications

• USB Version compatibility - USB 2.0 High Speed

• File System - FAT 16/32 / exFAT / NTFS

• Maximum Supply current - 2100mA

• D/A Converter - 24bit

• Video Decoder - MPEG1/2/4, WMV, H.264, mkv

• Audio Decoder - MP3, WMA, AAC, WAV, FLAC

Audio Specifications

• Maximum Power - 50 W x 4

• Output Power (DIN45324,+B=14.4v) - 22 W x 4

• Output frequency band - 20 Hz ~ 20 kHz

• Preout Level - 3000 mV / 10 kOhm,

• Preout Impedance - ≤ 1400 Ohm

• Speaker Impedance - 4 Ohm ~ 8 Ohm

Video Specifications

• Color System of External Video Input - NTSC/PAL

• External Video Input Level (RCA) - 1 Vpp / 75 Ohm

• Video Output Level (RCA) - 1 Vpp / 75 Ohm

Monitor Specifications

• LCD Type - High Definition screen

• Screen size (Diagonal) - 6.92 Inches Wide

• Screen Size (WxH) - 156.48 x 80.136mm

• Display system - Transparent TN LCD Panel

• Drive system - TFT Active Matrix System

• Number of Pixels - 2764800pixels (1280(H) x 720(V) x RGB)

• Effective pixels - 99.99%

• Pixel arrangement - RGB Striped

• Back lighting - LED (Light Emitting Diode)

General Specifications

• Operating voltage - 14.4V (8.5 ~ 16V Allowable)

• Maximum Current Consumption - 15A

• Dimensions (WxHxD) - 178 x 100 x 109mm

• Weight - 1140 gr.

Accessories

• DC cord ( to ISO) - 20-pin connector to ISO, 25 cm

• Flat Head Screw (M-Type) - M5 x 8mm, 4 pieces

• GPS Antenna Ground Plane Mount (Adhesive Metal Pad) Yes

• Handsfree Microphone with 3 m cable

• Multi-Language Instruction Manual Included
