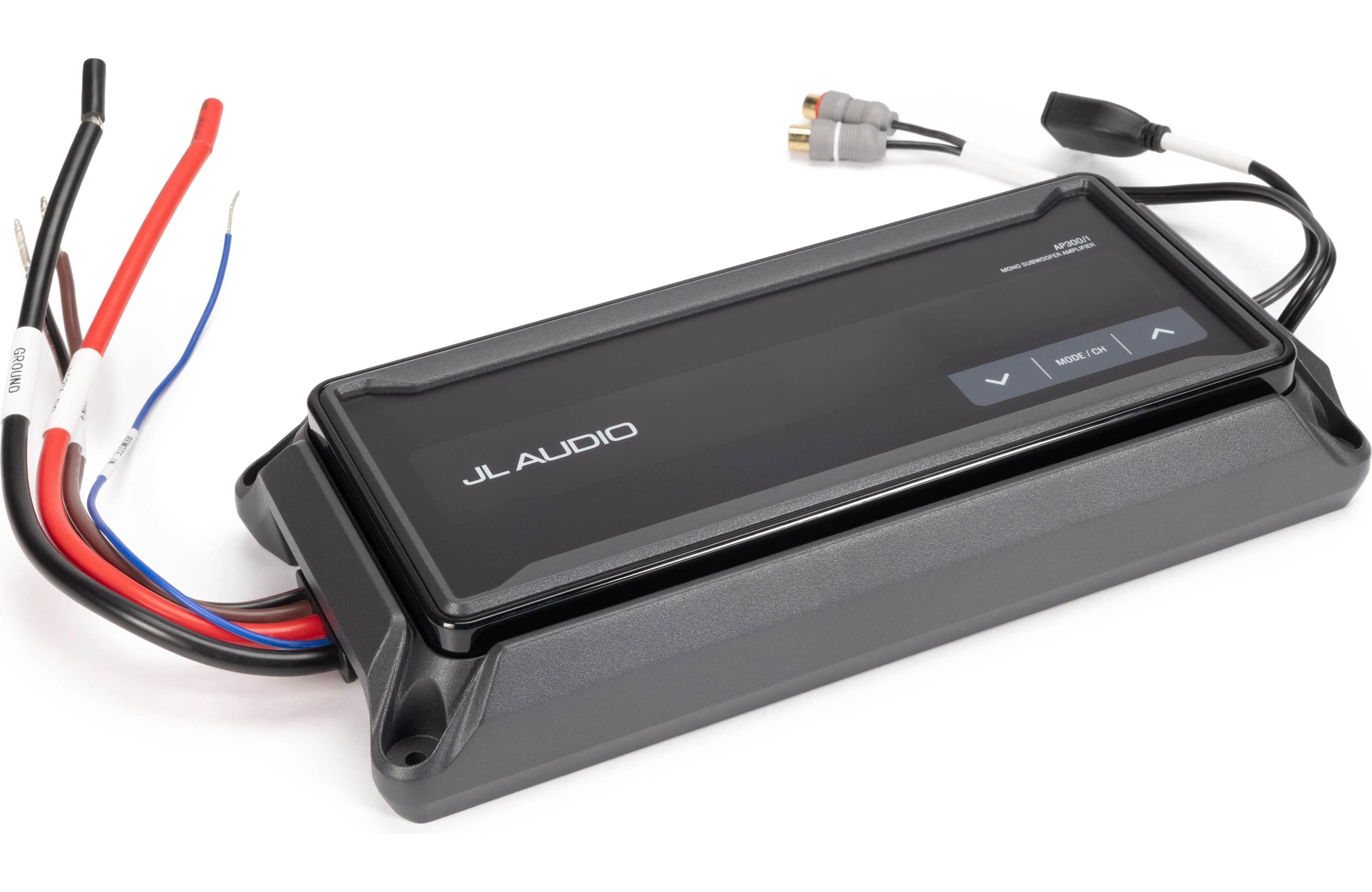

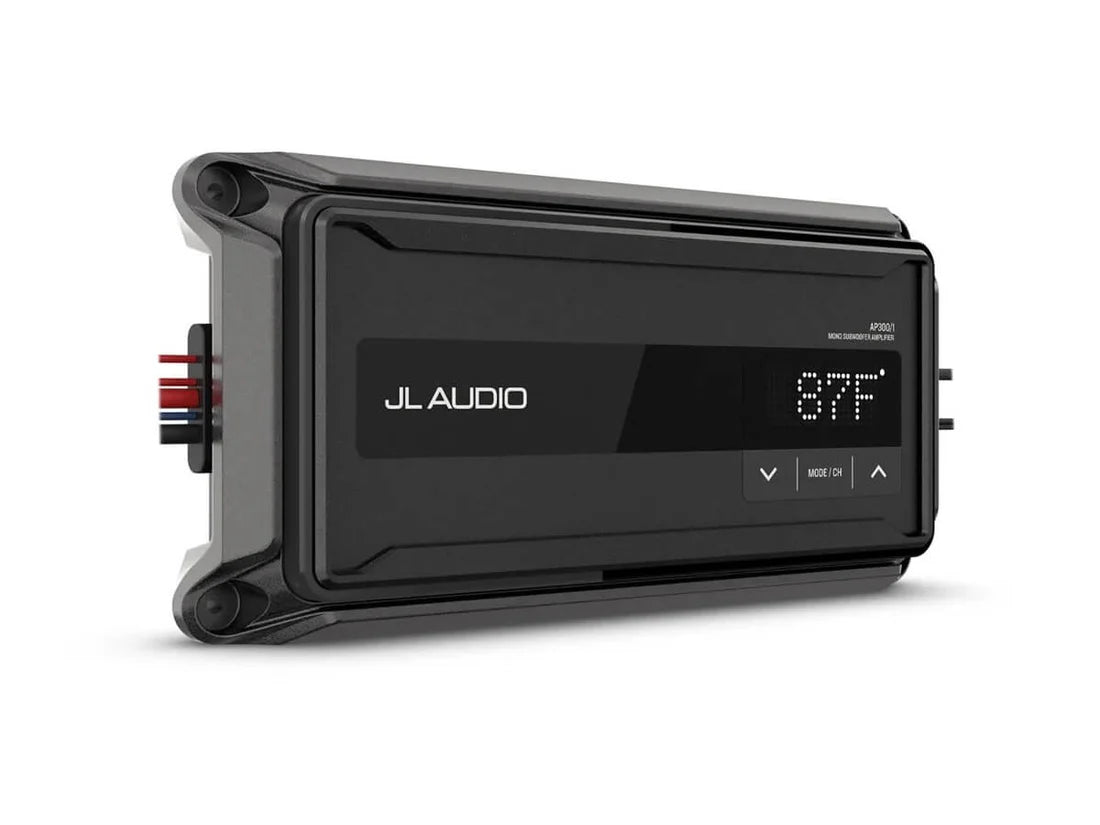

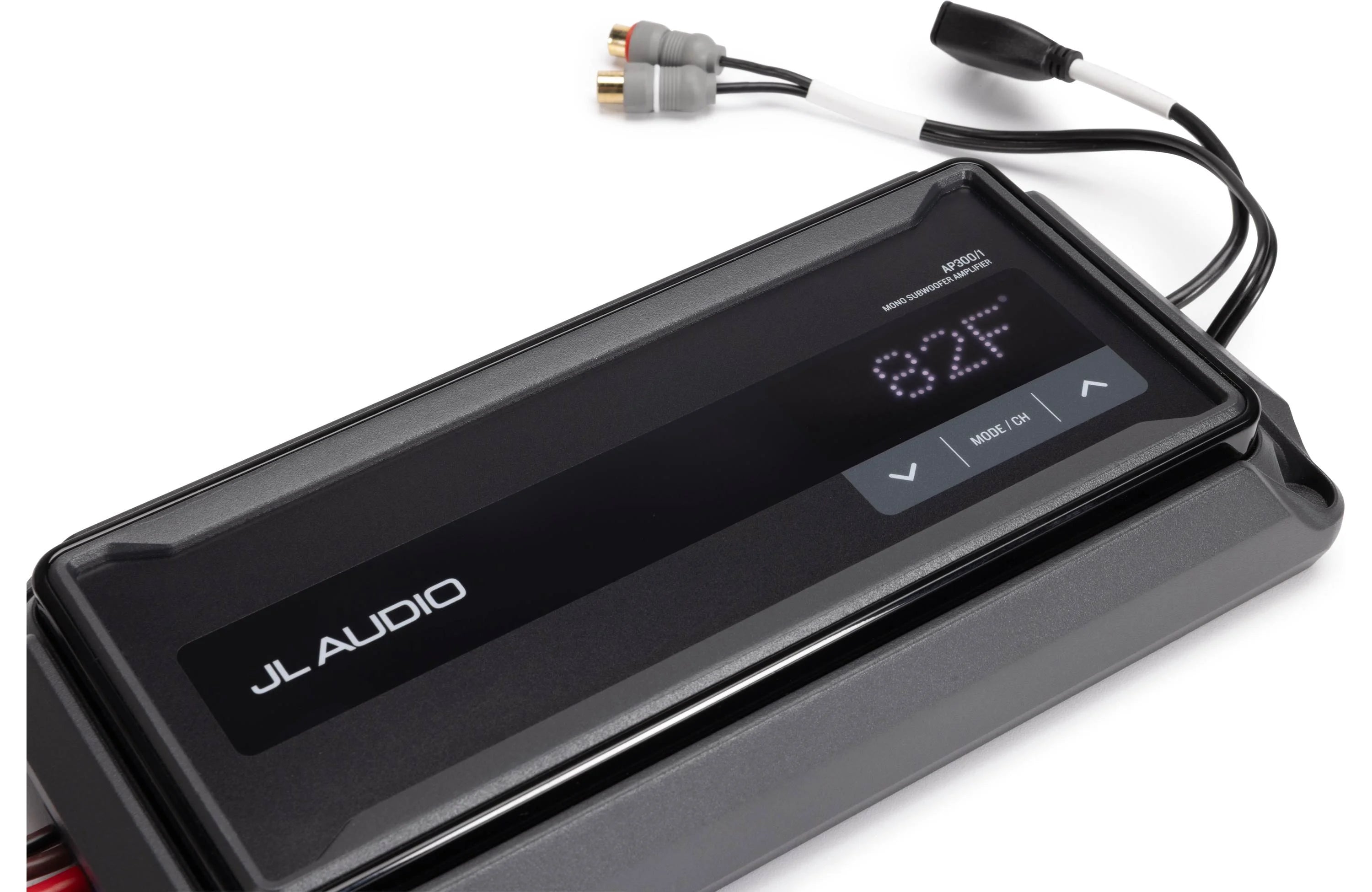

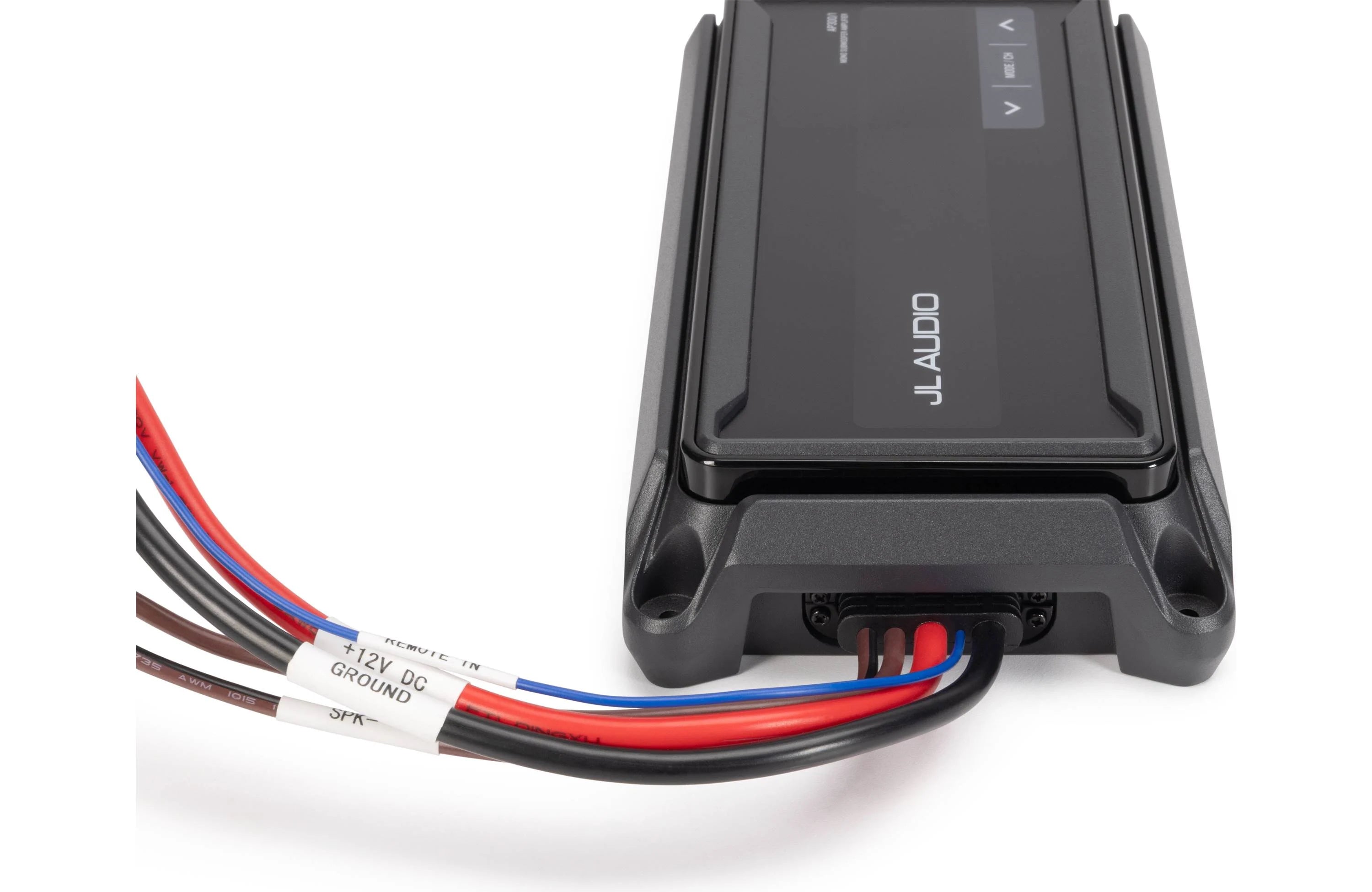

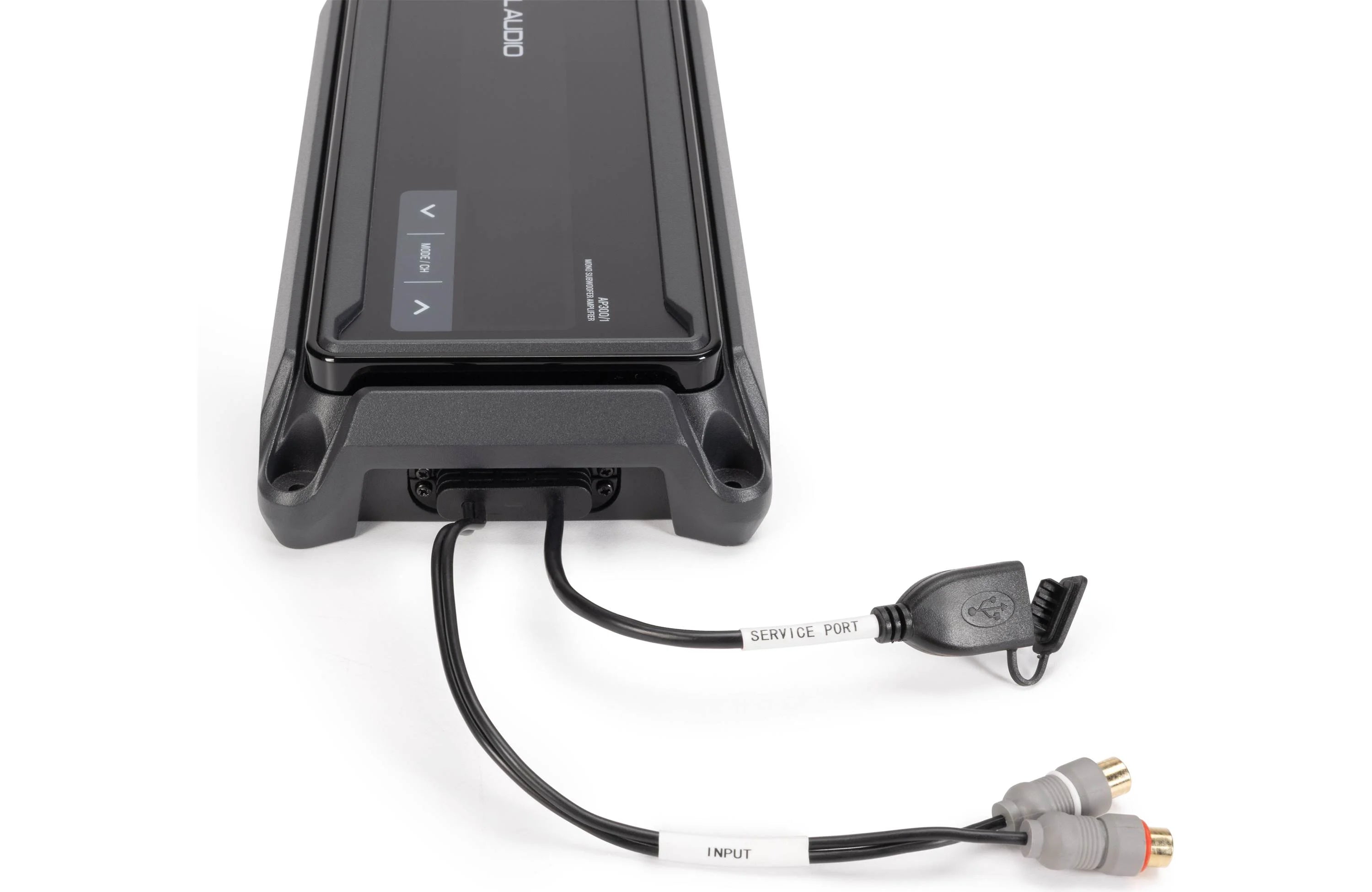

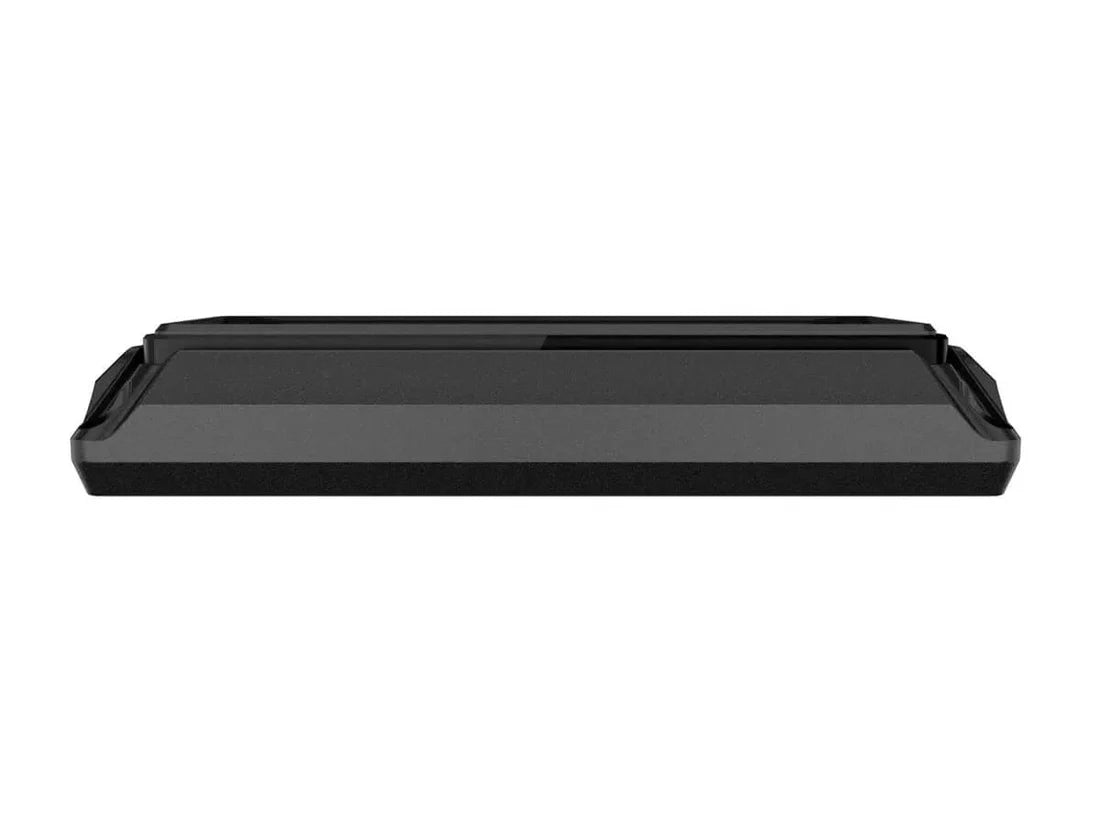

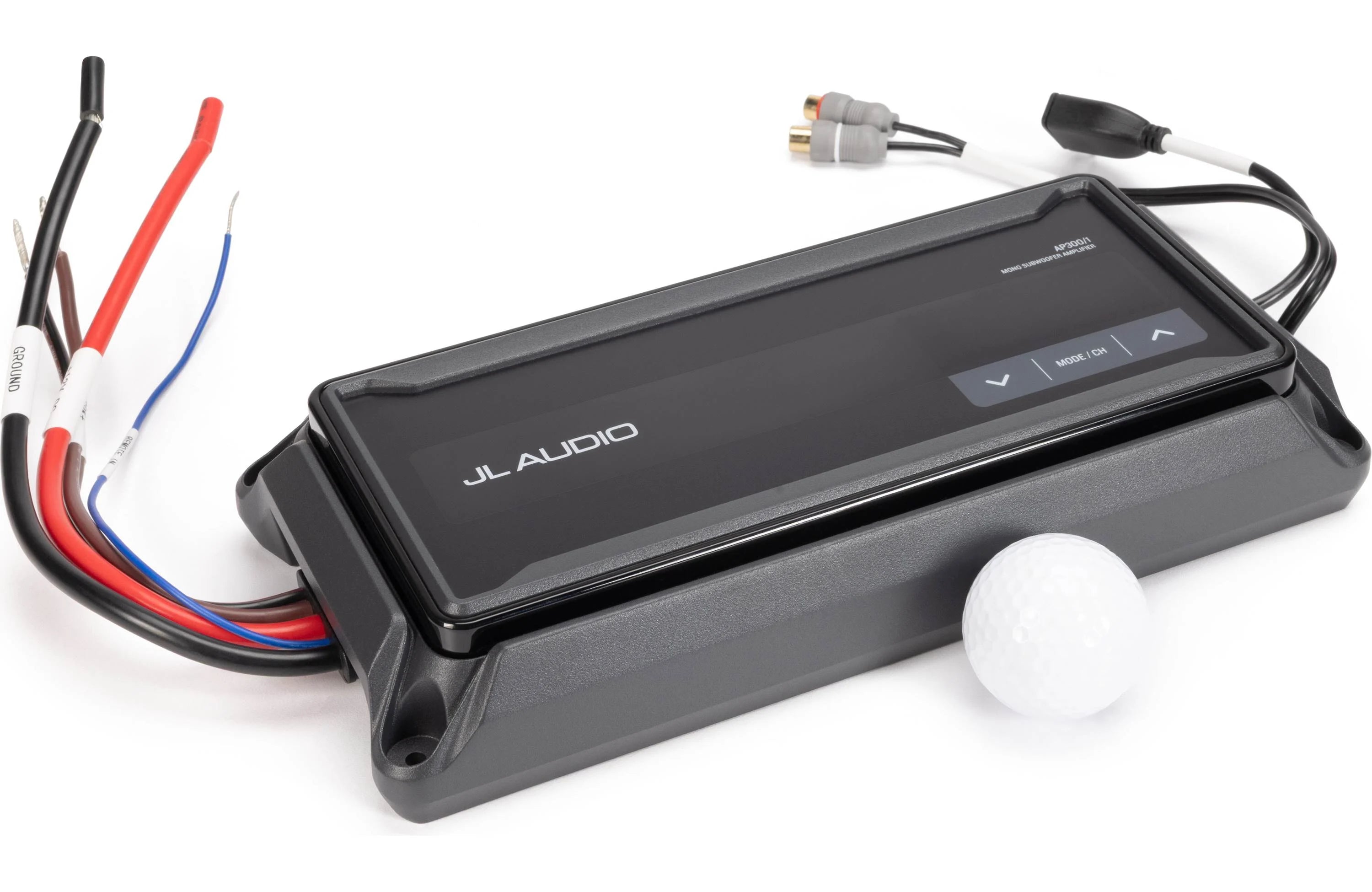

JL Audio AP300/1 Compact Marine Mono Subwoofer Amplifier

JL Audio's AP300/1 amplifiers are tiny powerhouses, small enough to fit in in tight spaces yet powerful enough to drive speakers with the power they need for the outdoor environment.

Power the moment with the ultracompact JL Audio AP amplifiers, available in monoblock, 4-channel with and without Bluetooth® technology, as well as 6 channel with staggered power — ideal for a system amplifier.

These Class-D amplifiers are IP67-rated (excluding cables) with tough cast-alloy water-resistant construction. The monoblock, 4-channel and 6-channel features built-in LCDs for manual control. For additional optimisation, pair with a Fusion® head unit with built-in DSP, and download the Fusion Audio smartphone app for selectable profiles. This enables the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection.

The 4 channel with Bluetooth pairs with your smartphone for seamless audio streaming and includes an IP67-rated wired remote that can be flush-, surface- or bar-mounted.

Key Features

• Power Output: Rugged Class-D amplifiers are available in monoblock (300 W RMS), 4 channel (300 W RMS), 4 channel with Bluetooth® technology (200 W RMS) and a staggered-power 6 channel (600 W RMS)
• Durability: Amplifiers are ignition-protected and IP67-rated (excluding cables) for the toughest environments
• Streamline Setup: The monoblock (300 W RMS), 4 channel (300 W RMS) and 6 channel (600 W RMS) include a built-in LCD for manual control as well as the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection
• Included Remote: The 4-channel with Bluetooth technology (200 W RMS) includes an IP67-rated remote and AUX input source selection

Technical Specifications

General:

• Channels: Monoblock
• Operating voltage: 9-16 VDC
• Water and dust rating: IP67
• Operating temperature: -20°C to 65°C

Audio:

• Amplifier class: Class D
• Rated continuous (RMS) power (14.4 V input @ 4 Ω < 1% THD): 1x 200 W
• Rated continuous (RMS) power (14.4 V input @ 2 Ω < 1% THD): 1x 350 W
• Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs: > 70 dB
• Frequency response (+0, -1 dB): 10 Hz - 500 Hz
• Input sensitivity @ RCA inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Input impedance: 11 kΩ (High), 20 kΩ (Low)
• Current consumption (Standby): < 1 mA
• Current consumption (Idle): 700-750 mA
• Fuse rating: 35 A
• Recommended fuse type(s): AFS, AGU or MaxiFuse™
• Min. copper power / Ground wire gauge: 4 AWG wire
• Protection circuits: Input under/over voltage, Over temperature, Output short circuit

In the box:

• JL Audio AP300/1 amplifier
• Four mounting screws
• Documentation
