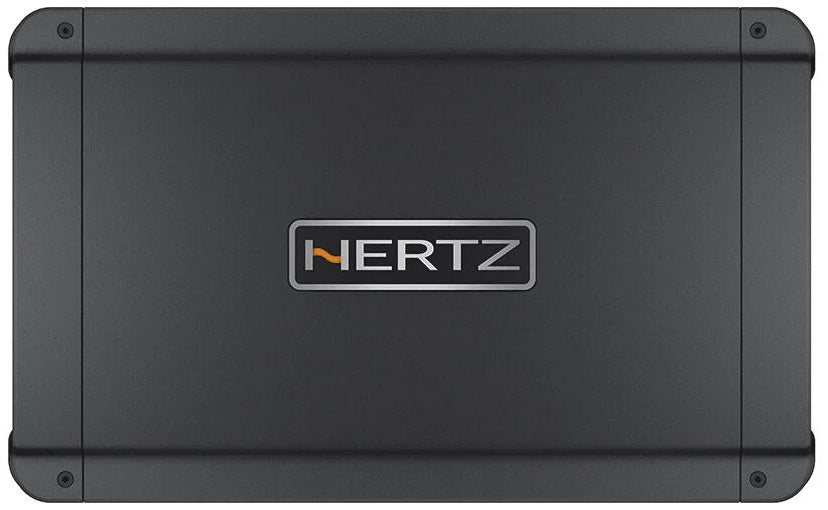

Hertz HCP4DK 2000W Class D 2 Ohm 4-Channel Car Subwoofer Amplifier
Designed to be thermally and electronically efficient, the HCP 4DK is equipped with both high and low-level inputs with onboard hi and low pass filters. The amplifier is 2 ohms stable with bridgeable channels offering a massive amount of flexibility. The characteristic Hertz sound makes this car amplifier a must-have for those looking for audio excitement at high levels!
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
Using the HRC accessory (Hertz Remote Control), HCP 4DK offers the ability to remote control the subwoofer volume with extreme preciseness.
Product Features
- Channel mode: 4 - 3 - 2
- Output Power (RMS) @ 14.4 VDC:
- 4 Ch: 150 W x 4 (4 Ohm)
- 4 Ch: 250 W x 1 (2 Ohm)
- 3 Ch: 150 W x 2 (4 Ohm) + 520 W x 1 (4 Ohm)
- 3 Ch: 250 W x 2 (2 Ohm) + 520 W x 1 (4 Ohm)
- 2 Ch: 520 W x 2 (4 Ohm)
- Filters:
- Bypass - Yes
- Hi-Pass - A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
- Lo-Pass - A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
- Band-Pass: -
- Subsonic - No
- Distortion - THD (100Hz @ 4 Ohm): 0.03%
- S/N Ratio (A weighted @ 1V): 105 dB
- Damping factor (100Hz @ 4 Ohm): 200
- Size W x D x H mm (in.): 315 x 190 x 50 (12.40 x 7.48 x 1.97)
