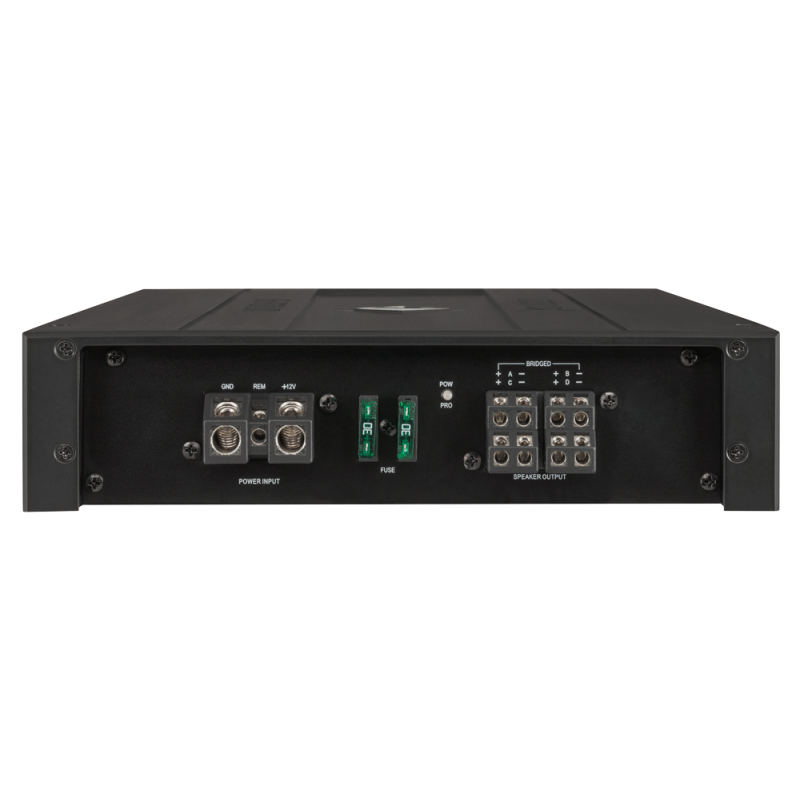

HELIX G FOUR - 4 Channel Class A/B 960 Watts Peak Amplifier
HELIX G FOUR - 4 Channel Class A/B 960 Watts Peak Amplifier

HELIX G FOUR - 4 Channel Class A/B 960 Watts Peak Amplifier

G FOUR
HELIX See other products by HELIX
£549.99 £599.99
Save £50.00
HELIX G FOUR - 4 Channel Class A/B 960 Watts Peak Car Amplifier - SPECIAL ORDER
Ask a question
Trade enquiry
Price match

The best of both worlds - extremely fast driver stages combined with extremely load-stable and stream-filling "afterburners" in bipolar technology. This is the recipe for success of the particularly flat amplifier, which can not be disturbed by a sophisticated processor control. Continuing to improve over the years, the power packs with the characteristic, transparent housing cover have reached a tonal level that is not only unrivaled in this price and performance class.

Class-AB RCA Input Active crossover SMD Made-in-Germany


Product Features:
  • The extremely stable amplifier in a particularly flat design
  • Enormously fast driver stages for minimal distortion
  • Processor control of all output stage parameters
  • Integrated, active crossover with high pass, low pass and bandpass
  • "Input Mode" switch for flexible distribution of input signals
  • RMI (Realmixed Input) to form an optimized left and right channel sum signal
  • Intelligent electronic protection against overheating, overvoltage and undervoltage, short circuit at the loudspeaker output, impedance underrun and faulty connection
  • 24-carat gold-plated, massive connection terminals for permanent lossless signal and power transmission
  • Power supply terminals for cable cross sections up to 25 mm²
  • Made exclusively from selected components in Germany
Specifications:

Power RMS / Max.
- @ 4 ohms 4 x 70/140 watts
- @ 2 ohms 4 x 125/250 watts
- @ 1 ohm -
- bridged to 4 ohms 2 x 250/500 watts
- bridged to 2 ohms -
amplifier technology Class AB
inputs 4 x RCA
1 x Remote In
input sensitivity Cinch 0.7 - 8 volts
Input impedance RCA 10 kOhm
Input impedance high level -
outputs 4 x speaker output
Output voltage RCA -
Signal converter for the digital input -
frequency range 20 Hz - 20,000 Hz
Bass Boost -
highpass 15 Hz - 4,000 Hz adjustable
lowpass 15 Hz - 4,000 Hz adjustable
bandpass 15 Hz - 4,000 Hz adjustable
Subsonic -
phase -
Slope high / low pass 12 dB / oct.
Slope Subsonic / Low Pass -
Signal-to-noise ratio digital input -
Signal-to-noise ratio analog input 110 dB (A-weighted)
Harmonic distortion (THD) <0.009%
damping factor > 300
operating voltage 9 - 17 volts
No-load current 2200 mA
fuse 2 x 25 A LP mini plug-in fuse
Additional features Active, adjustable crossover, input mode switch, color protection system
Dimensions (H x W x D) 31.5 x 200 x 336 mm
