Ford Galaxy S-Max 2006 Onwards Pioneer TS-G1720F Front or Rear Door Speaker Upgrade Kits
Package Includes:

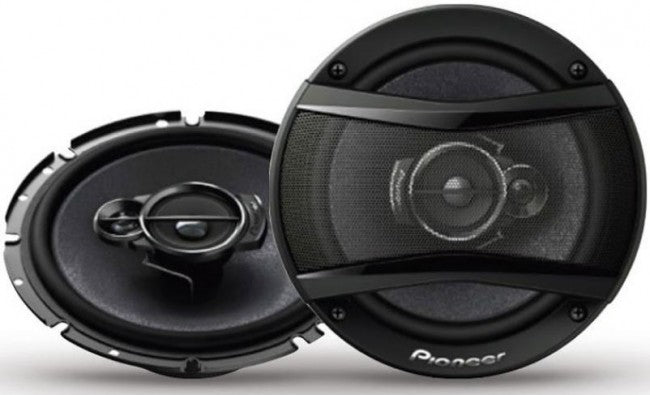

- PIONEER TS-G1720F- 6.5 inch 17cm 2-Way Coaxial Car Audio Speaker
- Connects2 CT25FD11 - 165mm Speaker Adaptor
Compatible with the following vehicles:
| Manufacturer | Model | Note | Year From | Year To | Headunit | Connection |
|---|---|---|---|---|---|---|
| Ford | Galaxy | Front And Rear Door 165mm | 2006 | 2015 | N//A | |
| Ford | S-Max | Front And Rear Door 165mm | 2006 | 2014 | N//A |
Please Note This Kit Will Suit Front/Rear Door Shelf Applications.
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
For better-sounding drives.
Discover the renewed G-series
The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money. Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car. Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.
IMPP Cone enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.
Main Features
- Weight 0.59 kg
- Coaxial Speakers
- Cut-out Hole 144 mm
- Size 17 cm
- Mounting Depth 49.7 mm
- Impedance 4 Ω
- Frequency response 36 - 18 000 Hz
- 2 Way
- Sensitivity 90 dB
- Lowest resonance frequency 81 Hz
- Maximum power input 300 W
- Nominal input power 40 W
- Woofer material IMPP Composite Cone
- Midrange size 30 mm
- Voice Coil type Copper
- Voice Coil bobbin type KAPTON
- Magnets Y35
