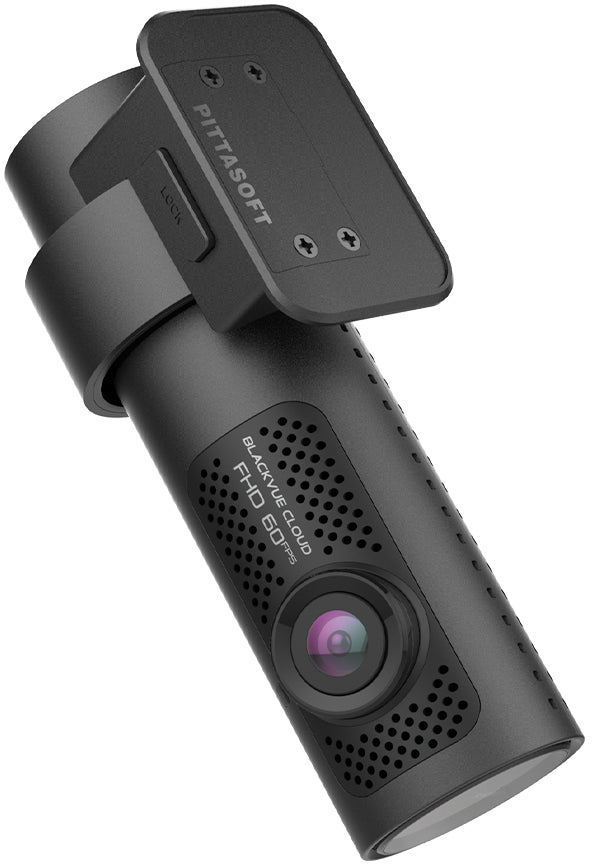

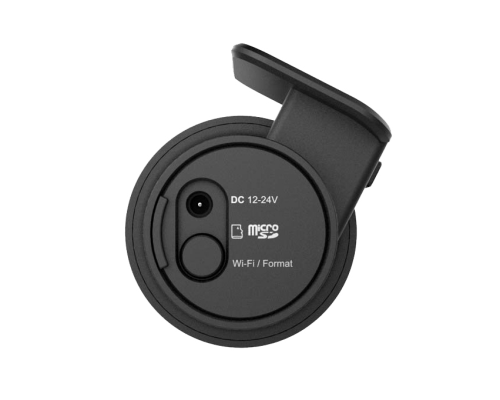

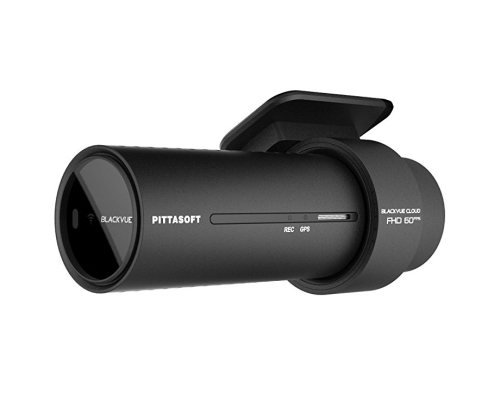

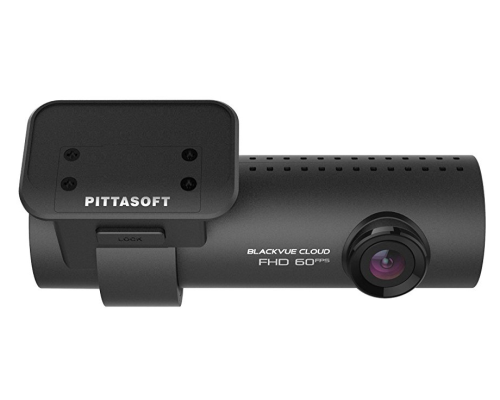

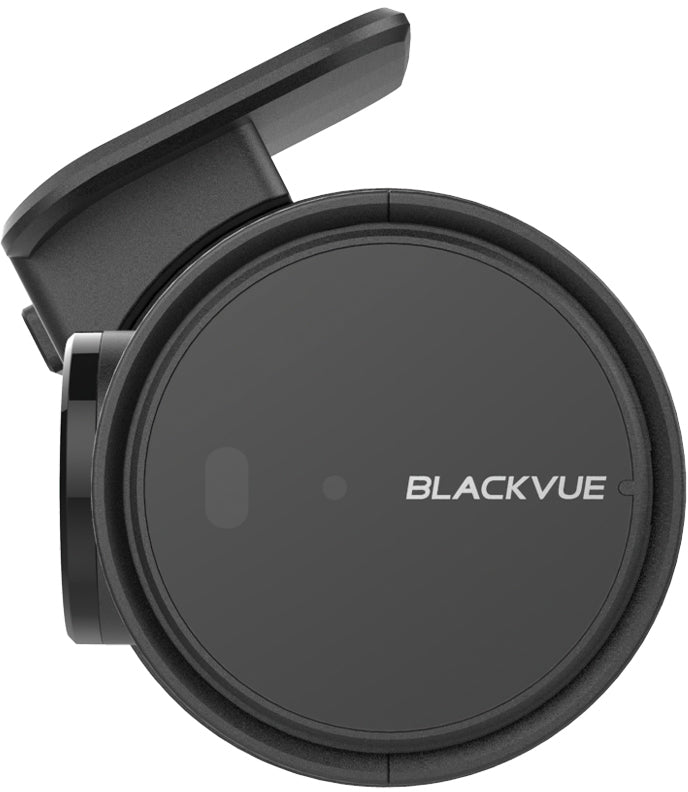

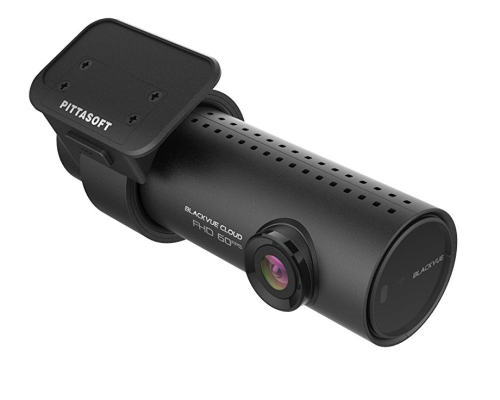

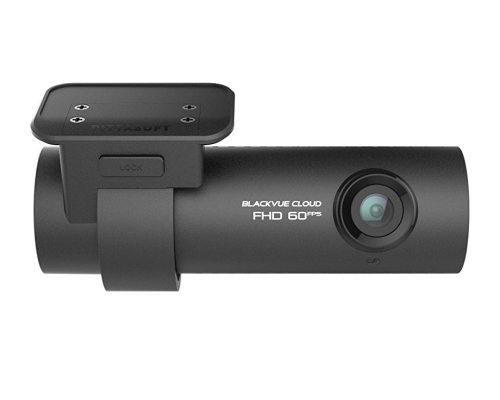

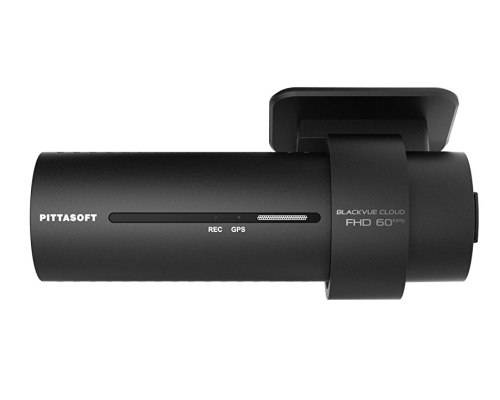

BlackVue DR750X 64GB 1-Channel Dash Camera
Cloud connectivity and rock-solid performance
The DR750X-1CH is a single-channel dashcam with BlackVue Cloud connectivity.
The Full HD Sony STARVIS™ image sensor gives you the best image quality under any light.
This stealthy dashcam also packs built-in GPS, Wi-Fi and native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App.
Cloud support via a Wi-Fi router or optional USB plug-in LTE module.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) from overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Impact & Motion Detection
Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time-lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
Sleek Interface
Programmable proximity sensor
Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.
Wi-Fi button
Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.
Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.
BlackVue Cloud
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Enjoy remote Live View and Push Notifications to your phone.
Back up important videos to the Cloud remotely.
Play and download videos from your dashcam’s memory or the Cloud from anywhere.
Check the BlackVue Cloud page for more information.
LTE Connectivity Module (Optional)
The CM100LTE connects to your compatible BlackVue X Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.
High Frame Rate for Extra Fluidity
The advantage of 60FPS video capture
The camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.
Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.
| Specifications | |
|---|---|
| Model Name | DR750X-1CH |
| Channel | 1CH |
| Highlights | Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module |
| Product Dimensions | W 118.5 mm (4.67″) x H 36 mm (1.42″) / 103 g (3.63 oz) |
| Memory Support | microSD card up to 256GB |
| Recording Modes | – Normal, |
| Parking Mode | YES (with 3-wire hardwiring cable – included) |
| Parking Mode Event Voice Notifications | YES |
| Imaging Sensor | Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) |
| Viewing Angle | Diagonal 139°, Horizontal 116°, Vertical 61° |
| Resolution Frame Rate | Full HD @60fps |
| Video Codec | H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Highest (Extreme): 25 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 50) |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11 b.g.n) |
| Cloud Compatible | YES |
| GPS | Built-in (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED |
| Button | Button: Wi-Fi ON/OFF (Tap) |
| Operation Temperature | -20 °C − 85 °C (-4 °F − 185 °F) |
| Storage Temperature | -20 °C − 90 °C (-4 °F − 194 °F ) |
| High Temp Cut Off | Approx. 85 °C (185 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode (WiFi On / GPS On) : 275mA / hour |
| Certifications | FCC, CE, RoHS, Telec, WEEE, IC |
| software | BlackVue Viewer |
| Application | BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher) |
| Others | Adaptive Format-Free File Management System |
| LTE | External (optional) |
| Model | Memory Capacity | Image Quality | Resolution | ||
|---|---|---|---|---|---|
| DR750S-1CH | Full HD @ 60 fps | Full HD @ 30 fps | HD @ 30 fps | ||
| 16GB | Extreme | 1 HR 20 MIN | x | x | |
| Sports | 2 HR 45 MIN | x | x | ||
| Highest | x | 2 HR 45 MIN | 4 HR | ||
| High | x | 3 HR 15 MIN | 5 HR 20 MIN | ||
| Normal | x | 4 HR | 8 HR | ||
| 32GB | Extreme | 2 HR 40 MIN | x | x | |
| Sports | 5 HR 30 MIN | x | x | ||
| Highest | x | 5 HR 30 MIN | 8 HR | ||
| High | x | 6 HR 30 MIN | 10 HR 40 MIN | ||
| Normal | x | 8 HR | 16 HR | ||
| 64GB | Extreme | 5 HR 20 MIN | x | x | |
| Sports | 11 HR | x | x | ||
| Highest | x | 11 HR | 16 HR | ||
| High | x | 13 HR | 21 HR 20 MIN | ||
| Normal | x | 16 HR | 32 HR | ||
| 128GB | Extreme | 10 HR 40 MIN | x | x | |
| Sports | 22 HR | x | x | ||
| Highest | x | 22 HR | 32 HR | ||
| High | x | 26 HR | 42 HR 40 MIN | ||
| Normal | x | 32 HR | 64 HR | ||
| 256GB | Extreme | 21 HR 20 MIN | x | x | |
| Sports | 44 HR | x | x | ||
| Highest | x | 44 HR | 64 HR | ||
| High | x | 52 HR | 85 HR 20 MIN | ||
| Normal | x | 64 HR | 128 HR | ||
| Bitrate (Mbps) | Extreme | 25 | x | x | |
| Sports | 12 | x | x | ||
| Highest | x | 12 | 8 | ||
| High | x | 10 | 6 | ||
| Normal | x | 8 | 4 | ||
