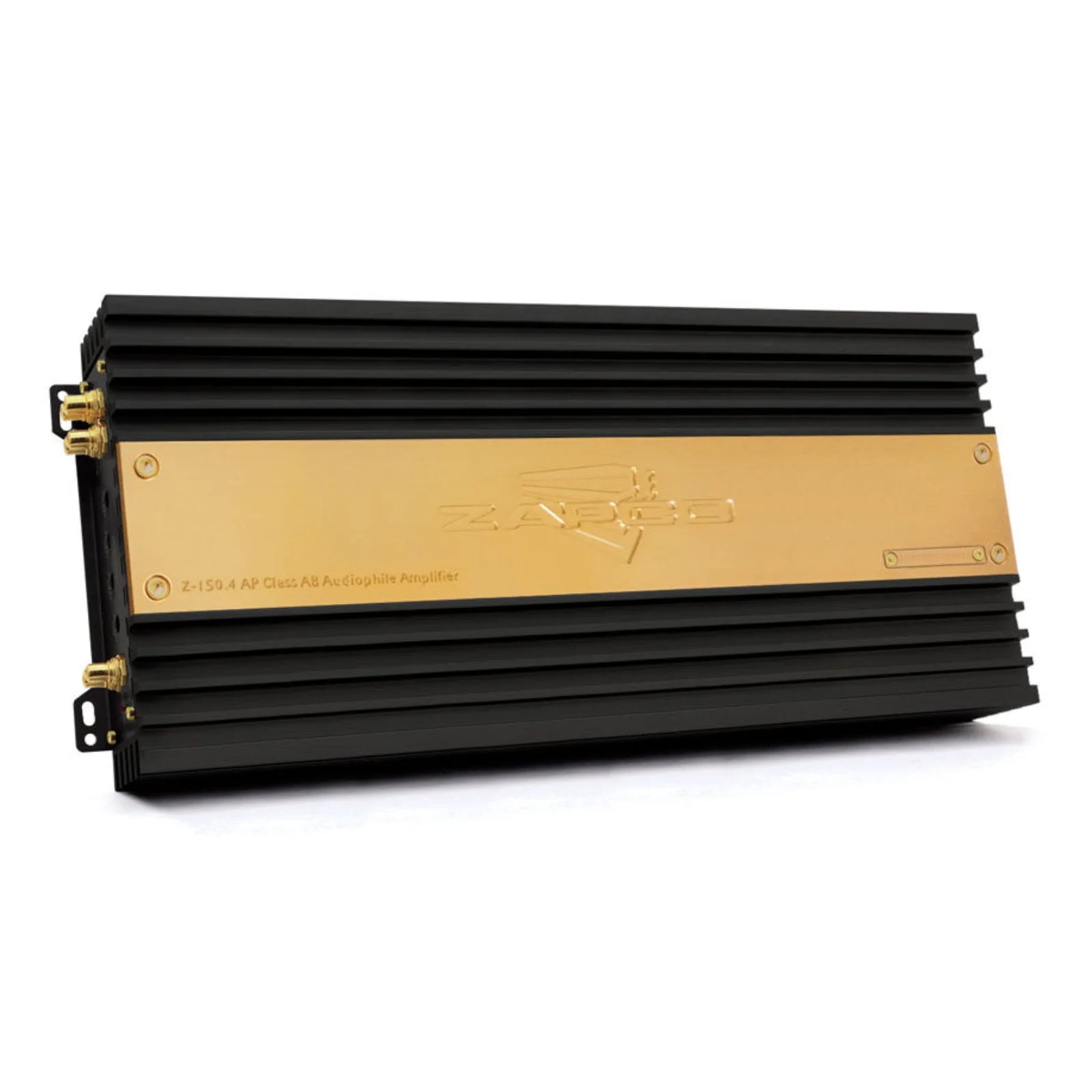

Zapco Z-150.4 AP Amp 4 Channel Class AB Bridgeable Amplifier 2x800w RMS
Z-150.4 AP
Sale price
£1,249.99
Regular price
£1,299.99
Save
£50.00
The Z-AP Series of Audiophile Amplifiers. Audiophile: An audio fanatic whose sole passion is accurate sound reproduction that brings all the purity of a live performance to recorded music.
Product Features:
Class AB Competition Audiophile Amplifiers, the ultimate Zapco Sound Quality Series
- 4-Channel, Class-AB, Competition Audiophile Amplifier
- Signal to noise ratio of over 110dB
- Coupled the output drivers
- Highest HFE (Gain) Sanken selected output devices
- Differential balanced input stage
- 0.1% resistors for lowest possible noise floor
- TI LME49720 (BJT) op-amps on the inputs
- TI LME49720 (BJT) op-amps in the signal path
- WIMA MKS2 series caps in the signal path
- Extremely low ESR caps throughout
- Proprietary patented RCA connectors
Specification:
- Power @ 4Ω: 4 x 150 watts
- Power @ 2Ω: 4 x 275 watts
- Power @ 1Ω: 4 x 400 watts *
- Power @ 4Ω Bridged: 2 x 550 watts
- Power @ 2Ω Bridged: 2 x 800 watts *
- THD @ Rated Power < 0.1%
- Signal to Noise Ratio > 110dB
- Frequency Response 10Hz to 30,000Hz ±1dB
- Input Sensitivity 1v to 9v
- Net Dimensions (mm): 190(W) x 62(H) x 440(L)
- Overall Dimensions (mm): 190(W) x 62(H) x 468(L)
*AP amplifiers are stable at 1Ω and 2Ω, bridged only when used with a music signal and with proper ventilation.
