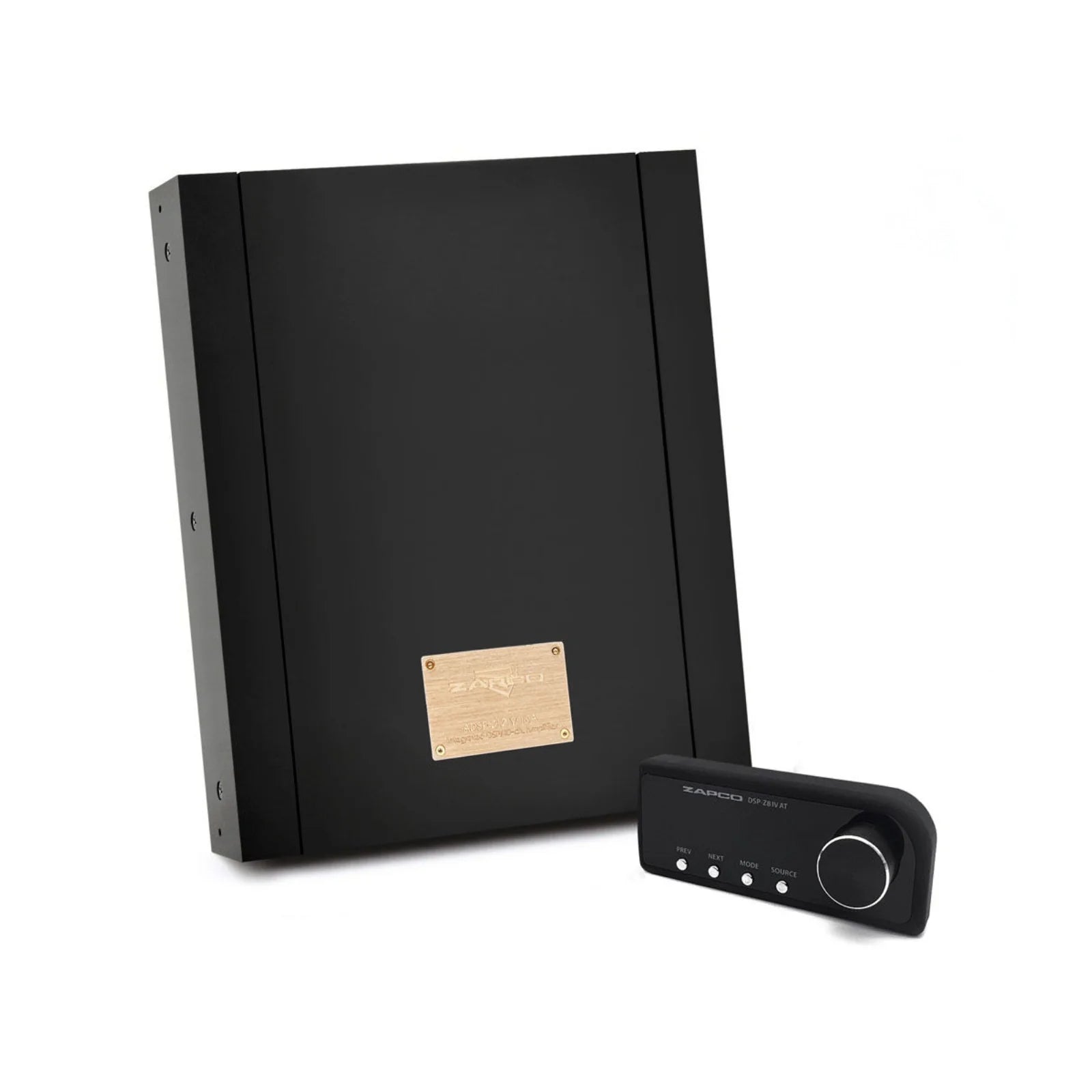

Zapco ADSP-Z16 IV-12A Integrated 16 Channel DSP 12 Channel Class D Amplifier
Some years ago, Zapco introduced the new DSP-Z8 IV signal processor. It was designed to bring true audiophile sound quality to an affordable DSP. The DSP-Z8 IV provided sound quality superior to units costing even twice as much. The DSP-Z8 IV has been a true giant killer. But, as we have always said, and always will say, We believe we can still do better. We firstly presented the DSP-Z8 IV II, and this year we present the Zapco DSP-Z8 IV AT and the ADSP-Z8 IV-6AT Amplifier. Whats new with the
You can only be as good as your source material, and the DSP-Z8 IV AT series greatly expands your potential for the best possible source material. The new coaxial and optical inputs accept the digital signal from your head unit or from a portable HD player. The DSP-IV AT units also have a port for HDBluetooth streaming (with the optional HD-BT module). An interactive digital port will expand your options even more.
The port accepts the control input from the included Dash Remote so you can change input source, select your song, control the master volume and even control the output of your system's bass amps. The new ADSP-Z8 IV-6AT amplifier has now 2 RCA outputs to feed the mono amp. About the GUI, the added Advanced menu also has a Mixing Set and an AutoTune function, when you add the optional tuning microphone
Product Features:
New features, new control... even improved sound quality.
- DSP Processor: Cirrus Logic CS47048
- Power: 150 MHz/32 bit/192 KHz
- 16-Channels
- ADC: Cirrus Logic CS47048 32 bit/192 KHz
- ADC Dynamic Range/THD: 108 dB/-98 dB
- DAC: Cirrus Logic CS47048 32 bit/192 KHz
- DAC Dynamic Range/THD: 140 dB/-120 dB
- Low level (Pre)/Sensitivity: 1-5 VRMS
- High Level (Spk In)/Sens.: 2-20 V
- Optical Digital IN: 24 bit-192 KHz
- Coaxial Digital IN: 24 bit-192 KHz
- Frequency Response (-3dB): 10 Hz - 22.5 KHz
- S/N Input: 110 dBA (D) - 106 dBA (A)
- S/N Ratio Amp + DSP at max. power: 95 dBA
- THD+N Input: 0,002% (D) - 0,005% (A)
- THD+N Amplif. + DSP Analog Input: 0,07 %
- Crosstalk at 1 Khz only DSP: 90 dB
- Crosstalk Amplifier + DSP: 45 dB
- Amp Power @ 4Ω: 12 x 80 watts
- Amp Power @ 2Ω: 12 x 120 watts
- Amp Power @ 4Ω Bridged: 6 x 240 watts
- F/R EQ: 1-6 ch Gr. & Par./31 poles
- Effect EQ: 7-8 ch Gr. & Par./11 poles
- Mute/Solo: Yes, each channel
- Time Align. (Range/Steps): 0/15 ms / 0.02 ms
- Max Delay (Cm/Steps): 515 cm / 0.68 cm
- Polarity: 0/180°
- Remote Control included
- HD-BT Streaming (with optional HD-BT II-D)
- PC/Display Connection: USB/6-pin Mini DIN
- Unit Dimensions: 213(W) x 291(L) x 50(H)
