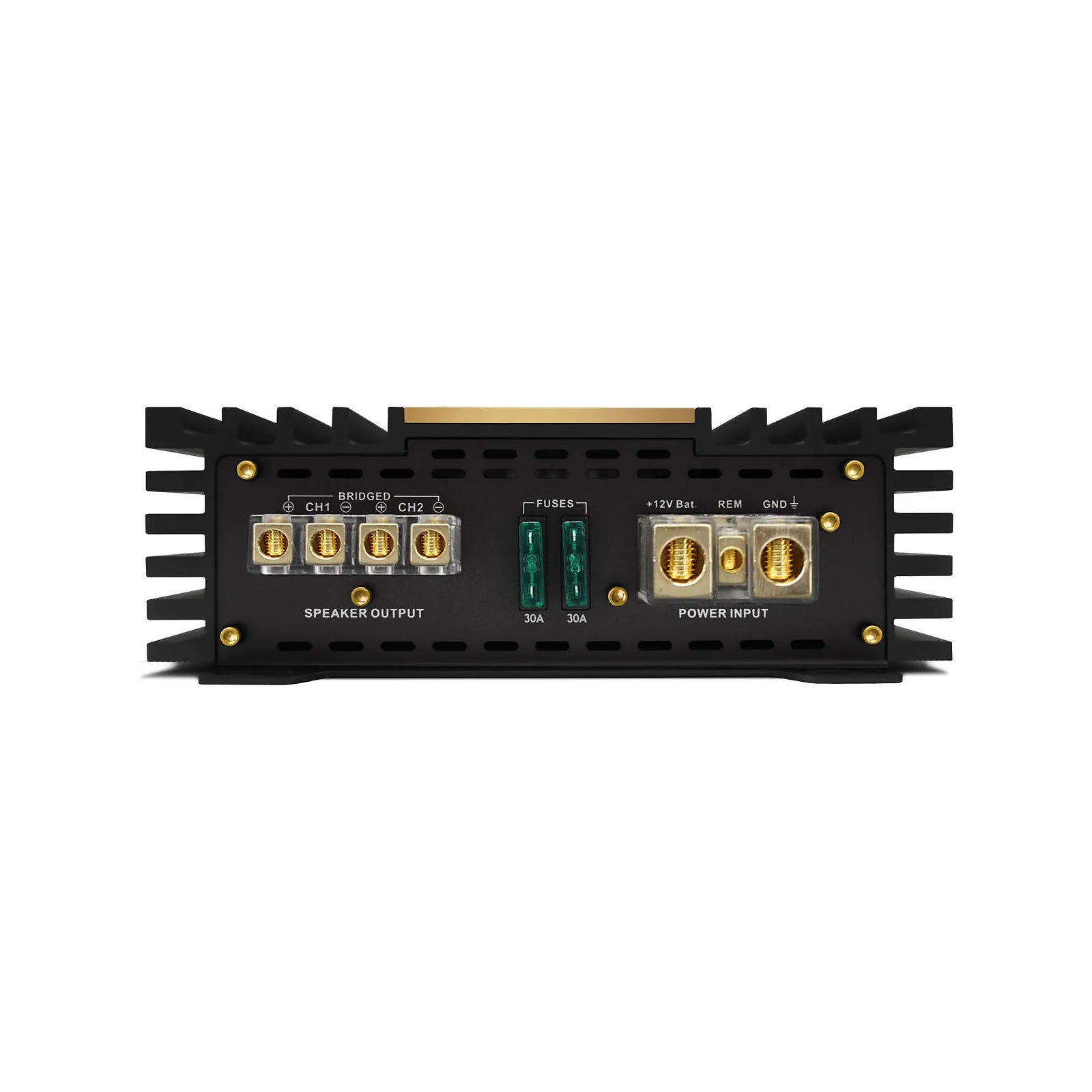

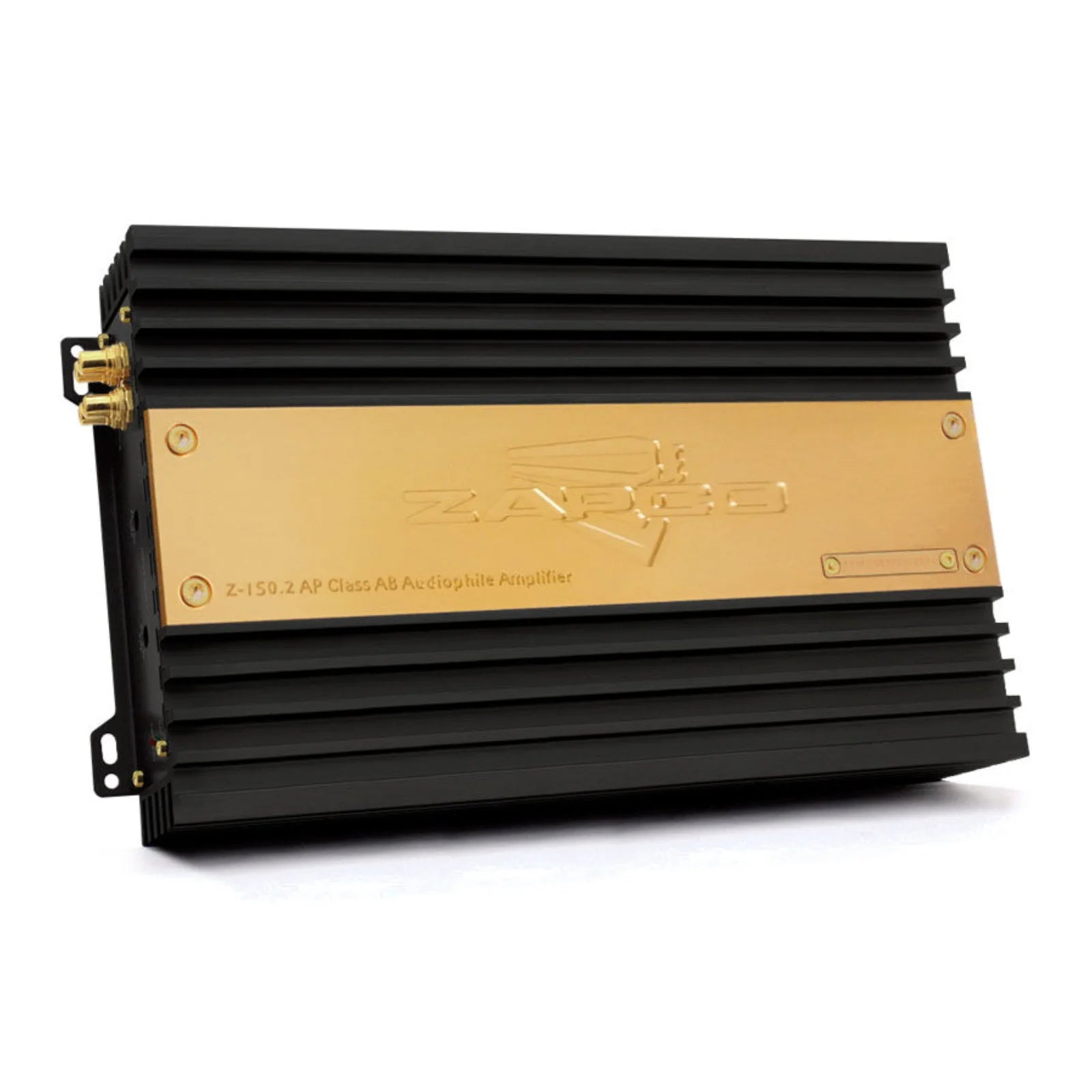

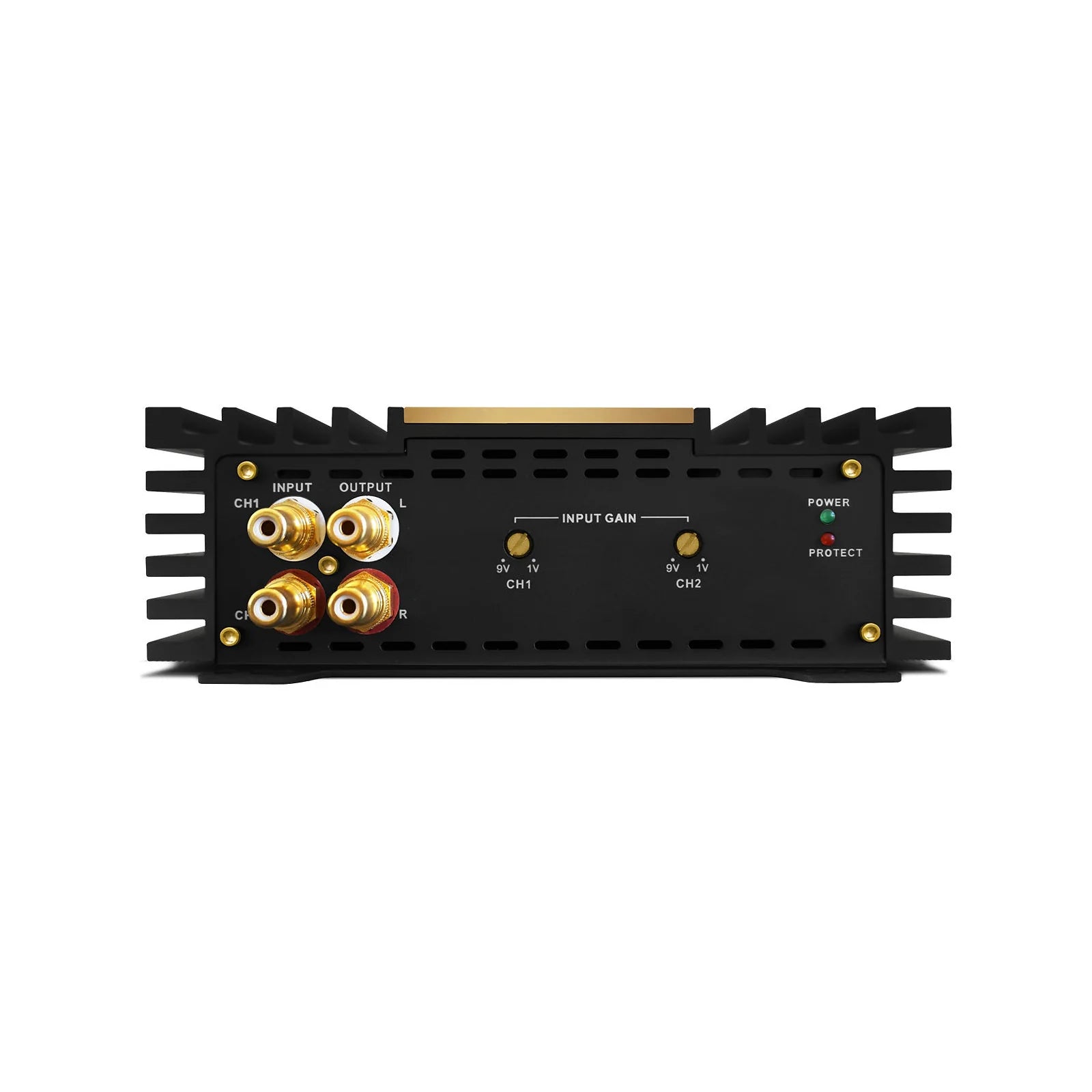

Zapco Z-150.2 AP Amp 2 Channel Class AB Bridgeable Audiophile Amplifier 1000w RMS

Class AB Competition Audiophile Amplifiers, the ultimate Zapco Sound Quality Series

• 2-Channel, Class-AB, Competition Audiophile Amplifier

• Signal to noise ratio of over 110dB

• Coupled the output drivers

• Highest HFE (Gain) Sanken selected output devices

• Differential balanced input stage

• 0.1% resistors for lowest possible noise floor
• TI LME49720 (BJT) op-amps on the inputs

• TI LME49720 (BJT) op-amps in the signal path
• WIMA MKS2 series caps in the signal path

• Extremely low ESR caps throughout

• Proprietary patented RCA connectors

Specification:

• Power @ 4Ω: 2 x 150 watts

• Power @ 2Ω: 2 x 275 watts

• Power @ 1Ω: 2 x 500 watts *

• Power @ 4Ω Bridged: 1 x 550 watts

• Power @ 2Ω Bridged: 1 x 1000 watts *

• THD @ Rated Power  < 0.1%

• Signal to Noise Ratio > 110dB

• Frequency Response 10Hz to 30,000Hz ±1dB

• Input Sensitivity 1v to 9v

• Net Dimensions (mm): 190(W) x 62(H) x 300(L)

• Overall Dimensions (mm): 190(W) x 62(H) x 328(L)

*AP amplifiers are stable at 1Ω and 2Ω, bridged only when used with music signal and with proper ventilation.
