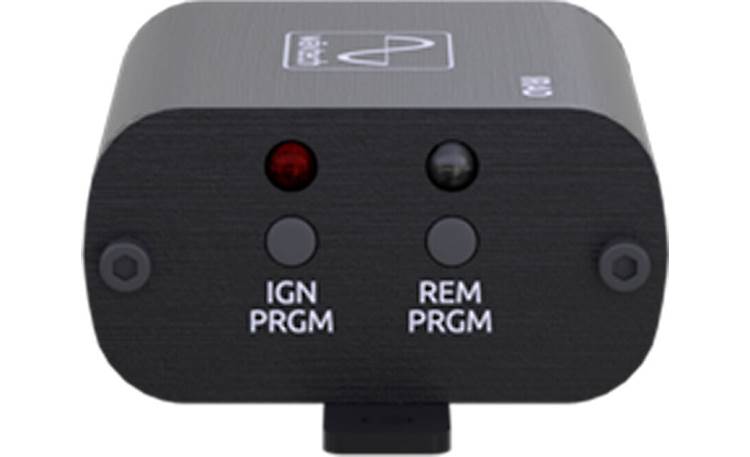

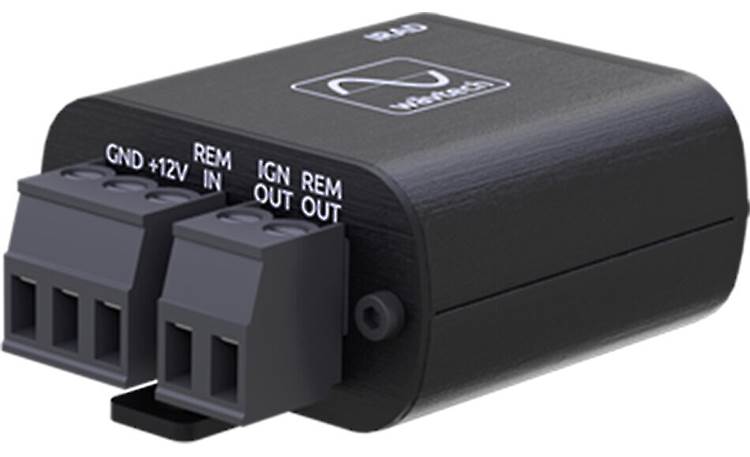

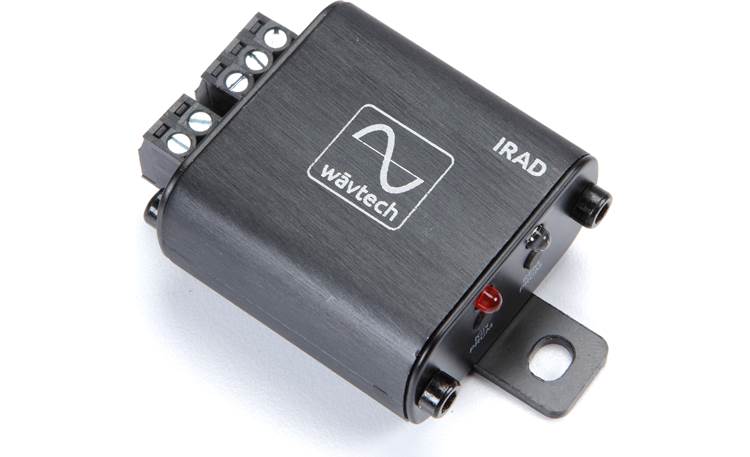

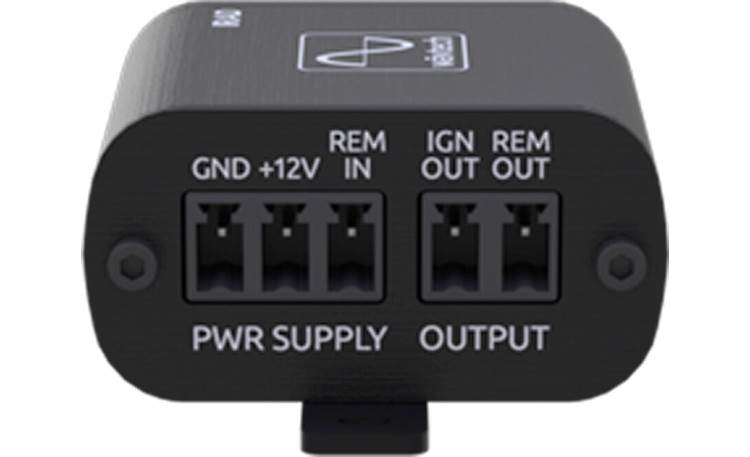

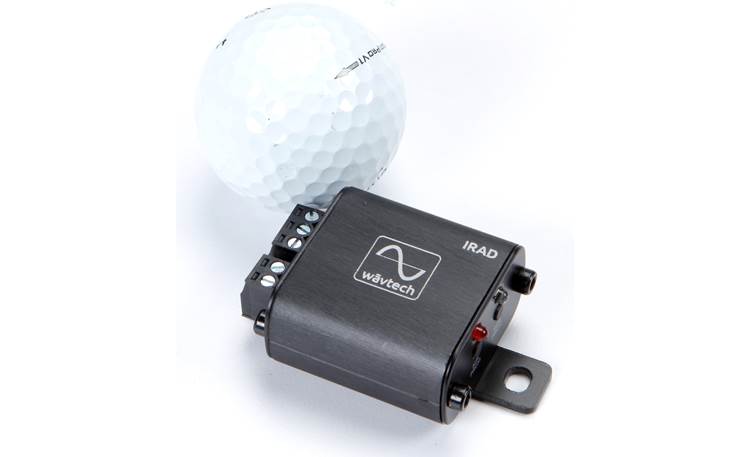

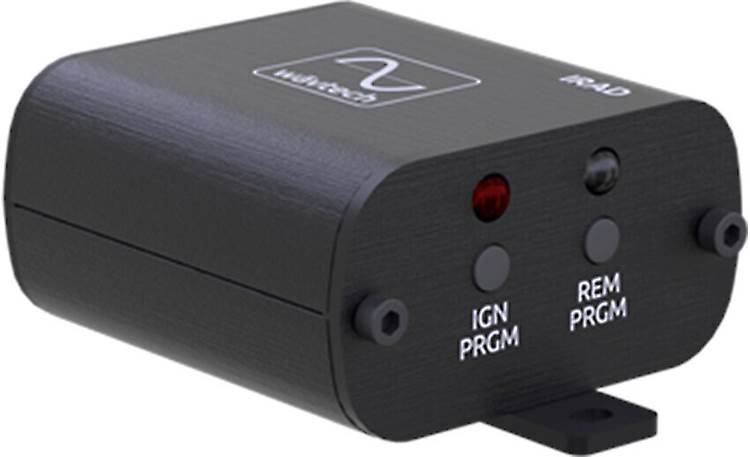

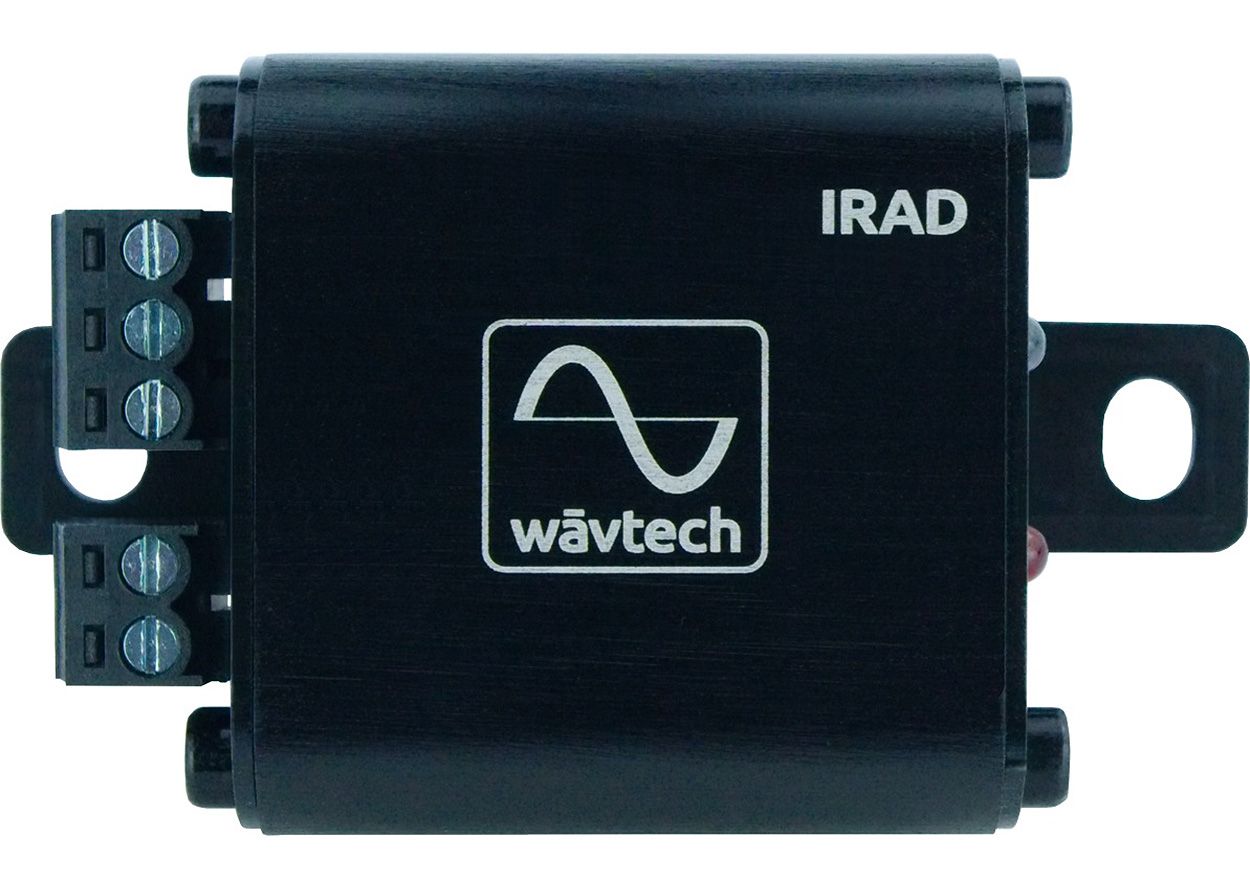

Wāvtech IRAD 12-volt source and secondary battery controller
IRAD
Sale price
£49.99
Regular price
£59.99
Save
£10.00
Integrating with a digital factory system
Let's say you want to put in your own aftermarket amplifier to upgrade your factory radio, but the system uses a digital data-bus for all its controls so there's no 12-volt trigger wire to use for the new amp's remote turn-on signal. Wāvtech's IRAD solves that problem and more, allowing you to add:
- A switched 12-volt output, that turns on and off with the car's ignition;
- A remote 12-volt output with adjustable delay, for avoiding on/off pop;
- A relay/solenoid control for a secondary battery that can overcome some of the issues experienced in start/stop engine systems by triggering a couple of relays and a solenoid (sold separately) to isolate the two batteries when cranking, connecting them together while running, and isolating them again when parked.
Product Features:
-
Automatic 12V Ignition Detection and +12V Output Generation
-
Generated +12V Remote Output (direct or linked to IGN)
-
Stop-Start Relay/Solenoid Control Mode
-
Independent Adjustable IGN & REM Turn-On/Off Delays
-
>750mA Continuous Current Per Output
-
Compact Aluminum Chassis w/Detachable Mounting Tabs
-
Locking Detachable Terminals
-
Chassis Dimensions: 0.79”x1.5”x1.5” (20x38x37mm)
What's in the box:
- Ignition-Remote Generator
- 2 Phoenix terminals (installed)
- 2 Mounting tabs (installed)
- Two ½" Screws
- Ground ring terminal
- Owner's manual
