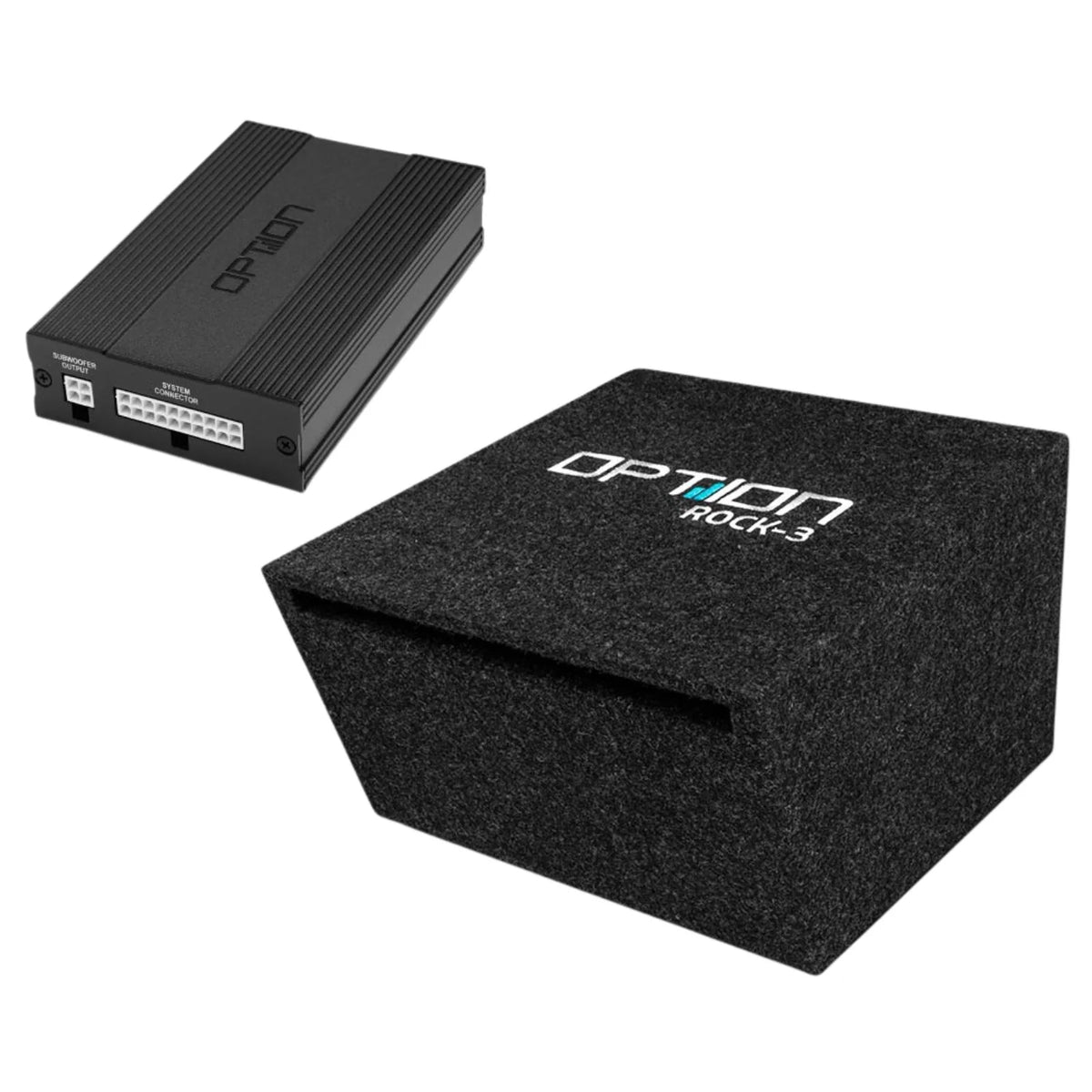

VW Crafter II, MAN TGE Option Audio Plug & Play Amp & Subwoofer
Sound system for VW Crafter 2 / MAN TGe | DSP power amplifier + subwoofer | Plug & Play
This sound system brings new sound to your VW Crafter 2 or MAN TGE - simple, well thought-out and completely without modifications to the vehicle. Ideal for vehicles with swivelling seats: The ROCK-3 subwoofer disappears inconspicuously into the seat console and still delivers powerful bass.

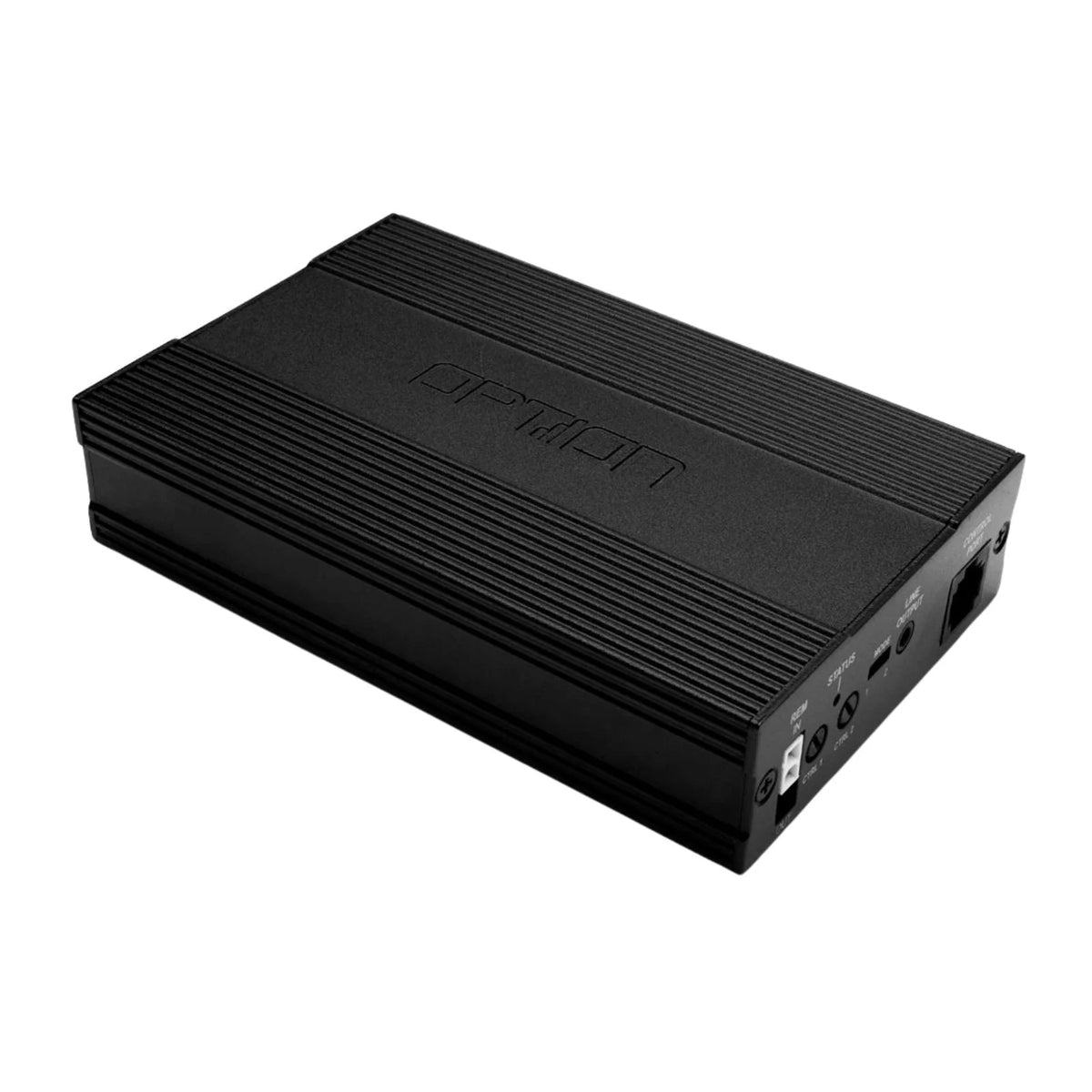

DSP6 power amplifier | Plug & Play with factory speakers
The DSP6 power amplifier delivers 6 x 60 watts RMS and is fully pre-configured for the Crafter 2 / TGE. It controls the front system fully actively - separately for woofers and tweeters. You can optionally add new speakers and door insulation to your setup at a later date.
The connection is made via a vehicle-specific cable set to the factory radio - no separate cable to the battery is required. This saves time and preserves the original wiring. Thanks to Auto Sense, the power amplifier switches on automatically.
Features
- 6 x 60 watts RMS @ 4 ohms (fully active for front systems)
- Optional: 4 x 60 watts + 1 x 120 watts (subwoofer mode)
- 8-channel DSP with preconfigured sound setup
- Auto Sense function
- Efficient - no separate power cable required
- Compact: 94 x 149 x 32 mm (with mounting bracket: 118 x 149 mm)
More specs
- 6 x 60 watts RMS @ 4 ohms (fully active for front systems)
- 8-channel DSP with preconfigured sound setup
- Auto Sense function
- Efficient - no separate power cable required
- 20 cm bandpass subwoofer (passive)
- 130 watts RMS, 2x 4 ohms
- Fits under the swivel seat console
- Bandpass with bass reflex port to the front
- Direct connection to DSP6 via Plug & Play

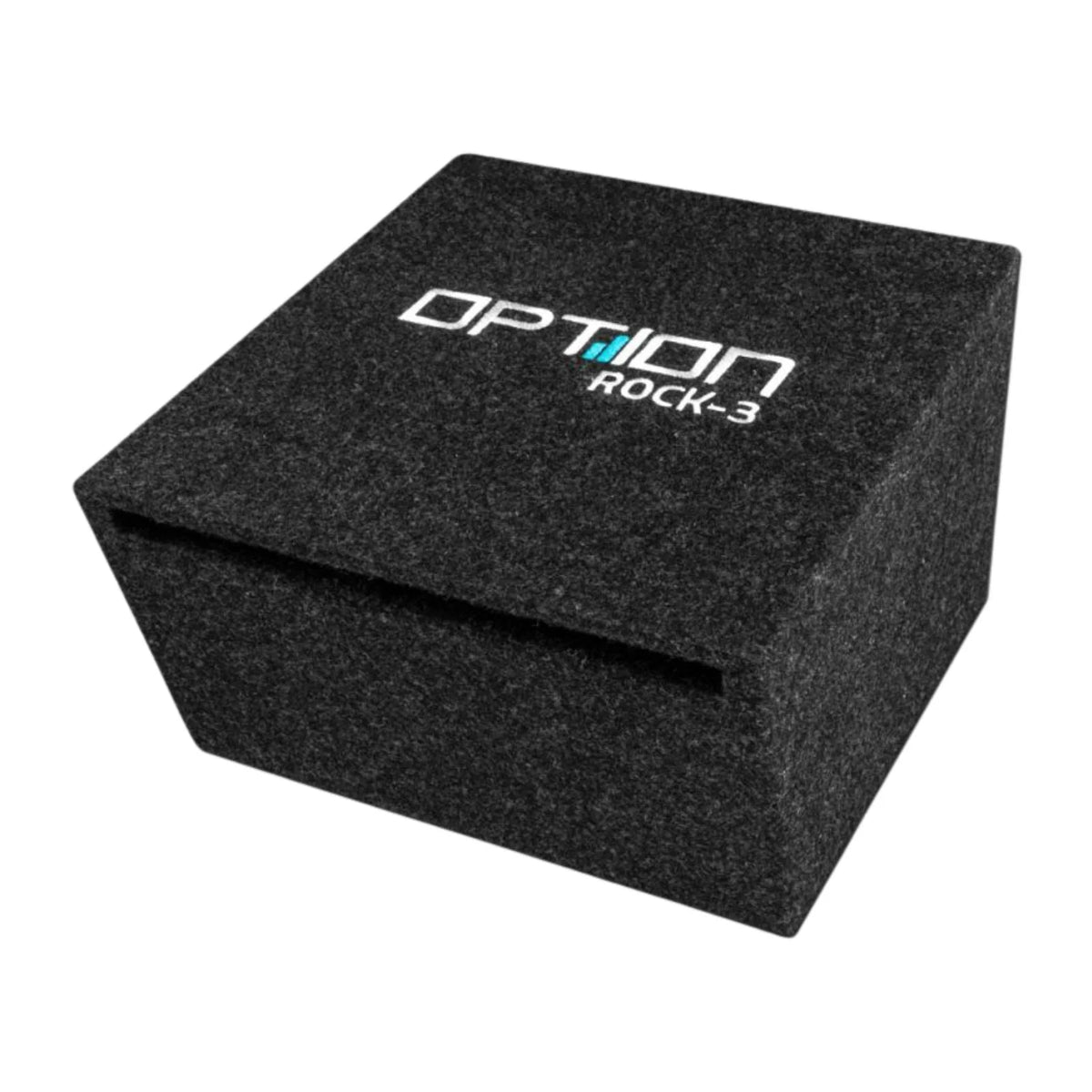

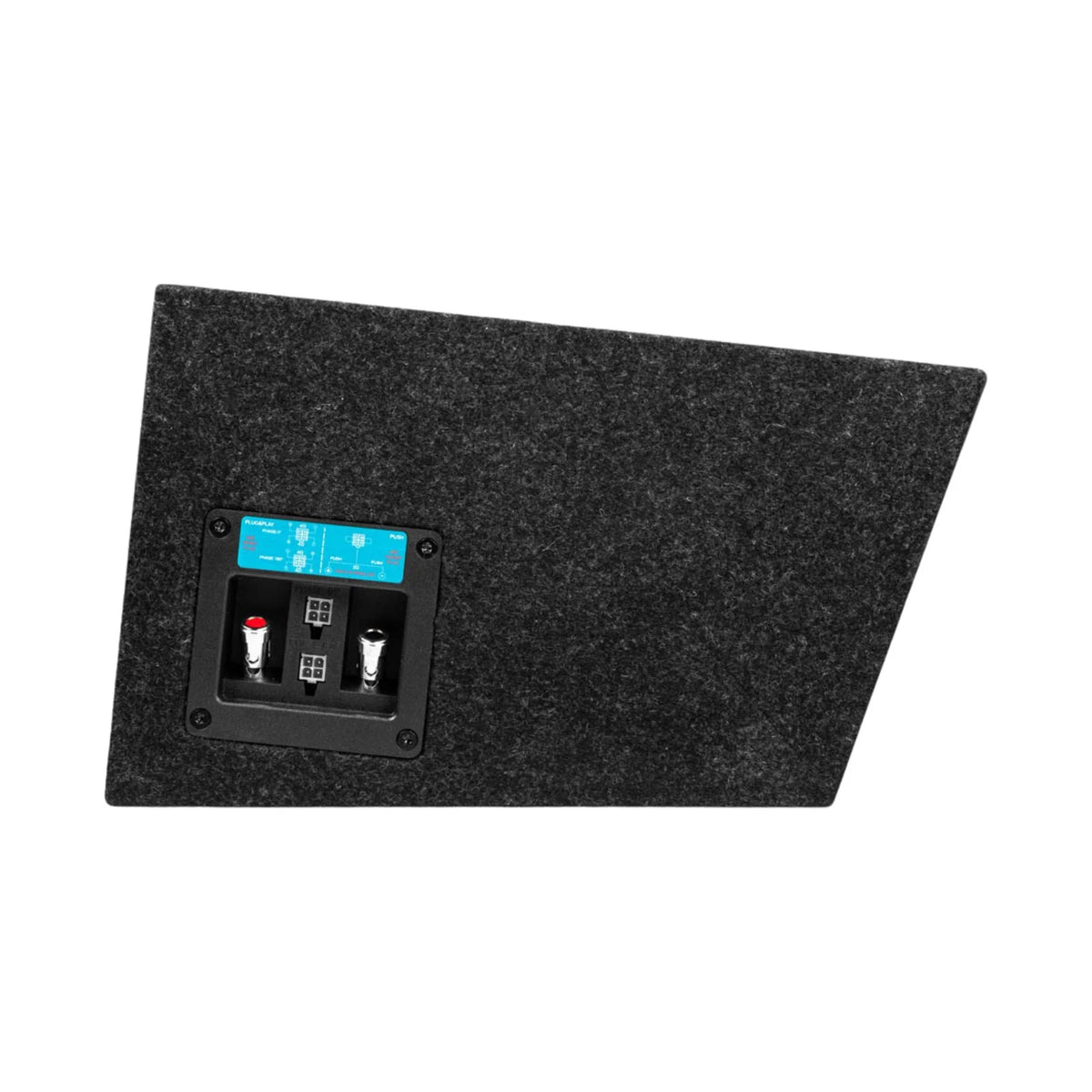

ROCK-3 subwoofer | Hidden, effective and coherent
The ROCK-3 is a passive 20 cm bandpass subwoofer that can be mounted inconspicuously under the swivel seat console. Installation is simple; the result is impressive - especially for such a compact design.
Technical Data
| Optional | 4 x 60 watts + 1 x 120 watts (subwoofer mode) |
|---|---|
| Compact | 94 x 149 x 32 mm (with mounting bracket: 118 x 149 mm) |
What's Included:
- OPTION DSP6 power amplifier (with vehicle setup)
- ROCK-3 subwoofer (bandpass, passive)
- Molex intermediate adapter (must be plugged in!)
- PP-MQS-1.4 active plug & play cable set (incl. power supply)
- 5 m subwoofer cable (052.003-3)
- Insulating tape
- Pull-through tape
- G150 de-pinning tool
- Torx set
