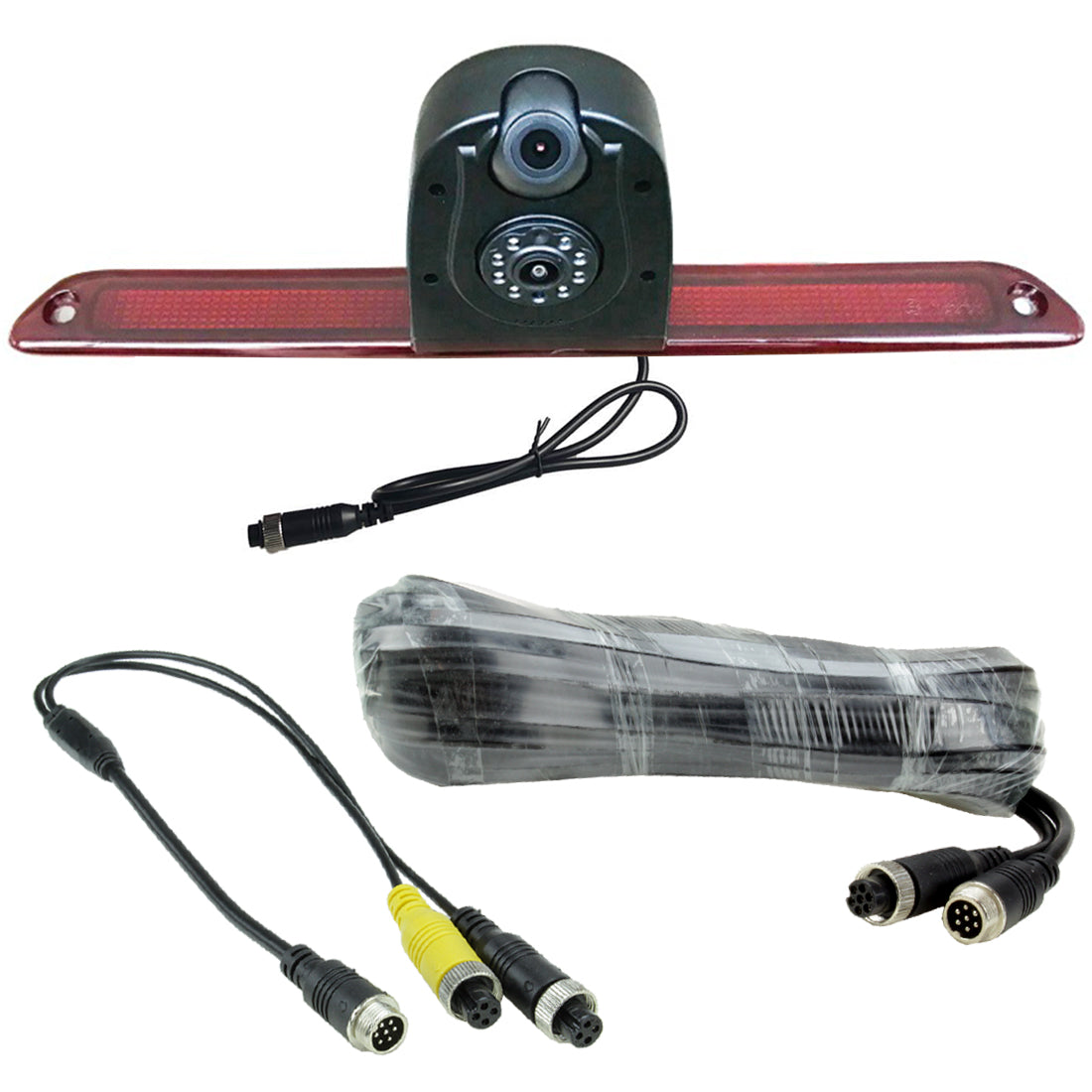

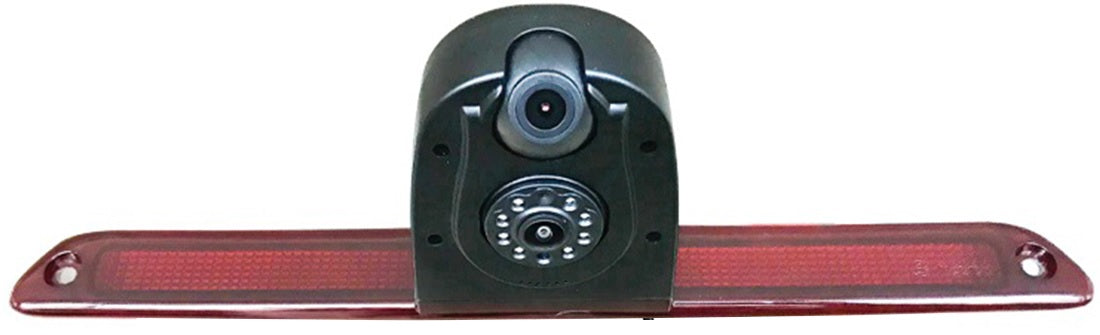

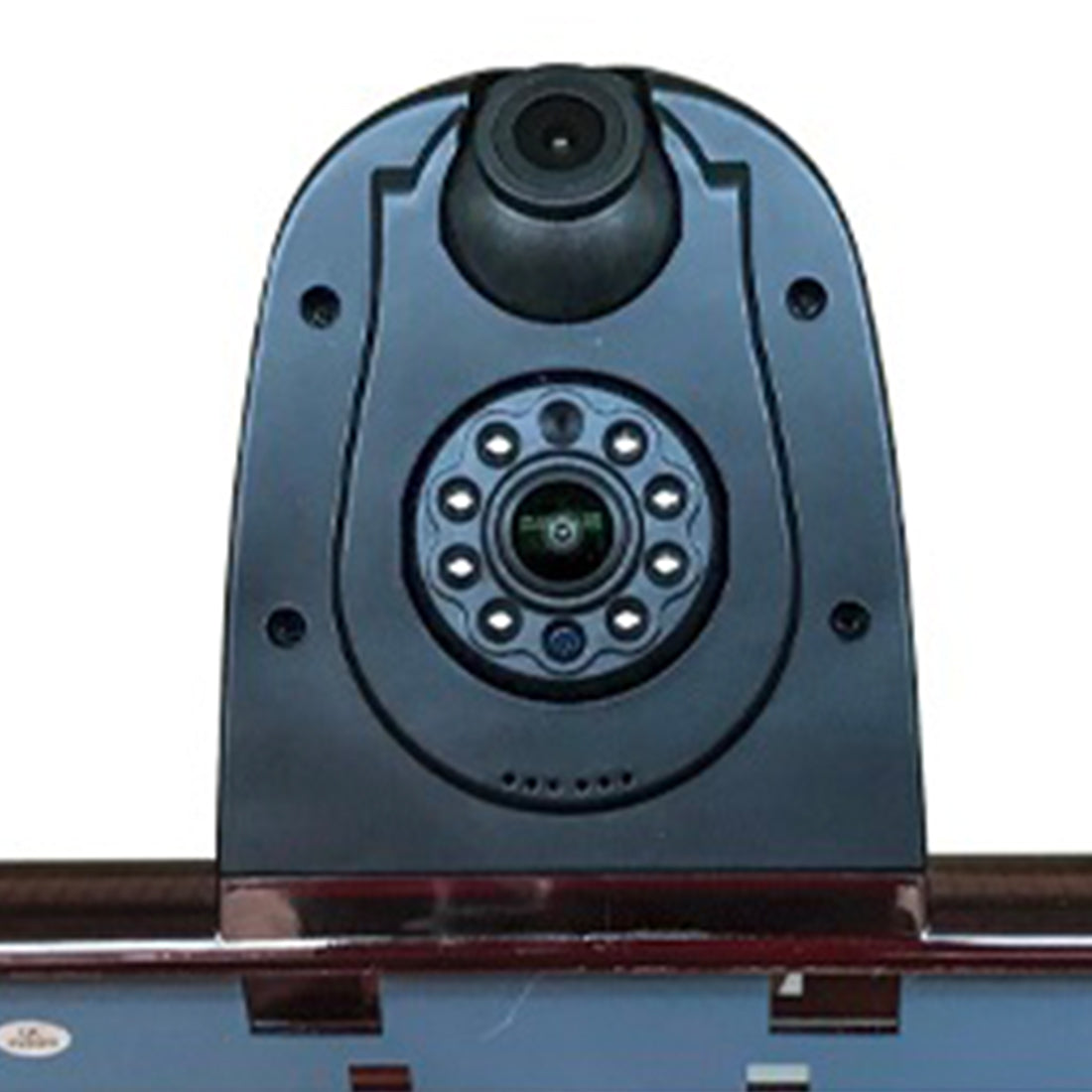

VW Crafter Typ 2E/2F 2006-2016 Dual Lens Reverse/Driving Camera CAM-VW12
Connects2 CAM-VW12 Reversing Camera
The CAM-VW12 is a dual lens reversing/driving camera specially designed for the 2006 to 2016 Volkswagen Crafter. With this camera drivers can livestream the rear of the vehicle to the cab while in motion, this view also aids in reversing manoeuvres. The CAM-VW12 uses a 1/3” image sensor and is IP68 rated meaning it will withstand ordinary weather conditions with ease.
Product Specifications:
Reversing Camera
• Resolution: 580 TV Lines
• Total Pixels: 648 x 488 pixels
• Lens size: 1.8mm
• Image Sensor: Colour 1/3” CMOS
• Night Vision Distance: 35ft
• Waterproof Rating: IP68
• Viewing Angle: Vertical: 80° Horizontal: 145° Diagonal: 175°
• Lens Adjust: 20° (Vertical movement only)
• Video Output: 1.0 Vp-p/75 Ohm
• Power Rating: 12V
Driving Camera
• Resolution: 580 TV Lines
• Total Pixels: 648 x 488 pixels
• Lens size: 3.6mm
• Image Sensor: Colour 1/3” CMOS
• Night Vision Distance: –
• Waterproof Rating: IP68
• Viewing Angle: Vertical: 55° Horizontal: 80° Diagonal: 110°
• Lens Adjust: 30° (Vertical movement only)
• Video Output: 1.0 Vp-p/75 Ohm
• Power Rating: 12V
Compatible with the following vehicles:
| Make | Model | Model Note | Years | Headunit | Connector |
|---|---|---|---|---|---|
| VW | Crafter | Typ 2E/2F | 2006 – 2016 | N/A |

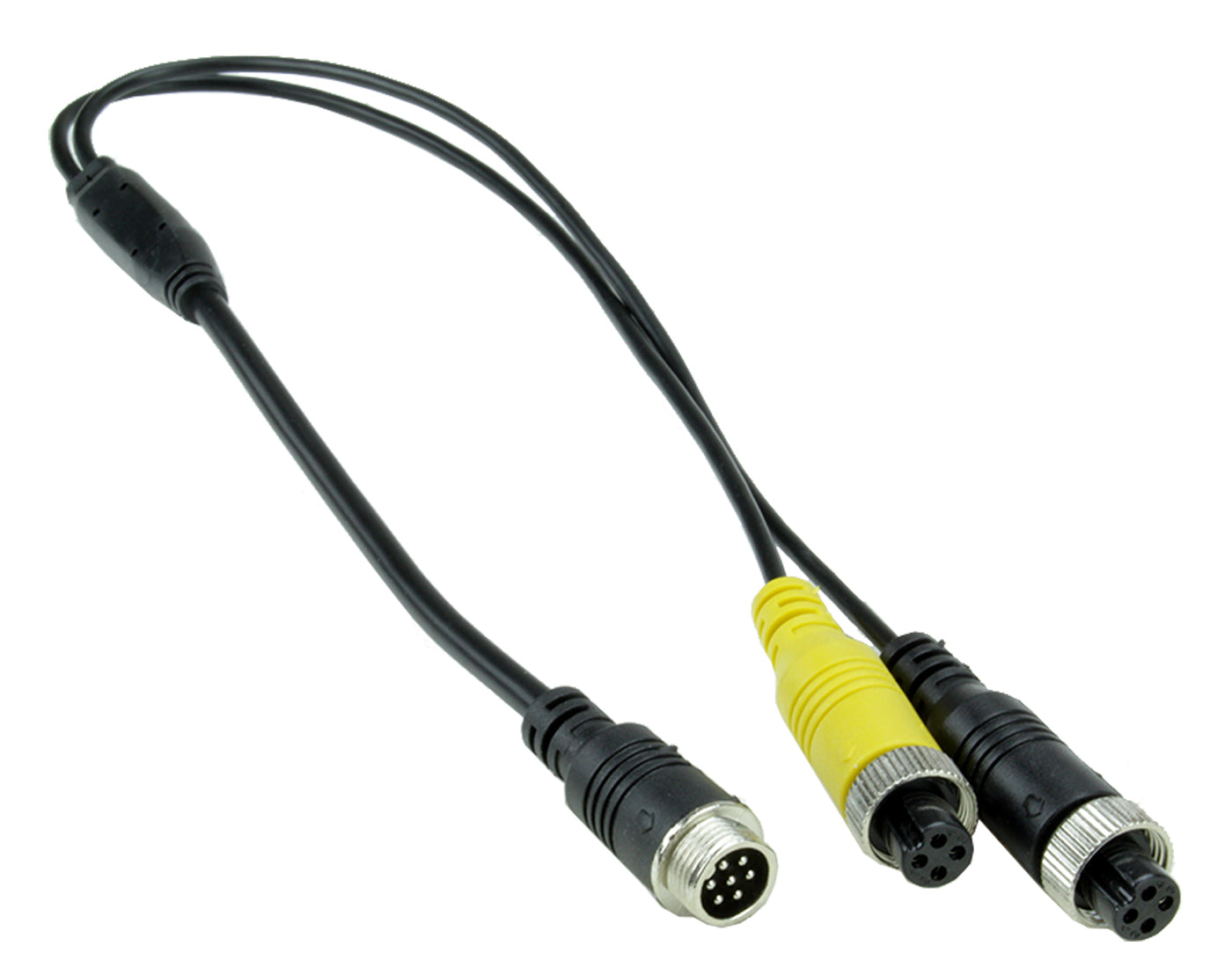

Please note: 2x CAM-RCA1 is needed for installation. Sold separately.
