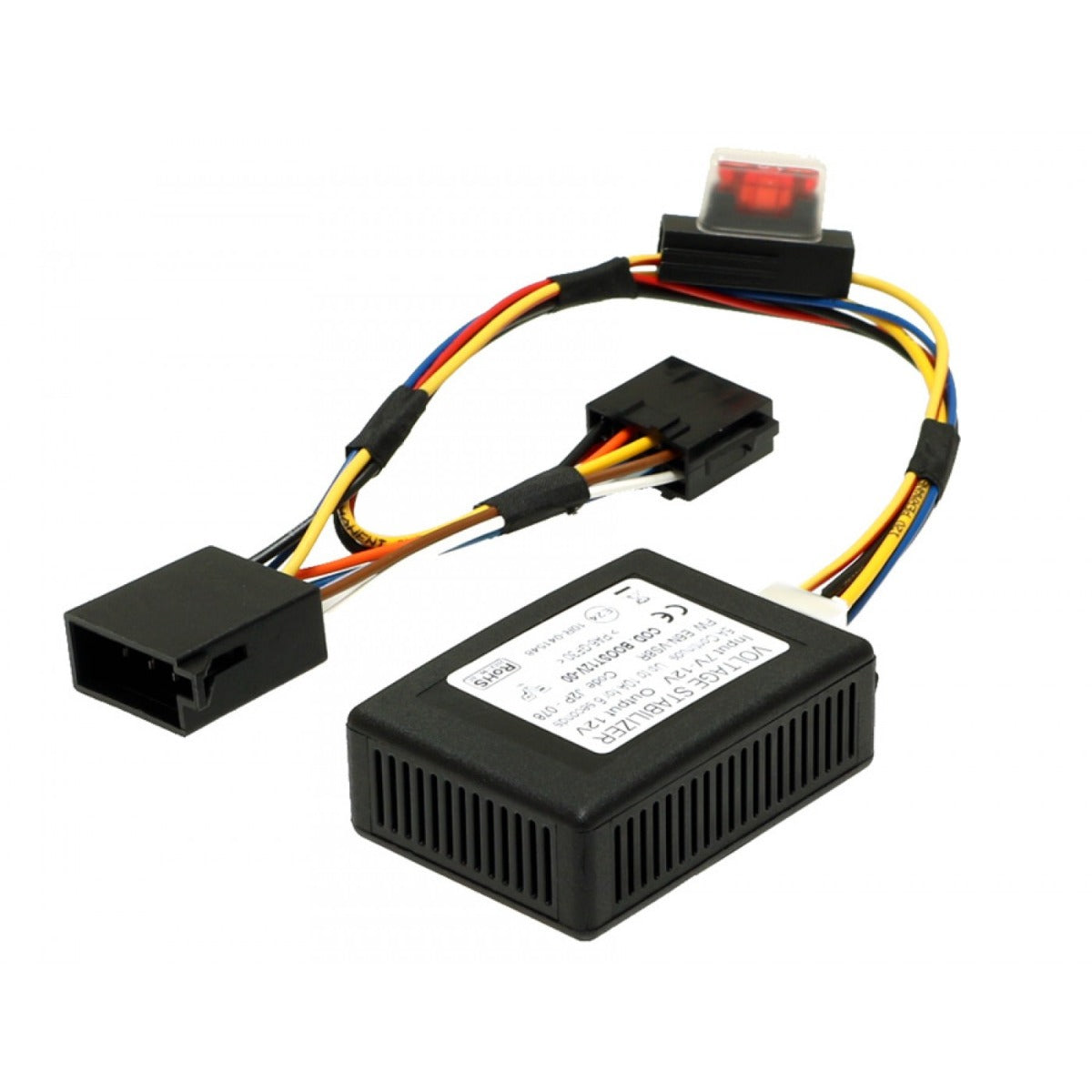

Voltage Stabiliser for vehicle with “start/stop” technology 10-603

InCarTec 10-603 Start Stop Voltage Stabiliser

Plug and play voltage stabiliser on ISO power cable for use with aftermarket car radios on "start-stop" cars for cars that have  both ignition and permanent feeds drop off during engine crank

Features

• Operating input voltage 7vdc to 12vdc
• Permanent out current 5amp continuous, up to 10amp for 6 seconds
• Switched out 100mA

Wired As Follows:

• Yellow /Red  7-12v dc BATT input , Blue 7-12v dc IGN input, Yellow 12v output permanent, Red 12v out IGN, Black   Ground
