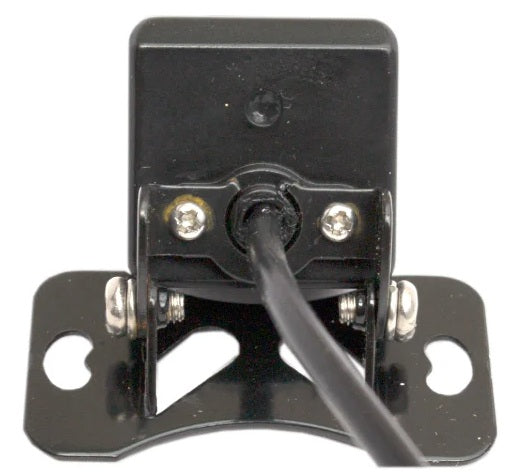

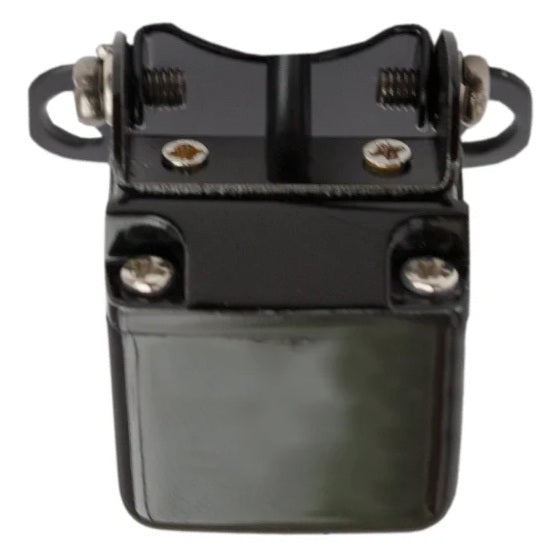

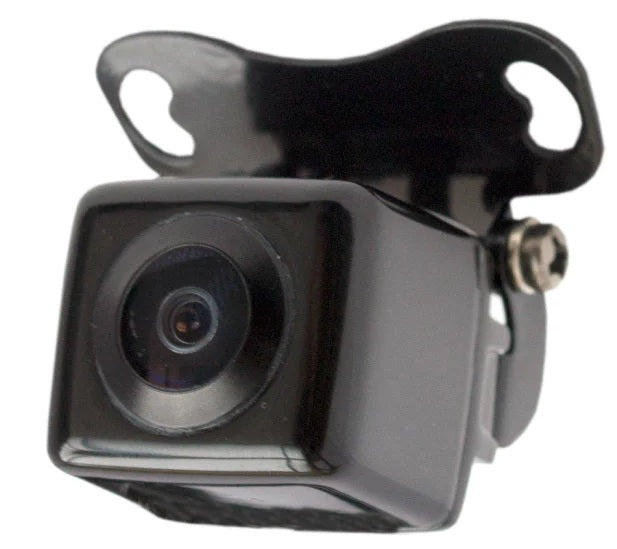

Universal Rearview CMOS Pivoting Reverse Camera Vertical Adjustment CMM116

The CMM116 is a universal surface-mounted rear-view camera with vertical adjustment, suitable for fitment to most cars and vans. Featuring a ¼” CMOS sensor, 420 TV Lines and 648 x 488pix resolution the camera provides a full colour high res image, with parking lines available to further assist the driver with rearward manoeuvres.

The MM116 is also IP66 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from - degrees C to + degrees C.

Features & Benefits

Universal Adjustable Bracket Reversing Camera essential

Essential Specification:

• CMOS 1/4" image lens
• NTSC / PAL
• Optional gridlines
• Optional mirror image
• 420 TV lines
• IP66 waterproof rating
• 170° Viewing Angle
• Upto 60FPS
• Adjustable Bracket
• Dimensions - 30mm x 35mm

Vehicle Application:
Universal, cars and vans
