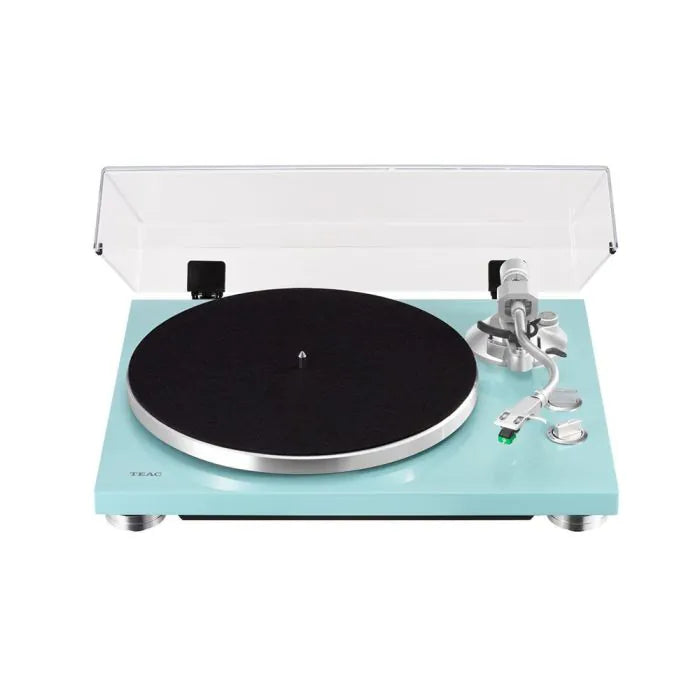

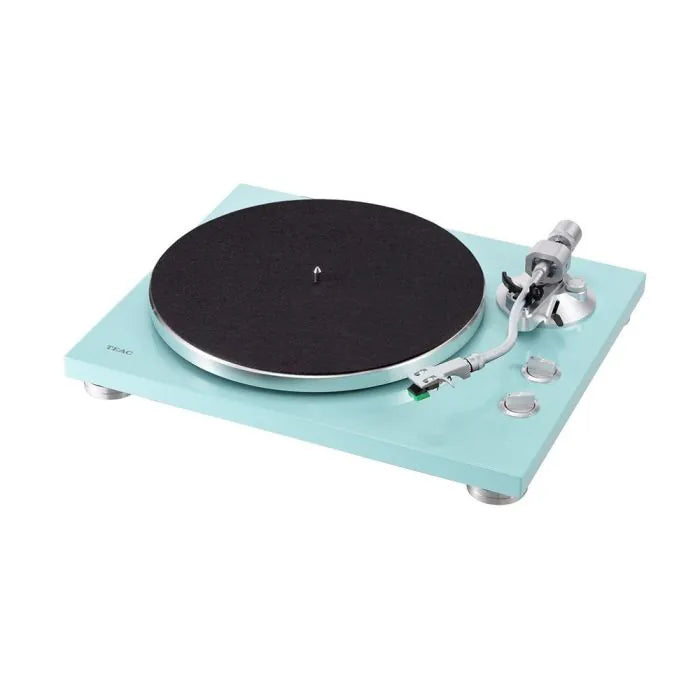

TEAC TN-400BT-X Analog Turntable with Bluetooth Turquoise
Aluminum die-cast platter with 3-speed belt-drive
A die-cast, high-inertia aluminum platter is driven by a high-torque DC motor via a durable rubber flat-belt, giving immensely stable playback at 33-⅓, 45 and 78 rpm speeds.
New low-resistance spindle
A precisely-machined stainless steel spindle and durable brass bearing maintain accurate rotational speed, thanks to reduced friction.
Natural walnut veneer finish with laser-engraved logo
The TN-400BT-X is available in natural varnished walnut veneer finish with laser-engraved TEAC logo.
Built-in Phono EQ amplifier
The TN-400BT-X has an onboard Phono EQ amplifier that supports MM-type cartridges, allowing the deck to be connected to conventional amplifiers/micro systems that lack a dedicated turntable input. The Phono EQ amplifier employs a hi-fi quality NJM8080 op-amp chip (designed by JRC) which amplifies the tiny audio signal from the stylus with the minimum of distortion.
S-shaped static-balanced tone-arm
The S-shaped, static-balanced aluminum tone-arm is equipped with a counterweight and anti-skating mechanism that allow an exact setting of balance as well as tracking pressure, ensuring accurate tracking during playback. A tone-arm lifter is also fitted for smooth lowering of the tone-arm onto records.
The tone-arm takes universal-type headshells so users can change cartridges with relative ease. In order to reduce signal losses between the tone-arm and the headshell, gold-plated contact points are employed, to help deliver an uncorrupted audio signal.
Bluetooth® wireless audio streaming with Qualcomm® aptX™ Adaptive codec
The TN-400BT-X's Bluetooth® wireless transmission system supports the higher quality Qualcomm® aptX™ Adaptive codecs, as well as the conventional SBC codec. This means that even if users don't have a hi-fi system, then can still enjoy truly high-quality vinyl replay via Bluetooth®-equipped headphones or speakers. Connecting the TN-400BT-X to Bluetooth® headphones or speakers is achieved very simply, at the touch of a button. A single-function pairing key and an associated LED indicator provide simple and clear confirmation of the connection status.
Beautifully detailed
The TN-400BT-X brings elegance to the process of playing a record. The machined aluminum operation knobs ooze quality while the aluminum feet, attached to high-density MDF chassis via shock-absorbing rubber, provide a high resistance to feedback.
MM-type Cartridge from audio-technica
The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminum cantilever, which helps deliver an accurate, highly musical standard of playback.
MM-type Cartridge from audio-technica
The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminum cantilever, which helps deliver an accurate, highly musical standard of playback.
Features
• Robust high-density MDF plinth provides both vibration isolation and elegance
• Available in a selection of contemporary matt finishes, or a natural walnut veneer
• 3-speed belt-drive mechanism with aluminum die-cast platter (33-⅓, 45, 78 rpm)
• Low-resistance spindle for stable rotational speed
• Static-balanced S-shaped tone-arm with universal-type headshell
• Pre-installed MM-type AT95E cartridge from audio-technica
• Built-in Phono EQ Amplifier
• High-quality Bluetooth® Qualcomm® aptX™ and Qualcomm® aptX™ Adaptive wireless audio transmission
• Floating-construction using decoupled feet provides high feedback resistance
• Machined aluminum operation knobs and feet
• Gold-plated RCA jacks (for LINE/PHONO output) and tone-arm contacts
• GND terminal on rear panel
• RCA audio cable with GND wiring included
*This product does not have a USB digital output.
Features
Turntable Section
• Type: Belt Drive
• Motor: DC Motor
• Rotation Speeds: 33-⅓, 45, 78 rpm
• Wow-and-Flutters: 0.2%
• S/N Ratio: more than 67dB (A-weighted), 60dB (unweighted, 20kHz, LPF)
• Turntable (Platter): Material Aluminum Die-cast, Diameter 30cm
Tone-arm Section
• Type: S-shaped, Static-balanced
• Effective Length: 223mm
• Needle Pressure Range: 0g to 5g
• Compatible Cartridge Weight: 4g to 8g, 14g to 18g (including Head-shell)
Head-shell and Cartridge Sections
• Model of Cartridge: audio-technica AT95E
• Type of Cartridge: MM-type (VM-type)
• Frequency Response: 20Hz to 20,000Hz
• Output Voltage: 3.5mV (1kHz, 5cm/sec.)
• Channel Separation: 20dB (1kHz)
• Output Balance: 2.0 dB (1kHz)
• Needle Pressure: 1.5g to 2.5g (appropriate value: 2.0g)
• Needle Life: approx. 300 hours (depends on conditions)
• Coil Impedance: 2.8kohms (1kHz)
• DC Resistance: 410ohms
• Loading Resistance: 47kohms
• Loading Capacity: 100 to 200pF
• Coil Inductance: 400mH (1kHz)
• Static Compliance: 20 × 10-6cm/dyne
• Dynamic Compliance: 6.5 × 10-6cm/dyne (100Hz)
• Needle Shape: Joint-oval 0.3 × 0.7mil
• Cantilever: Aluminum Pipe
• Vertical Tracking Degree: 20 degrees
• Overall Dimensions: 17.0(W) × 17.2(H) × 30.5(D) mm
• Weight: 5.7 g
• Head-shell Weight: 10g (including nuts, screws, and wires)
Analog Output section
• Connectors: RCA jack × 1 pair (Gold-plated)
• Output Voltage: PHONO 3.5mV +/-3dB, LINE 155mV (-16dBV)
Bluetooth® section
• Bluetooth version: 5.2 (DUAL MODE)
• Profile: A2DP
• Codecs: SBC, Qualcomm® aptX™ audio, Qualcomm® aptX™ Adaptive
Operation Power
• AC Adapter Input: AC 100 - 240V, 50/60Hz
• AC Adapter Output: DC 12V 500mA
Others
• Power Consumption: 1.5W or less
• Standby Power: 0.5W or less
• Dimensions (including protrusions): 420(W) × 117(H) × 356(D) mm / 16.5"(W) × 4.6"(H) × 14.0"(D)
• Weight: 4.9kg / 10.8lbs
• Operating temperature range: 5°C to 35°C
• Included Accessories: Felt Mat, EP Adapter, Counter Weight, Headshell (audio-technica AT95E installed), Platter, Dust Cover, Dust Cover Hinges × 2, RCA Audio Cable with GND wiring, AC Adapter (GPE053A-V120050-Z), Owner's Manual (including Warranty Card)
Product Code: TN-400BT-X/TB
