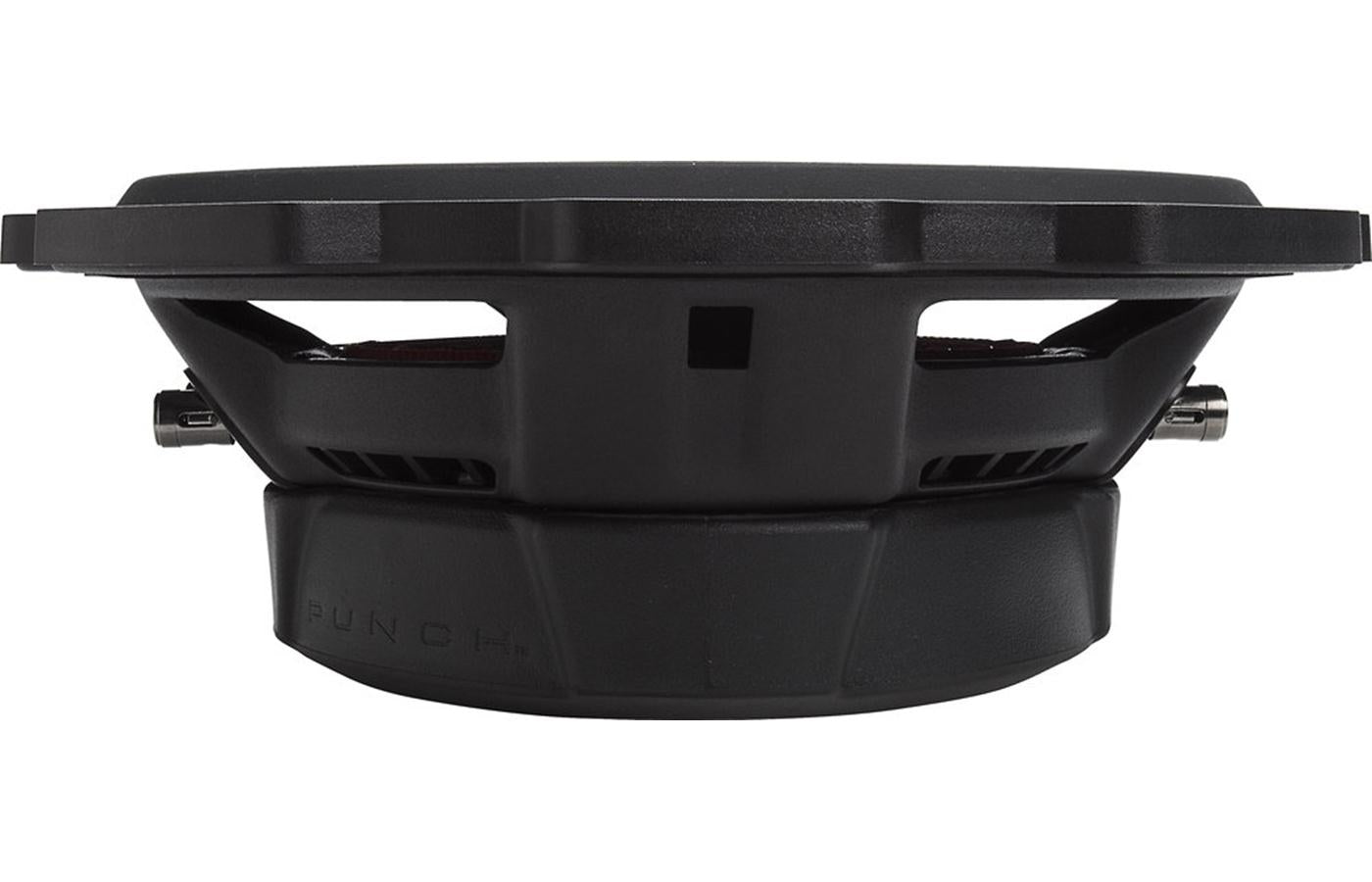

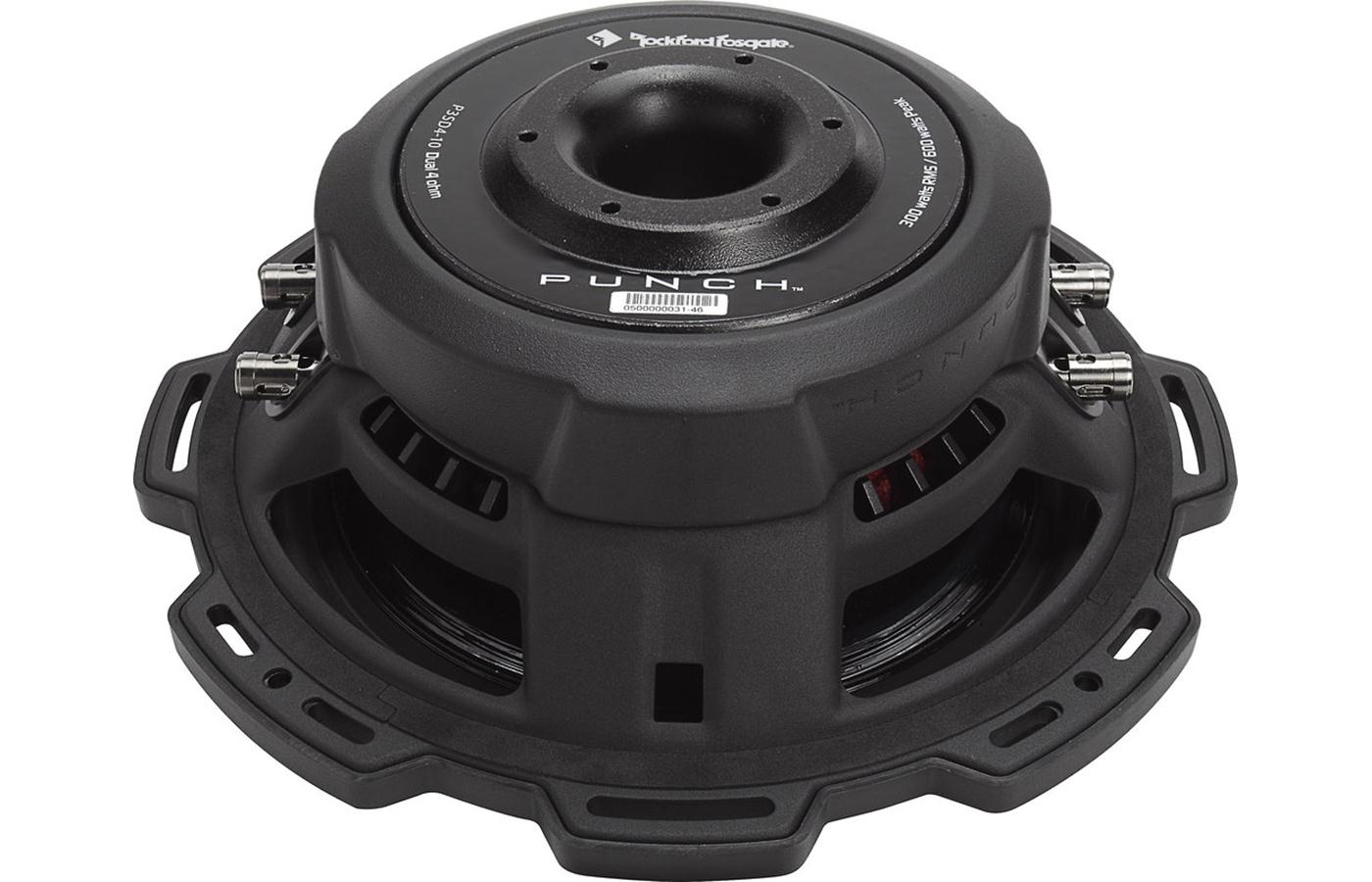

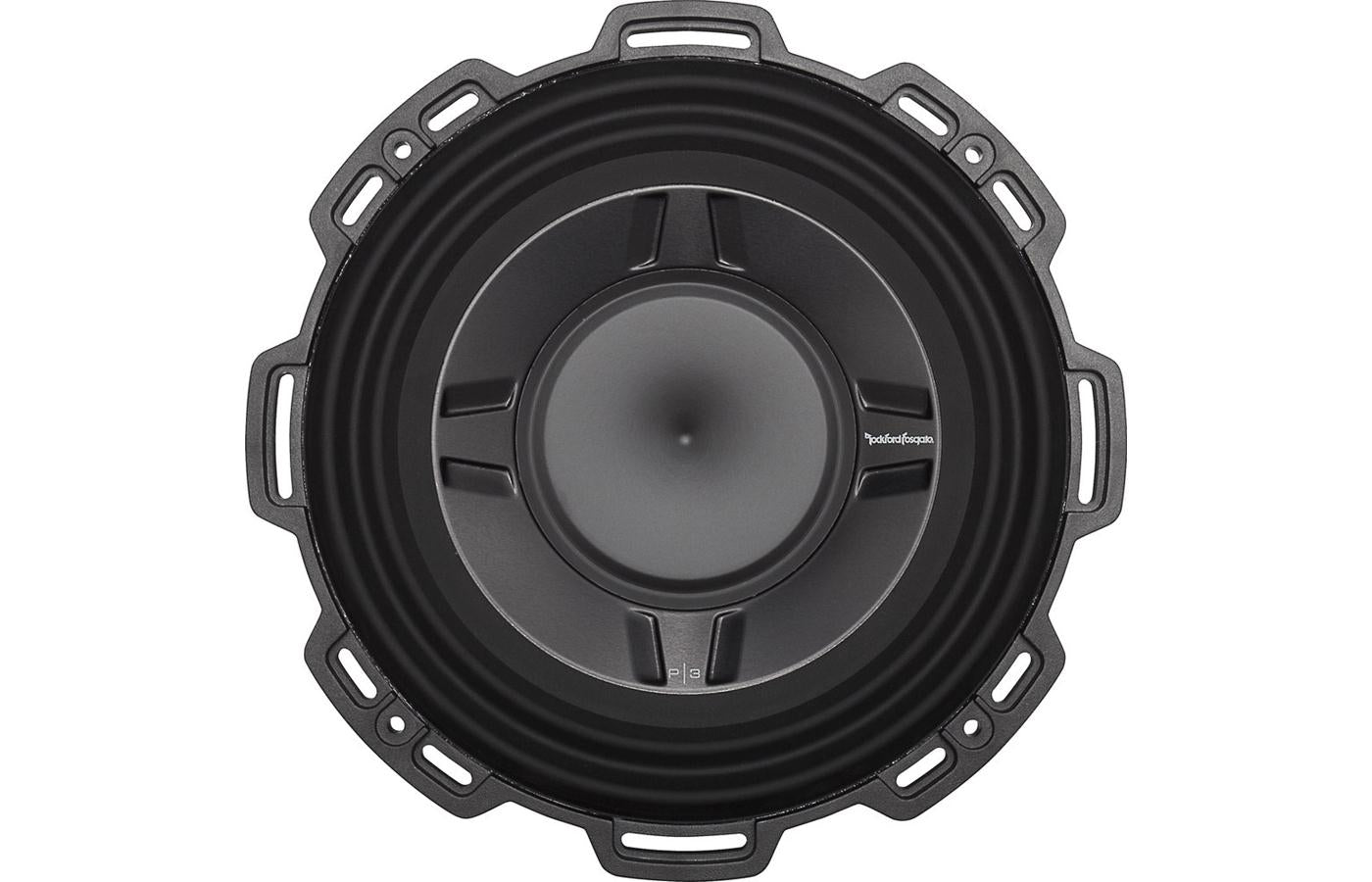

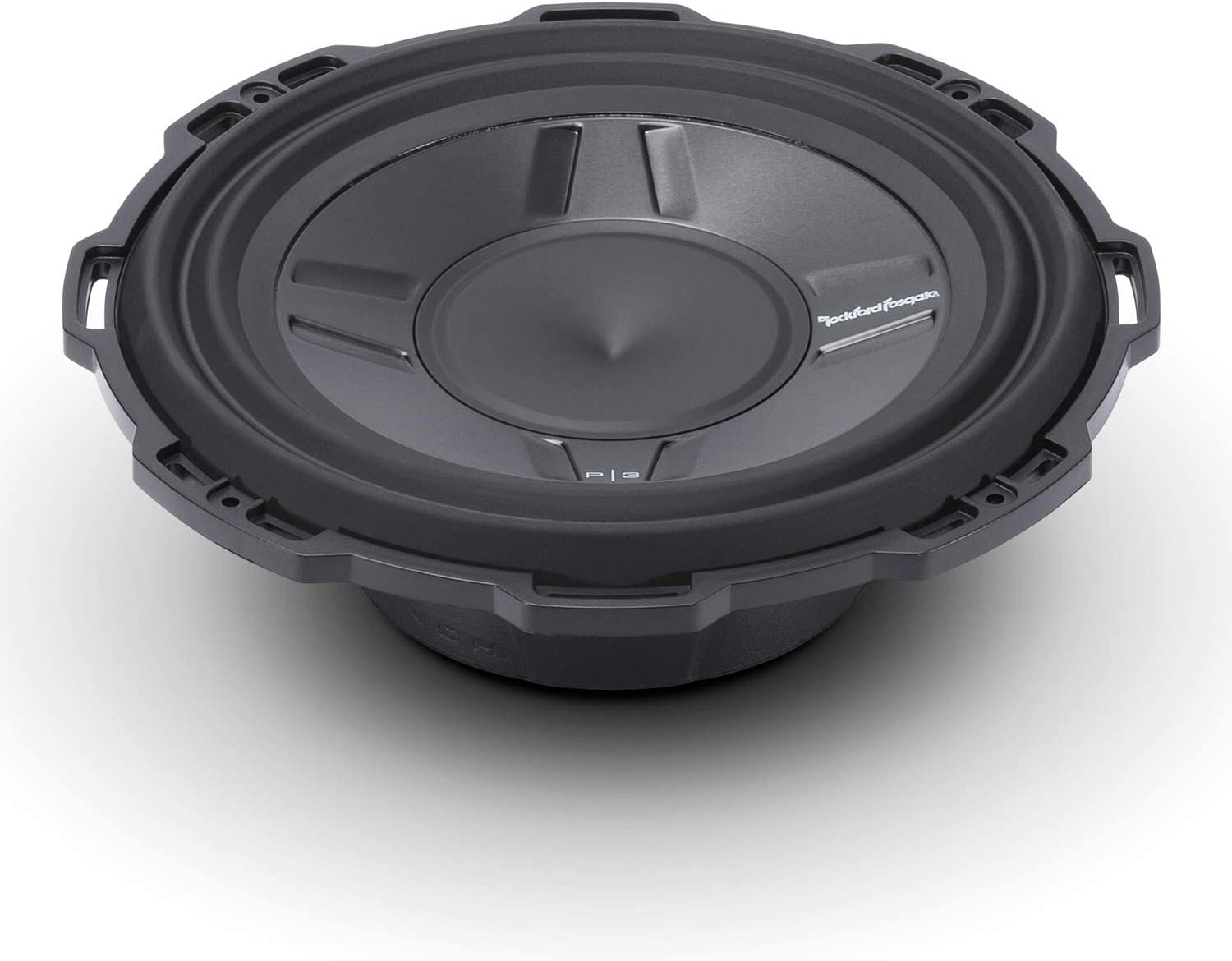

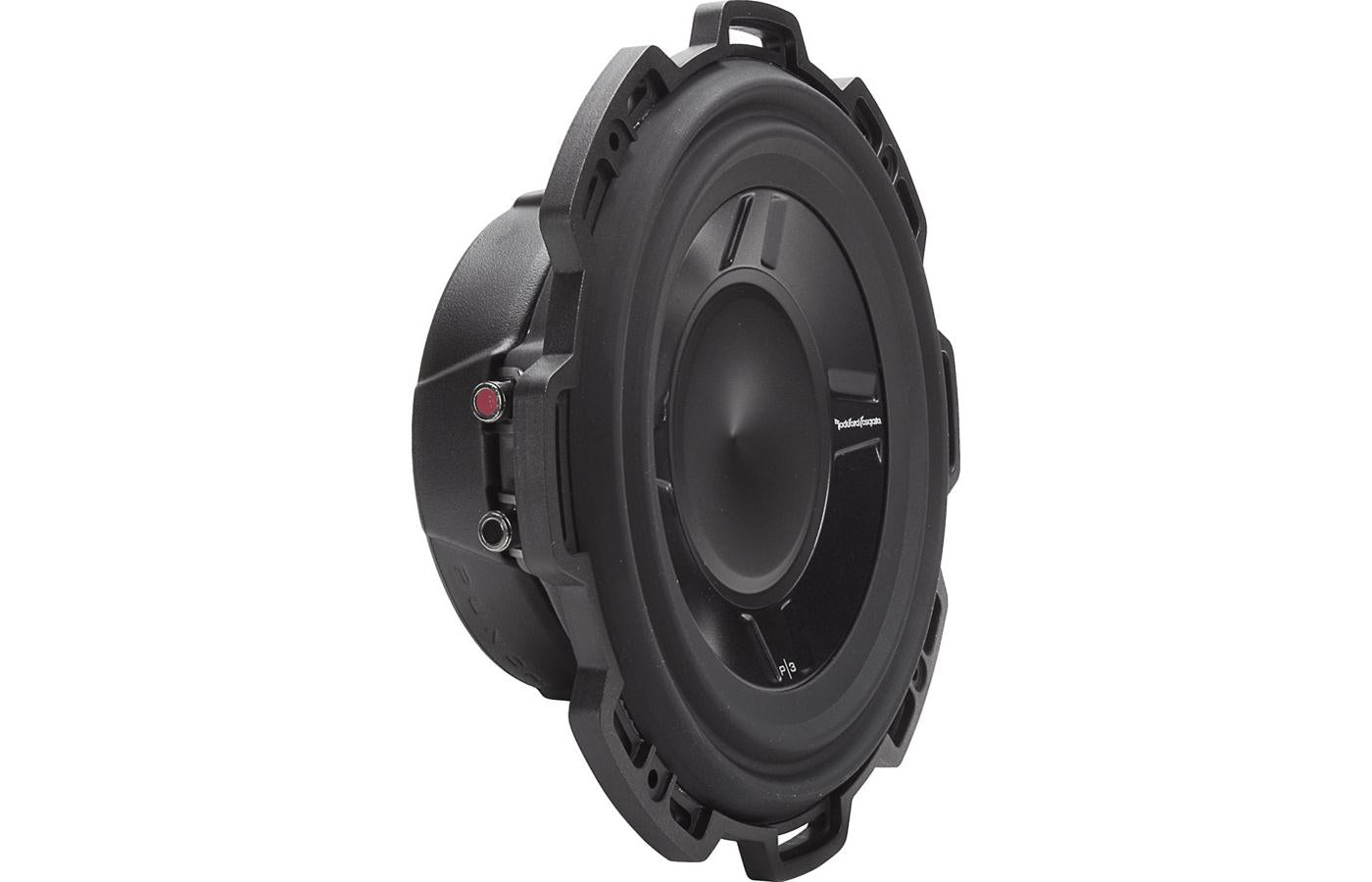

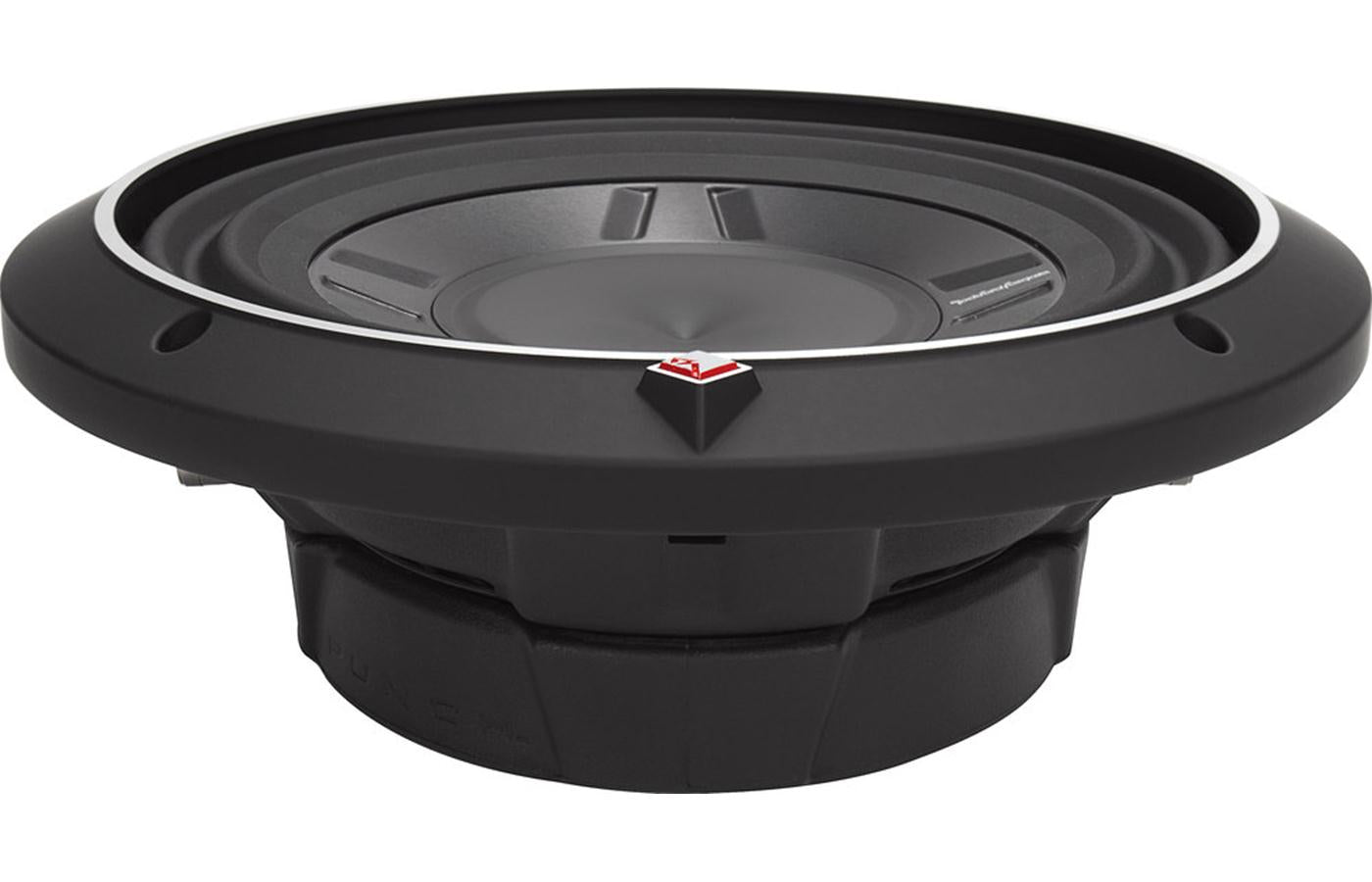

Rockford Fosgate P3SD4-8 - 8" Punch P3 4-Ohm shallow-mount Subwoofer

Rockford's bass pedigree

Rockford Fosgate's Punch Stage 3 subwoofers come from a long line of high-performance subs that deliver real deal bass. Now, shallow-mount Punch Stage 3 subwoofers make it easier to get impressive low end in smaller or hard-to-fit vehicles.

Advanced engineering

The P3SD4-8 8" shallow subwoofer hangs with its bigger brethren, thanks to advanced materials and engineering. Rockford uses anodized aluminum for the cone and dust cap, making the woofer light and easier to drive, yet rigid enough to maintain its shape under maximum load. The M-Roll Santoprene™ surround also provides excellent excursion for maximum output while being durable enough to last.

Powerful bass for a tight space

A low-profile frame houses the subwoofer, with abundant venting to battle overheating and thermal breakdown. At 2-5/8 inches deep, this sub will fit into places where no bass has gone before — just build a custom enclosure or find a suitable box. The dual 4-ohm voice coils allow you to wire up multiple subs or to coax optimum performance from your amplifier.

Product Features:

• 8" Rockford Fosgate Punch Series Shallow-mount Subwoofer
• Power Handling:
• Peak: 300 watts
• RMS: 150 watts
• Recommended power range: 150 - 300 watts RMS
• Impedance: Dual 4 ohm
• 2.5" Voice Coil with spun-laced Nomex insulating collar
• Kevlar Fiber Semi-Pressed Paper Cone
• M-Roll Santoprene surround
• Anodized aluminum cone and dustcap
• Dual linear spider with embedded 16 AWG tinsel leads
• Diamond cut cast aluminum trim ring
• Shallow Motor Assembly
• Tear and fatigue-resistant poly-cotton spider
• StampCast basket with integrated spider venting
• Dual 10 AWG compression speaker connections
• Optimized for both sealed and vented enclosures
• Voice Coil Diameter: 2" (51.6mm)
• Speaker Connector: Dual 10 AWG Compression
• Magnet Weight (kg): 1.06 oz. (37.5 kg.)
• SPL (dB @ 1w/1m): 82
• Xmax (mm): 8.3
• Woofer Displacement (in): 0.04 cu.ft. (1.13 Liters)
• Cutout Diameter (in): 7.13 in. (181.0 mm)
• Mounting Depth (in): 2.66 in. (67.5 mm)

• UK Authorised Internet Dealer
• Full Manufacturer's Warranty
• Next-day delivery available
