Pioneer TS-W32S4 12" Champion Series Single Coil Subwoofer 1500W

DEEP & LOUD. THIS IS THE CHAMPION SOUND!

Get deep and loud powerful bass in your car – from the pedigree of world record-breaking Champion Series subwoofers.

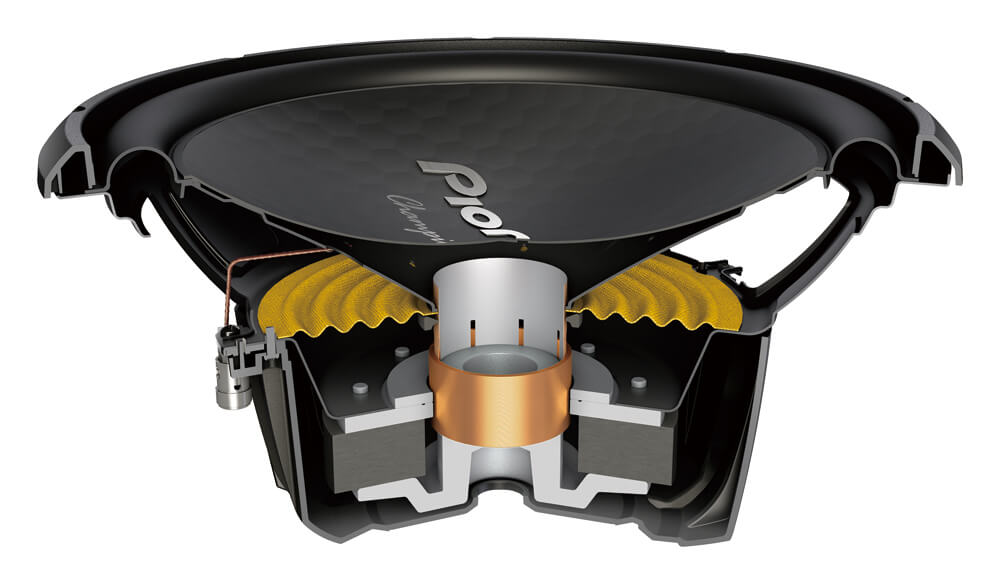

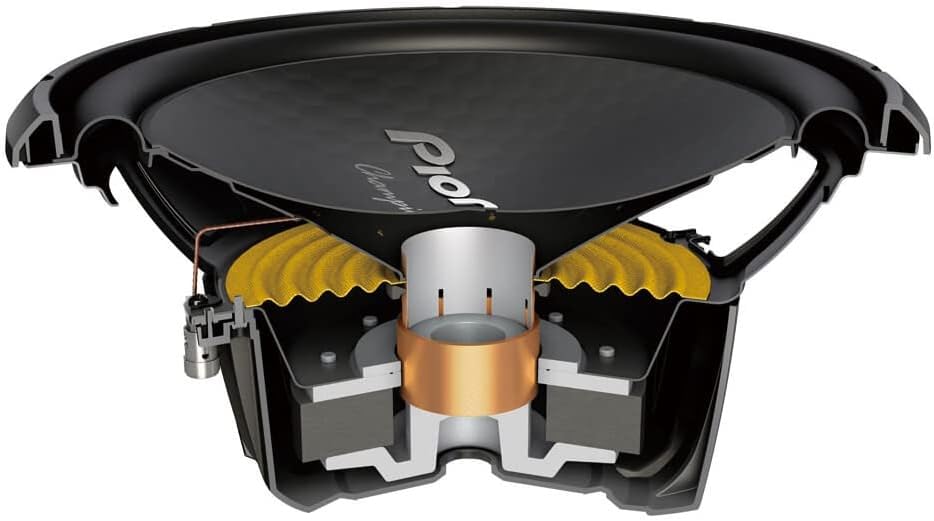

The TS-W32S4 Champion Series subwoofer features a light and rigid seamless cone, which delivers superior reliability, durability and rock-solid bass, from it's lightweight yet ultra-rigid structure. All of these combined gives you high power handling and high endurance at high sound pressure levels.

TS-W32S4 is a 30 cm / 12" subwoofer, suitable for enclosed use, delivering 1500 W Maximum Power and 400 W Nominal Power.

Product Features:

• CarSoundFit App
• Size: 30cm (12")
• Maximum Music Power: 1500W
• Nominal Music Power: 400W
• Frequency Response:22 Hz to 1.6 kHz
• Impedance: 4 Ω
• Mounting Depth: 146 mm
• Cut-Out Dimensions: ø281 mm
• Recommended Enclosure: 35.4 to 49.5 liters
• Terminals Push
• Woofer material Paper
• Voice Coil type Single Voice Coil
• Voice Coil bobbin type Aluminium
• Magnets FERRITE
• Recom. Enclosure [l] 35.4 L
• Recom. Enclosure [ft3] 1.25 ft3
• Weight 3.76 kg

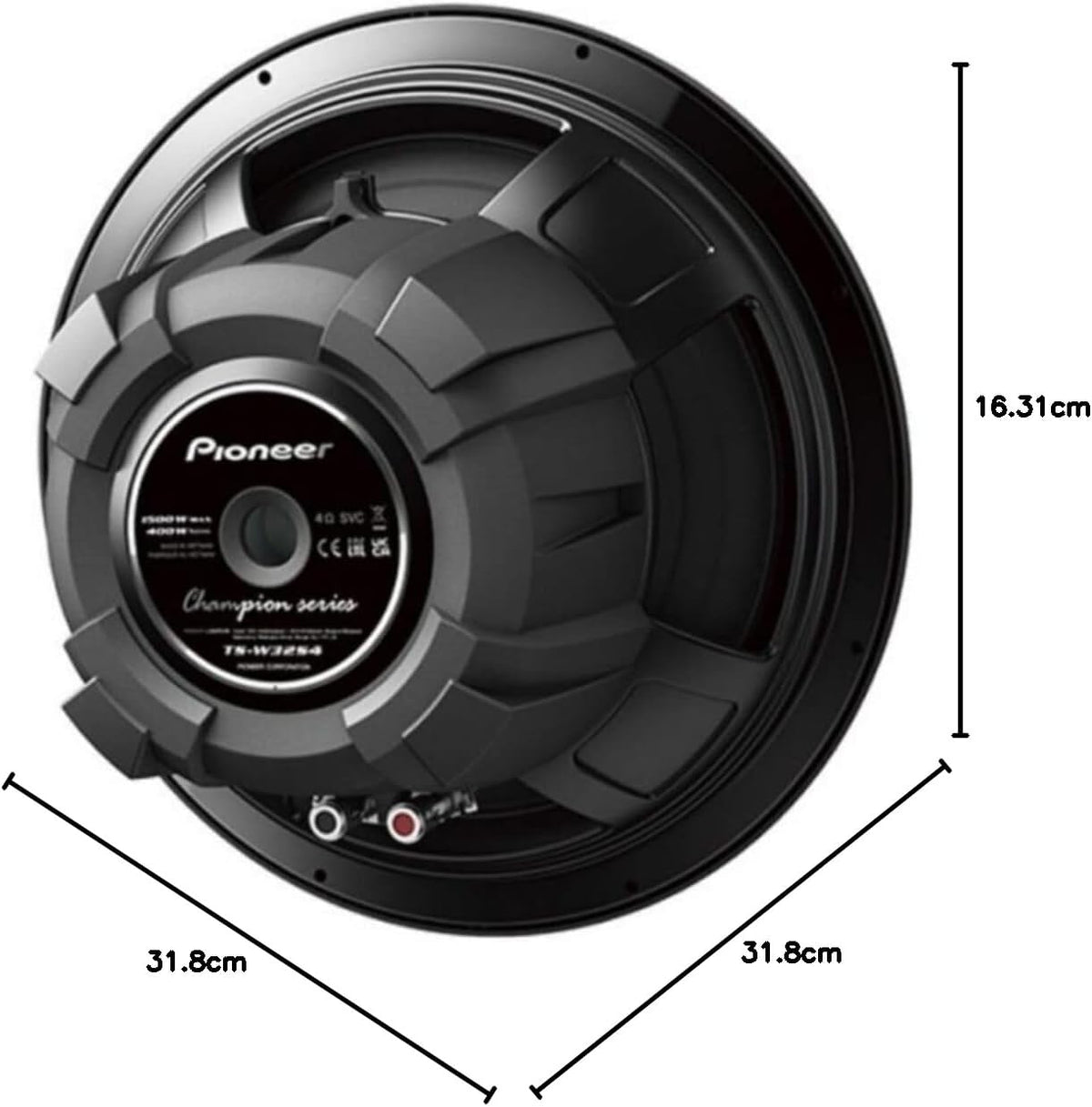

• Dimensions 318 (Diam.) x 163 mm
• Sensitivity: 90dB
• 1-year Warranty

Thiele/Small Parameters

• Qts 0.61
• Fs [Hz] 30 Hz
• Vas [ft3] 2.04 ft3
• Vas [l] 57.7 L
• Xmax [mm] 11.6 mm
