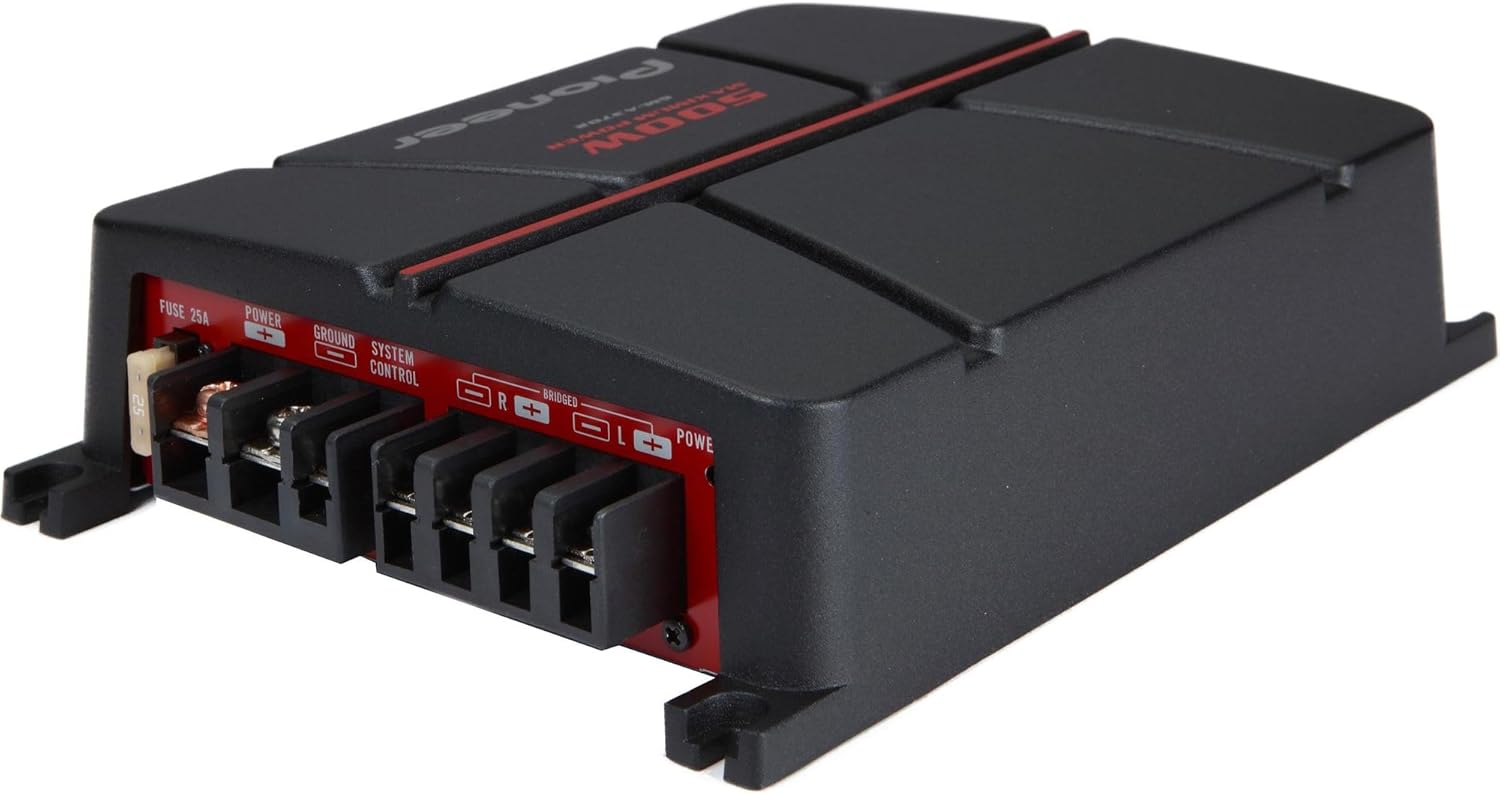

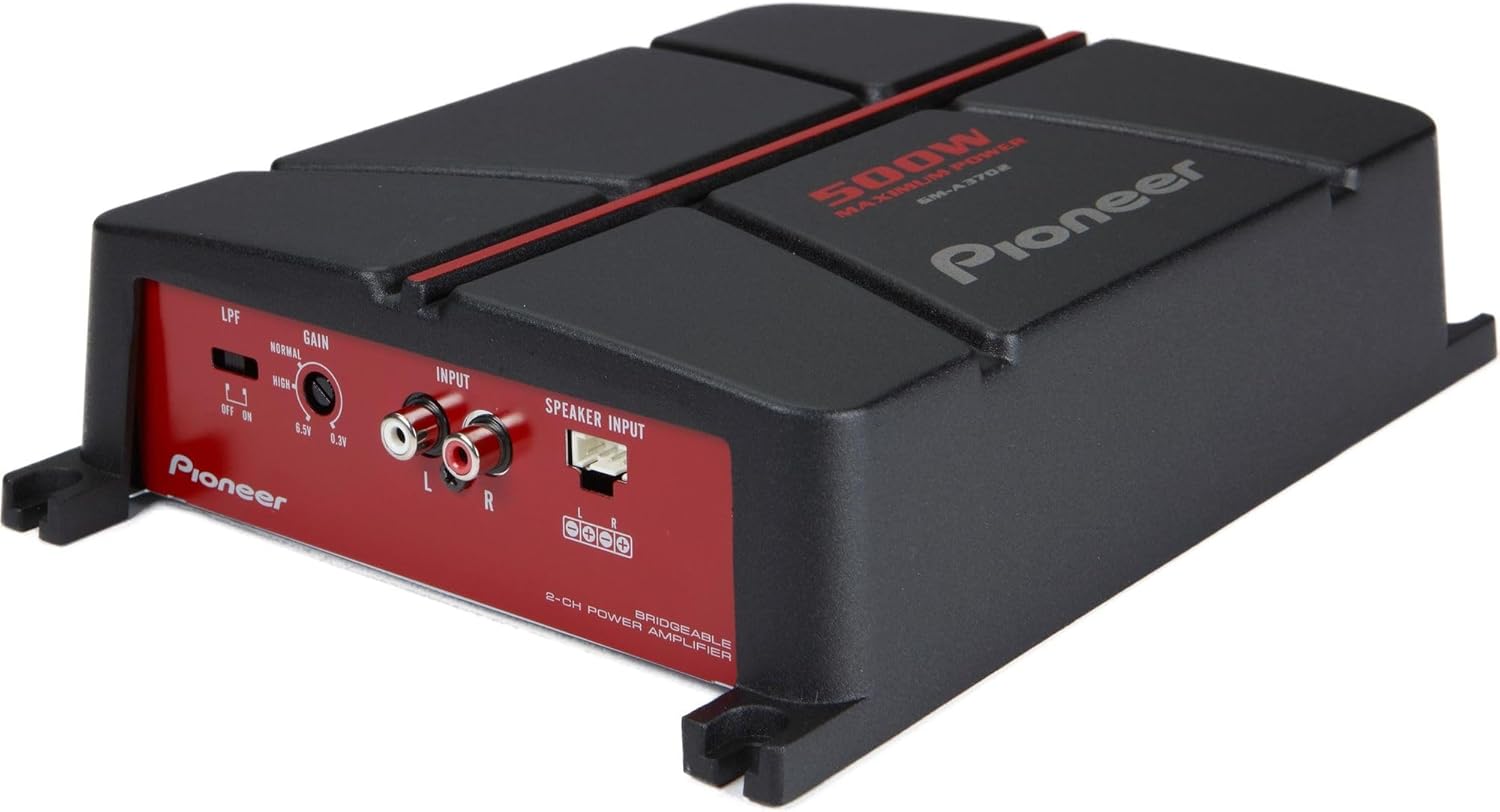

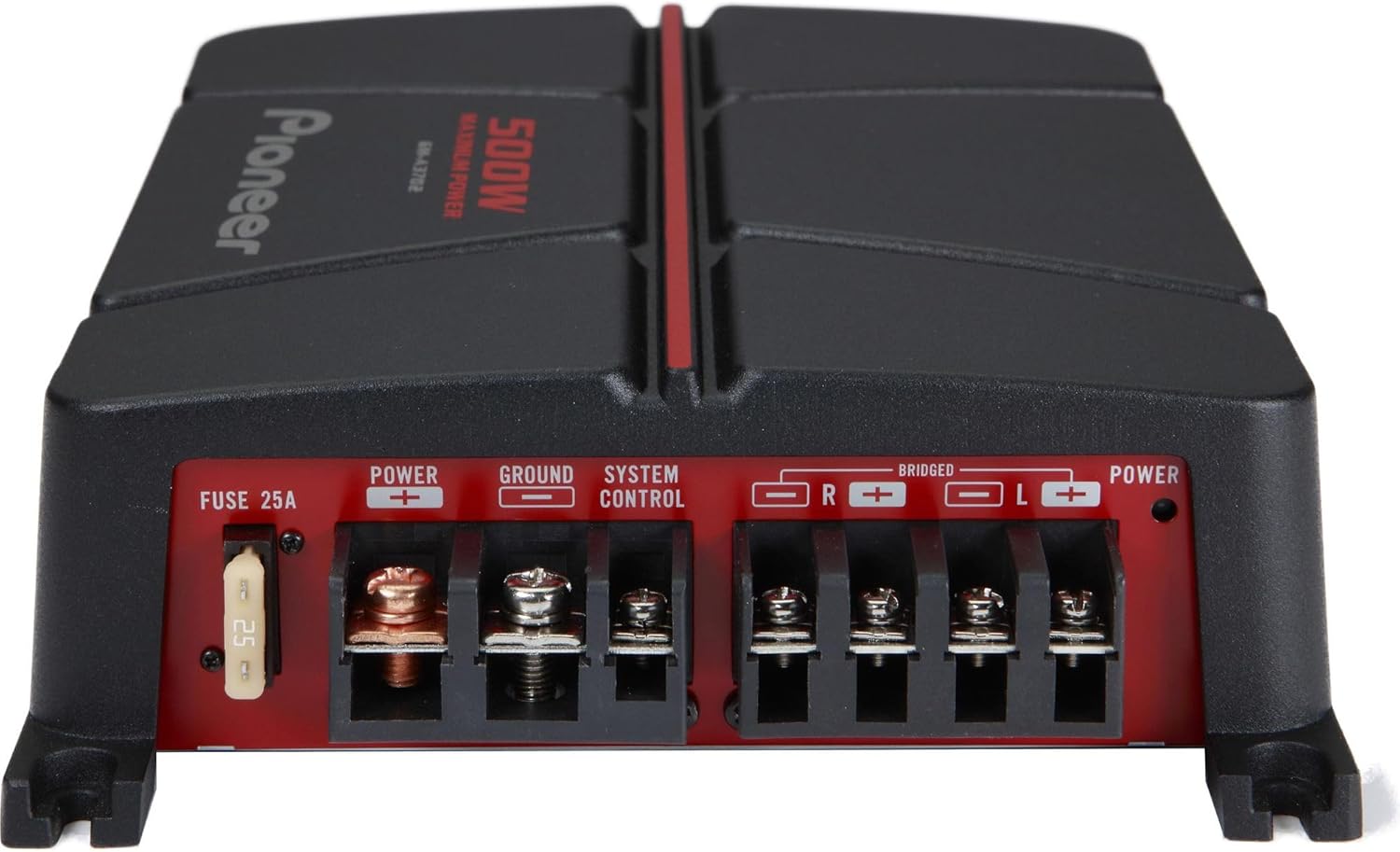

Pioneer GM-A3702 - 2 Channel Bridgeable 60 watts RMS x 2 500W Max Car Audio Amplifier

Configure your perfect audio setup.

Designed to enhance your in-car audio experience, the powerful GM-A3702 gives you total installation freedom and very low distortion. With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you’re looking for.

The GM-A3702 offers support for 2 Ohm and 4 Ohm speakers, and can produce up to 500 W of power when bridged. This product is also available as a package combined with our TS-W306R subwoofer, either with cables (GXT-3706B-SET) or without cables (GXT-3706B).

Practical features

You can also put this versatile amp into single-channel mode, switch on the low-pass filter for clarity, and run a subwoofer with up to 190 watts RMS, perfect for a modest system. Speaker-level inputs allow you to add the GM-A3702 to a factory radio that doesn't have preamp outputs. If your vehicle needs a sonic upgrade, this amp's small footprint and reasonable price make it a great choice.

Features

• Maximum power input 500W (Bridged) or 2 x 170W (4 Ω) or 2 x 250 W (2 Ω)
• CEA 2006 Power 2 x 60W (4 Ω)
• Continuous power output 2 x 60W (4 Ω) or 1 x 190W (4Ω bridged) or 2 x 95 W (2 Ω)
• Load impedance capability 2-8 ohm allowable (Stereo)
• Frequency response 10Hz ~ 70kHz (+0dB , -3dB) Hz
• Distortion < 0.05 %
• S/N ratio > 95 dB
• LPF 80 Hz (-12 dB/oct)
• Chassis size (W x H x D) 246(W) x 60(H) x 180(D)
• Unit weight 1.4
• Speaker Terminals Screw-type
