Phoenix Gold ZDAPMB1 Mercedes, VW models 1997 onwards DSP Power Up Kit | Simple Plug and Play Installation
The ZDAPB1 is a DSP Power up kit for a range of Mercedes vehicles (for a full model list please view Vehicle Applications). This power up kit consists of a variety of technology designed to improve the overall audio output of a vehicle.

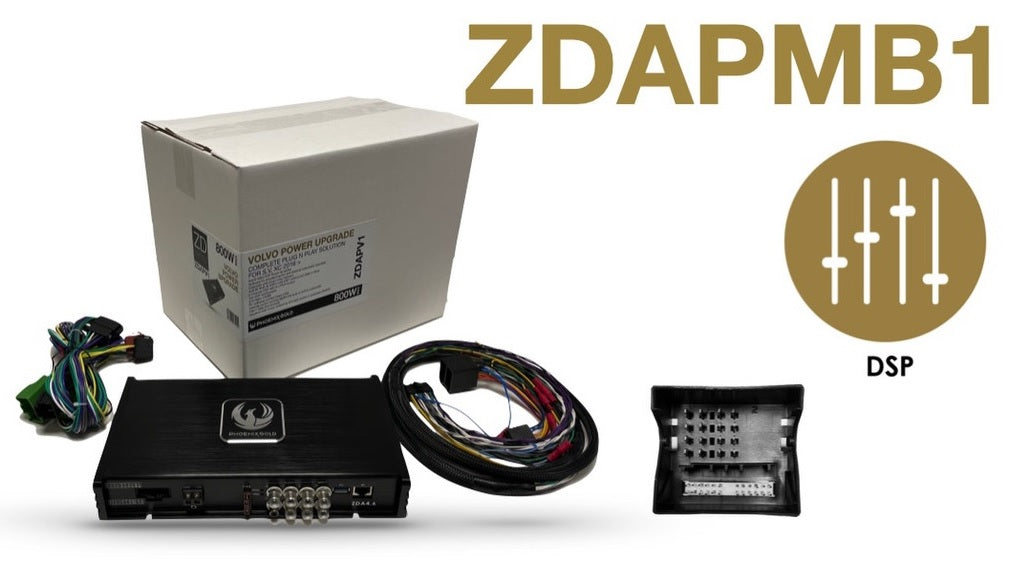

The ZDAPB1 includes a 400W DSP Amplifier and plug-and-play harnesses and resistive loads. And best of all the kit will work with the Phoenix Gold ZD speakers or even your factory-installed speaker system, allowing you to enhance your audio in whatever way you choose.
The ZDAPB1 includes a DSP Amplifier and plug-and-play harnesses and resistive loads. Best of all the ZDAPB1 kit will work with the Phoenix Gold ZD speakers or even your factory-installed speaker system, allowing you to enhance your audio in whatever way you choose.
The ZDA4.6 is an extremely versatile Digital Signal Processor (DSP) with a built-in 4-channel amplifier.
The 6-channel DSP gives you all the features needed to create your perfect audio setup, such as fully adjustable filters, EQ with adjustable Q value and time correction.
This feature-packed amp does not end there though, a built-in 4x60W RMS amplifier runs off channels 1-4 on the DSP so you have full control. If you want even more power, you can even use the 6-channel RCA outputs that are also controlled by the DSP.
The (ZDABT) will run on any source, connect the high-level input and this will be your source, or you can use the RCA input. You can even add a BT module (ZDABT) to the amp and get high-quality streaming and full APP control through your iOS or Android device.
ZDAPT1 Key Points
- Quick and easy install
- No modifications needed on the vehicle
- Invisible integration
- Sound quality superior to the original one
- No additional accessories required
- All in one box
- Use ch 5-6 for Subwoofer RCA output
- DSP Processing & Bespoke software available to download
- 800W MAX (400W RMS) DSP Power Amplifier
- Software for standard audio and external subwoofer is available
- Complete with plug n play harness
- 4x60W RMS @ 4Ohm with DSP control (4x100W 2 Ohm)
- 6 Channel DSP with 6 x RCA output
- Full DSP functionality
- S/N Ratio 102dB
- PC software control through USB
- Remote out for running additional amp or active subwoofer
- Start / Stop functionality
- Upgrade with music streaming and app control is available (ZDABT)
The ZDAPMB1 is only for vehicles with ISO or Quad lock connectors with load resistors
Vehicle Applications:
Mercedes
Mercedes A-Class 1997 - 2018
Mercedes B-Class 2005 - 2018
Mercedes C-Class 2000 ->
Mercedes CL 1999 - 2013
Mercedes CLA 2013 - 2018
Mercedes CLK 2002 - 2010
Mercedes CLS 2004 - 2018
Mercedes E-Class 2002 - 2020
Mercedes G-Class 2007 - 2018
Mercedes GLA 2013 - 2019
Mercedes GLC 2015 - 2019
Mercedes GLE 2015 - 2019
Mercedes GLK 2008 - 2015
Mercedes ML 2005 - 2015
Mercedes R-Class 2005 - 2017
Mercedes S-Class 2005 ->
Mercedes SL 2001 - 2004
Mercedes SL 2012 ->
Mercedes SLK 2004 ->
Mercedes Sprinter 2006 - 2018
Mercedes Viano 2003 - 2014
Mercedes Vito 2003 - 2019
Mercedes X-Class 2017 ->
Volkswagen
VW Crafter (I) 2006 - 2016
