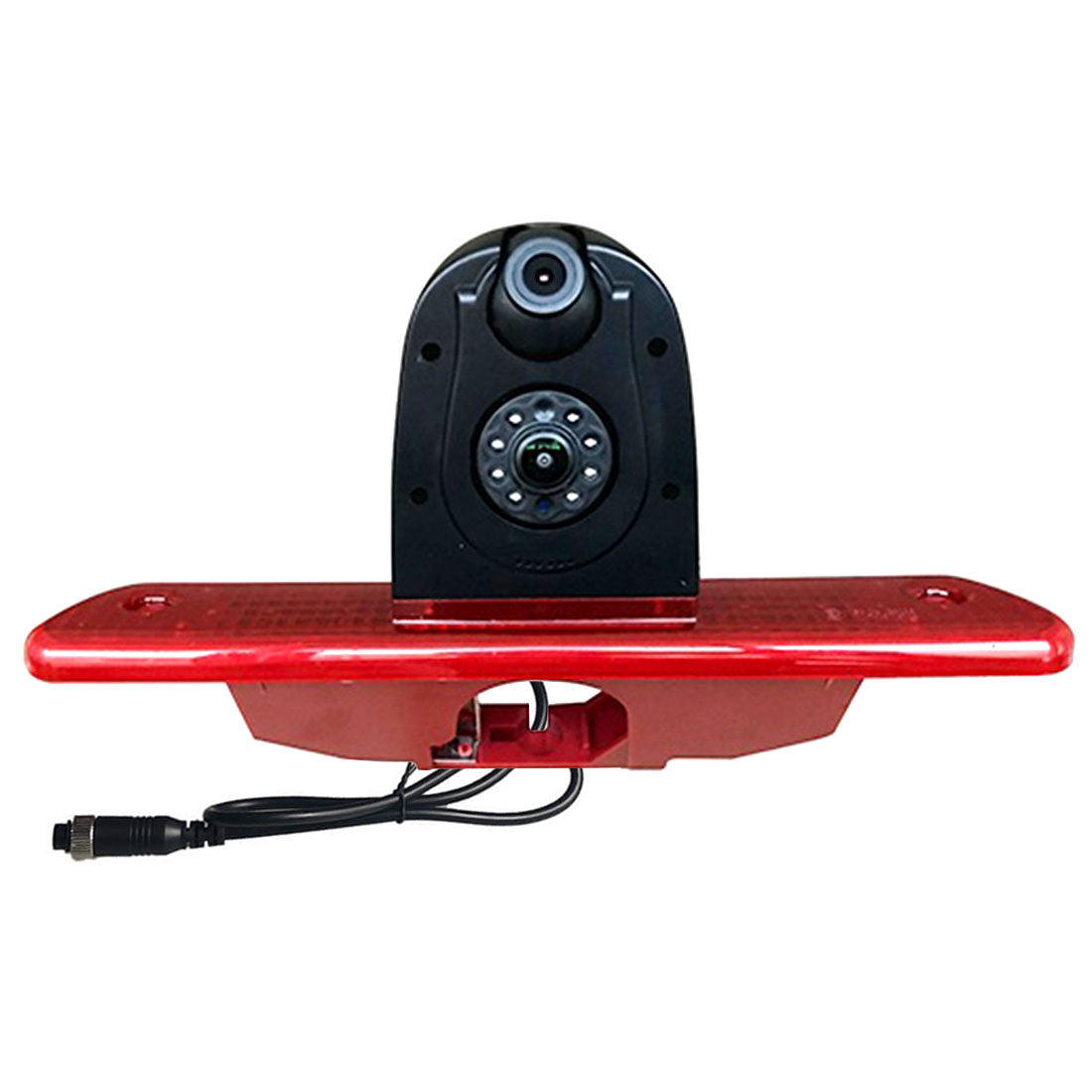

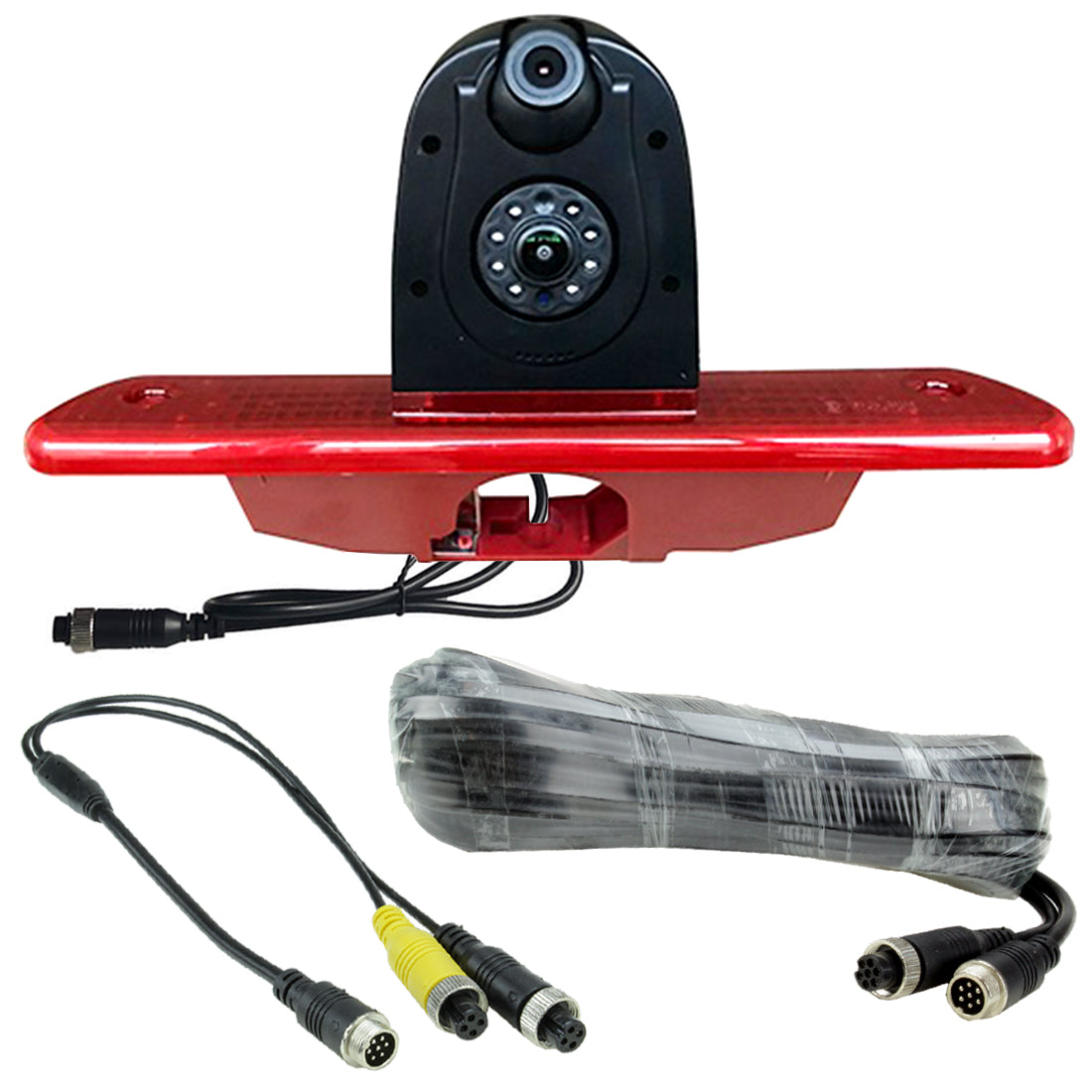

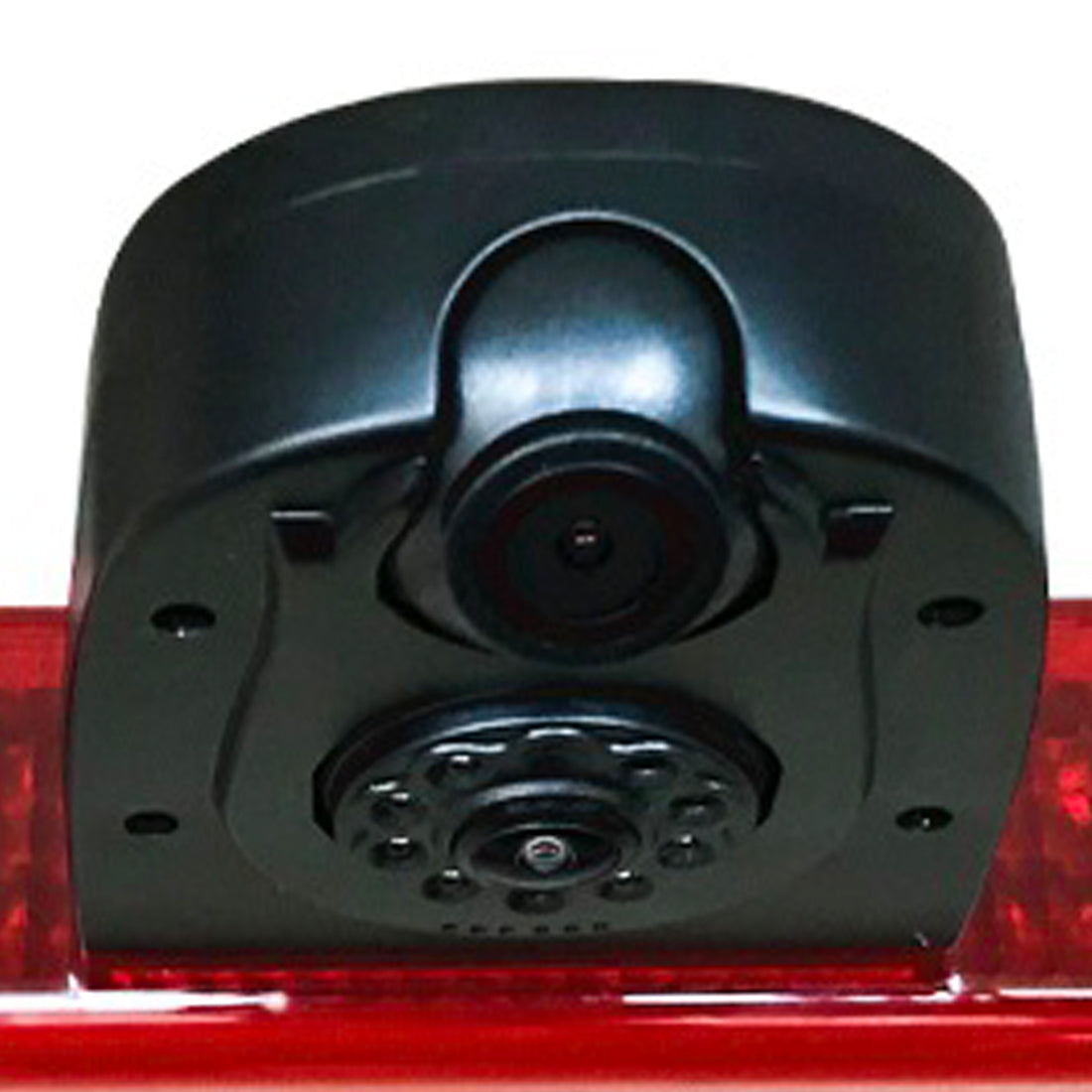

Peugeot Expert 2007-2016 MKII Dual Lens Replacement Reversing Camera CAM-PE5
The CAM-PE5 is a dual-lens reverse/driving camera solution for the 2007 to 2016 Peugeot Expert with solid rear doors/bulkheads. With the addition of this dual camera, the driver can view the rear of the vehicle via a Livestream and can additionally reverse in comfort with the aid of a reverse camera feed. Both cameras feature a 1/3” CMOS image sensor, 648 X 488 resolution and are weatherproof rated at IP68. The CAM-PE5 dual camera and brake light combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.
Vehicle application guide
| MAKE | MODEL | YEARS | NOTES |
| Peugeot | Expert | 2007 - 2016 | MKII |
Product Specifications:
Reversing Camera
• Resolution: 580 TV Lines
• Total Pixels: 648 x 488 pixels
• Lens size: 1.8mm
• Image Sensor: Colour 1/3” CMOS
• Night Vision Distance: 35ft
• Waterproof Rating: IP68
• Viewing Angle: Vertical: 80° Horizontal: 145° Diagonal: 175°
• Lens Adjust: 20° (Vertical movement only)
• Video Output: 1.0 Vp-p/75 Ohm
• Power Rating: 12V
Driving Camera
• Resolution: 580 TV Lines
• Total Pixels: 648 x 488 pixels
• Lens size: 3.6mm
• Image Sensor: Colour 1/3” CMOS
• Night Vision Distance: –
• Waterproof Rating: IP68
• Viewing Angle: Vertical: 55° Horizontal: 80° Diagonal: 110°
• Lens Adjust: 30° (Vertical movement only)
• Video Output: 1.0 Vp-p/75 Ohm
• Power Rating 12V
