Option Audio AIR-D4 4 Channel Class D Compact Amplifier 330w RMS
Option Audio AIR-D4 4 Channel Class D Compact Amplifier 330w RMS

Option Audio AIR-D4 4 Channel Class D Compact Amplifier 330w RMS

AIR-D6
Option Audio See other products by Option Audio
£159.99 £179.99
Save £20.00

The OPTION AIR-D4 is a compact Class-D 4-channel power amplifier that you can use flexibly: classically for front + rear or as a combination of front + subwoofer via a bridge circuit on channel 3/4. Despite its compact dimensions, it packs a real punch

SPECIAL OFFER
Ask a question
Trade enquiry
Price match

OPTION AIR-D4 4-Channel Amplifier

Massive sound upgrade: The OPTION AIR-D4 is a powerful 4-channel Class-D power amplifier that breathes new life into your vehicle speakers. Enjoy significantly more dynamics, brilliance and enormous volume reserves compared to operating directly on the standard radio.

Ultra-compact design: Thanks to the extremely small dimensions (micro format), this amplifier can be installed almost anywhere in the vehicle. It fits easily behind the dashboard, glove box or under the seat - ideal for modern vehicles with limited space.

Perfect for original radios: With built-in high-level inputs and the auto-turn on function, the power amplifier is optimised for easy integration into factory installations. A separate remote cable is not required as the amplifier detects the signal directly.

Versatile 4-channel configuration: Take full flexibility: Power your front and rear systems simultaneously, or bridge two channels to power a front system and an additional subwoofer with powerful power.

High-efficiency Class-D technology: The modern digital circuit guarantees maximum performance with minimal heat generation and low power consumption. This ensures a permanently stable sound quality and protects the on-board electronics of your vehicle.

Key Features

  • Class-D power amplifier: Yes
  • Operating voltage: 10-16V
  • RMS power (4 ohms): 100 watts
  • RMS power (2 ohms): 165 watts
  • RMS power bridged (4 ohms): 30 watts
  • RMS power bridged (2 ohms): not possible
  • Frequency response: 20Hz-20kHz
  • High-pass filter: 40Hz-400Hz
  • Low-pass filter: 40Hz-400Hz
  • Total harmonic distortion (THD): <0.1%
  • Minimum loudspeaker impedance: 2 ohms
  • Signal-to-noise ratio (A-weighted): >90 dB
  • Security: 60A
  • Dimensions (W x H x D): 105.7mm x 41.7mm x 208mm
  • Cable cross-section (recommended): 10mm²

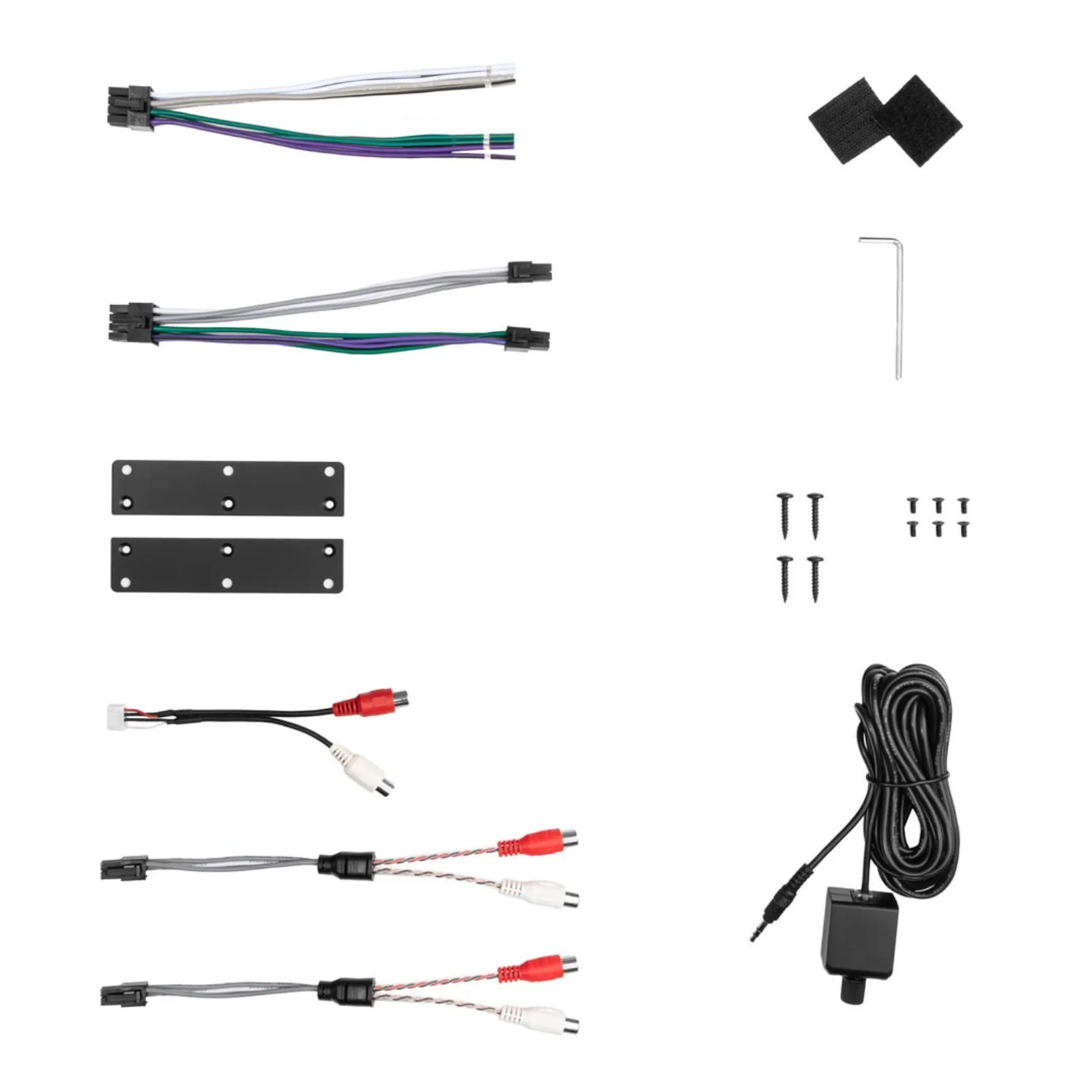

What's in the box:

  • OPTION AIR-D4 4-channel amplifier
  • Subwoofer level remote control including Velcro strap for flexible mounting
  • 2x Plug & Play adapters for input signal to RCA
  • 1x Plug & Play adapter for output signal to Molex
  • 1x Plug & Play adapter for output signal to loose ends
  • 1x Plug & Play Adapter Line Out for connecting an additional power amplifier/active subwoofer
  • Mounting/fastening plates including 6 screws (for mounting on the amplifier) and 4 screws (for mounting in the vehicle)
  • Allen key
