Mosconi Pico 1 Amp Mono Subwoofer 1 Channel Amplifier Class D Up to 750w RMS

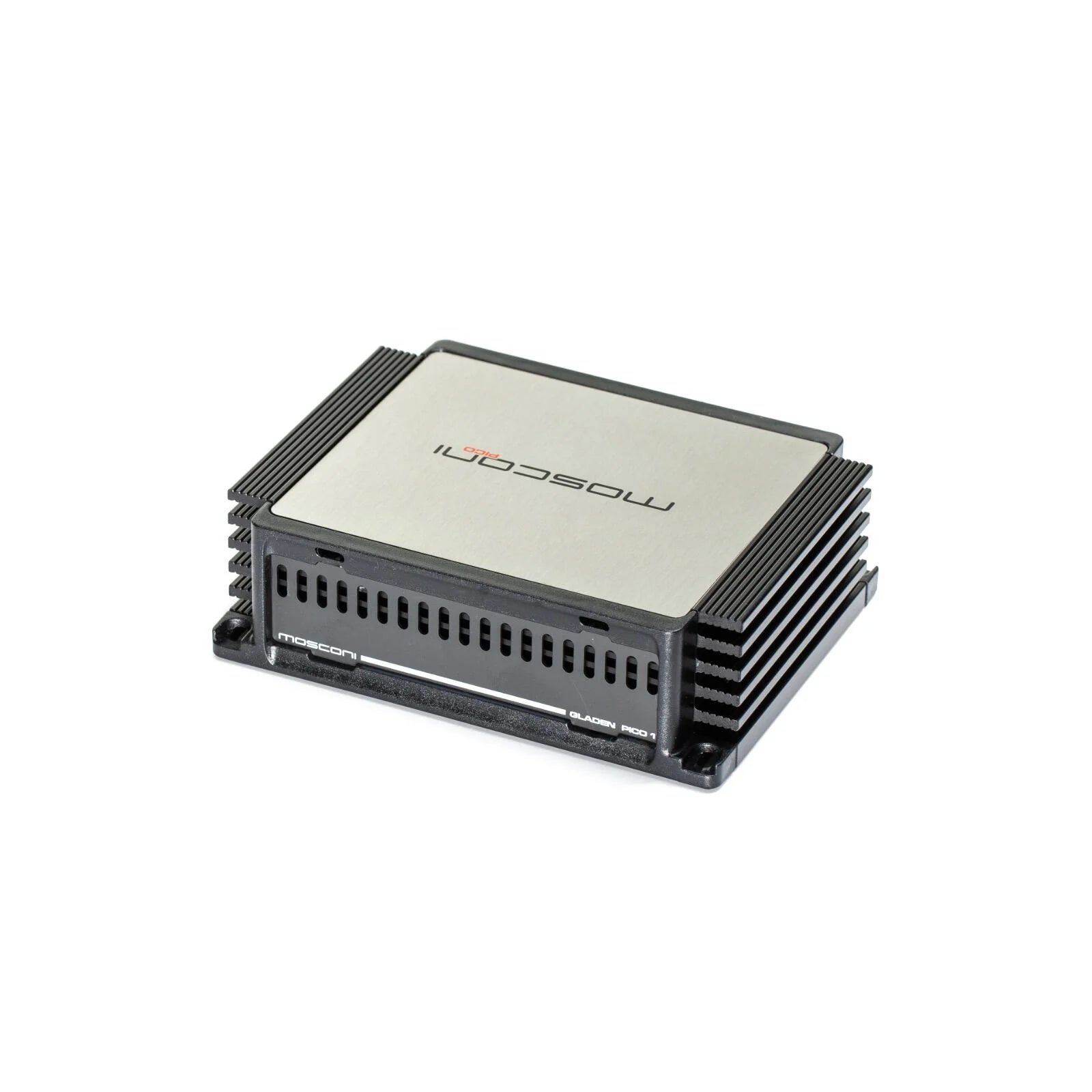

MOSCONI PICO 1

1 Channel Amplifier Class D Technology Up to 750 Watts @ 2 Ohm

Full-range PWM amplifier with separate, synchronized modulation and fast high-current MOSFETs. The Mosconi PICO 1 delivers a full 750 Wrms into two ohms. It provides the necessary power even to powerful subwoofers and extreme front systems at any time.

Ideal (subwoofer) supplement to a Mosconi PICO DSP amplifier, but with the high-level and low-level input and its own filters, it can also be used universally.

• Automatic switch-on (only high level, SE or BTL mode)
• Remote volume control (optional)
• Molex connectors

The Pico 1 is also available as an 18 Volt version. This is specially adapted to the electrical system of the latest Tesla models.

Specification:

• 1 channel amplifier
• Class D technology
• Up to 750 Watts @ 2 Ohm
• 12V and 18V Version
• Input voltage:0,3 V - 20 V
• Overall efficiency:> 75 %
• Auto-On (only High Level):Off - BTL
• Low-pass filter:Off / 45 - 310 Hz (12 dB/Oct)
• Subsonic filter (always on) : 13 Hz (12 dB/Oct)
• Dimensions: 150 x 115 x 46 mm
• Weight: 1050 Gramm
• Output power RMS @ 4Ω:1 x 500 Watts
• Output power RMS @ 2Ω:1 x 750 Watts
