Morel MPD4.100 4 Channel Class D Compact Amplifier 460w RMS

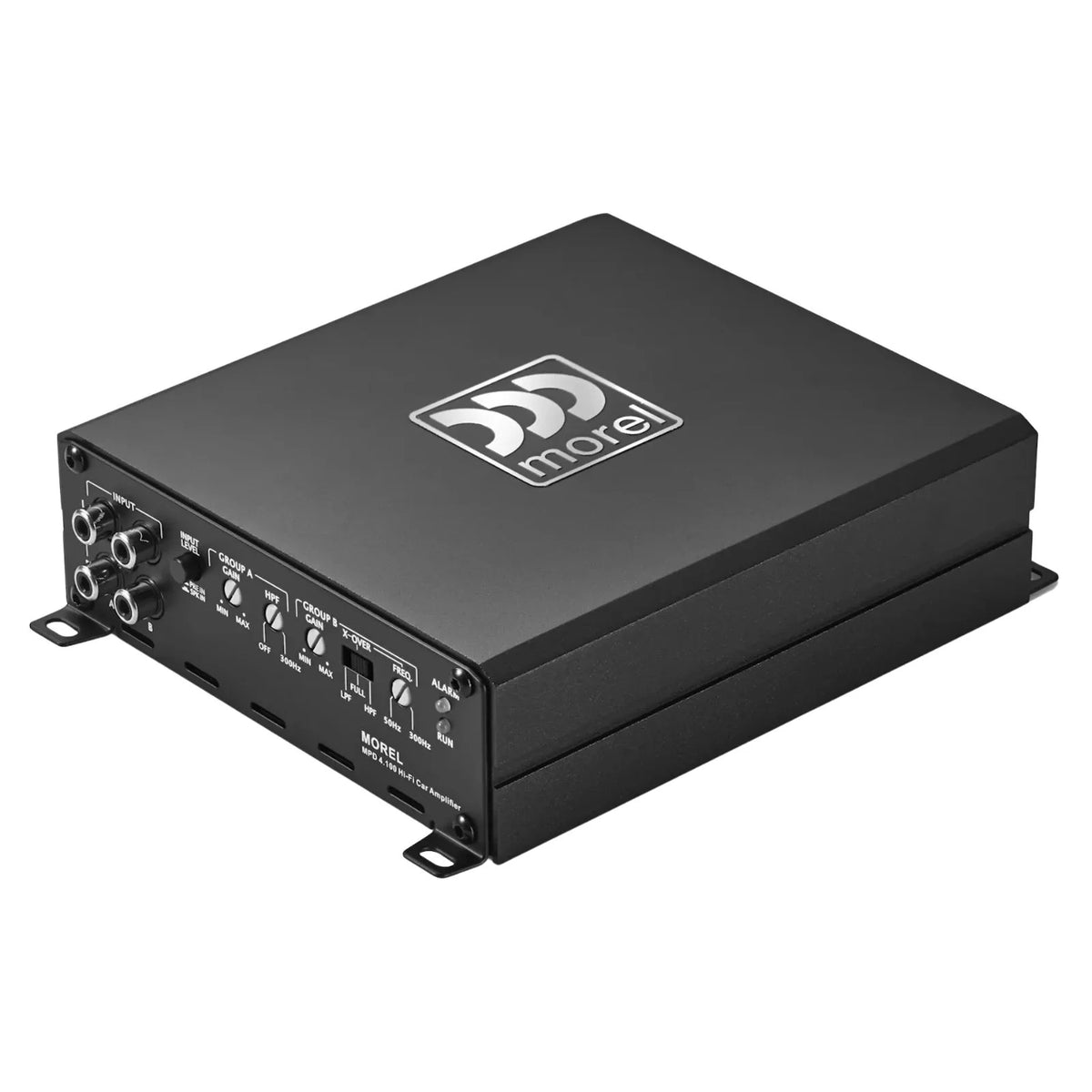

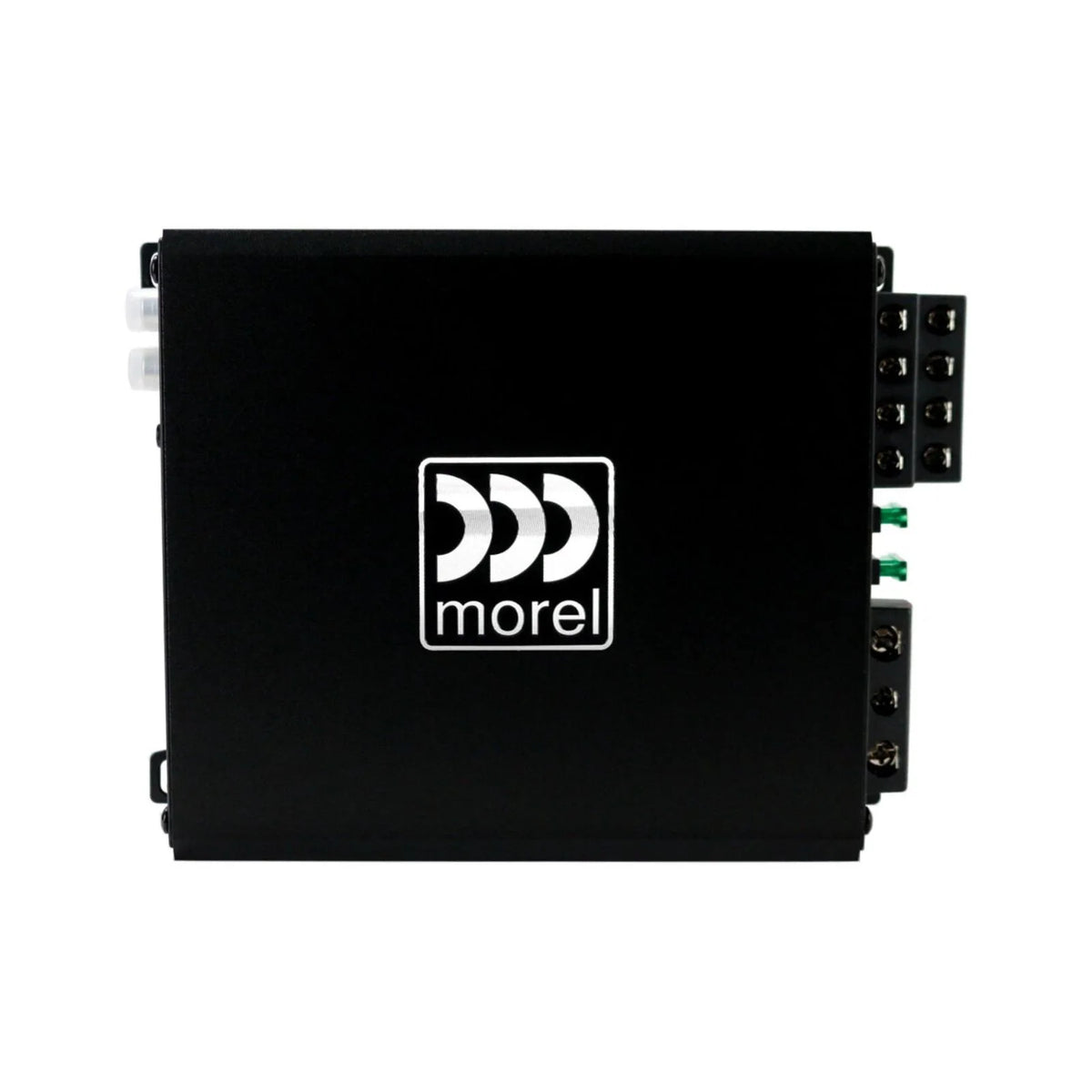

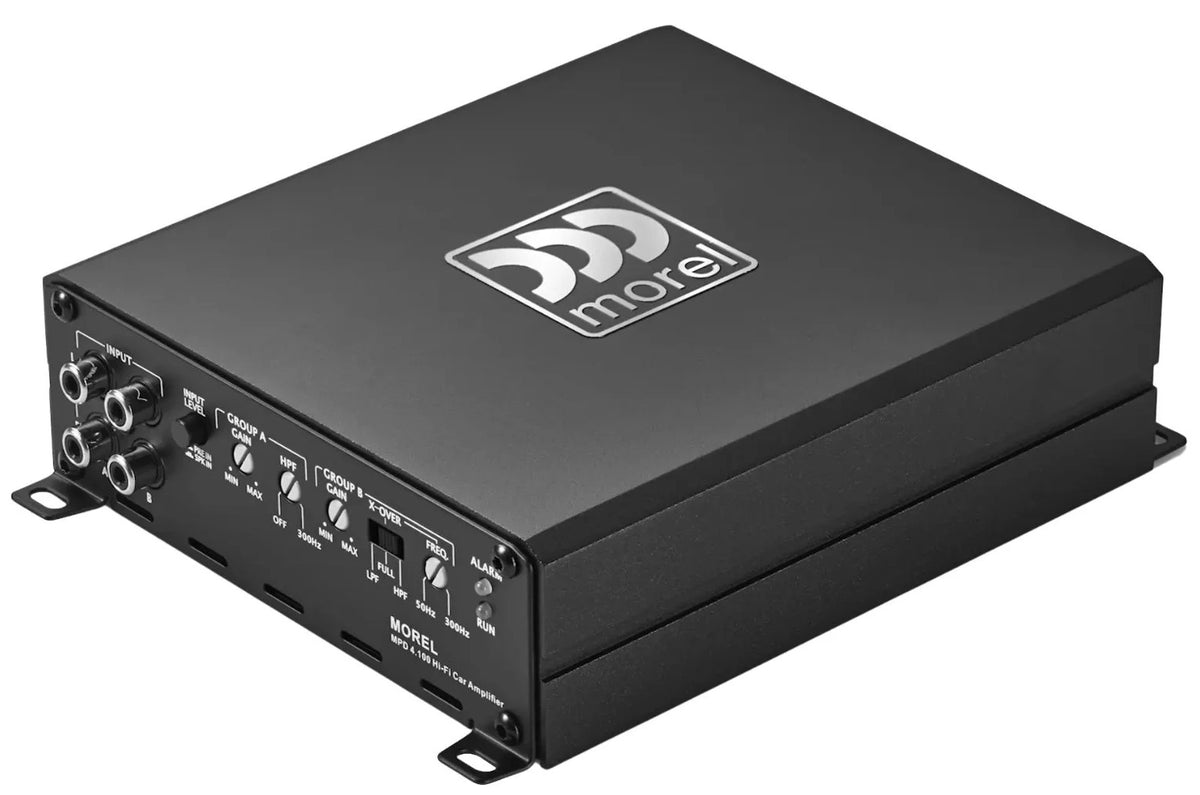

The Morel MPD 4.100 is a compact 4-channel Class D amplifier rated at 460W RMS, delivering 115W x 4 at 4 ohms or 165W x 4 at 2 ohms. It is part of Morel's MPD compact amplifier series.

Other MPD models include the MPD 4.70 4-channel and the MPD 5.550 5-channel.

Key specifications

• Power at 4 ohms: 115W x 4
• Power at 2 ohms: 165W x 4
• Bridged at 4 ohms: 330W x 2
• Frequency response: 20Hz to 30kHz
• S/N ratio: over 93dB
• THD: below 0.2%

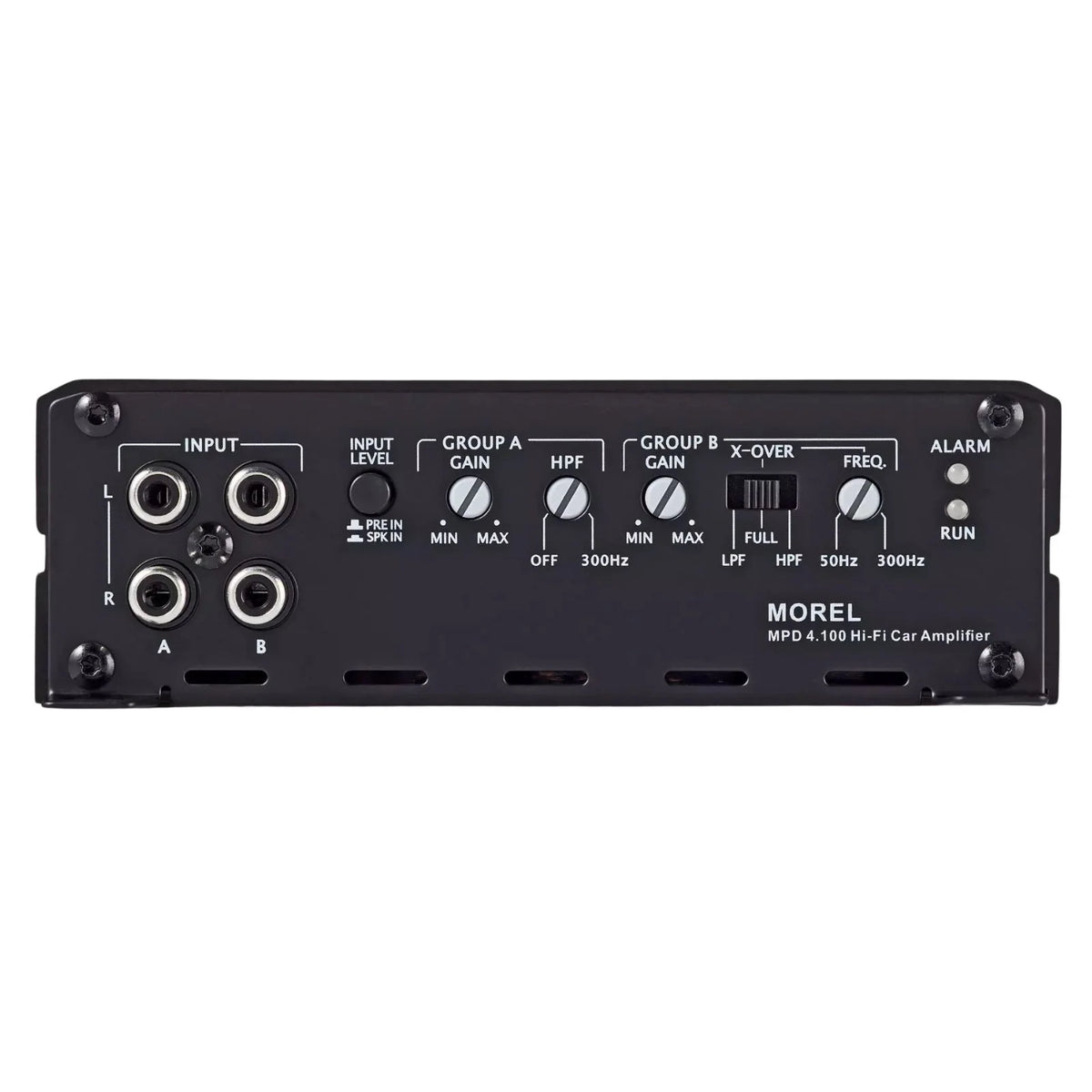

• Filters: HPF off to 300Hz (group A), LPF/HPF 50 to 300Hz (group B), 12dB/octave
• Inputs: pre-amp 0.35 to 3.5V, speaker-level 0.7 to 7V

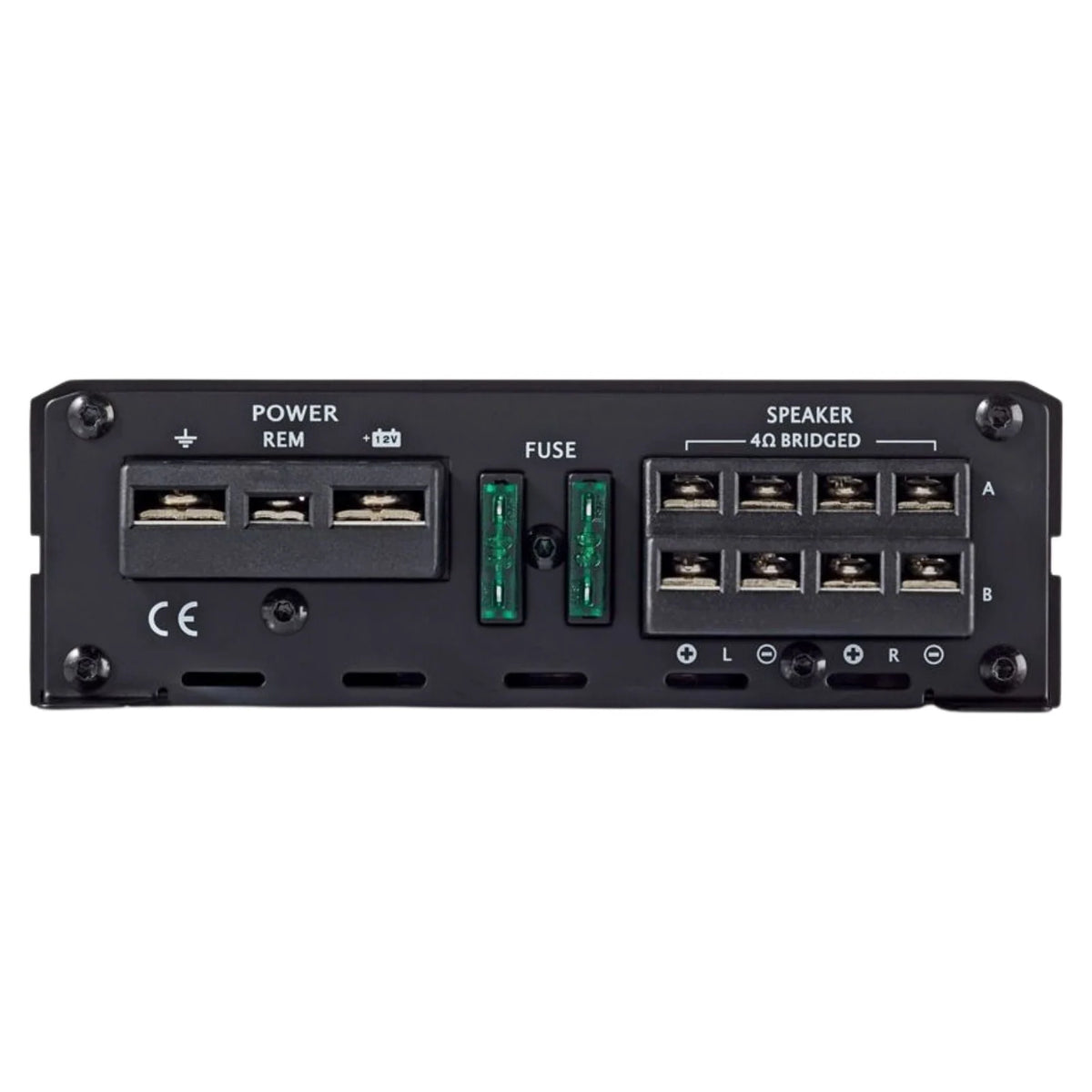

• Fuse: 60A
• Dimensions: 48 x 148 x 203.5mm

Morel MPD 4.100

The MPD 4.100 puts out 115W x 4 at 4 ohms and 165W x 4 at 2 ohms, with a bridged output of 330W x 2 at 4 ohms. Frequency response runs from 20Hz to 30kHz, and the S/N ratio exceeds 93dB. THD is kept below 0.2%. Variable high-pass and low-pass crossovers are adjustable between 50 and 300Hz at a 12dB/octave slope. An advanced protection circuit guards against damage in everyday use.

The MPD series is designed to deliver high-end audio performance in a compact chassis — at 48 x 148 x 203.5mm, it fits easily into tight installation spaces. It works well paired with Morel's own speaker range, such as the Maximo Ultra 602 MKII 6.5-inch coaxial speakers.
