Kenwood DMX9724XDS-C Campervan Floating 10.1 inchDAB+ Digital Media Receiver Wireless CarPlay / Android Auto Bluetooth Stereo

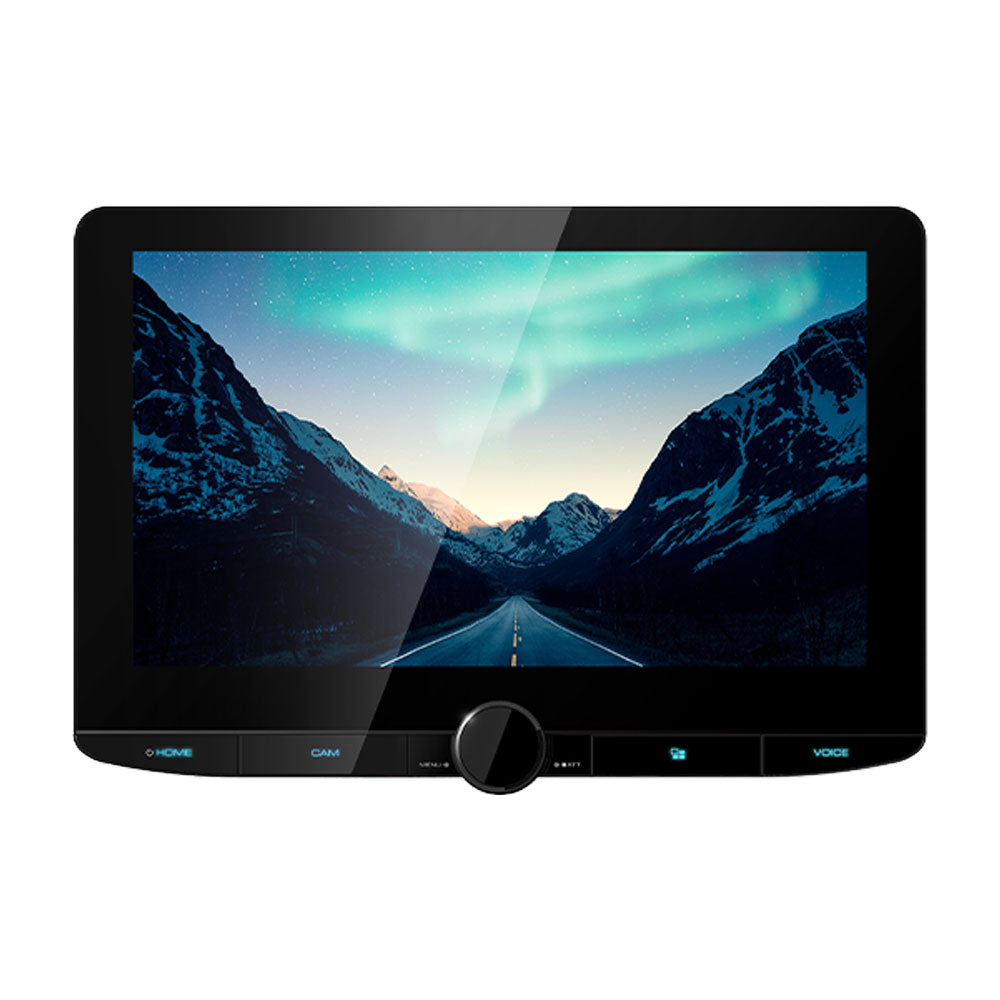

Large 10.1-inch HD Display

Provides room for more information that is large and easy to see with just a glance.

High Definition Overwhelming Power of Expression

10.1" Display features an electrostatic capacitive touch panel and a HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.

Bonded Optical Display Vivid Colors With High Contrast

Optical Clear Adhesive (OCA) is added between the touch screen and the LCD to eliminate the air layer and suppress light reflection and glare. This feature enhances the contrast and brightness and maintains the visibility of the display in various environments.

Wider Viewing Angle Beautiful From Any Seat

The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film, which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.

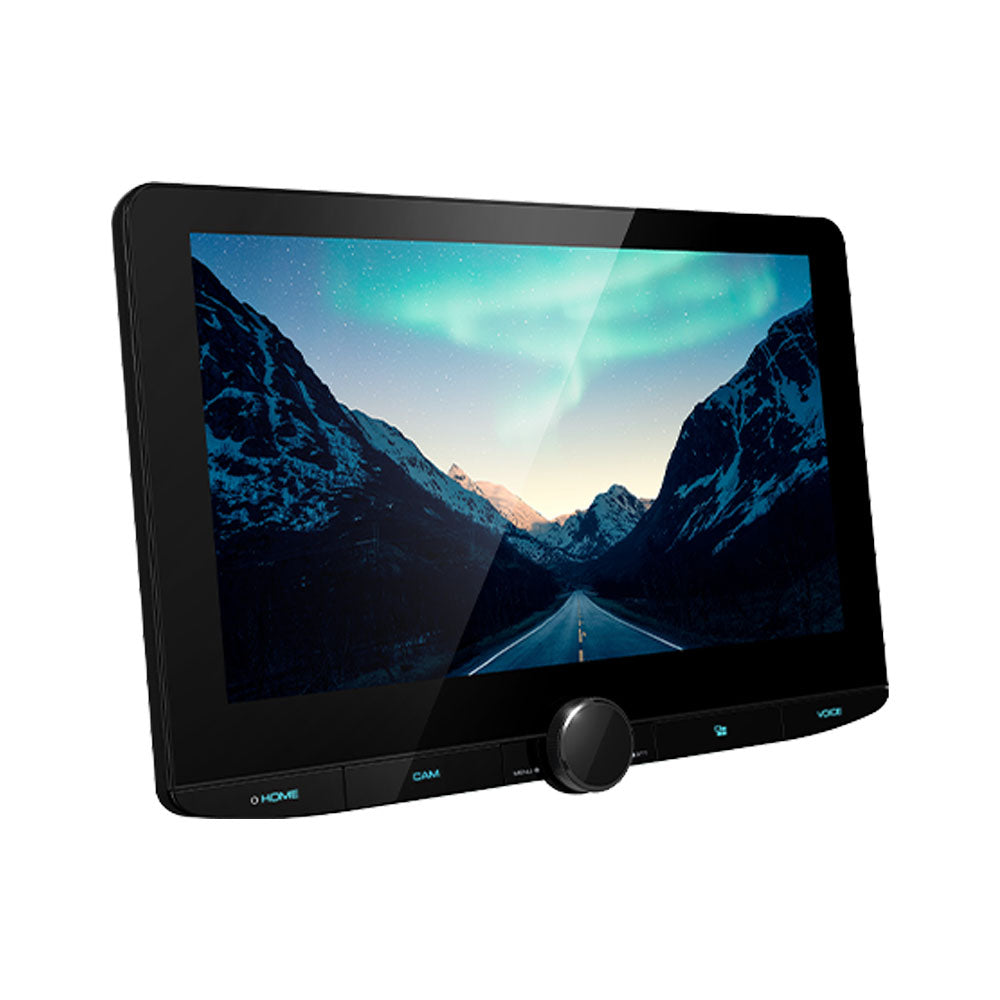

Floating Panel Mechanism With 4-Way Position Adjustment

Fully adjustable display allows you to change the depth, height, angle, and left / right for easy vehicle fitment.

Smartphone Connectivity

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

Apple CarPlay – Split Screen Support

You can view and operate both Apple CarPlay and the KENWOOD source on the same screen.

Android Auto ™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.

*Selected mobile phones only

Android Auto – Split Screen Support

You can view and operate both Android Auto and the KENWOOD source on the same screen.

Wireless Mirroring for Android

Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

HDMI Mirroring for Smartphones

Display your smartphone screen or other device via an HDMI cable (and third-party adapter as applicable) on the 10.1" monitor. KCA-HD200 optional HDMI cable sold separately.

KENWOOD Portal App

Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.

The Best Audio Experience

High-Resolution Audio Wireless

High-Resolution Audio is high-quality sound that exceeds the CD standard. High-Resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality listening experience. Select KENWOOD receivers now support Hi-Resolution Audio Wirelessly via LDAC. LDAC is an audio coding technology that enables the transmission of High-Resolution Audio over a Bluetooth connection.

*LDAC and LDAC logo are trademarks of Sony Corporation.
* “Hi-Res Audio” Logo and “Hi-Res Audio Wireless” Logo are used under license from Japan Audio Society.

Parametric Equalizer

You can fine-tune advanced sound properties to achieve professional audio sound quality in your vehicle. It allows you to set parameters of Q factor, slope, frequency and gain at 14 points separately (Common: 9 / Front: 2 / Rear: 2 / Subwoofer: 1). With adjustments such as high and low shelving filters, more realistic sound can be delivered.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

High Quality Audio Parts Supporting High-Resolution Audio Reproduction

To ensure the best possible sound quality, the receivers use custom-made and carefully selected parts, such as audio-quality power supply capacitors high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.

Digital Optical Output

Connect your favorite DSP amplifiers to create the optimal sound space.

Playable Video & Audio Files

You can play back from USB devices audio and video files compressed in various formats.

Safe Driving

Enhanced Vehicle Integration

Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget and Customizable Accessory Controls. (sold separately).

*Available features vary by vehicle

Rear View Camera Input with Parking Guidelines

An optional rear-view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

HD Front / Rear Camera Input

The optional CMOS-740HD camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built-in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.

4 Camera Inputs

To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately). Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on-screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).

Dash Cam Link Ready

Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.

Additional Features

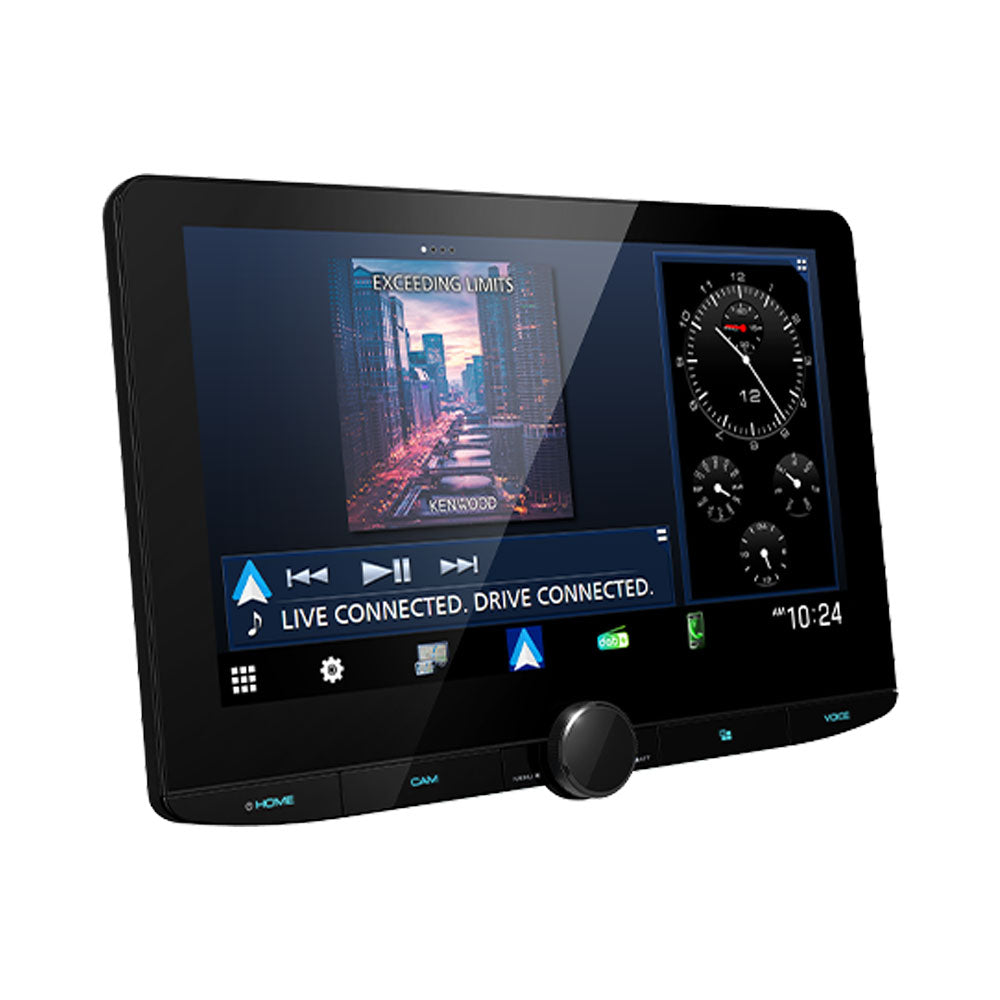

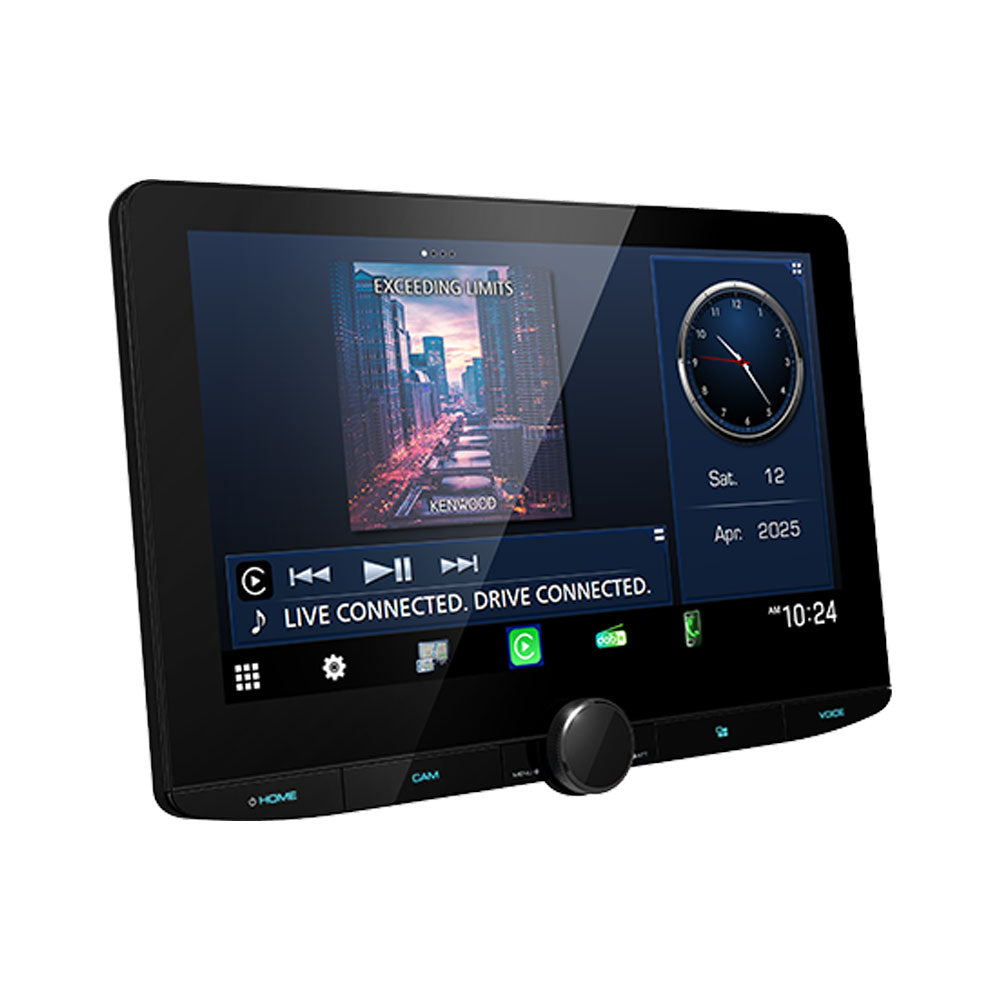

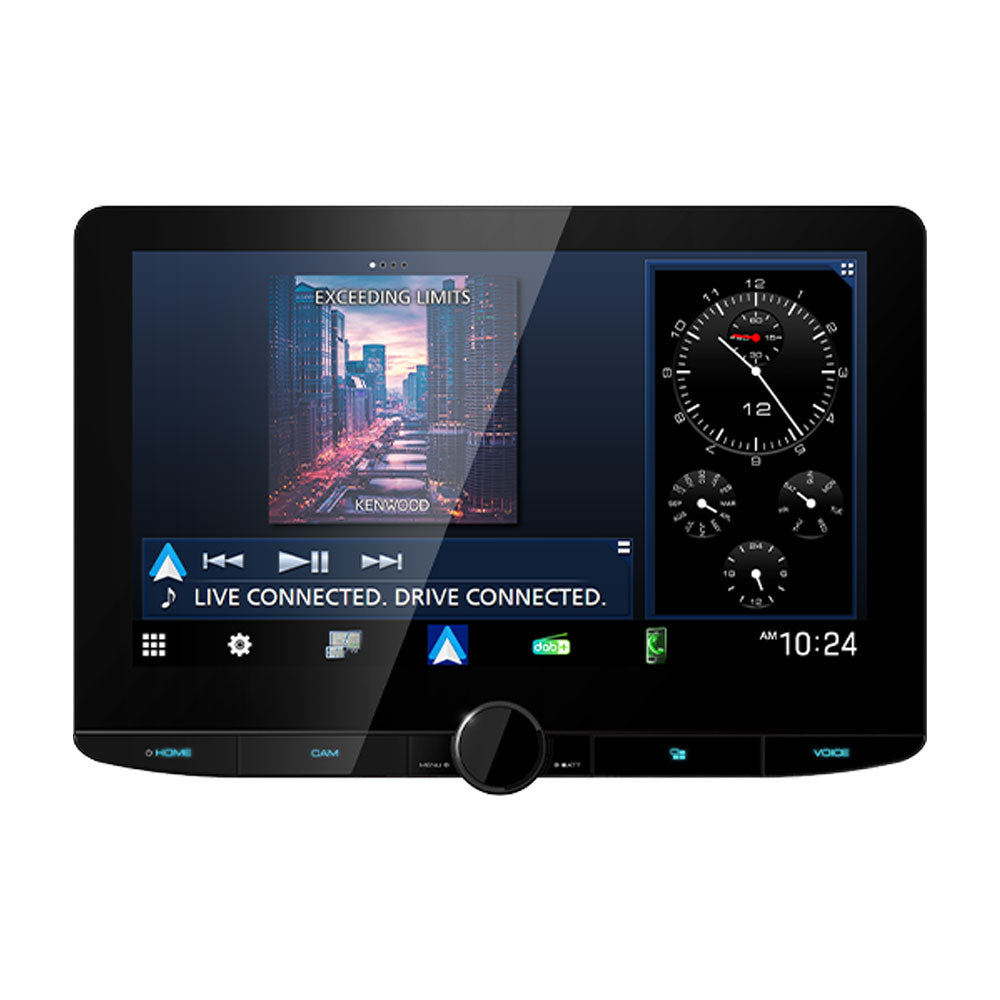

Driving Widget Home Screen

The 10.1" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.

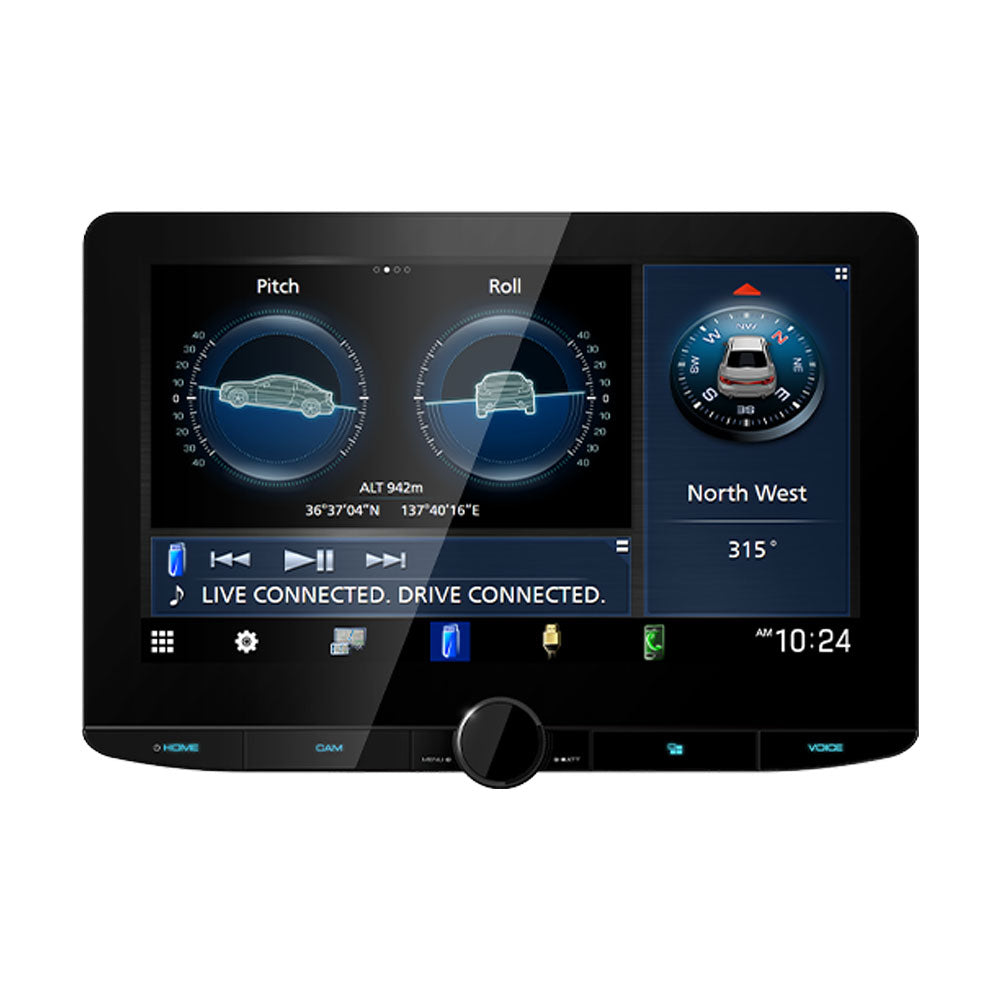

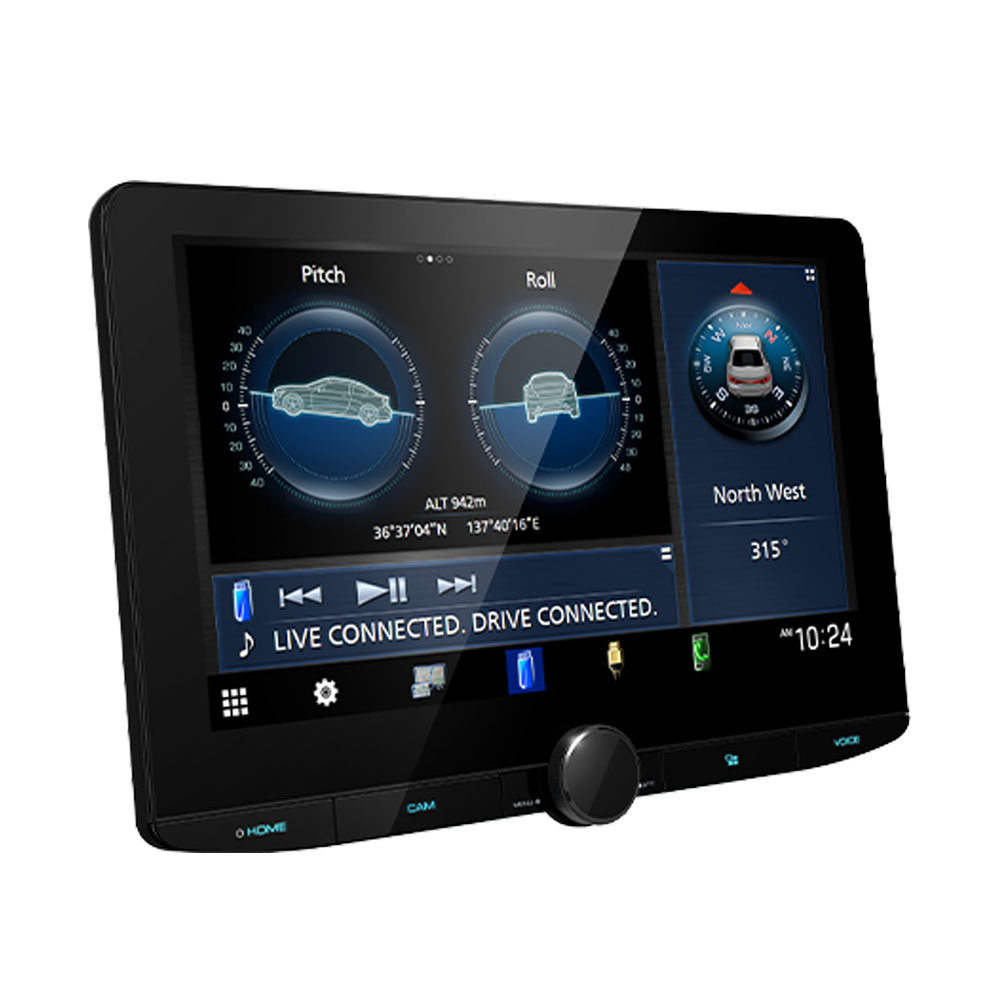

Pitch & Roll GUI

The gyro sensor accurately captures the vehicle's angle and direction and displays it on the screen even on gravel roads, mountain roads, and rough terrain.

USB Type-C

USB Type-C cable and USB Type-A adapter are included in the set. Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A

Remote Control (Optional)

This receiver unit can be operated using the optional remote control KCA-RCDV340.

Product Features:

Monitor Section

• Picture size 10.1 inches(diagonal) wide
• W x H 223.7 x 125.8 (mm)
• Display system LCD panel
• Drive system TFT active matrix system
• Number of pixels
  • 2,764,800
  • 1280H x 720V x RGB
• Effective pixels 99.99%
• Pixel arrangement: RGB striped arrangement
• Backlighting LED

USB I/F Section

• Connector Type Type-C
• USB Standard USB2.0 High Speed
• File System FAT 16/32, exFAT, NTFS
• Maximum Power Supply Current DC5V=3.0A
• D/A Converter 24/32Bit
• Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis
• Video Decoder MPEG1/2, MPEG4 / WMV / H.264 / MKV
• Frequency response
• 192k Sampling 20 - 88,000 Hz
• 96k Sampling 20 - 44,000 Hz
• 48k Sampling 20 - 22,000 Hz
• 44.1k Sampling 20 - 20,000 Hz
• Total harmonic distortion 1kHz 0.01%
• Signal-to-Noise ratio 98.5dB
• Dynamic range 89dB

Wireless Mirroring Section

• Copyright protection HDCP2.2
• Touch Control UIBC

Wi-Fi

• IEEE Standard 802.11 a/b/g/n/ac
• Frequency Range Dual Band ( 2.4GHz / 5GHz )
• Channels
  • Auto(1-11ch)
  • Auto(149,153,157,161ch)
• Transfer rates (MAX)
  • 11a: 54 Mbps / 11b: 11 Mbps /
  • 11g: 54 Mbps / 11n: 300 Mbps /
  • 11ac: 867 Mbps

Bluetooth Section

• Technology Bluetooth Ver5.2
• Frequency 2.402 – 2.480 GHz
• Maximum Communication range Line of sight approx.10m(32.8ft)
• Audio Codec SBC / AAC / LDAC
• Multi Profile Support Multi Profile
• Profile
  • HFP (V1.7) (Hands Free Profile)
  • SPP (Serial Port Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (V1.6) (Audio/Video Remote Control Profile)
  • PBAP (Phonebook Access Profile)

HDMI

• Connector Type Type-D
• Input Resolution
  • VGA (640x480p @59.94Hz/60Hz)
  • 480p (720x480p @59.94Hz/60Hz)
  • 720p(1280x720p @59.94Hz/60Hz)
• Input Audio Type 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM

Main Unit

DSP Section

Graphics equalizer

• BAND 13Band
• frequency (Hz) (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
• Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]

2Way X'Over

• HIGH PASS FILTER frequency Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
• SLOPE -6/-12/-18/-24[dB/Oct.]
• LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
• SLOPE -6/-12/-18/-24[dB/Oct.]

3Way X'Over

• HIGH PASS FILTER frequency 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
• SLOPE -12/-18/-24[dB/Oct.]
• Band PASS FILTER frequency
  • Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
  • 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
• SLOPE -12/-18/-24[dB/Oct.]
• LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/Through[Hz]
• SLOPE -12/-18/-24[dB/Oct.]

Position

• Front / Rear /Subwoofer Delay 0 - 6.1m (0.01m Step)
• Gain -8 to 0dB
• Subwoofer Level -50 to +10dB

FM

• Frequency Range 87.5MHz - 108.0MHz (50kHz)
• (Frequency step) (50kHz)
• Usable sensitivity 7.3dBf
• S/N30dB 0.7μV/75Ω
• Frequency response 30Hz - 15kHz (±3.0dB)
• S/N (dB) 70dB (MONO)
• Selectivity Over 80dB (±400kHz)
• Stereo separation 45dB (1kHz)

AM

• Frequency Range 531kHz - 1701kHz
• (Frequency step) (9kHz)
• Usable sensitivity 30dBμ

DAB

• Frequency Range BAND III: 174.928MHz - 239.200MHz
• Sensitivity -100dBm
• S/N 90dB

DAB Antenna Connector

• Connector type SMB
• Output Voltage 9.8V DC (9V-10.5V allowable)
• Maximum Current < 100mA

Video

• Color system of external video input NTSC/PAL
• External video input level (RCA jacks) 1 Vp-p / 75 Ohms
• External video input level (Mini jacks) -
• Video Input level (RCA jacks) 1 Vp-p / 75 Ohms
• Video Output level (RCA jacks) 1 Vp-p / 75 Ohms
• Analog RGB input -

Audio

• Maximum Power Output (Front&Rear) 50Wx4
• Typical Power Output (Front&Rear) 29W x 4 (4Ω,1kHz,10%THD)
• Output frequency band 20 - 88,000Hz
• Preout level (V) 5V / 10kOhms
• Preout impedance (Ω) =< 300 Ohms
• Speaker Impedance (Ω) 4-8 Ohms
• External audio max input level (RCA jacks) 2V / 22kOhms

Digital Audio Out

• Connector Type OPTICAL
• Output frequency
  • 48kHz / 96kHz, 24bit
  • Linea PCM

General

• Operating voltage 12V DC Car Battery
• Set
  • Weight 2.5Kg
  • Dimensions WxHxD 178mm x 50mm x 158mm
  • Weight 1.3 kg
• Monitor
  • Dimensions WxHxD 262mm x 181mm x 52mm
  • Weight 1.1 kg
