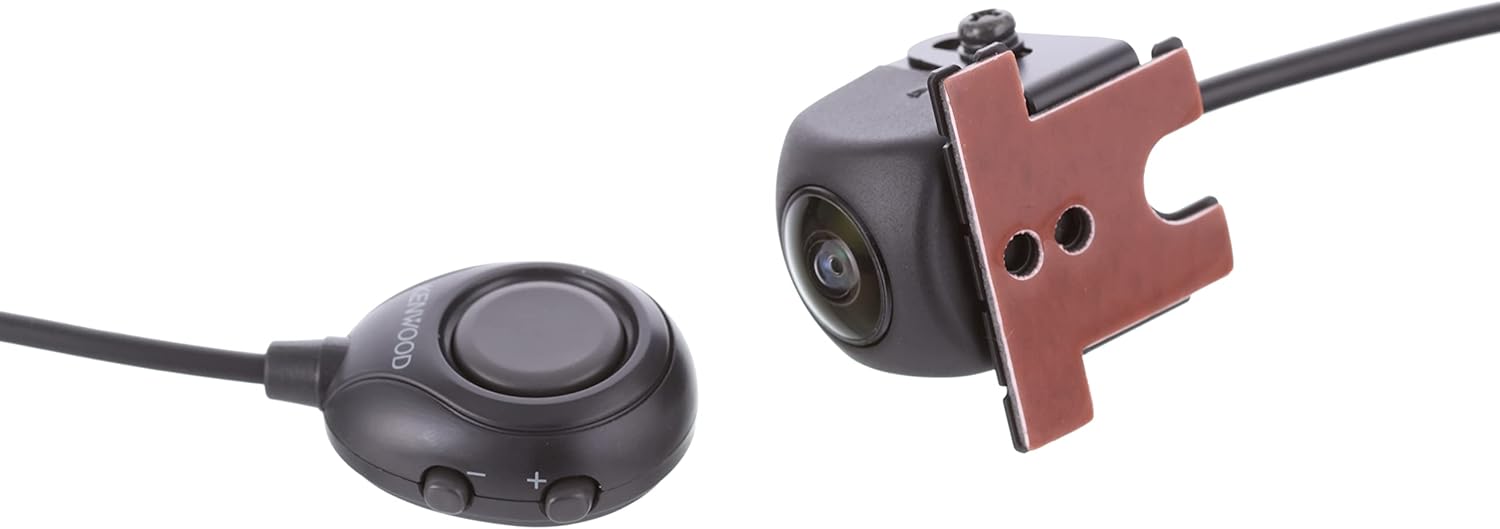

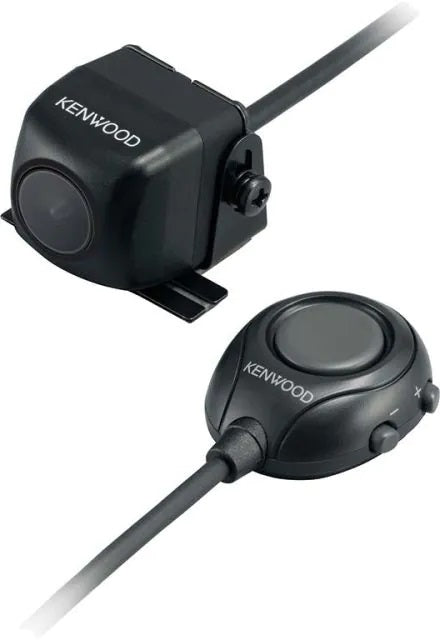

Kenwood CMOS-230 - 1/3.6" Universal Rear View Wide Angel Colour Multi View reverse Camera .

Wide-angle mirror image - 1/3.6" Colour CMOS sensor

Simple yet brilliant. The Kenwood CMOS230 allows an amazing picture of the rear of any vehicle. High-Quality lenses and easy RCA connection make it is perfect for any vehicle.

This waterproof rear-view camera is equipped with a sensitive CMOS sensor in combination with a high-quality lens that provides a good, sharp image, even at night or in dark places like a parking garage, for proper parking and reversing without relying on side mirrors alone.

Product Features:

Key Features

• Wide-angle mirror image
• 1/3.6" Colour CMOS sensor
• Waterproof unit with flexible mount base
• NTSC Video Signal Out (RCA)

Camera Unit

• Camera Type 1/3.6" colour CMOS sensor
• Colour type
• The effective number of pixels is roughly 330000
• High sensitivity Pixels

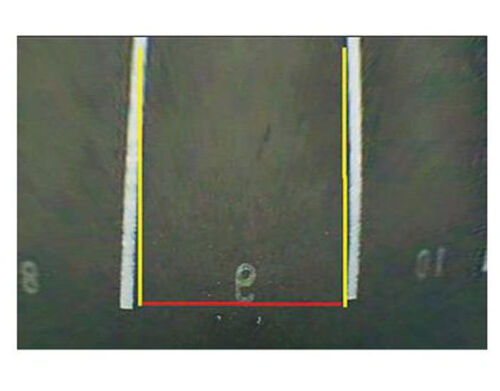

• Output video wide-angle mirror image
• Waterproof chassis
• Mounting system Flexible mount base
• Installation positions Rear
• Rear view switching Reverse line
• High voltage protection
• Wide-angle lens
• Focal length f: 1.12mm, F value 2.2
• Horizontal Angle view +/- 128°
• Vertical Angle View +/- 103°
• Illumination range approx. 0.9 to 100000 lux
• Iris System Electronic
• White balance automatically
• Scanning System Interlace
• Synchronizing System Internal
• Video output level 1Vpp, 75O
• Video signal format NTSC (Mirror view)
• Connection cable (DC+video) 9 m

General Specifications

• Operating voltage 14.5V (9 ~ 16V Allowable)
• Maximum Current Consumption 0.05A
• Dimensions (WxHxD) 23.4 x 23.4 x 23.9mm
• Weight 22gr
• Operating Temperature Range -30°C ~ 70°C
• Storage Temperature Range -40°C ~ 80°C
