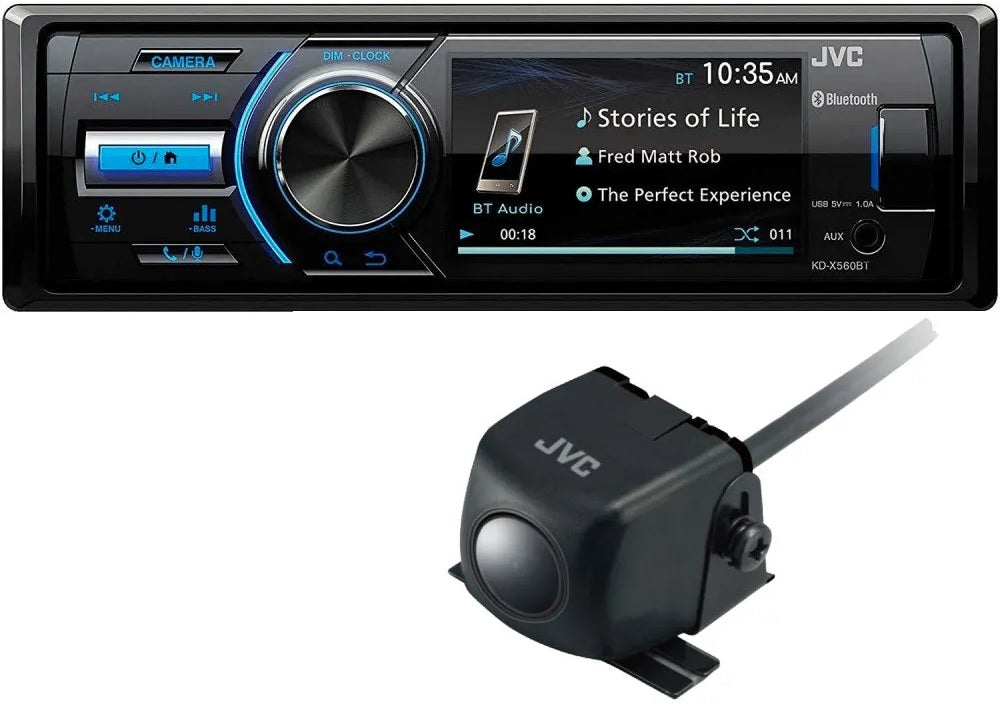

JVC KD-X560BT Digital Media Receiver with 3-inch Monitor, Bluetooth + KV-CM30 reverse-camera

Package Includes

• JVC KD-X560BT Digital Media Receiver Bluetooth iPhone Car Stereo

• JVC KV-CM30 Universal CMOS Sensor Reversing Camera

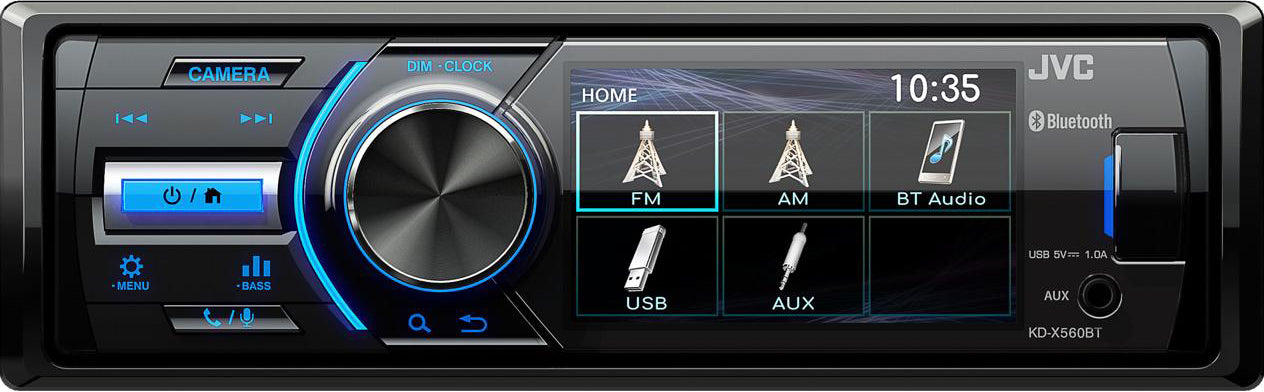

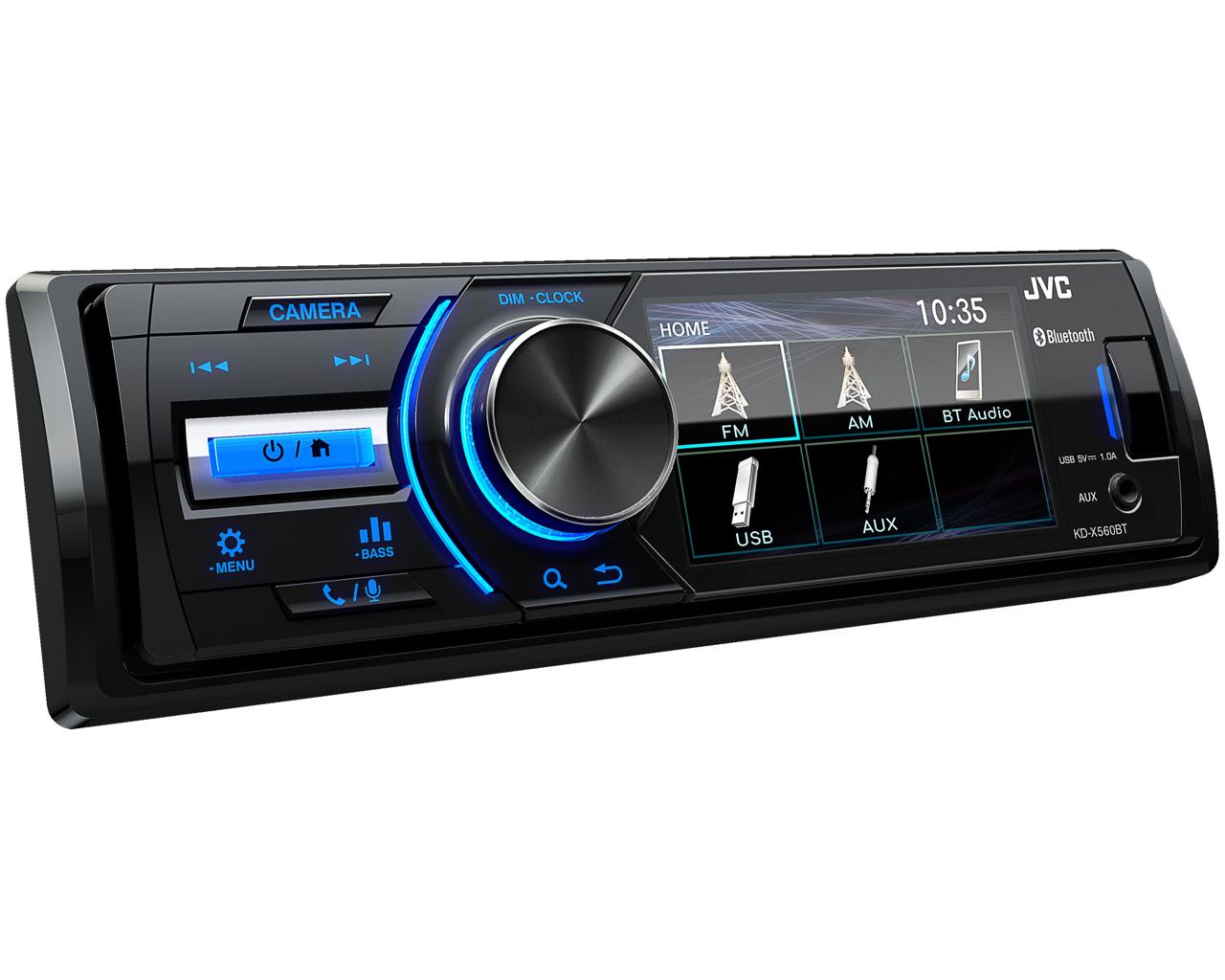

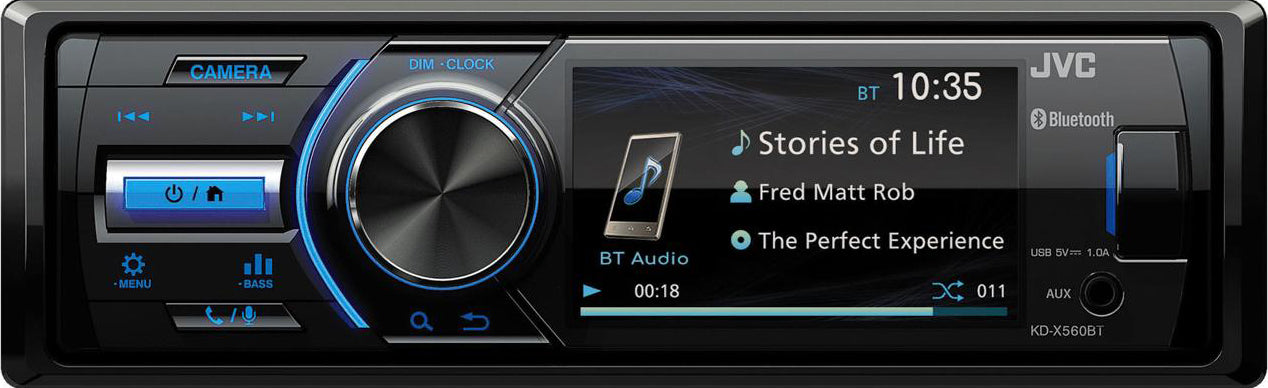

KD-X560BT 1DIN, Mechless, Multimedia system

Features

• Short Body
• 3-inch QVGA Monitor
• Bluetooth(R) Wireless Technology (Built-in)
• Bluetooth Audio Streaming A2DP and AVRCP 1.5

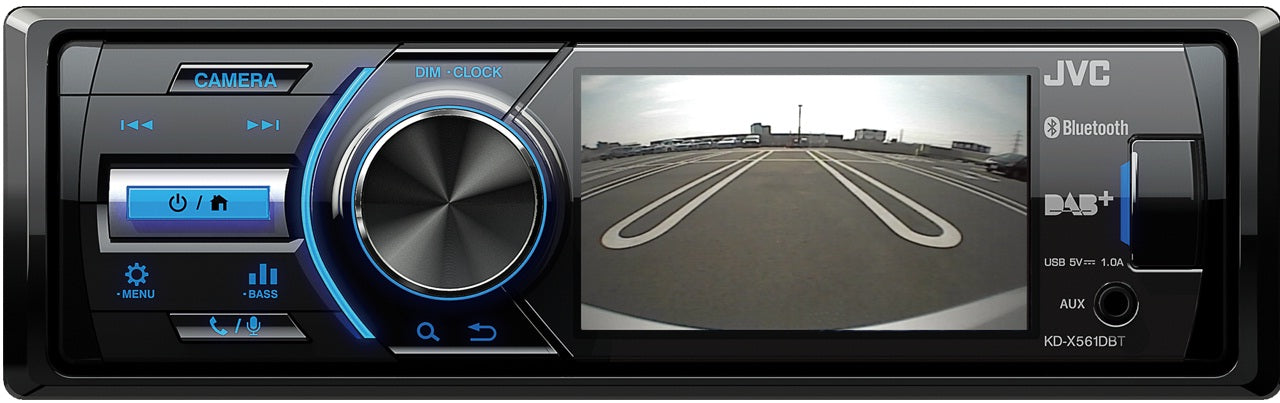

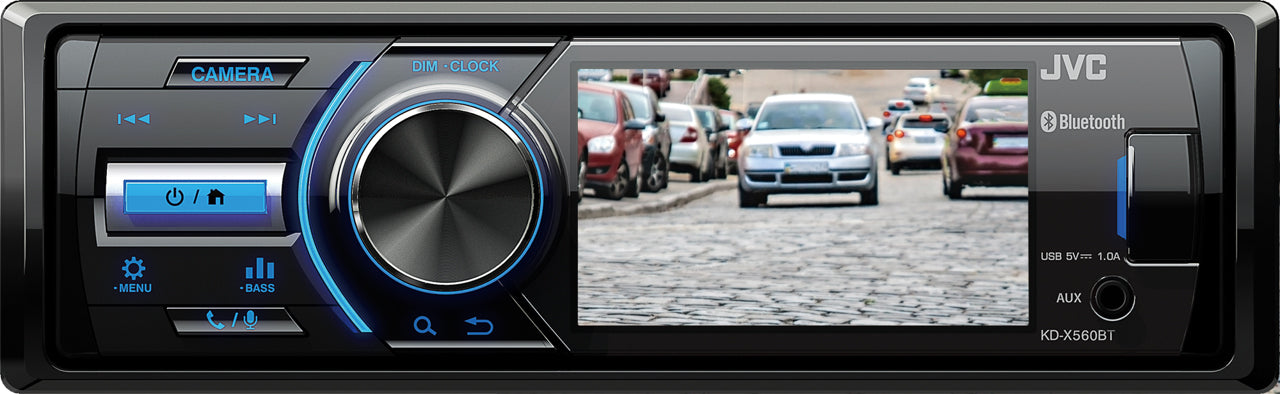

• Rear View Camera Input
• Made for iPod / iPhone
• Front USB
• AUX Input (Front / Mini jack)
• Video Playback Formats: MPEG1/2/4, H264 and MKV
• Media Playback: MP3 / WMA / m4a, AAC / WAV / FLAC / Ogg / JPEG, PNG, BMP
• 3 Pre-Output Terminal
• 13-Preset EQ
• Sound DSP with DTA
• Steering Wheel Remote Ready
• Dimmer Control

Monitor

• Screen Size 3.0" 16:9 QVGA
• Key Illumination Color Blue
• Multilingual Display

Media Playback

• MP3 Compatible with Tag
• WMA is Compatible with Tag
• WAV Compatible with Tag ( Up to 96kHz/24bit )
• AAC Compatible with Tag
• FLAC Compatible with Tag ( Up to 96kHz/24bit )
• H.264 Compatible
• MPEG 1/2 Compatible
• MPEG 4 Compatible
• AVI/MKV Compatible
• JPEG File Playback
• PNG File Playback
• BMP File Playback

Bluetooth Control

• Built-In Bluetooth (Version 3.0, Wired-Mic included)
• Hands Free Call (HFP1.5 Wideband Speech)
• Audio Streaming & Control (A2DP, AVRCP)
• Phone Book Access Profile (PBAP)

Android Control

• Android Music Playback (via Bluetooth(R))

iPod/iPhone Control

• iPod/iPhone Music Playback (via USB or Bluetooth(R))

USB

• MP3/WMA Compatible with ID3 Tag/WMA Tag
• WAV Compatible with Tag
• AAC Compatible with Tag
• FLAC is Compatible with Tag
• AVI/MKV Compatible
• JPEG/MPEG 1/2 Compatible
• MPEG-4 Compatible
• USB Port x 1 (High speed)
• Position Front
• USB Power Supply (1.0A)

Radio Tuner

• Radio Data System
• Preset Stations 30 (FM:15, AM:15)
• FM
• Frequency Range 87.5 - 108.0MHz
• AM
• Frequency Range (MW) 531 - 1,611kHz, (LW) 153 - 279kHz

Audio

• Maximum Power Output (Front & Rear) 45W x 4
• Full Bandwidth Power (Front & Rear) 16W x 4
• EQ (13-Band Graphic EQ)
• Preset EQ (9-Preset)
• High-Pass Filter/Low-Pass Filter
• Bass Boost

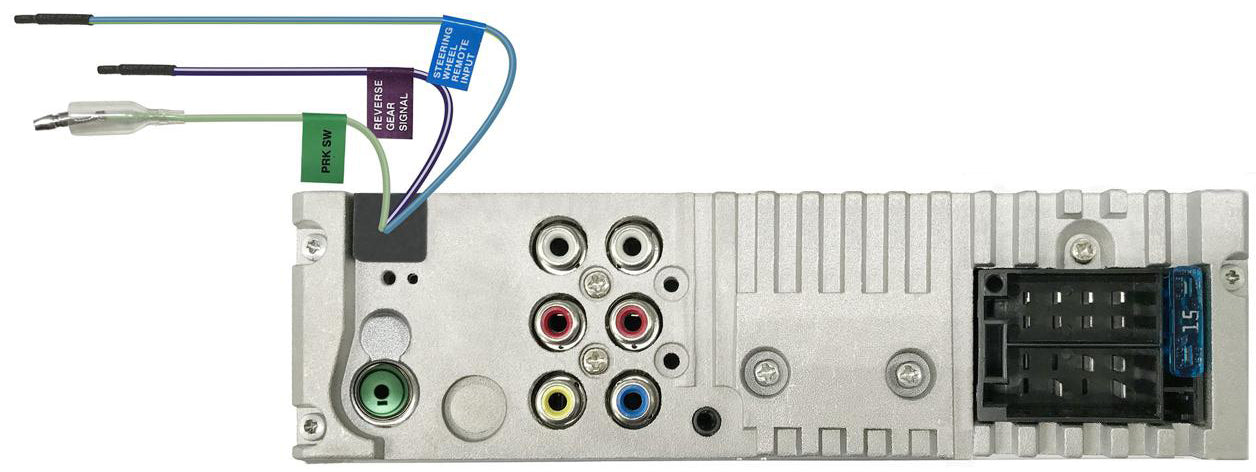

Inputs and Outputs

• Pre-output Level/Impedance 2.0V / 10k ohms
• Front AUX Input
• Rear view camera Input
• Line Output Terminals 3 Pairs (Front + Rear + Subwoofer)

General

• Short Body
• Wireless Remote Control Ready (RM-RK258 required)
• Steering Remote Control Ready
• ISO Connector
• Dimensions (W x H x D)
• Installation Size 182 x 52 x 117 (mm)
• Unit weight in individual package 1.18kg
• Weight 0.75kg : inlcuding sleeve

CMOS Sensor Reversing Camera - JVC KV-CM30

JVC rear-view camera. High quality, waterproof colour camera for rear-view and reversing applications.

• Waterproof design
• 1/4" color CMOS sensor with effective 380,000 pixels
• Flexible mounting bracket included
• Camera dimensions (WxHxD): 23.4mm x 23.4mm x 23.9mm
• Weight: 21g (Camera only)
• 5M Lead Included

General Specifications

• Operating voltage 14.5V (9 ~ 16V Allowable)
• Current Consumption 0.05A
• Dimensions Main Unit (WxHxD) 23.4 x 23.4 x 23.9mm
• Operation Temperature Range -30°C ~ 70°C
• Storage Temperature Range -40°C ~ 80°C
