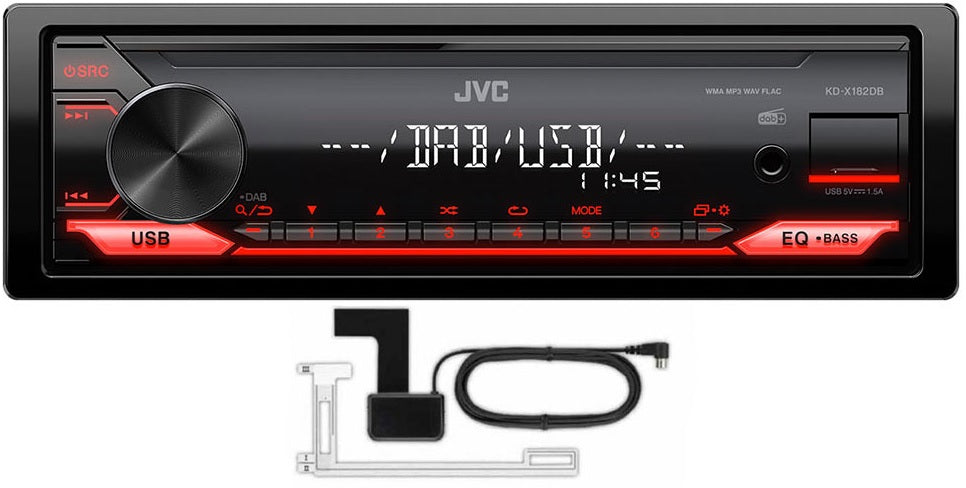

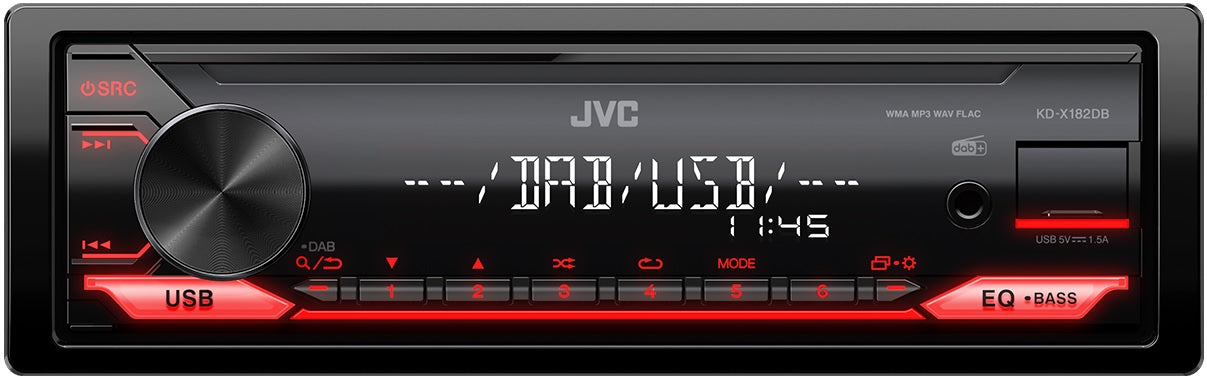

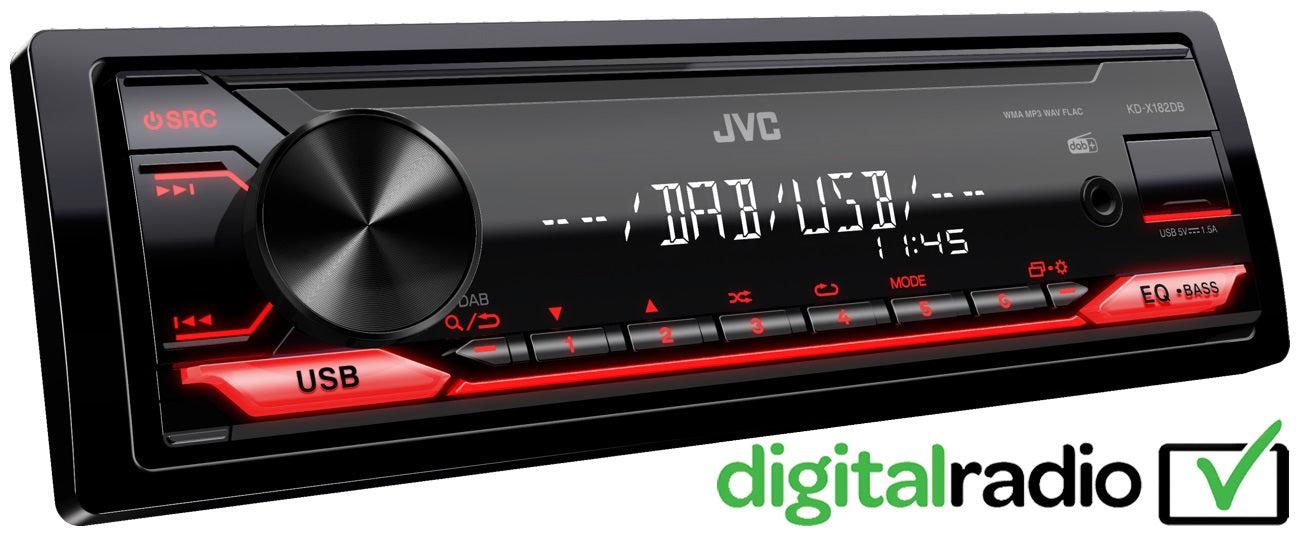

JVC KD-X182DB Digital Media Receiver featuring Digital Radio DAB+ / Front AUX & USB / DSP with DTA & 13-Band EQ DAB Aerial
JVC KD-X182DB Digital Media Receiver featuring Digital Radio DAB+ / Front AUX & USB / DSP with DTA & 13-Band EQ DAB Aerial

JVC KD-X182DB Digital Media Receiver featuring Digital Radio DAB+ / Front AUX & USB / DSP with DTA & 13-Band EQ DAB Aerial

KD-X182DB + Aerial
JVC See other products by JVC
£104.99 £129.99
Save £25.00

JVC KDX182DB - •Mechless DAB Radio • Short Body •Front USB 1.5amp. •Front Auxillary •13 Band EQ •3 x 2.5v Preout •4 x 50w •SWRC • Red Illumination DAB Aerial INCLUDED
Ask a question
Trade enquiry
Price match

DAB+ Tuner

DAB (Digital Audio Broadcasting) delivers crystal clear audio from your favourite FM stations as well as a broad range of digital-only stations ranging from news and talk, to classical and rock. Normally, DAB+ is delayed by a few seconds compared to the FM broadcast.

Enjoy both better quality and richer content with DAB+.

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Sound Optimilization

Time Alignment:
By selecting the speaker type and the distance to the centre of the listening position, the head unit will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

Sound Lift:
Virtually manipulate the height of the speakers by adjusting the sound frequencies.

Volume Link EQ:

Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.

Product Features:

Display
  • Detachable Face Panel
  • Display Type - 1-Line VA LCD Display
  • LCD Colour - White
  • Key Colour - Red
  • Music Sync. Effect
  • Auto Dimmer
  • Brightness Control
  • Russian Text Compatible
  • Spanish Text Compatible
  • French Text Compatible
Radio Tuner
  • DAB+ Frequency Band III - 174928MHz to 239200MHz
  • Radio Data System (RDS)
  • FM Frequency Range - 87.5 - 108.0MHz
  • FM Usable Sensitivity - 6.2dBf (0.56V/75 ohms)
  • FM Quieting Sensitivity (46dB) - 1.58uV / 75 ohms
  • FM Stereo Separation - 40dB
  • LW Frequency Range - 153 - 279kHz
  • LW Sensitivity - 45uV
  • MW Frequency Range - 531 - 1,611kHz
  • MW Sensitivity - 28,5uV
  • Pre-set Stations - 18FM + 6AM + 18DAB
  • Tuner Pre-set Memory
  • Automatic Pre-set / SSM (FM only)
  • Digital Processing Tuner
Media Playback
  • MP3 Compatible with Tag via USB
  • WMA Compatible with Tag via USB
  • WAV Compatible with Tag via USB
  • FLAC Compatible with Tag via USB ( Up to 96kHz/24bit )
USB
  • Location - Front
  • Drive Change Mode for Mass Storage Class
  • Random / Repeat Play
  • 1.5A Max. Power Supply Current
Audio
  • Maximum Power Output (Front & Rear) - 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
  • Full Bandwidth Power (at less than 1%THD) - 22W x 4
  • MOS-FET Amplifier
  • Speaker Load Impedance - 4 ohms (4 - 8 ohms allowable)
  • K2 Technology
  • Equalizer Built-in
  • 13-Band Graphic EQ
  • Preset EQ
  • Easy EQ Setting
  • Volume Link EQ
  • High-Pass Filter/Low-Pass Filter
  • Digital Sound Processor (DSP)
  • Time Alignment
  • Sound Enhancement
  • Space Enhancement
  • Sound Response
  • Sound Lift
  • Digital Track Expander
  • Loudness Control
  • Bass Boost (Hyper Bass System)

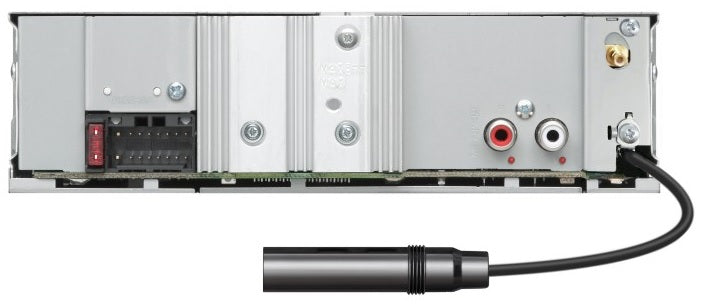

Inputs and Outputs
  • Auxiliary (AUX) Input 1 (Front)
  • Pre-Out Terminals - 1 Pair (Rear/Subwoofer Selectable)
  • Pre-Output Level - 2.5V
  • Pre-Out Impedance - Less than 600 ohms
  • Subwoofer Output with Level/Frequency Control (Level -8 - +8)
  • Subwoofer Output Level - 2.5V
General
  • Rotary Encoder
  • Beep Tone Support (From Speakers)
  • Back Up Memory
  • Wired Steering Remote Control Ready
  • ISO Connector Cable
  • Short Chassis
  • Dimensions (W x H x D) - 182 x 53 x 100mm
  • Weight - 0.60kg
