Option Audio AIR-D6 6 Channel Class D Compact Amplifier 300w RMS

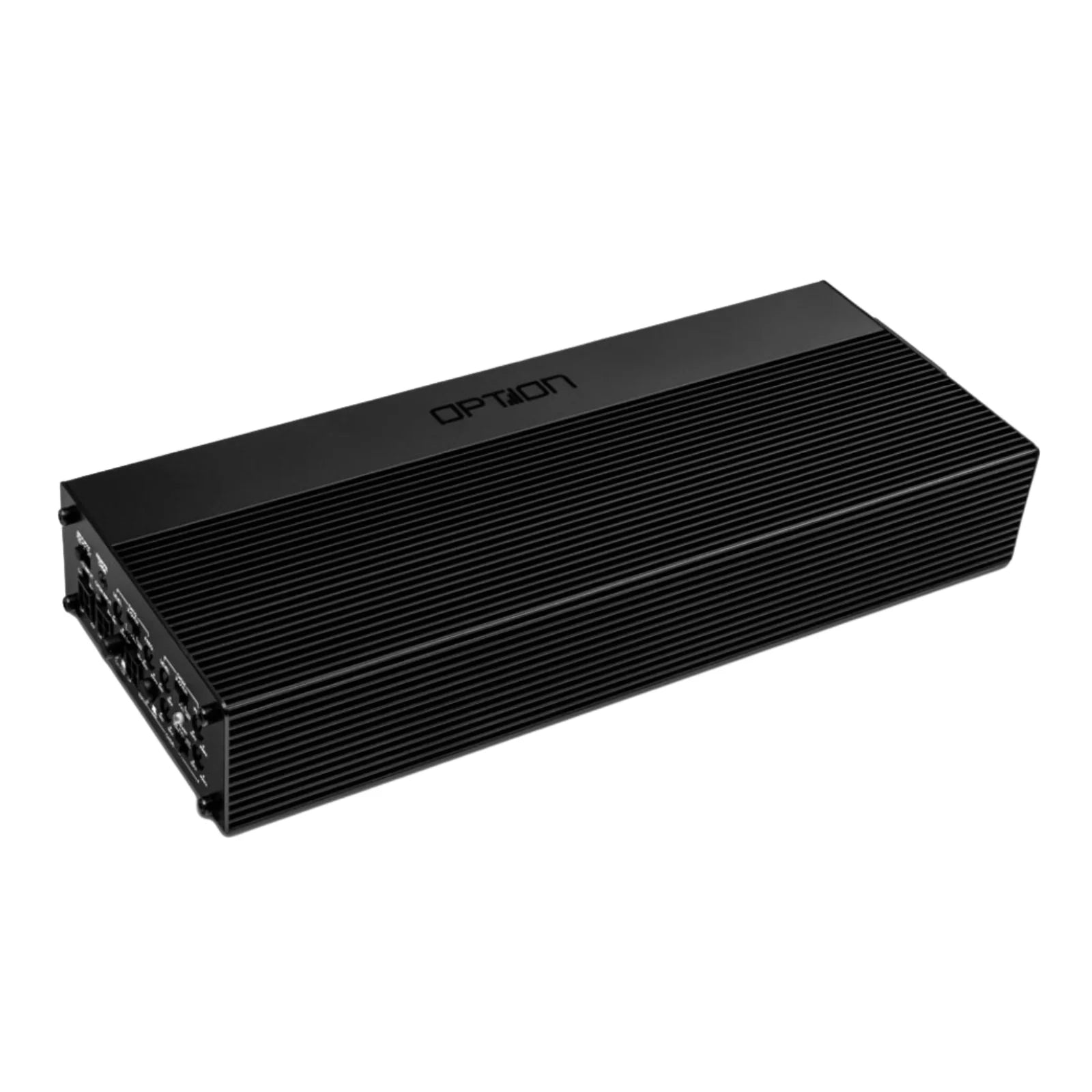

OPTION AIR-D6 6-Channel Amplifier

Maximum power for the entire system: With 6 channels and a rich 6x 95/150 WRMS (4/2 ohm), you can effortlessly fuel your complete vehicle setup – consisting of front system, rear speakers and a subwoofer – for a dynamic and level-resistant sound experience.

Ultra-compact micro design: Despite the enormous performance, the AIR-D6 is extremely small. Thanks to the space-saving housing, the amplifier can be installed completely invisible behind the dashboard, in the glove compartment or under the seat.

Perfect for Factory Radios (OEM Integration): The power amplifier is ideal for upgrading original radios without RCA outputs. Thanks to high-level inputs and auto-turn-on, the device automatically detects the music signal and turns on without a separate remote cable (power on signal).

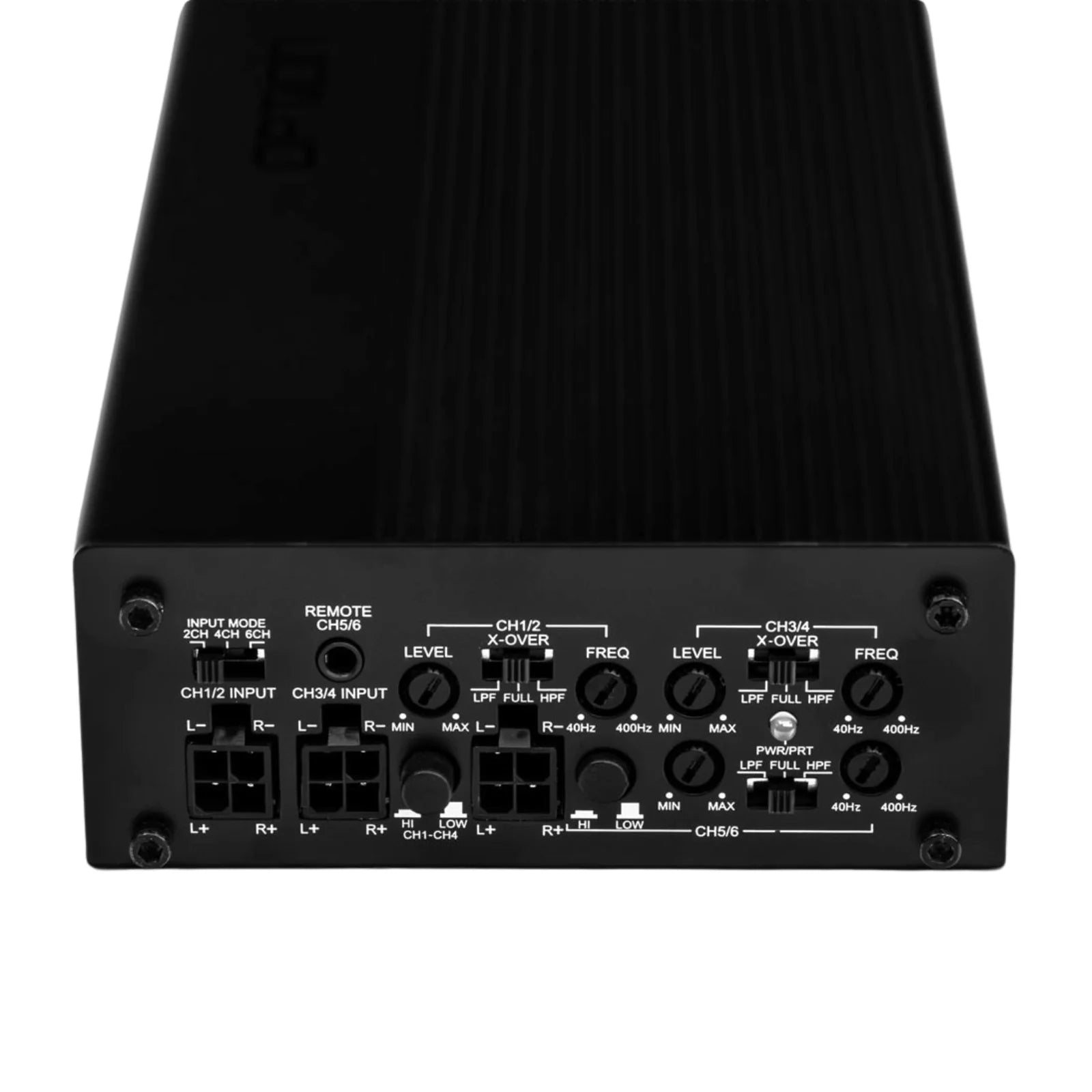

Outstanding flexibility: Use the 6 channels classically for all speakers or bridge channels to 300 watts RMS (4 ohms) to drive particularly powerful components or subwoofers. The integrated high and low pass filters allow for exact frequency separation.

Efficient Class-D technology: The modern digital circuit ensures extremely high efficiency with minimal heat generation. The power amplifier is also 2-ohm stable, which allows the connection of a variety of speaker combinations.

Key Features

• Class-D power amplifier: Yes
• Operating voltage: 10-16V
• RMS power (4 ohms): 95 watts
• RMS power (2 ohms): 150 watts
• RMS power bridged (4 ohms): 300 watts
• RMS power bridged (2 ohms): not possible
• Frequency response: 20Hz-20kHz
• High-pass filter: 40Hz-400Hz
• Low-pass filter: 40Hz-400Hz
• Total harmonic distortion (THD): <0.1%
• Minimum loudspeaker impedance: 2 ohms
• Signal-to-noise ratio (A-weighted): >90 dB
• Security: 60A
• Dimensions (W x H x D): 105.7mm x 41.7mm x 258mm
• Cable cross-section (recommended): 10 mm²

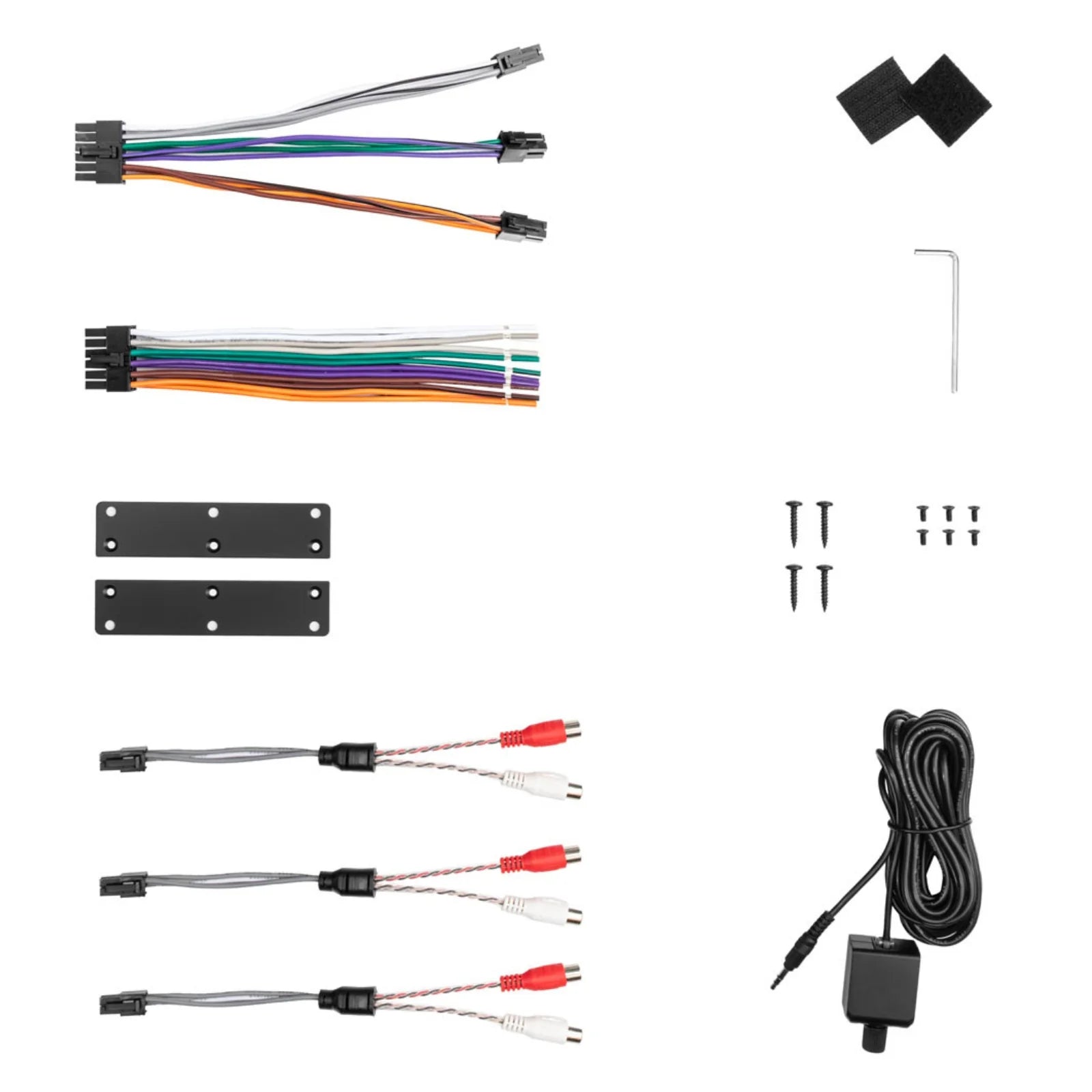

What's in the box:

• OPTION AIR-D6 6-channel amplifier
• Subwoofer level remote control including Velcro strap for flexible mounting
• 3x Plug & Play adapters for input signal to RCA
• 1x Plug & Play adapter for output signal to Molex
• 1x Plug & Play adapter for output signal to loose ends
• Mounting/fastening plates including 6 screws (for mounting on the amplifier) and 4 screws (for mounting in the vehicle)
• Allen key
