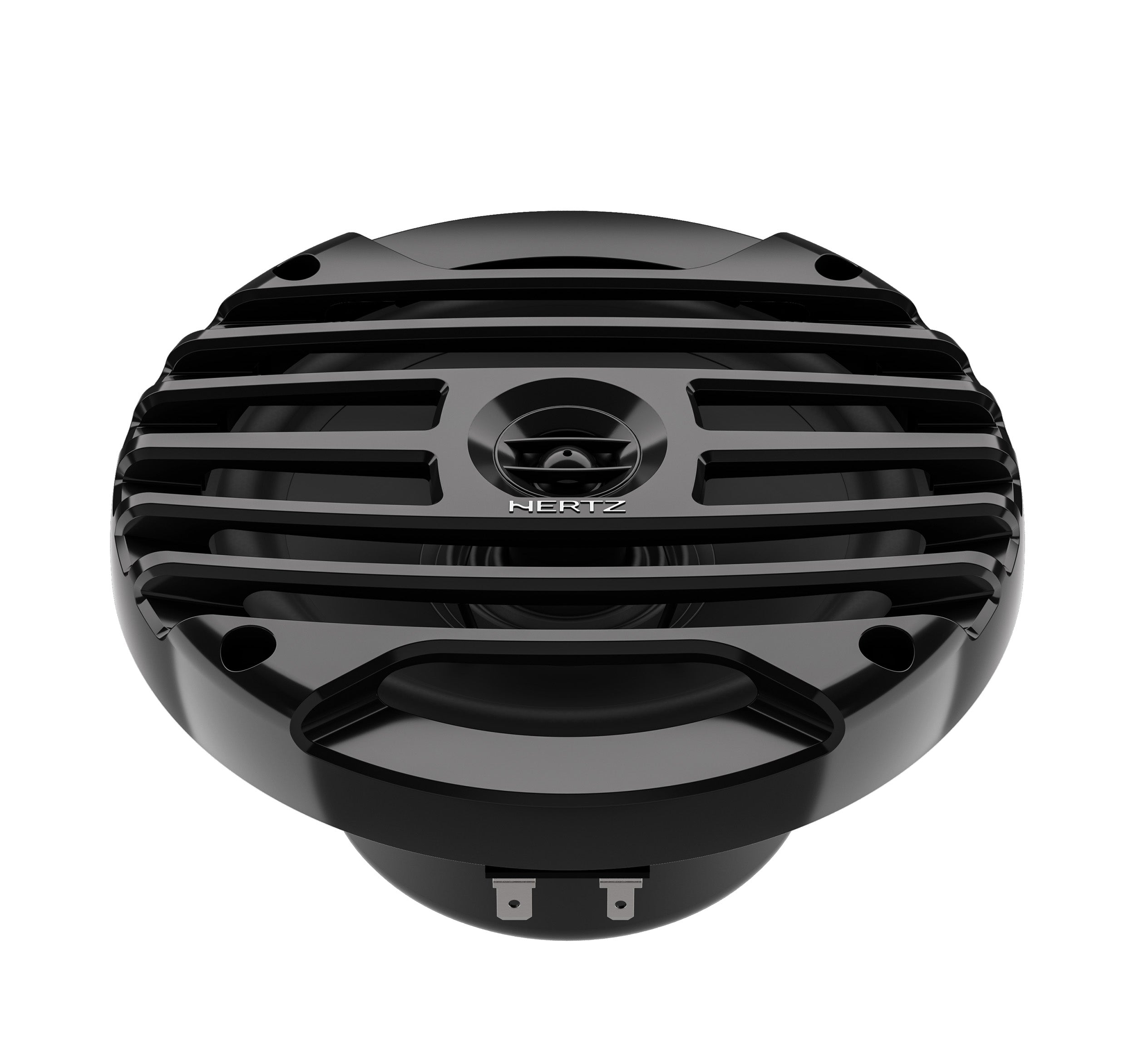

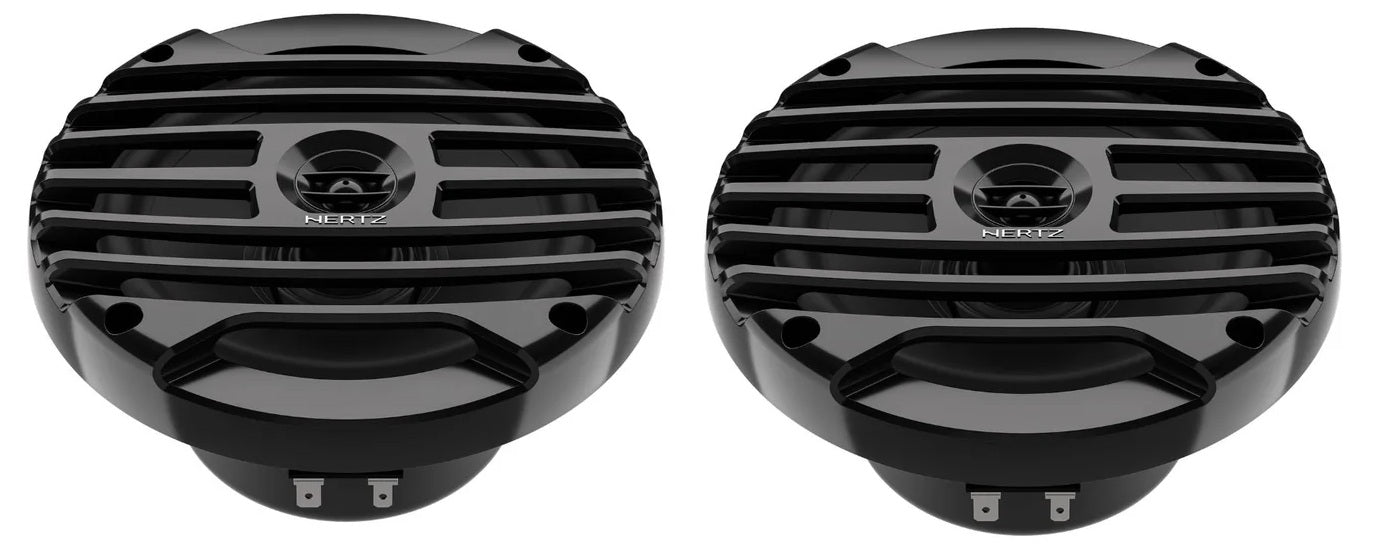

Hertz Marine HEX 6.5 M-C-O 6.5 Inch 2 Way 4 Ohm Coaxial Speakers 50w RMS

Hertz Marine HEX 6.5 M-C-O 165 (6.5) mm (in.) | 85 (3.25) mm (in.) | Coax | 100 W | 4 Ohm

The HEX 6.5 M-C-O combines timeless marine design with the rugged performance expected from Hertz Marine. Featuring a Marine Total Black grille, this speaker adds a sleek, modern touch to any vessel while ensuring long-lasting protection in the harshest marine environments. Engineered and tested for real marine duty, the HEX 6.5 M-C-O delivers detailed, dynamic sound in a compact format, only 2.36 inches deep, making every voyage more enjoyable.

Certified with the Hertz Pure Marine stamp, it meets IP65, ASTM-D4329 UV, and ASTM-B117 salt fog standards for maximum durability and performance. Its high-efficiency tweeter, optimized through FEM simulation, ensures perfect off-axis dispersion typical of in-boat installations, while the sound-transparent mesh grille with a twist-and-lock system guarantees elegance and solid protection. The 25 mm (1”) voice coil woofer, designed for infinite baffle applications, features silicone-insulated leads for extended reliability, complemented by a sealed built-in crossover with resettable tweeter protection and nickel-plated corrosion-resistant terminals. Pure style, powerful sound, and lasting protection, engineered for life at sea.

Product Features:

• Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
• High-efficiency tweeter designed with FEM simulation to maximize off-axis emission, typical of in-boat install.
• Sound-transparent mesh grille with twist and lock locking system, providing an elegant style and rock-solid protection.
• Woofer with 25 mm (1”) voice coil fine-tuned for infinite baffle application featuring silicone-insulated lead-wire for durability.
• Sealed built-in crossover with resettable solid-state tweeter protection circuit.
• Nickel-plated corrosion-resistant terminals.

Product Spec:

• Component: COAX

• Size mm (in.): 165 (6.5)

• Power Handling - Continuous W: 50

• Power Handling - Peak W: 100

• Impedance Ohm: 4

• Depth mm (in.): 85 (3.25)

• Woofer Voice Coil Ø mm (in.): 25 (1)

• Tweeter Voice Coil Ø mm (in.): 13 (0.5)

• Frequency Response Hz: 50 ÷ 23k

• Woofer Magnet size D x d x h mm (in.): 85 x 32 x 15 (3.35 x 1.26 x 0.59)

• Tweeter Magnet size D x h mm (in.): 12,9 x 2 + 11 x 1,9 (0.51 x 0.08 + 0.43 x 0.07)

• Weight of one speaker kg (lb.): 1 (2.2)

• Woofer Magnet: High-density flux ferrite

• Tweeter Magnet: Neodymium

• Cone: Polypropylene with UV inhibitors

• Dome: PEI

• Xmech mm (in.): ±4,8 (0.19)

What's in the Box

• Two 2-way marine speakers
• 2 Gaskets
• 2 White grilles
• Two 10' Lengths of speaker wire (female quick slides on one end and bare wire on the other)
• Eight 1" Stainless steel screws
• 8 Stainless steel speed clips
• Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 28 Others)
• Template on the box
