JBL BASSPRO LITE Ultra-Compact Active underseat subwoofer enclosure with built in amplifier

The subwoofer under the seat

Ultra Compact, Super Bass, Powerful

JBL BassPro LITE delivers deep bass and occupies an ultra-compact space.
JBL's smallest active subwoofer can be hidden in the most compact locations and delivers exceptional performance to any car audio system. Powered by a 100-watt amplifier, the BassPro LITE delivers the precise, tight bass you'd expect from JBL, while staying cool and drawing minimal power from your vehicle's charging system.

Features

• Big bass, ultra-compact space
• Easier upgrade, daisy-chained
• Intelligent electronic design for reliable and extraordinary performance
• Die-cast aluminum housing design
• Bass boost volume control

Features and Benefits

Big bass, ultra-compact space
JBL BassPro LITE delivers deep bass and takes up ultra-compact space. The built-in 100Wrms amplifier is matched to the subwoofer's performance to deliver tight, accurate bass.

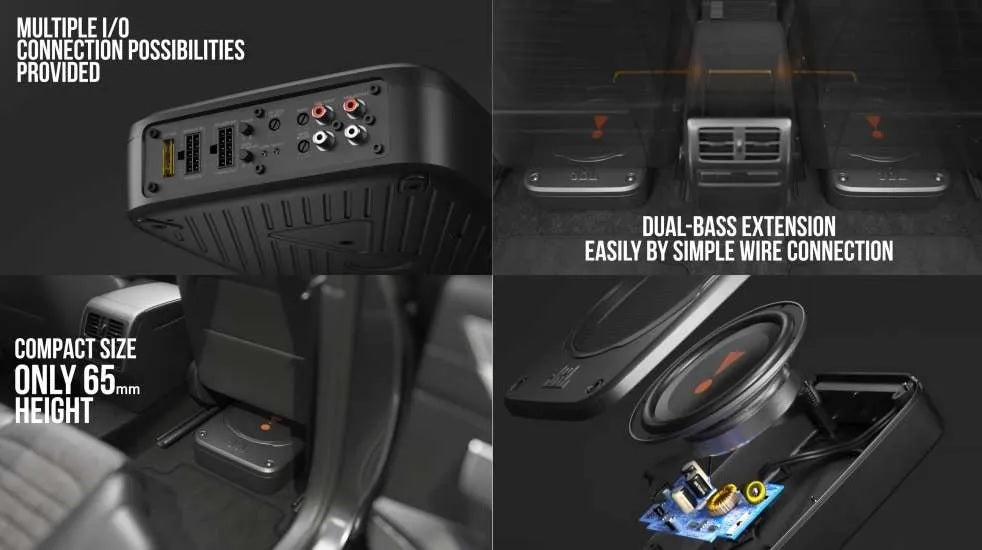

Easier upgrade, series connected
JBL BassPro LITE can be connected in series for user upgrade to purchase 2 sets of devices. The secondary BassPro LITE is still self-tuned without additional power / some complex wires

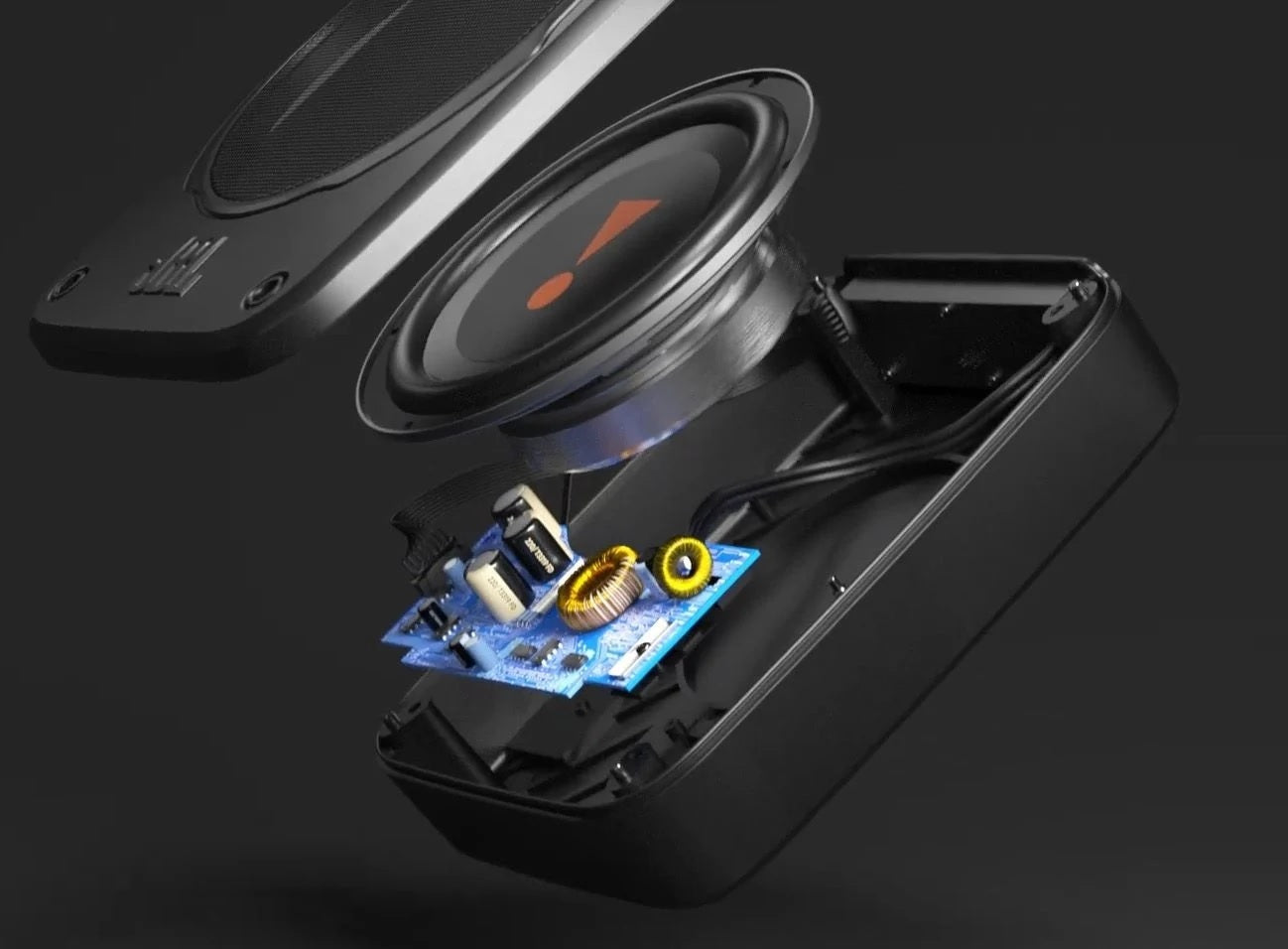

Intelligent electronic design for reliable and exceptional performance
The BassPro LITE uses high-quality pass filters and limiters that deliver exceptional performance at the ultimate level.

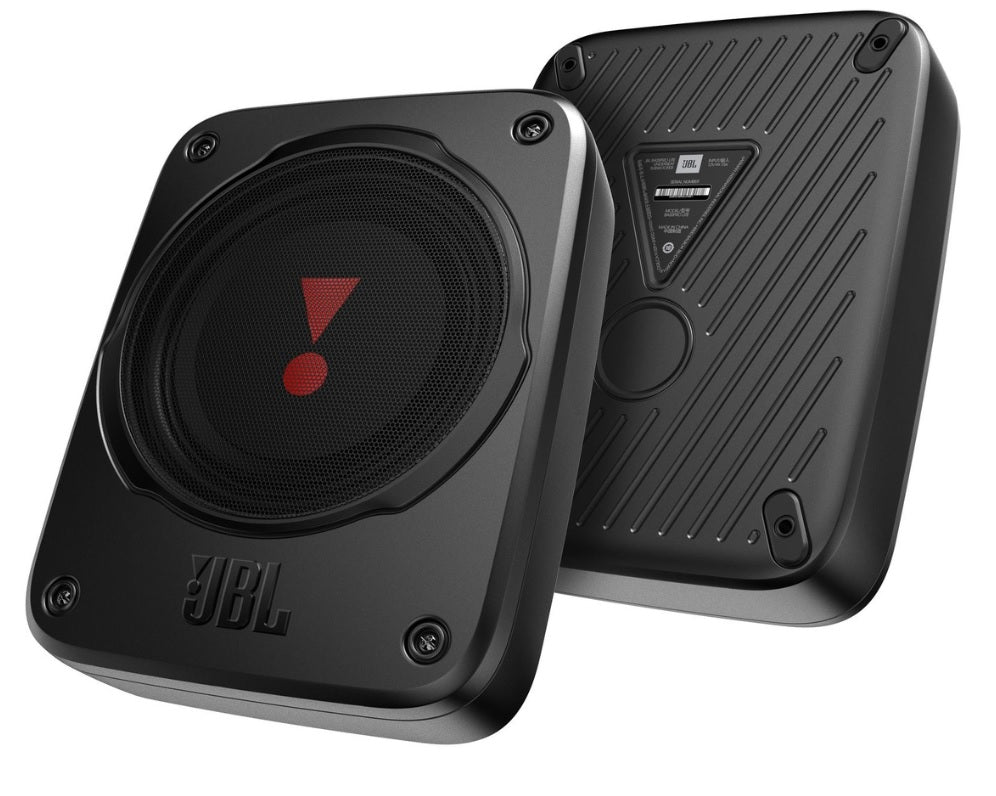

Die-cast aluminum enclosure design
The all-die-cast aluminum enclosure design is not only an ultra-compact size, but the ALL IN ONE is a combination of an elegant JBL industry design element and powerful acoustic performance.

Bass boost volume control

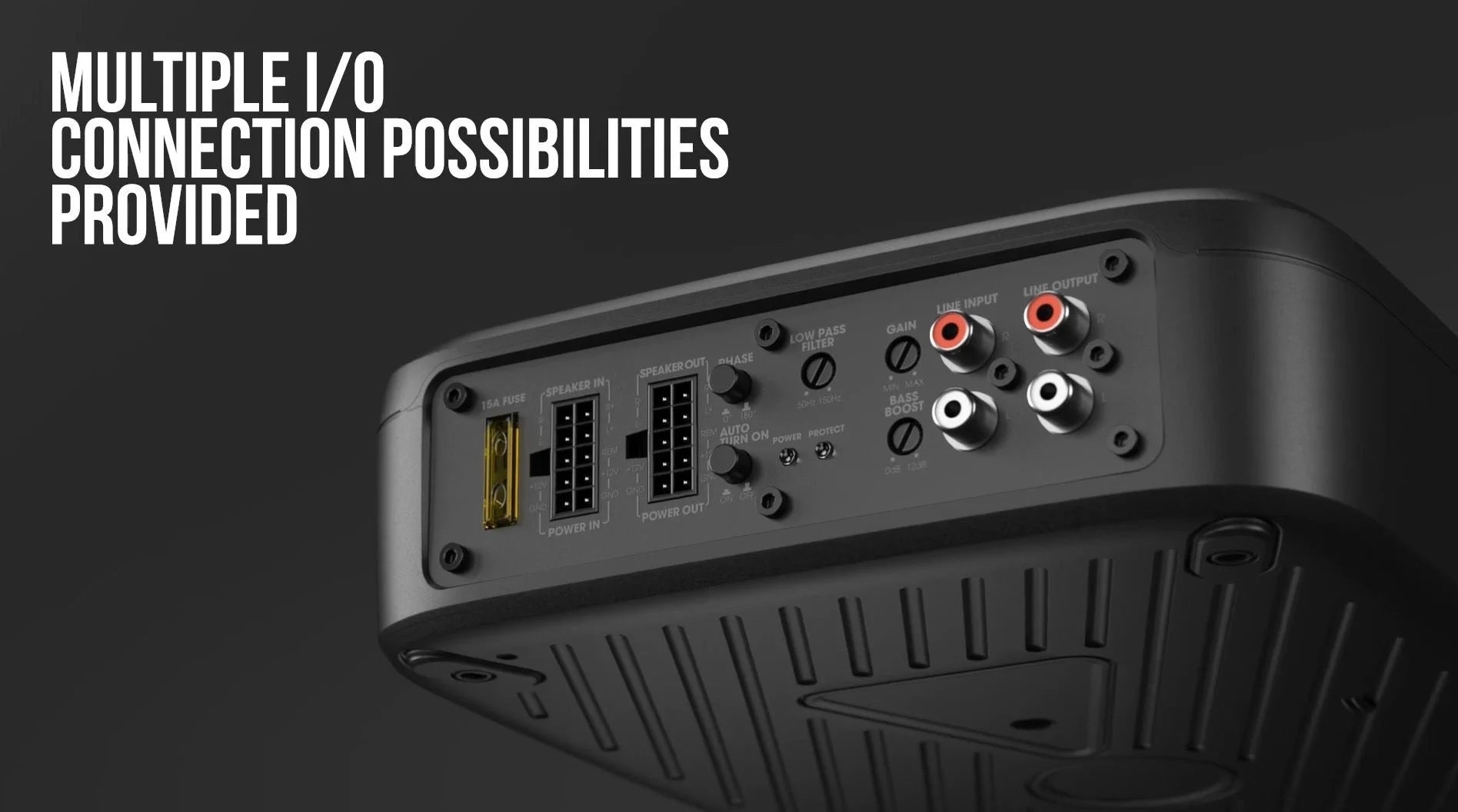

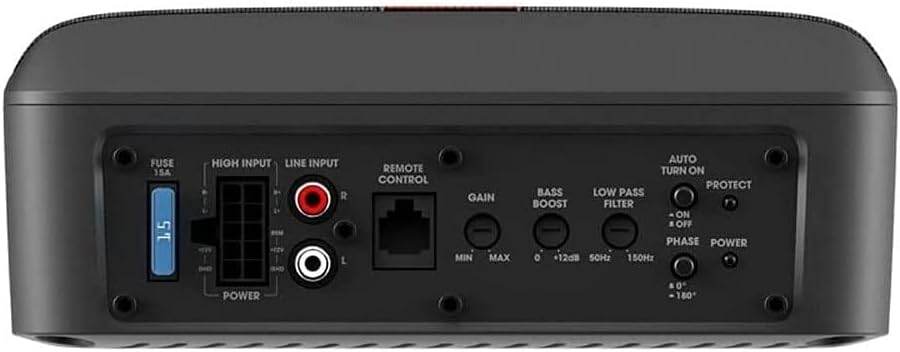

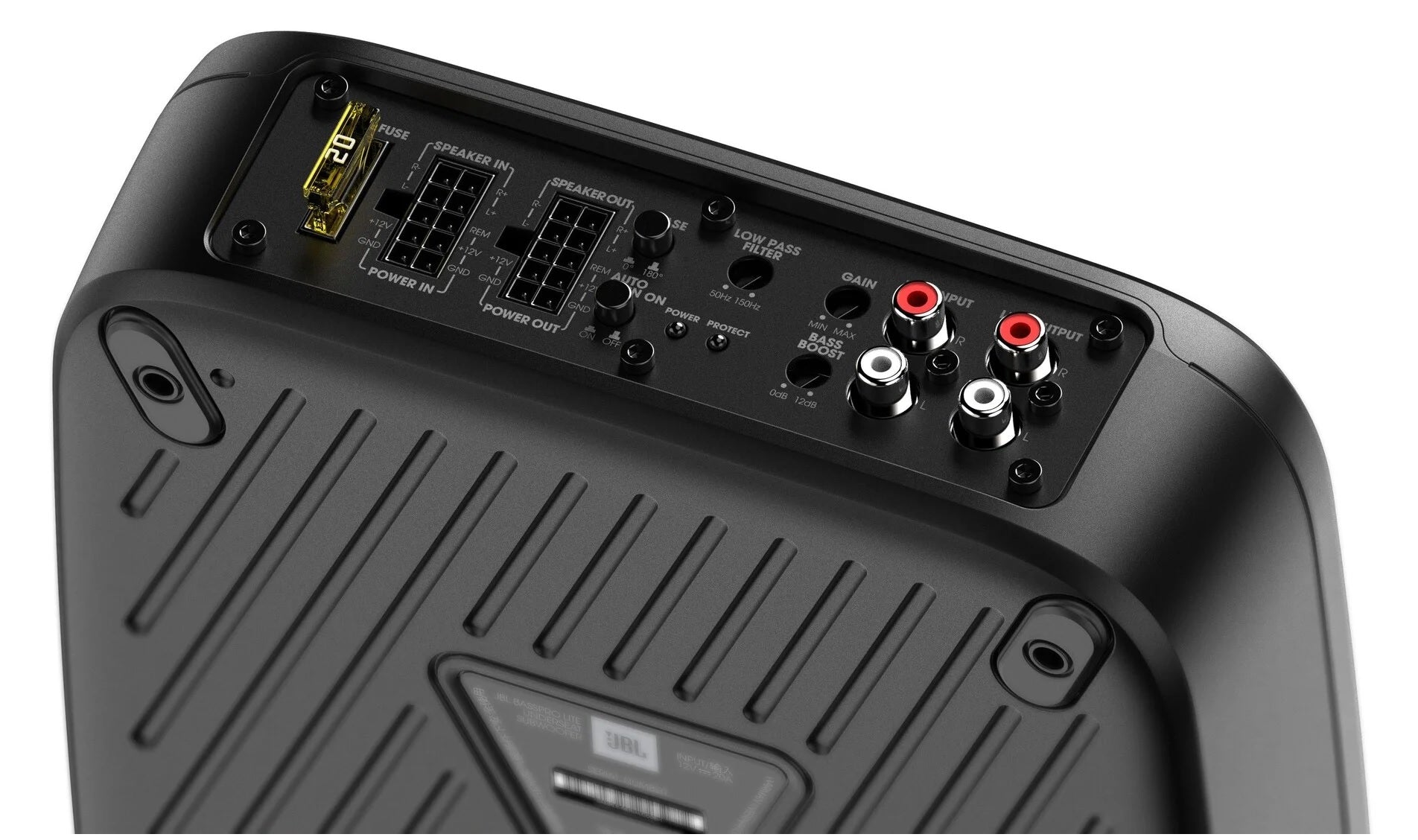

Bass boost The volume control is integrated on the I/O panel so you can freely adjust the sound

Technical specifications

• Driver addition: super powerful 7” (178 mm) subwoofer
• Amplifier Power:
• Class D,
• Continuous power: 100 Watts RMS;
• Maximum power: 200 Watts
• Frequency range: 30Hz – 150Hz
• Fuse: 15A
• Maximum current consumption: 15 A
• Quiescent current consumption: Input sensitivity: 0.18 V – 5.0 V low-
• level input; 0.75 V – 20V High-Level Input
• Crossover Frequency: 50 Hz – 150 Hz
• Crossover Slope: 12 dB/octave
• Bass Boost: 0dB to + 12dB @ 50Hz

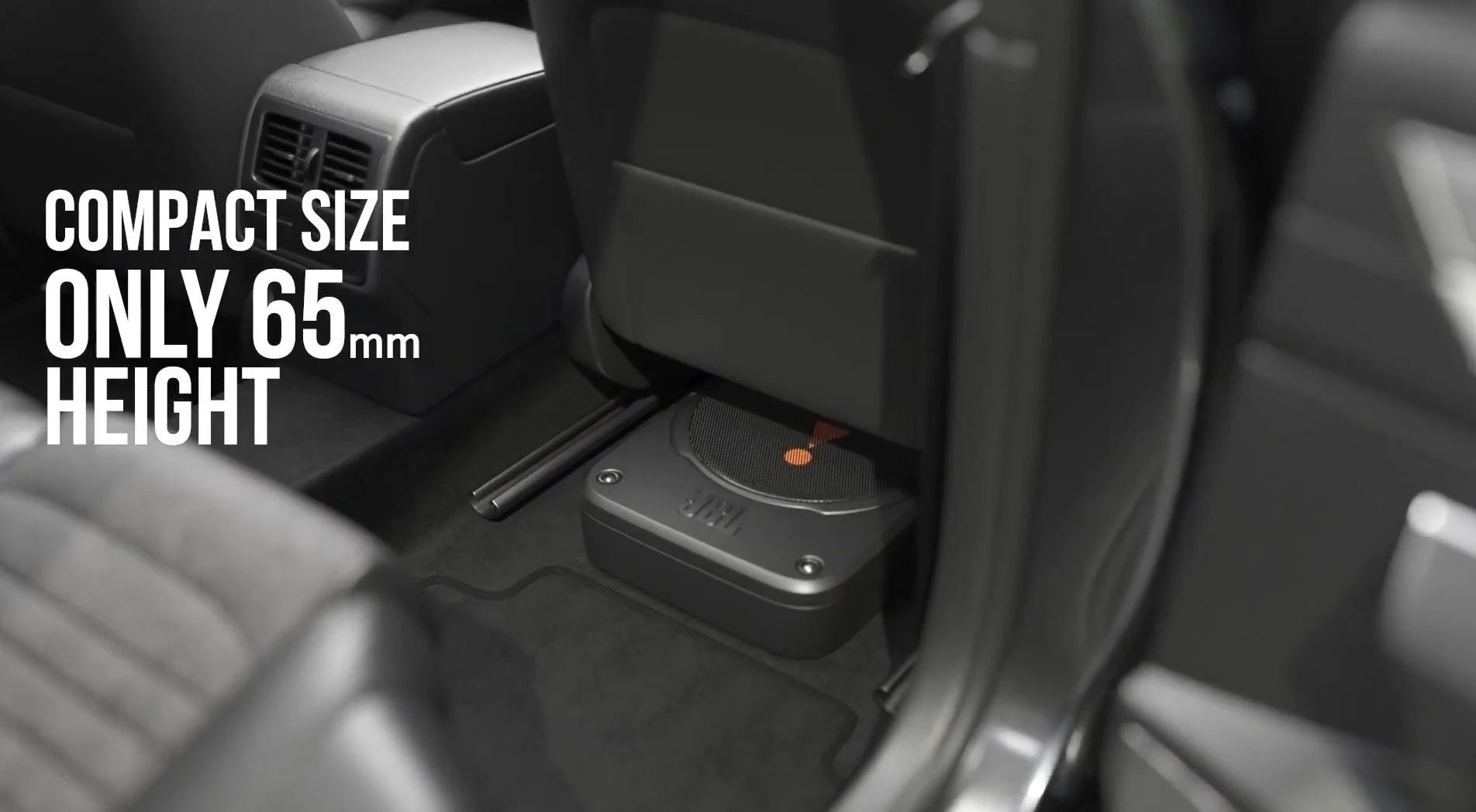

• Housing dimensions (L x W x H): 26 cm x 20.3 cm x 6.6 cm
• Weight: 3.5 kg
• UK Authorised Dealer
• Full Manufacturer's Warranty
• Next-day delivery available

What's in the box

• 1x under seat subwoofer
• 4x Screws

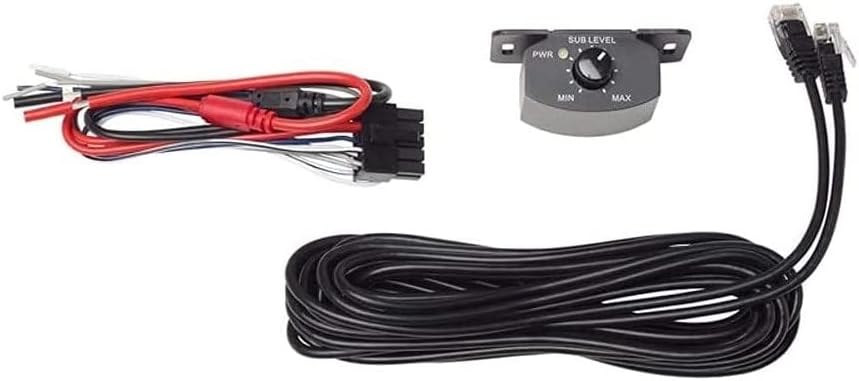

• 2x Wiring harness for power and speaker level input (300mm)
• 1x 15A Fuse
