Hertz Marine Venezia V6 24V Amp 6 Channel Class D IPX2 Marine Amplifier 160W RMS
Hertz Marine Venezia V5C Ch: 6 - 5 - 4 - 3 | 1740 W
Venezia V6 24V option is the first six-channel Hertz marine amplifier, featuring the impressive power of 160 W x 6 (4Ω), delivering the output levels needed in the marine environment! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability. Venezia V6 24V is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V6 24V is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.
Features
- Engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
- ADC (Advanced D-Class) Technology 2Ω stable output stage providing Hi-Res certified audio performance with superior efficiency.
- Die-cast aluminum compact design with fanless convection cooling system ensuring low operating temperature even at maximum power.
- Balanced fully-differential input circuitry to reject electromagnetic disturbances.
- Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
- Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
- Short-circuit, overload, and thermal protections with auto-resetting.

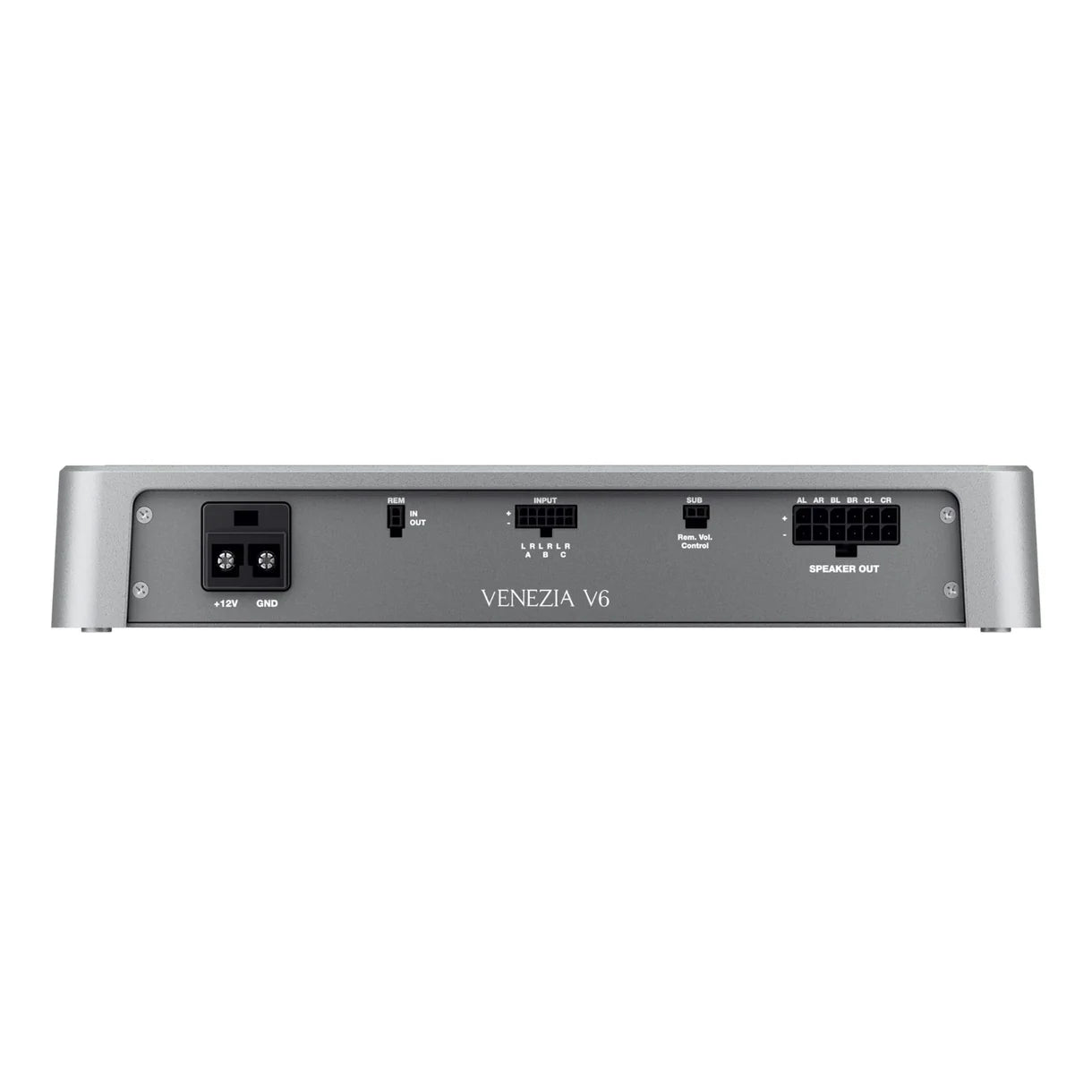

- Plug & Play input and Output connections with safe-lock.
- Proprietary Plug&Play Power Supply Connector with safe-lock.
- Consumption @ 1Ω, 28.8 VDC (Max Musical Power): 30 A
- Load impedance (MIN):
- OUTPUT POWER (RMS) @ 28.8 VDC, THD 1%
Specification:
| Power supply voltage | 22 ÷ 33 VDC |
|---|---|
| ldling current (power ON/OFF) | 1 A / 0.04 mA |
| Remote In | 7 ÷ 33 VDC - 1 mA |
| Remote Out | 14÷ 33 VDC |
| Distorsion - THD (100Hz @ 4Ω) | <0,06% |
| Bandwidth | 10 ÷ 42 kHz |
| S/N Ratlo (A welghted @ 1 V) | 100 dB |
| Damping factor (100Hz @ 4Ω) | 130 |
| Pre-ln sensitivity | 0.2 ÷ 5 VRMS |
| Pre-ln impedance | 10 kΩ |
| @6Ch | 2Ω |
| @5Ch | 2Ω + 2Ω + 2Ω +2Ω + 4Ω |
| @4Ch | 2Ω + 2Ω + 2Ω +4Ω + 4Ω |
| @3Ch | 4Ω |
| Adjustable Crossovers | yes |
| 6Ch | 160 W x 6 (4Ω) |
| 6Ch | 290 W x 6 (2Ω) |
| 5Ch | 160 x 4 (4Ω) + 580 x 1 (4Ω) |
| 5Ch | 290 x 4 (2Ω) + 580 x 1 (4Ω) |
| 4Ch | 160 x 2 (4Ω) + 580 x 2 (4Ω) |
| 4Ch | 290 x 2 (2Ω) + 580 x 2 (4Ω) |
| 3Ch | 580 x 3 (4Ω) |
| Total Power | 1740 W |
| lnputs | A Ch. Pre in - B Ch. Pre in - C Ch. Pre in |
| Pre Out | No |
| Ch. A filters | Yes |
| MONO IN (on/off) | Yes |
| By-pass | Yes |
| Hi-pass | 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
| Ch. B filters | Yes |
| MONO IN (on/off) | Yes |
| By-pass | Yes |
| Hi-pass | 50 ÷ 500 Hz @ 12 dB/Oct |
| Band-pass | 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
| Ch. C filters | Yes |
| MONO IN (on-off) | Yes |
| By-pass | Yes |
| Hi-pass | 50 ÷ 500 Hz @ 12 dB/Oct |
| Lo-pass | 50 ÷ 500 Hz @ 12 dB/Oct |
| Bass boost 50 Hz (adjust) | (0 ÷ 12) dB |
