Hertz K170 Uno Series 6-3/4170mm 6.7.5" 2-Way Component Speakers 280W

UNO SPEAKERS WHERE THE SOUND EXPERIENCE BEGINS

The K 170 Uno system features a 24 mm (0.9ˈ) diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size. The annular acoustic lens is optimized for exceptional off-axis performance, ensuring an accurate stereo image. The 6.7” woofers features a pressed-paper cone with foam surround, for high SPL and solid bass. The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The 6dB/Oct crossover is integrated on the tweeter wiring for an easy OEM upgrade.

V-CONE®

The exponential profile gets very close to the perfect one, providing exceptional dispersion.

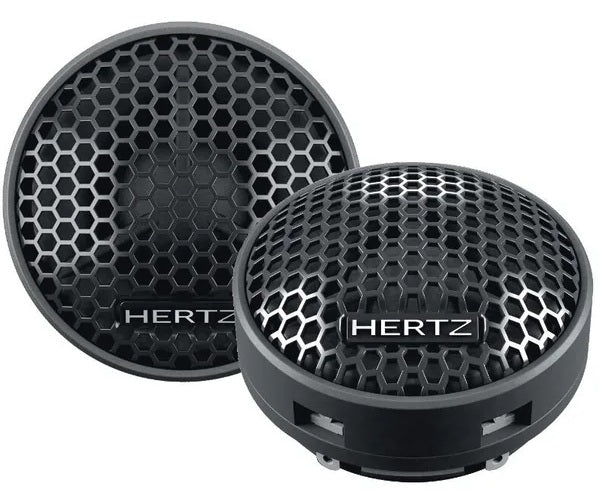

T 24 - Tweeter

• 24mm diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size.
• Annular acoustic lens optimized for exceptional off-axis performance.

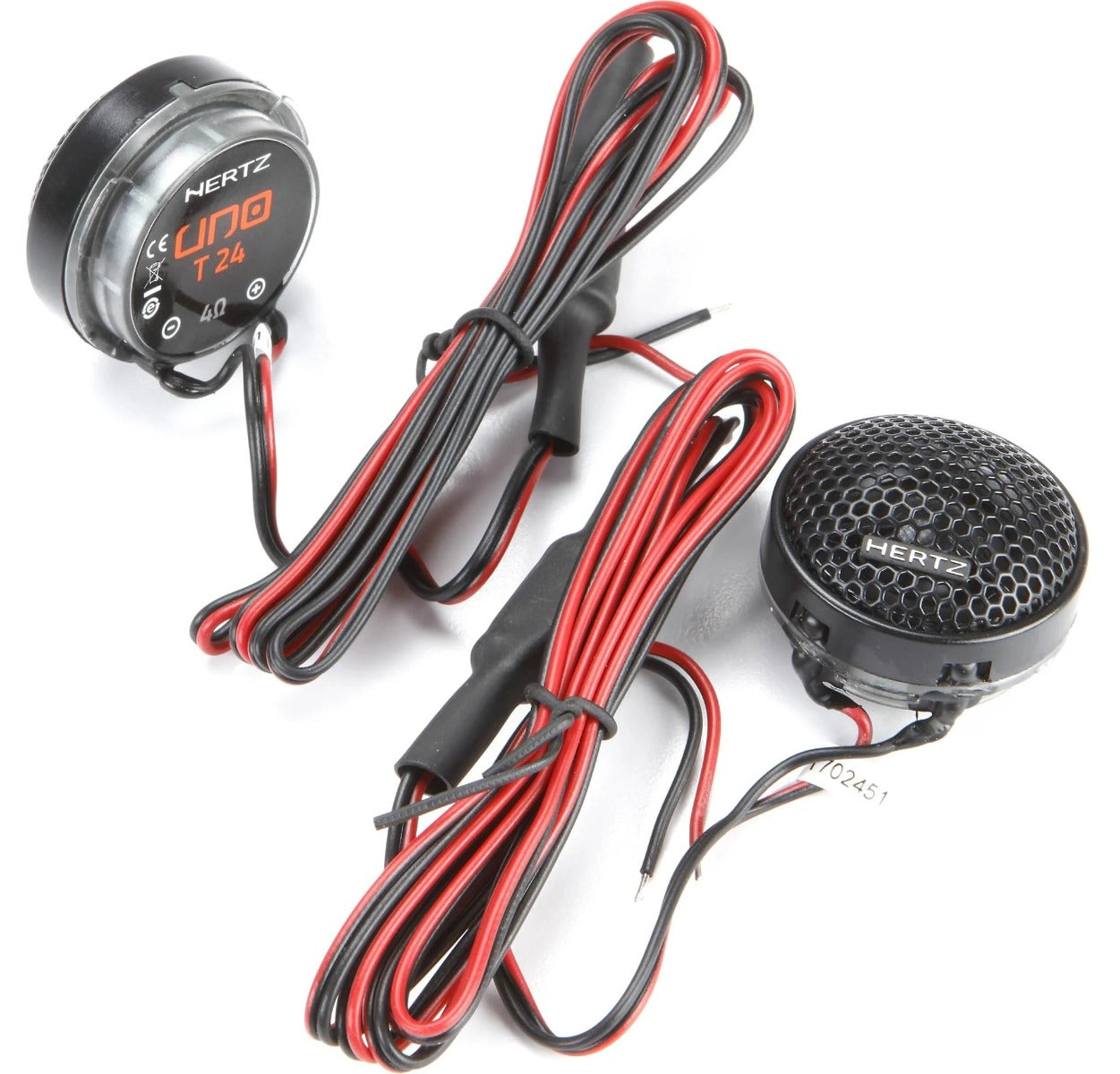

• 6dB/Oct crossover integrated on tweeter wiring.
• Mounting accessories for external or embedded mounting included.

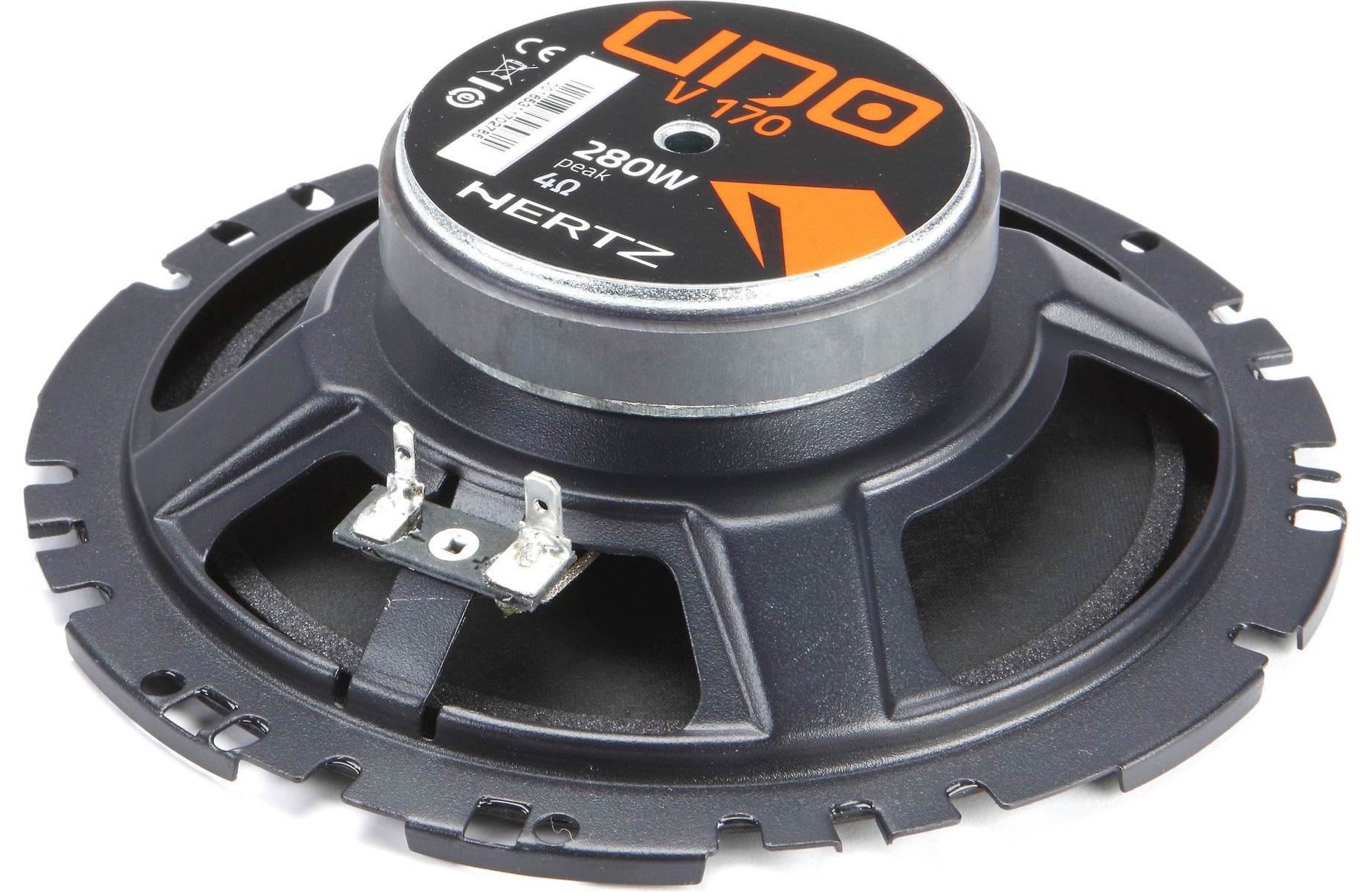

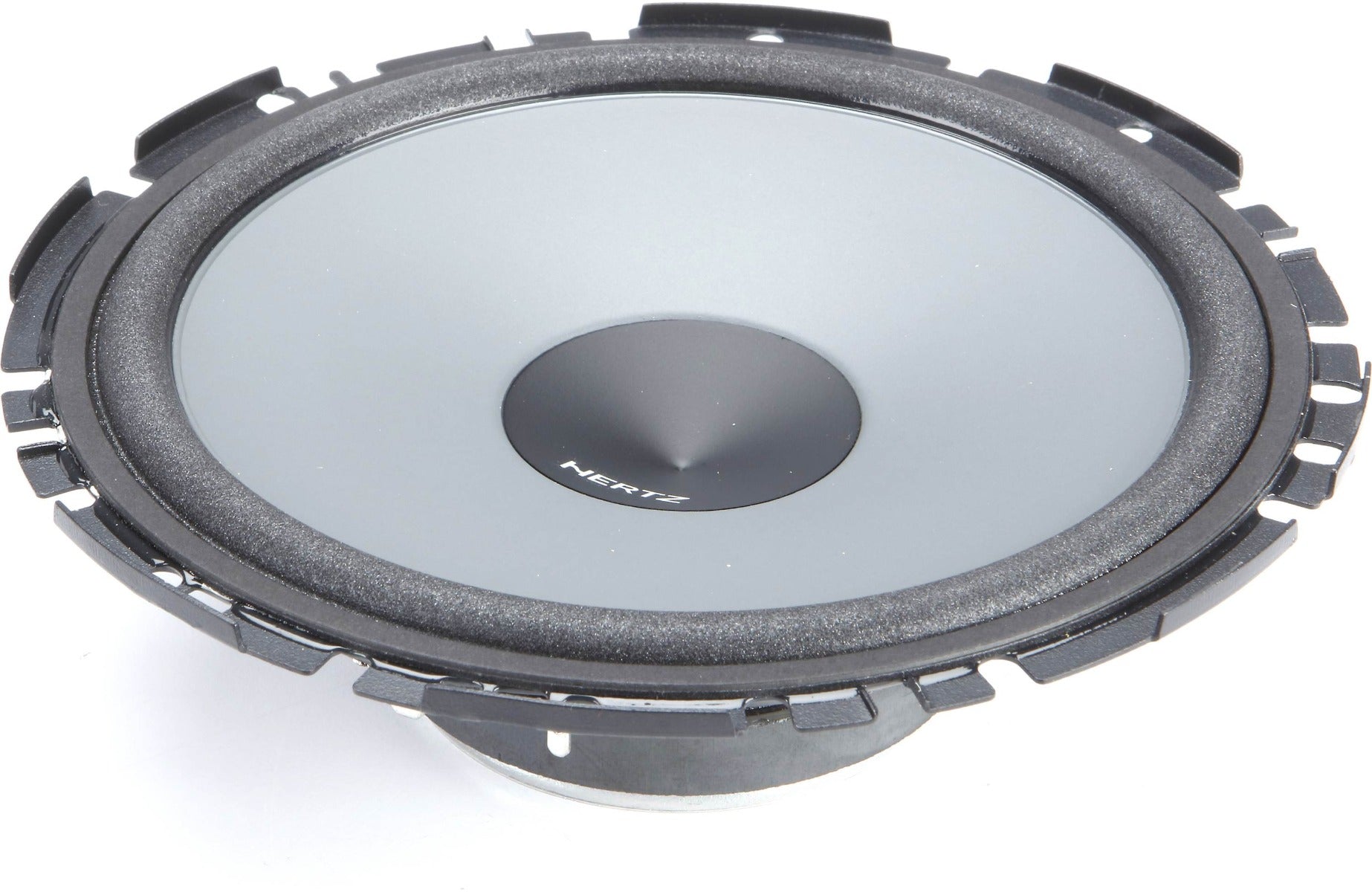

V 170 - Woofer

• V-cone® design for best off-axis response, clear mid-high frequency detail and powerful bass.
• Foam surround combining high sensitivity and deep bass response.
• Pure copper 25mm (1 in.) voice coil woofer for high dynamic power handling.
• High flux density 80mm (3.15 in.) ferrite magnet for a powerful undistorted sound.
• Easy-to-install

• Component System
• Size mm (in.) 170 (6.7)
• Power Handling - Continuous W 70
• Power Handling - Peak W 280
• Impedance Ohm 4
• Tweeter diaphragm mm (in.) 24 (0.9)
• Woofer Voice Coil Ø mm (in.) 25 (1)
• Tweeter Voice Coil Ø mm (in.) 14 (0.55)
• Sensitivity dB SPL 93,5
• Frequency Response Hz 55 ÷ 23k
• Crossover Cut off -
• Crossover Type 6 dB/Oct tweeter integrated
• Weight of one component - Tweeter kg (lb) 0,53 (1.17)
• Weight of one component - Crossover kg (lb) 0,03 (0.07)
