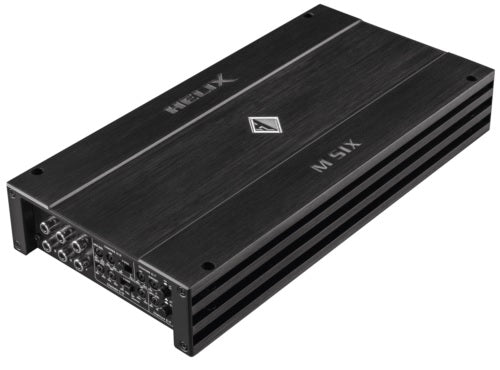

HELIX M SIX - 6 Channel Class A/B & Class D 1200 Watts Peak Car Amplifier
HELIX M SIX - 6 Channel Class A/B & Class D 1200 Watts Peak Car Amplifier

HELIX M SIX - 6 Channel Class A/B & Class D 1200 Watts Peak Car Amplifier

M SIX
HELIX See other products by HELIX
£349.99 £399.99
Save £50.00

HELIX M SIX - 6 Channel Class A/B & Class D 1200 Watts Peak Car Amp Amplifier

SPECIAL ORDER
Ask a question
Trade enquiry
Price match
HELIX M SIX 6 Channel Car Audio amplifier 6x100w RMS

One for all - whether 3-way, 2-way or small subwoofer application. The 6-channel amplifier M SIX is always the right choice.
With a whopping 100 watts continuous power per channel at 4 ohms as well as at 2 ohms, it brings the loudspeaker diaphragms to life despite their super-compact dimensions. The amp itself stays cool thanks to its highly efficient Class D technology. But even in bridged configurations, things can really get down to business with up to 3 x 200 watts RMS.
This is accompanied by comprehensive and extremely practical equipment that leaves nothing to be desired. And the perfect sound is also quickly found thanks to the integrated crossover and the wide range of settings.

  • Very compact class D amplifier with a high output power of 100 watts RMS at 4 and 2 ohms
  • Starting plug ability down to 6V supply voltage
  • 6-channel RCA input
  • Integrated, active crossover with a high pass, low pass, bandpass and subsonic
  • "Input Mode" switch for the channels E & F for flexible distribution of the input signals

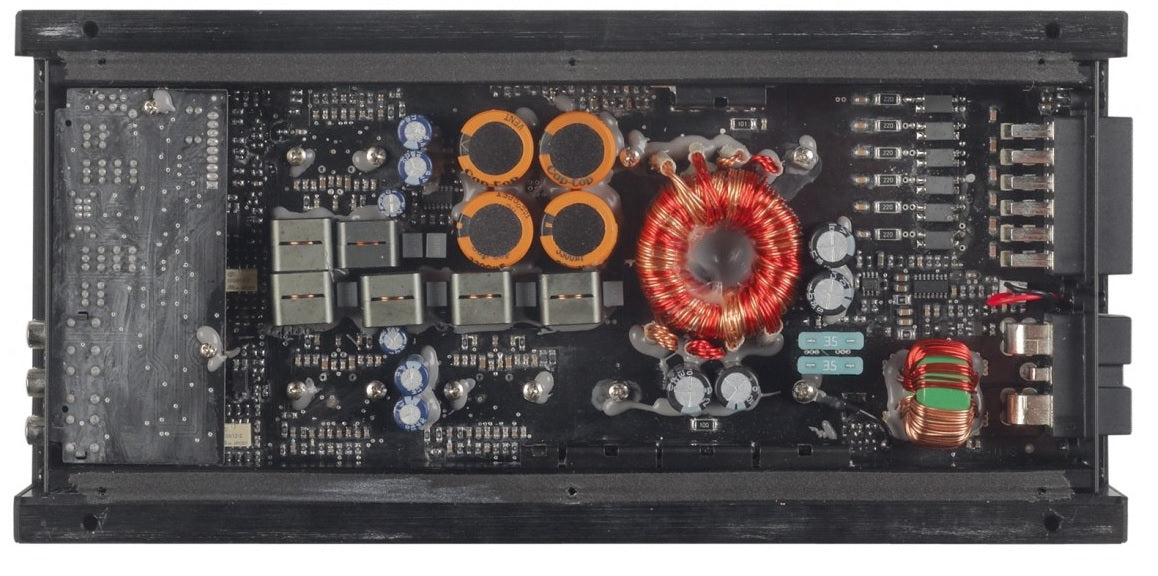

  • SMD (Surface Mounted Device) technology combines minimal space requirements with maximum reliability
  • Exclusive, very compact design with illuminated HELIX logo and low heat generation thanks to very high efficiency


Product Features:

Start-Plugability
The power supply in the HELIX M SIX amplifier ensures the internal power supply even with short-term drops down to 6 volts. This ensures that the HELIX M SIX remains fully functional even when the engine is started.

  • Power RMS / Max.
- @ 4 ohms 6 x 100/200 watts
- @ 2 ohms 6 x 100/200 watts
- @ 1 ohm -
- bridged to 4 ohms 3 x 200/400 watts
- bridged to 2 ohms -
  • Amplifier technology Class D

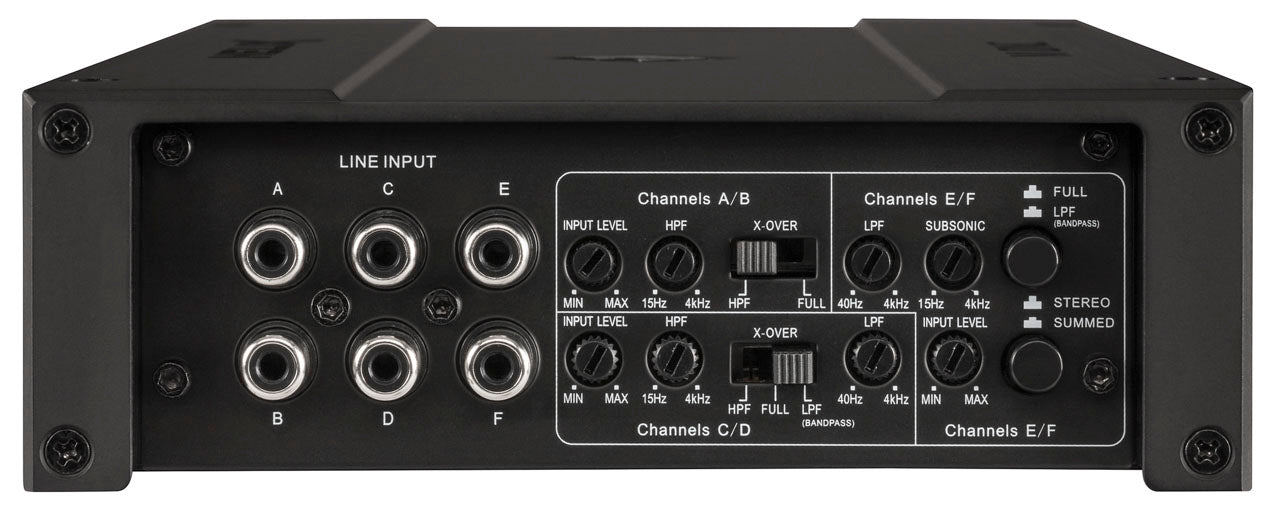

  • Inputs 6 x RCA
  • 1 x Remote In
  • Input sensitivity Cinch 0.5 - 6 volts
  • Input impedance RCA 20 kOhm
  • Input impedance high level -

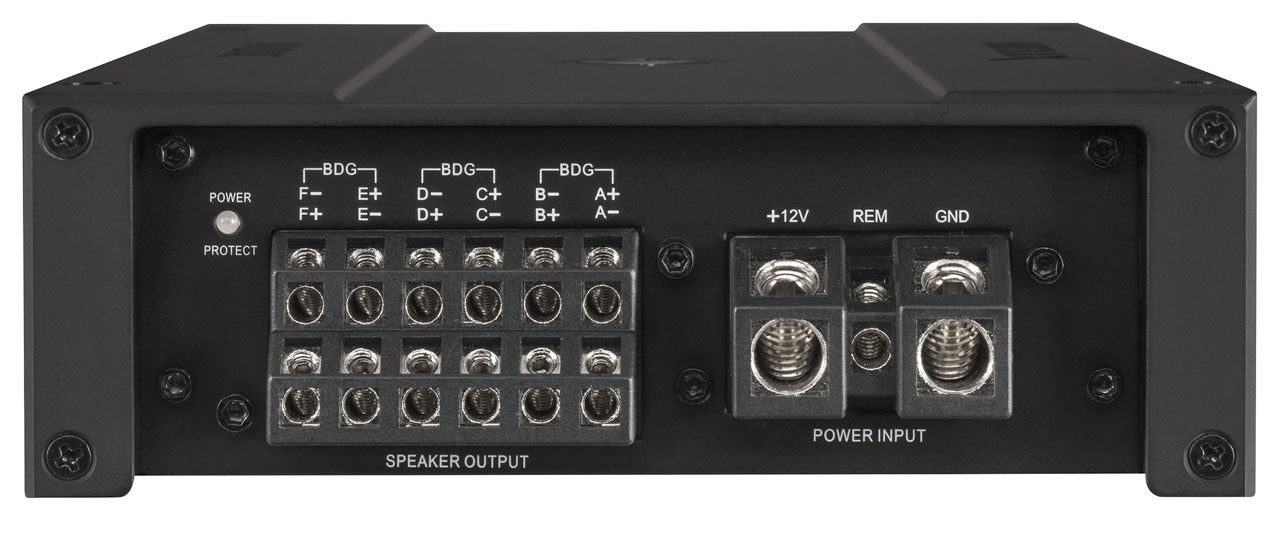

  • Outputs 6 x speaker output
  • Output voltage RCA -
  • Signal converter for the digital input -
  • Frequency range 10 Hz - 30,000 Hz
  • Bass Boost -
  • Highpass 15 Hz - 4,000 Hz adjustable
  • Lowpass 40 Hz - 4,000 Hz adjustable
  • Bandpass 15 Hz - 4,000 Hz adjustable
  • Subsonic / HPF
  • 15 Hz - 4,000 Hz adjustable
  • phase -
  • Slope high / low pass 12 dB / oct.
  • Slope Subsonic / Low Pass -
  • Signal-to-noise ratio digital input -
  • Signal-to-noise ratio analog input 98 dB (A-weighted)
  • Harmonic distortion (THD) 0.05%
  • Damping factor 100
  • Operating voltage 10.5 - 16 volts (maximum 5 seconds down to 6 volts)
  • No-load current 1,550 mA
  • Fuse 2 x 35 A maxi plug fuse (FK3)
  • Additional features Active, adjustable crossover, subsonic, input mode switch channel E / F, start-up plug ability
  • Dimensions (H x W x D) 50 x 320 x 154 mm
