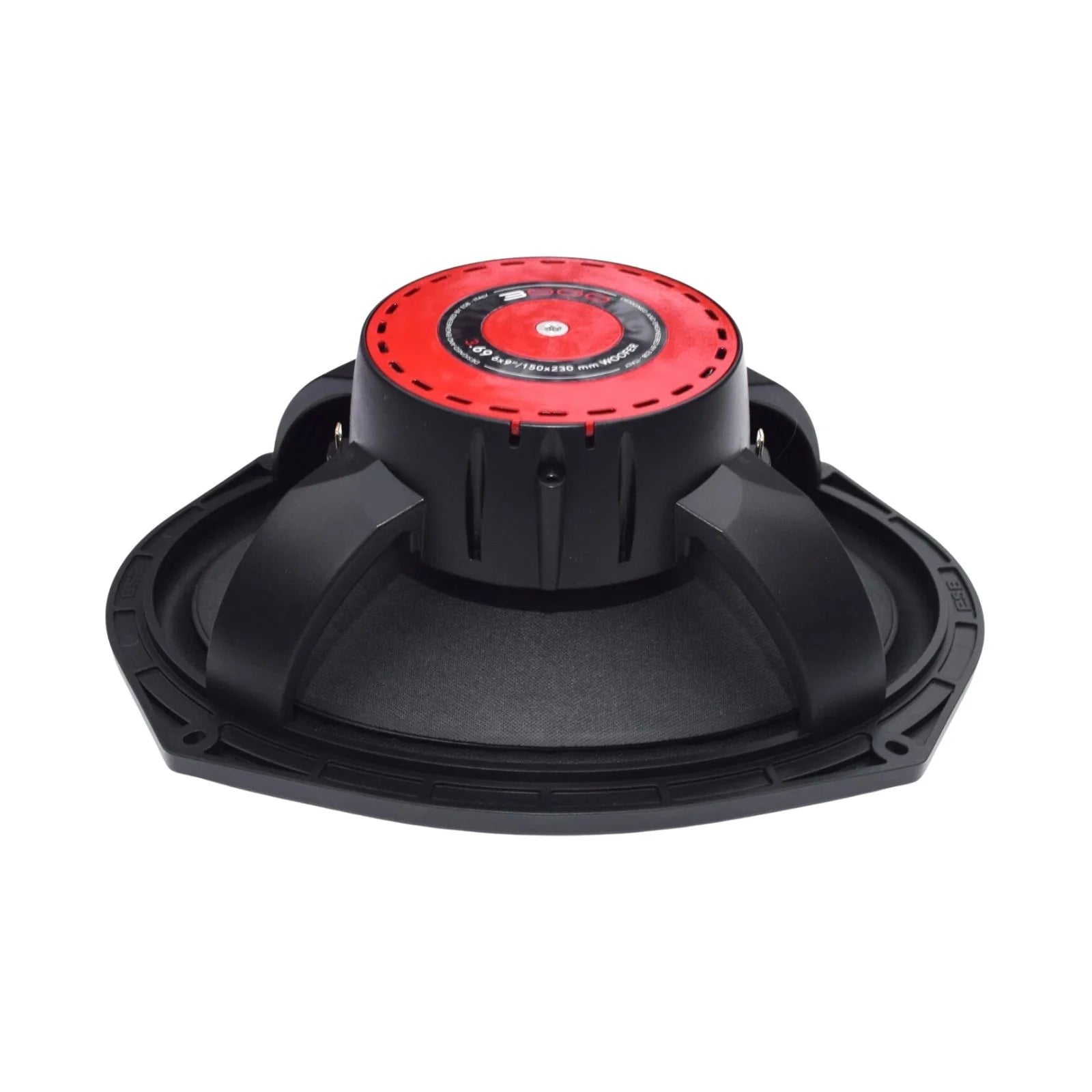

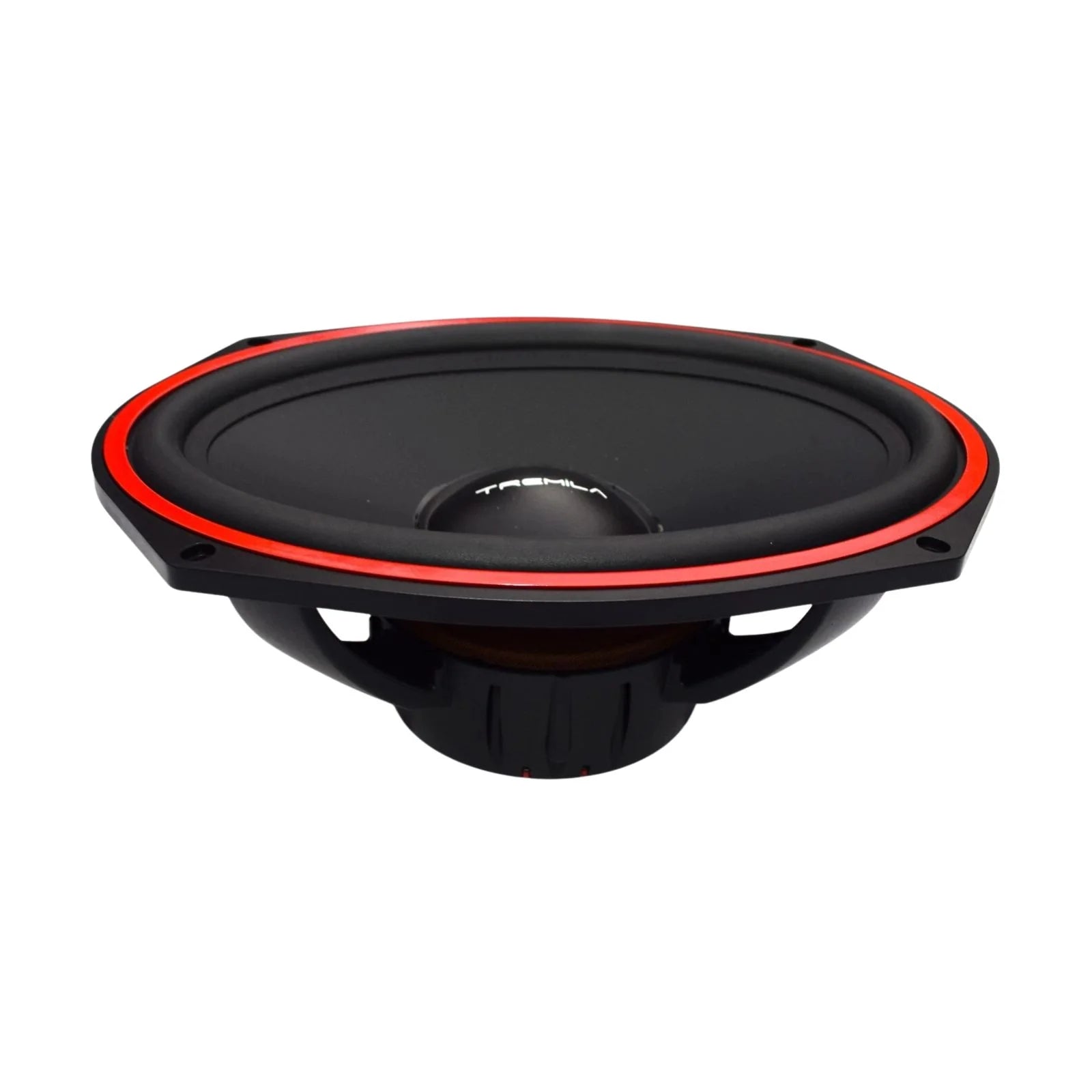

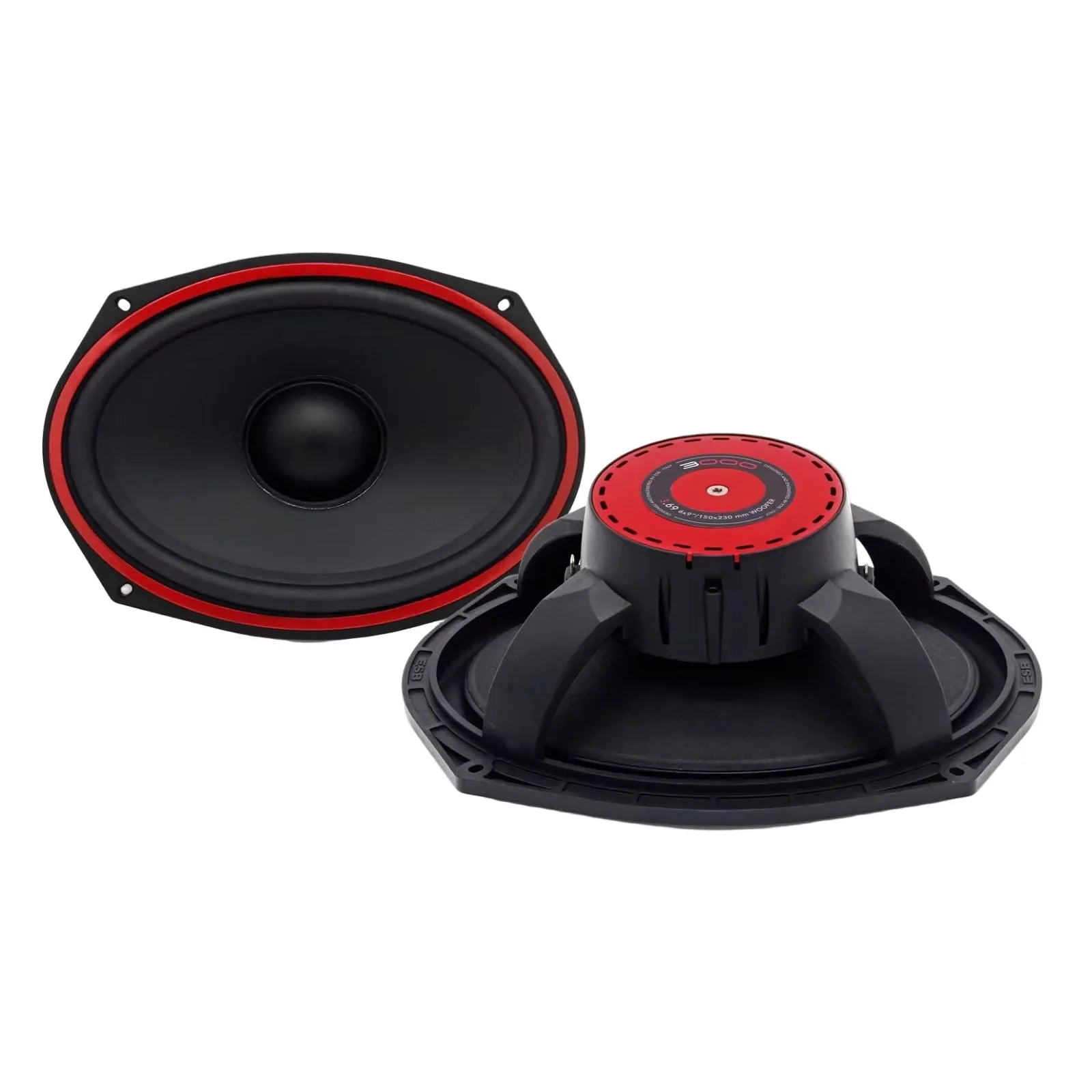

ESB 3.69 Tremila Series 6x9 Inch Component Woofer 120w RMS Pair
3.69 6x9"/150x230 mm Woofer
ABS basket reinforced with fiberglass. The basket has been engineered to obtain the maximum in terms of torsional rigidity (resistance to bending), but at the same time, it offers the minimum resistance to air passage.
Pressed paper cone with waterproof treatment. It is widely recognized that cones made of paper are the ideal marriage between lightness, stiffness and the ability of the cone to dampen any unwanted vibration (read: distortion).
High-damping single-wave rubber surround. The Perbunan® rubber edge is much more stable with temperature changes than standard rubber.
The 25 mm voice coil uses an aluminum support and a double-layer winding technology of copper wire with an aluminum core.
High grade ferrite magnet, a type of magnet with significantly higher performance than "standard" magnets.
Product Features:
- Nominal power: 120W
- Maximum power: 240W
- Sensitivity (2,83V/1m): 88.5dB
- Frequency response: 55-9.000Hz
- Cone material: Fiber-reinforced high-strength paper cone
- Nom. impedance: 4 Ohms
- DC resistance: 3.14 Ohms
- VC diameter: 25mm
- VC height: 10.5mm
- Former: Aluminum
- Layers: 2
- Magnet system: Ferrite Y-35
- Overall dimensions: 165mmx230mmx71mm
