EDIFIER S880DB MKII 2.0 Active Hi-Fi Bluetooth Speaker Dark Wood

Comprehensive Upgrade for Superior Hi-Fi Performance

The S880DB MKII, a revamped successor to the S880DB, features complete upgrades across its acoustic architecture, electronic circuitry, user interface, and design, delivering an even more authentic Hi-Fi experience.

Edifier_NewModels

Hi-Fi Acoustic Architecture

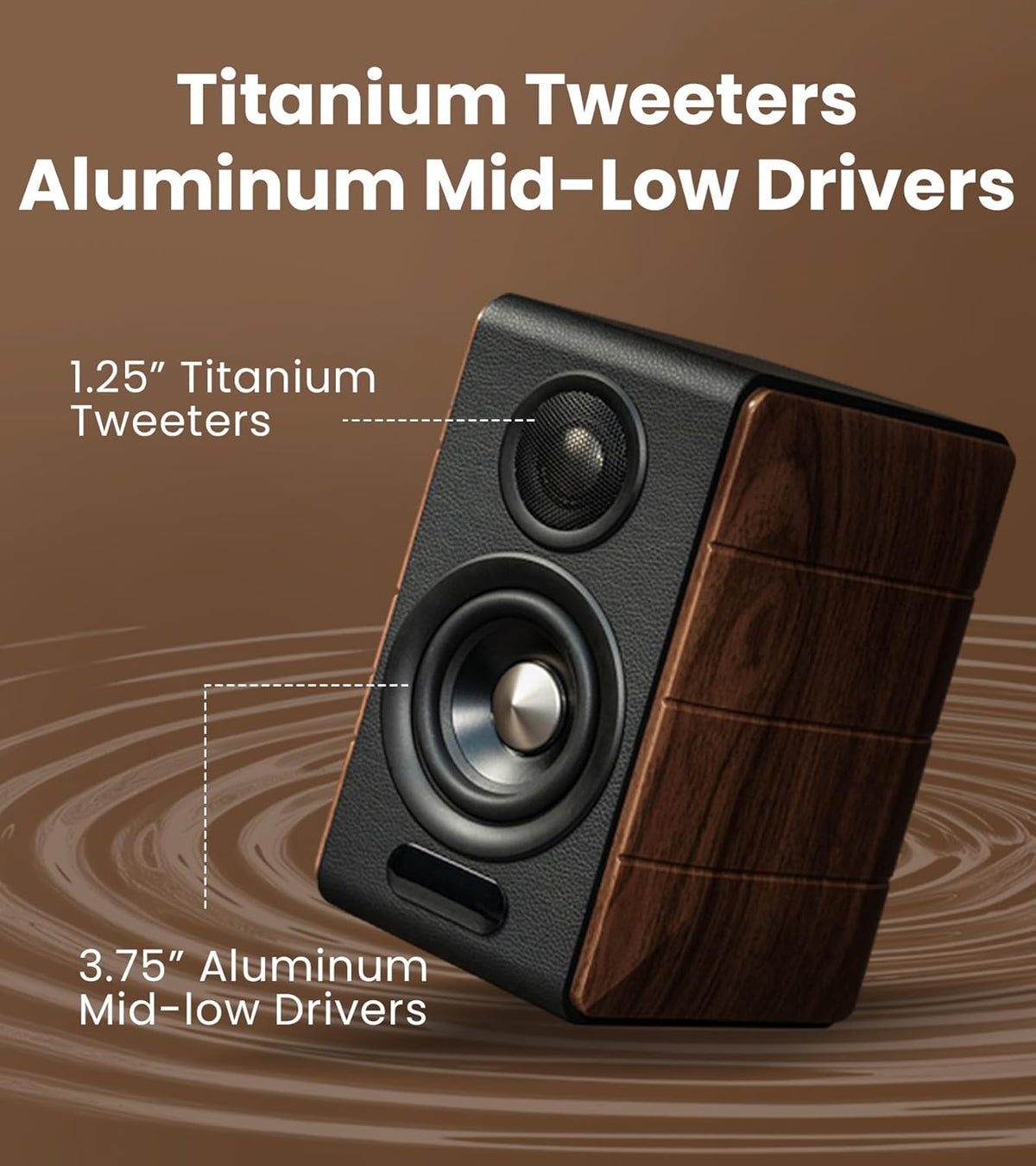

Both the tweeter and mid-bass units have been upgraded. The tweeter now features a 1.25-inch titanium dome (up from 1 inch), with a voice coil diameter increased to 25mm (from 19mm), and neodymium magnets, delivering crystal-clear and transparent highs. The redesigned 3.75-inch mid-bass driver enhances mid-range clarity and extends bass down to 50Hz, providing a more solid and balanced sound.

High-Quality Sound Performance

The S880DB MKII is equipped with high-performance chipsets from Texas Instruments and XMOS XU216, ensuring top-tier digital audio processing. These core modules support high-resolution audio at no less than 24bit/96kHz, delivering exceptional sound quality with ultra-low distortion. The system's powerful circuitry offers top-tier signal processing and superior audio fidelity.

• ADC (Analogue-to-Digital Converter): Up to 24bit/192kHz
• DSP (Digital Signal Processor): Up to 24bit/192kHz
• DIX (Digital Interface Transceiver): Up to 24bit/216kHz
• DAC (Digital-to-Analogue Converter): Up to 32bit/384kHz
• XMOS XU216: 2,000 MIPS computational power, 24bit/192kHz

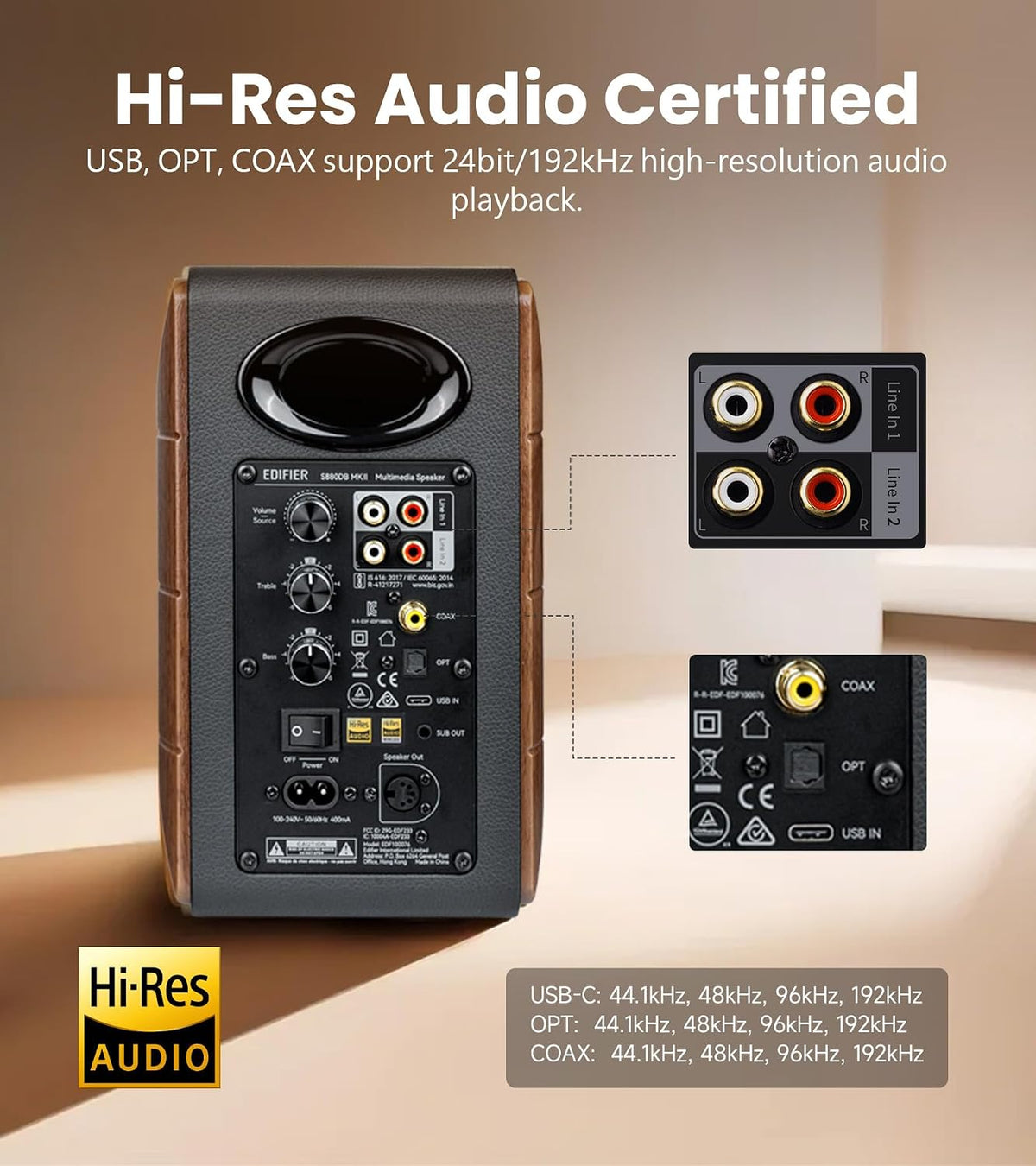

Hi-Res Audio Certified

The digital interfaces support up to 24bit/192kHz, and the Texas Instruments analogue front end works at 24bit/96kHz, exceeding Hi-Res Audio certification standards.

• USB-C: 44.1kHz, 48kHz, 96kHz, 192kHz
• OPT: 44.1kHz, 48kHz, 96kHz, 192kHz
• COAX: 44.1kHz, 48kHz, 96kHz, 192kHz

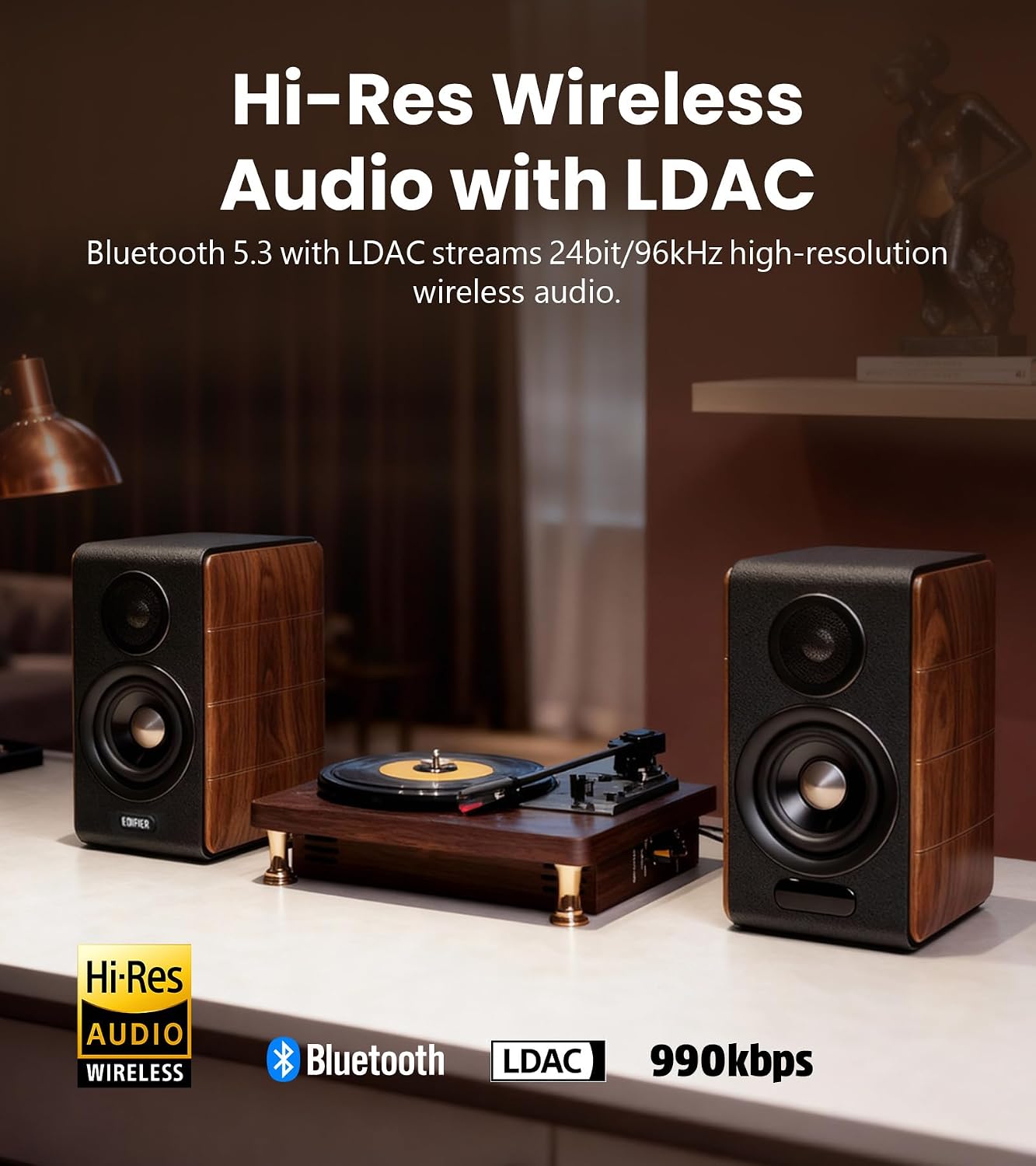

Hi-Res Audio Wireless Certified

The Bluetooth 5.3 audio receiver supports LDAC codec at transmission rates up to 990kbps, enabling high-resolution wireless audio streaming at up to 24bit/96kHz from Android devices (Android 8.0 and later).

Enhanced Bass Capability

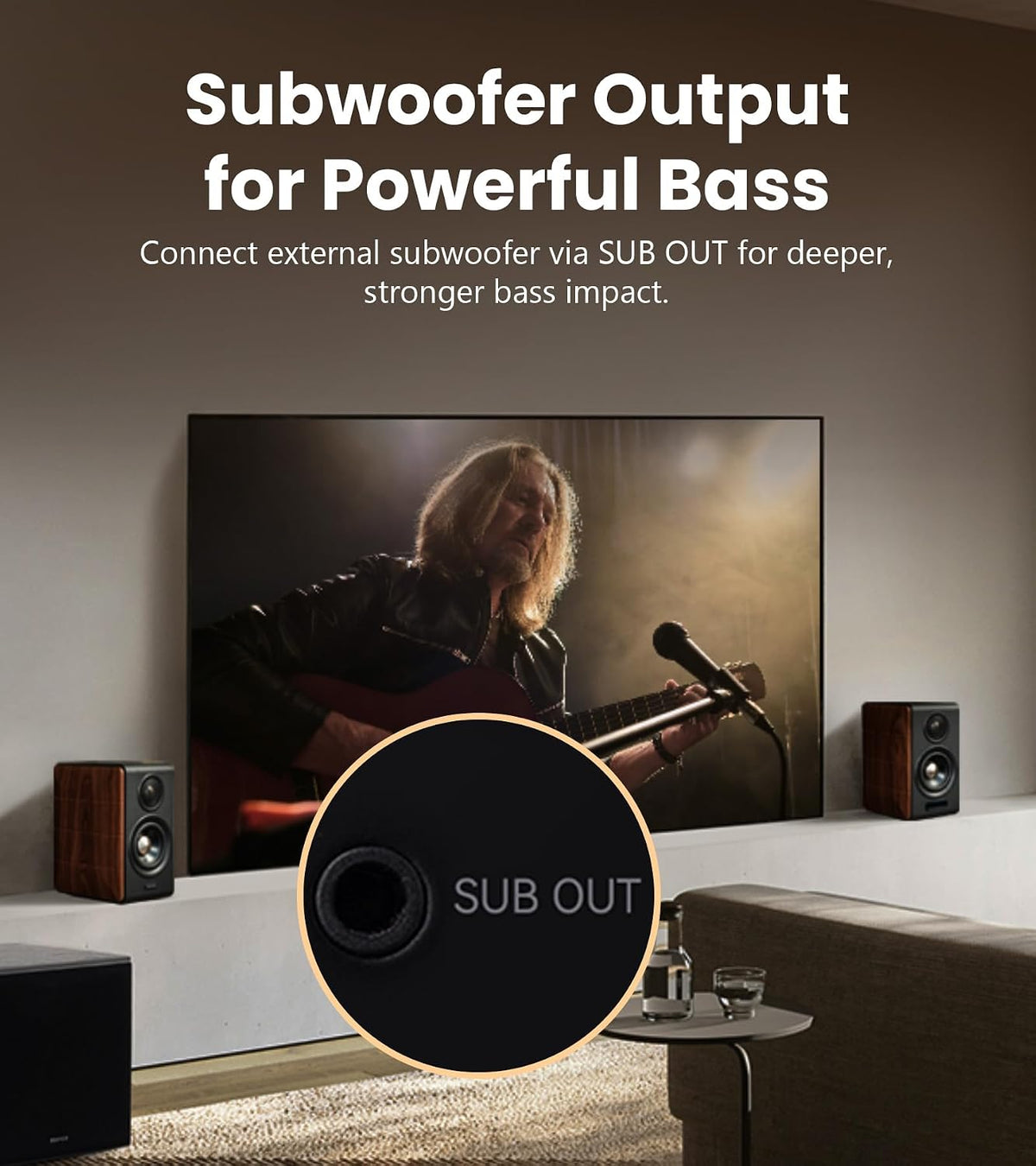

The SUB OUT port allows for the connection of an external subwoofer, delivering deeper and more powerful bass.

User-Friendly Controls

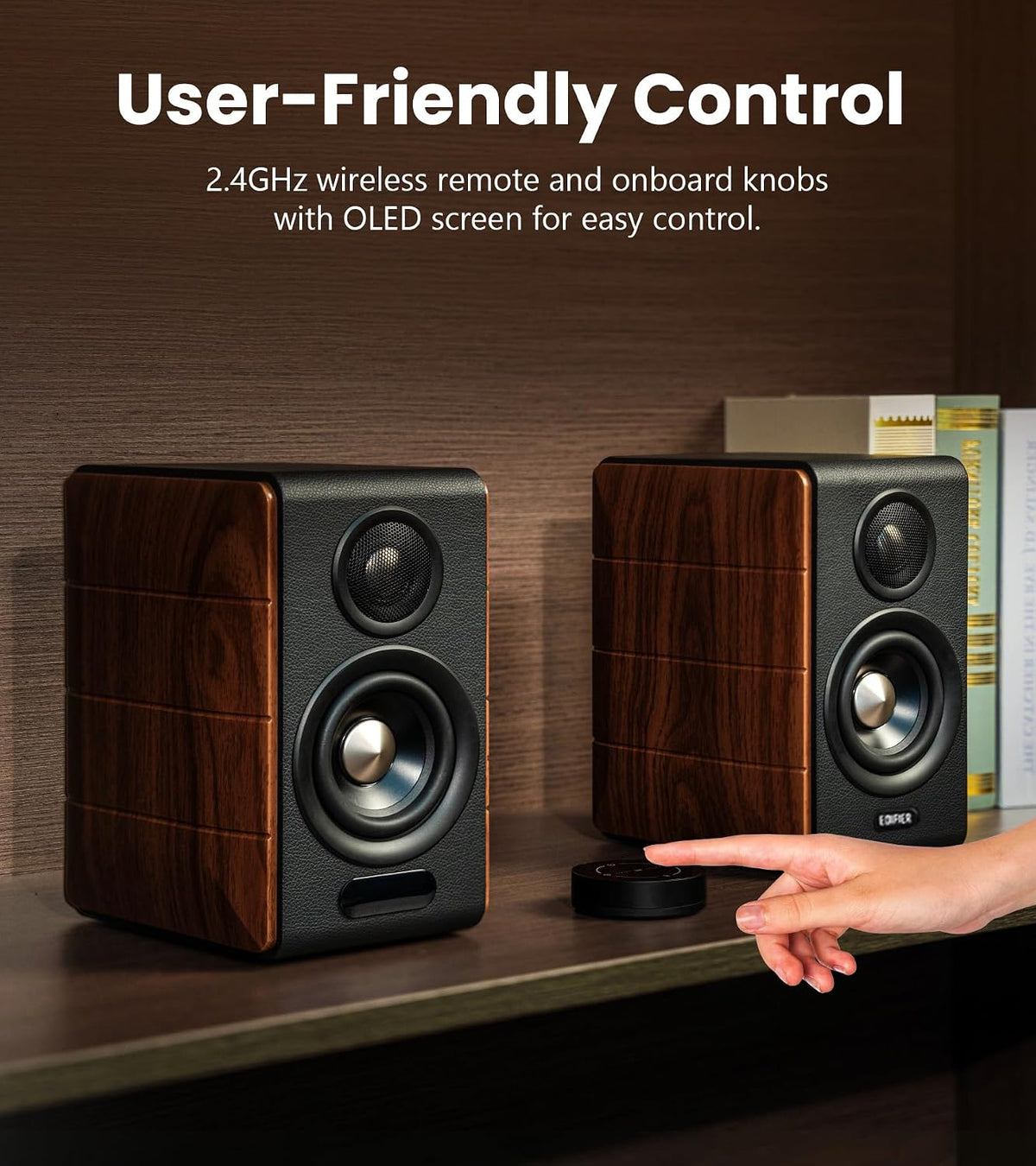

Easily manage playback with the new rechargeable 2.4GHz remote control or onboard speaker knobs. The OLED display with auto-dimming provides clear status information.

Works with EDIFIER ConneX App

Download the EDIFIER ConneX app for enhanced control and customization.

• Playback controls
• Sound effect adjustments and customization
• Access to the user manual and settings

Features

• 88W (RMS) total output power
• 1.25" titanium diaphragm dome tweeters and 3.75" long-throw aluminum diaphragm mid-low drivers
• XMOS XU216 for full digital signal processing and supporting the resolution up to 24bit/192kHz
• Hi-Res Audio and Hi-Res Audio Wireless certified
• Bluetooth V5.3, USB-C, Optical, Coaxial and dual RCA inputs
• Subwoofer output port available
• Multiple preset audio effects
• Rechargeable 2.4GHz remote control
• Works with EDIFIER ConneX mobile app for additional functions

Specifications

• Bluetooth: V5.3
• Bluetooth Protocol: Not specified
• Audio Coding: SBC, LDAC
• Total Output Power (RMS): Treble 12W × 2, Mid-low 32W × 2
• Driver: 3.75" long-throw aluminum diaphragm mid-low drivers, 1.25" titanium diaphragm dome tweeters
• Frequency Response: 50Hz - 40kHz
• Signal-to-Noise Ratio: ≥ 85dB(A)

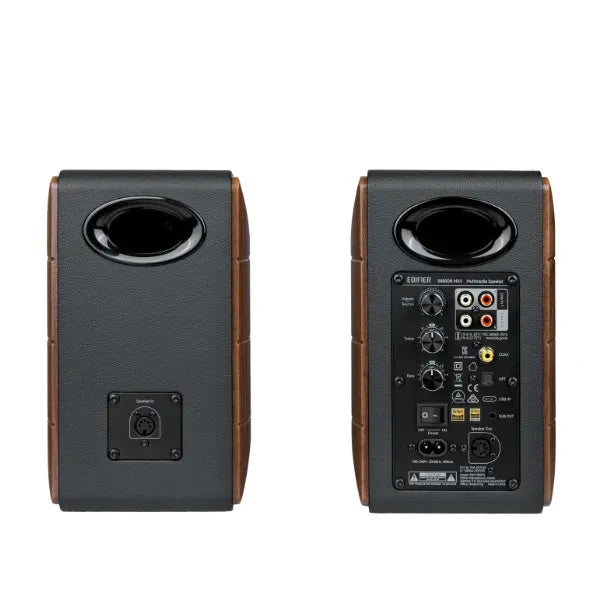

• Audio Inputs: USB-C, Optical, Coaxial, Line In 1, Line In 2, Bluetooth
• Input Sensitivity: USB-C: 500 ± 50mFFS, Optical: 500 ± 50mFFS, Coaxial: 500 ± 50mFFS,
• Bluetooth: 500 ± 50mFFS, Line In 1: 500 ± 50mV, Line In 2: 700 ± 50mV
• Dimensions (L x W x H mm): 145 × 237 × 207 mm (Active), 145 × 237 × 192 mm (Passive)
• Weight: 6.27kg

Product Code: S880DBMKIIWN
