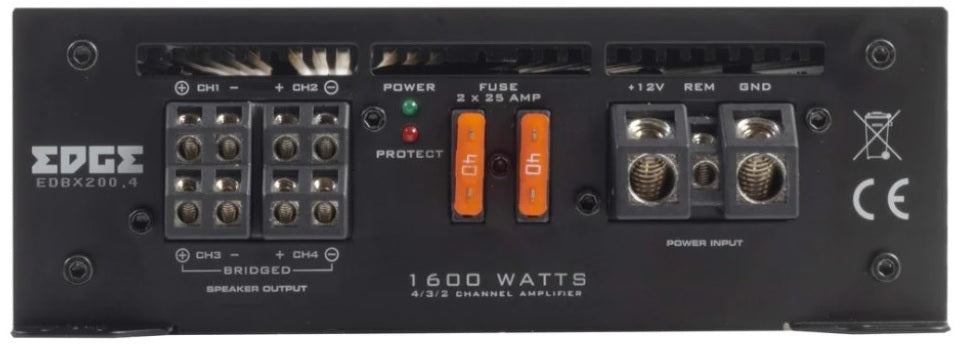

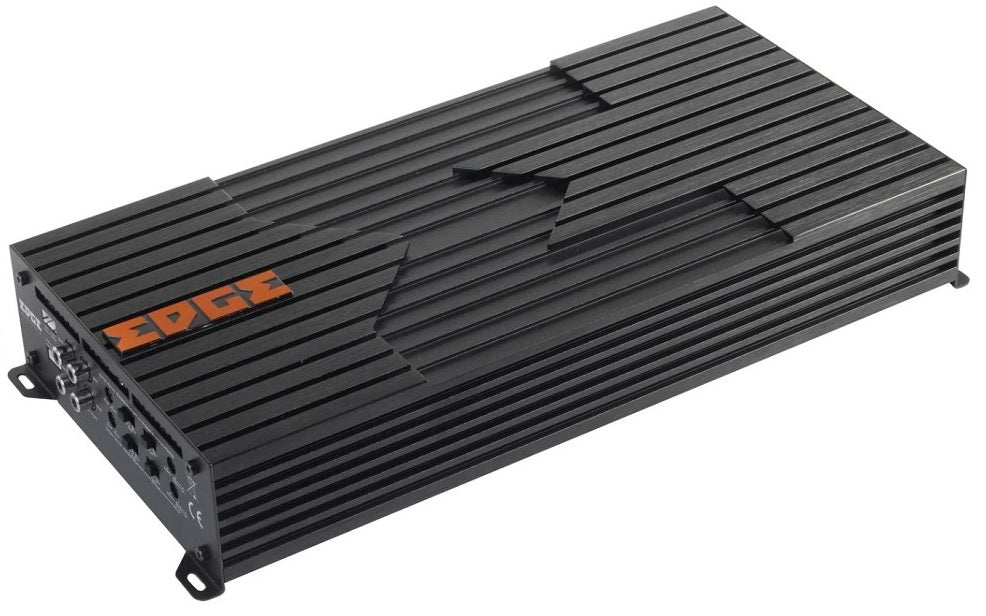

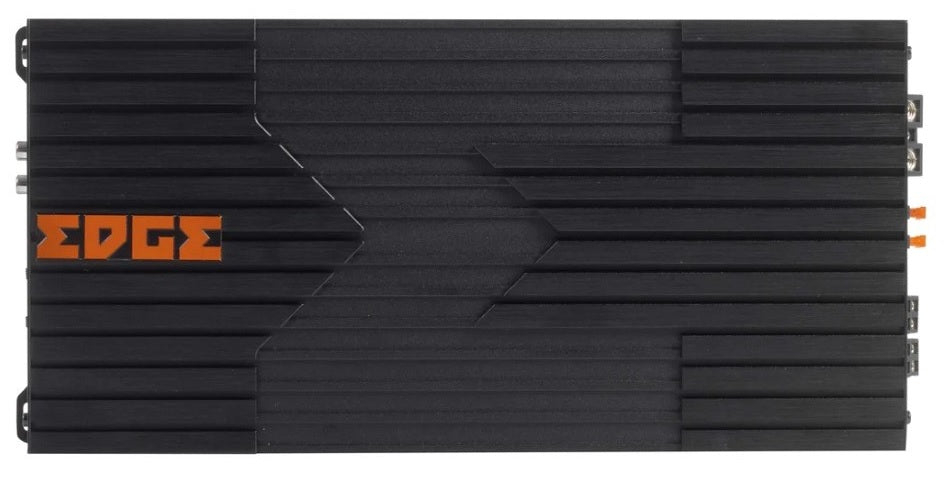

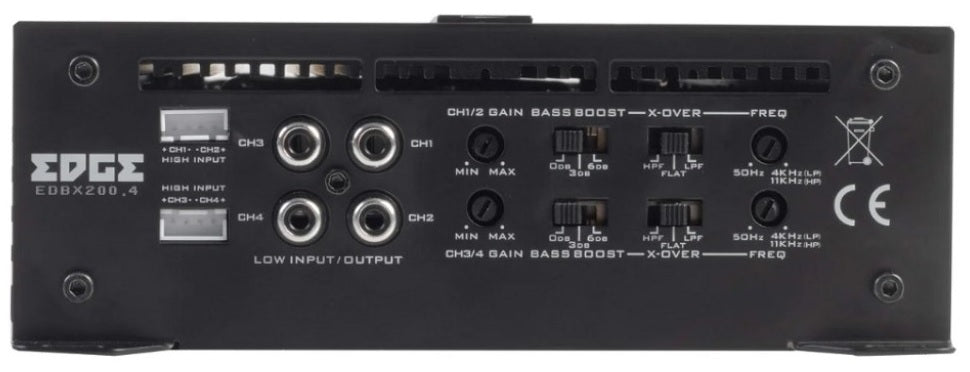

Edge EDBX200.4-E1 1600 Watt 4 Channel Class A/B Full Range Speaker Subwoofer Amplifier

Edge EDBX200.4-E1 1600 Watt 4 Channel Class A/B Full Range Speaker Subwoofer Amplifier

EDBX200.4-E1
Sale price  £179.99 Regular price  £199.99
Save £20.00

Edge EDBX200.4E1 - 1600 Watt 4 Channel Class A/B Full Range Speaker Subwoofer Amplifier

EDGE DBX Series 4 Channel 1600 watts Amplifier

The DBX Series amplifiers have some fantastic new unique features, The New EDGE heatsink has progressive T bar fins promoting heat dispersion to keep the amps cool. The 2 and 4 channel class AB models feature an extended set of filters with the HPF up to 11kHz and the LPF to 4kHz giving much more control of your speakers than the average amplifier.

The all new DBX amplifiers also feature internal fan cooling to keep temperature low when the volume gets high.

When enhanced power for your car audio is your drive, the DBX series amps provide everything you need for high power high quality amplification.

Features

  • BEST DESIGN - The unique “Big E” design integrated into the over-engineered T bar progressive heatsink design offers premium looks with strategical engineering.

  • PREMIUM TUNING - With extended frequency bands on the LPF and HPF crossover the EDBX series amps offer greater tune-ability and set up over its competitors.

  • BEST SOUND - The class AB technology offers great SQ compared to its class D competitors, Leading to rich and warm sound playback.

  • OPTIMISED FUNCTIONS - With 3 crossover options, high and low level inputs, bass Boost and auto sense turn on our DBX series offers all the functionality you need to run any system upgrade.



Configuration 4 channel
RMS @ 4 Ohms Stereo 4 x 150 watts
RMS @ 2 Ohms Stereo 4 x 200 watts
RMS @ 4 Ohms Mono 2 x 400 watts
Maximum Power 1600 watts
Frequency Response 20Hz - 20kHz
Crossover Type LP / HP / Flat
Crossover Range 30Hz - 250Hz
Recommended Fuse 2 x 35A
Topology Class AB
Dimensions (H x W X D) 63mm x 386mm x 179mm (2.5" x 15.2" x 7.1")
