Blaupunkt Durban 424 DAB 24volt CD player USB MP3 DAB radio with Bluetooth USB MP3 AUX input Heavy Duty for bus, lorry

Blaupunkt Durban 424 DAB

Heavy Duty: Work hard! Play hard! 24 V | DAB+/FM | Bluetooth

Reliable technology. Robustly built. When things get tough – DURBAN 424 DAB

DAB AERIAL REQUIRED FOR DAB FEATURE TO WORK. (NOT INCLUDED)

Perfect For Commercial Vehicles

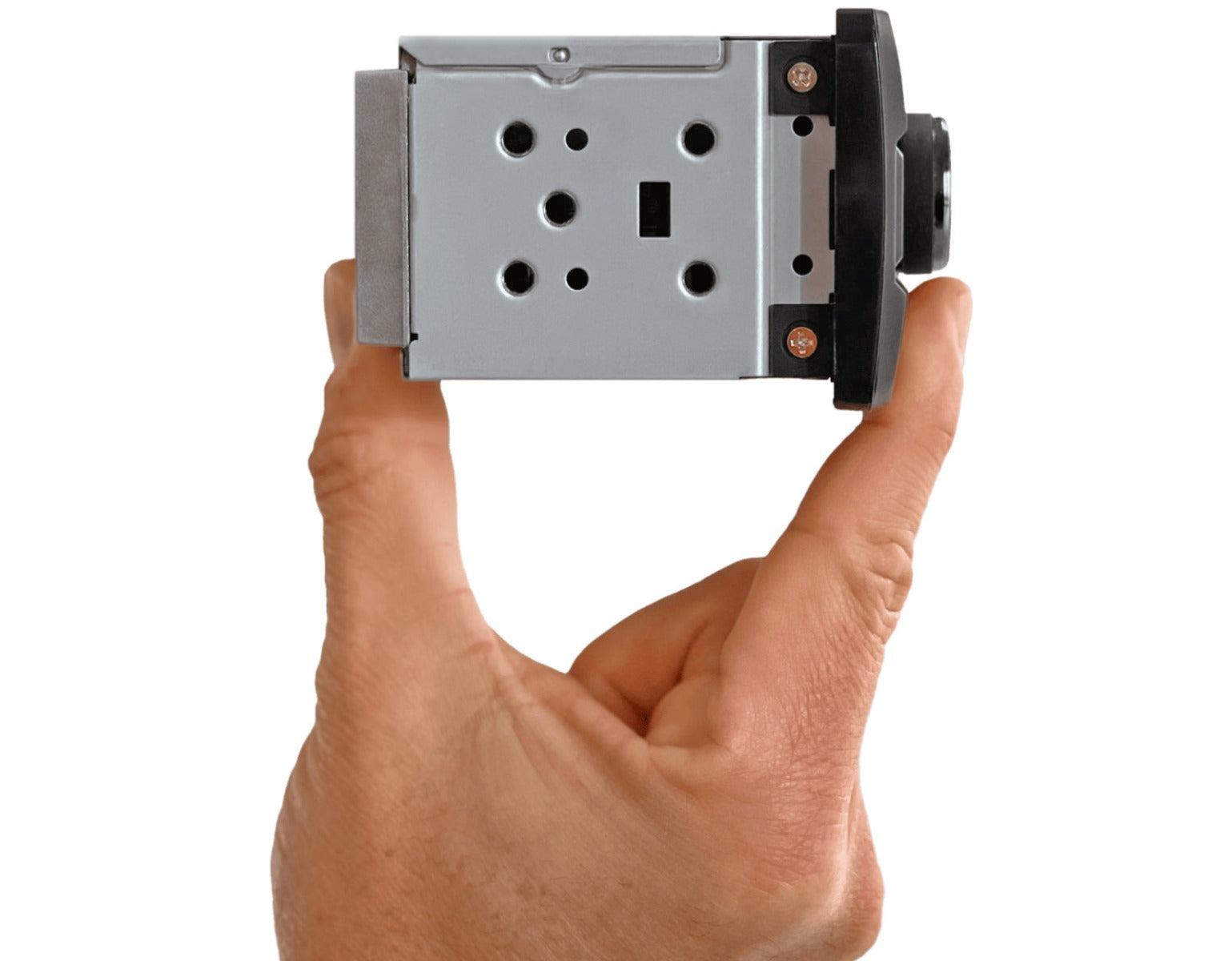

Ultra Short Body With Only Approx. 8 cm Installation Depth

Highlights

Radio

• High-End CODEM IV World tuner
• FM, AM, DAB, DAB+ tuner
• Radiotext/DLS
• Traffic function
• Alphabetical DAB-List
• Travelstore
• Service following
• Preset and Band Introscan

Media Player

• 2x USB-Input
• MP2-, MP3-, WMA-, FLAC-, M4A (AAC)-, APE-, WAV-Support
• AUX-Input (3,5mm)
• Intro scan
• Fast FF/REW with Sound
• Browsing function
• Multiple Folder Support
• Apple iPod Support

Bluetooth

• Int. and ext. microphone support
• Audio streaming with track info
• Access to voice assistant (e.g. Siri, Google, Alexa)
• Wake-up on call
• Phonebook access
• Favorite memory

Sound

• Sound Presets
• Loudness
• Semiparametric Equalizer (3 Bands)
• 4-Channel Pre-Amp Output + 2 Sub-Out
• 4x 50 Watt

General

• Ultra short body (only 8 cm)
• Wide-angle display
• Multicolour (7 colours)
• DIM function
• Permanent memory
• Microphone Input (6.3 mm)
• IR-Remote Sensor
• SWC-Input (analoge)
• 24 Volts
• Deactivatable ACC detection
• Charging of mobile devices

Technical Specifications

Radio Analog / Digital

• Tuner Type: High-End Automotive Tuner Blaupunkt CODEM
• World Tuner (switchable): EU, Asia, USA, South America, Thailand, Japan
• Frequency bands: FM, AM, DAB, DAB+
• Frequency band FM: 87,5 108 MHz
• Frequency band MW: 531- 1602/ 530- 1710 kHz
• Channels (frequency band) DAB/ DAB+: 5A- 13F (174,928- 239,200 MHz)
• Station memory: 15x UKW, 10x AM, 15x DAB
• Station memory levels: FM1, FM2, FMT, AM, AMT, DAB1, DAB2, DAB3
• Station memory levels deactivatable: FM2, FMT, AM, AMT, DAB2, DAB3
• Station display (PS)
• Radiotext
• Display DLS/ ENSEMBLE/ SERVICE
• Alternate frequency function (AF)
• Traffic Radio (TA) FM/ DAB
• Automatic time setting
• Regional function (REG)
• Program type identifier/ -seek (PTY) FM/ DAB
• Travelstore/ Number of Memory: / 5x FMT, 5x AMT
• Band Scan + PresetScan
• Sensitivity (FM) Two levels (lo / dx)
• Noise suppression (FM):
• Hi-Cut (FM): (multi-level switchable)
• DAB Service list, alphabetical
• DAB-DAB Service following
• DAB-FM Service following
• Service scan
• Ensemble/ Service change
• Ensemble/ Service browsing
• Frequency response FM: 30 15.000 Hz
• Frequency response DAB: 20 20.000 Hz

Media Player

• AUX rear: (Cinch/ RCA)
• Source activation: manual via settings
• USB front: (type A, with dust proof cover)
• USB rear: (type A, with dust proof cover)
• Concealed front inputs (dust proof): (USB, Microphone)
• Compatible formatting (USB): FAT16, FAT32, exFAT
• Maximum storage size (USB, memory cards): > 128 GB
• Maximum file/folder count (USB, memory cards): > 20.000
• Playback formats: MP2, MP3, WMA, FLAC, M4A/ AAC, WAV
• Display options (may depend on media file): ID3V2 (title, artist, album), folder, file, playing time
• Folder & file browsing
• iPod, iPhone control (only iAP2, Lightning/USB-C): (via USB front and rear)
• Shuffle folder/ media
• Repeat Title/ Folder/ All
• Forward/rewind with sound:
• Introscan: (adjustable time)

Bluetooth

• Phone Calls
• Internal microphone
• Connectivity ext. microphone
• Answer/ reject call
• Access phonebook: (max. 1000 numbers)
• Audio streaming:
• Forward/rewind:
• Introscan: (adjustable time)
• Display options: Title, Artist, Album, Playtime
• Access to Voice Assistant(like Siri, Google, Alexa):
• Auto wake-up on call: (when radio off + ignition on), deactivatable
• Fast pairing without PIN:
• Automatic reconnection:, last 5 devices
• Bluetooth version: 5.0 LE
• Number of paired devices: max. last 5
• No. of devices connected at the same time: Max. 1
• Supported profiles: A2DP, AVRCP, HFP, SPP
• Audio Codecs: AAC, SBC

(Availability/ support of functions depend on the phone/ app used!)

Sound

• Equalizer (number of bands/ design/ setable q-factor): (3/ semi-parametric)
• Bass/ trebleadjustment (+/-7 steps)
• Source-specific bass/ treble adjustment:
• Balance/ fader (+/-7 steps)
• Loudness:
• Sound presets: Rock, Pop, Classical
• Speaker Outputs (Channels): 4
• Preamp Outputs (Channels, Voltage): 4 (RCA, < 2V)
• Sub-Out: 2 (RCA, < 2V, gain/ frequency variable)
• Max. Power: 4x 50 watts
• Sine power at 14.4 V: 4x 24 watts (according to DIN 45324)

General

• Display: LCD, negative, anti-reflective, wideangle, alphanumeric + symbols
• Scrolling: (one time /repetitive/never)
• Illumination colour of display: Multicolour, 7 colours (white, green, yellow, red, violet, blue, skyblue)
• Illumination colour of keys: Same as display
• Day/Night mode: (manual/ via dimmer connection)
• Night design when switched off (vehicle light on): (on knob red illumination)
• Brightness: Multi-level, variable (16 steps)
• Time display:
• HMI languages: English, German
• Hour timer (automatic switch-off when ACC off):, deactivatable
• Low standby current: (< 3,5 mA )
• Antenna inputs: FM DIN/ ISO (with adaptor), DAB SMB (DAB with 12 V phantom power)
• Mute input/ Telephone mute: (GND active)
• Ext. handsfree microphone connector:
• Remote control (IR sensor for card remote control, compatible with old RC-10)
• Steering wheel remote control (SWC) (analog, programmable, pre-programmed)
• Variable scan time: (4, 8, 12, 16, 60s)
• Confirmation beep: (can be deactivated)
• Control panel type: Fixed panel
• Colourpanel/ decor ring: Black/ Black
• Software Update: via USB
• Permanent Memory: (Settings & Presets)
• Demo Mode
• Weight: approx. 0.6 kg
• Dimensions non-CD/ CD model: 50 x 178 x 76 mm (H x W x D, only housing w/o front), 58 x 187 x 17 mm (H x W x D, front with trim ring, incl. buttons
• Operation voltage: 24 Volt (28.8 Volt)
• Power consumption: < 10 A in Operation, ACC off after 10 seconds< 3.5 mA

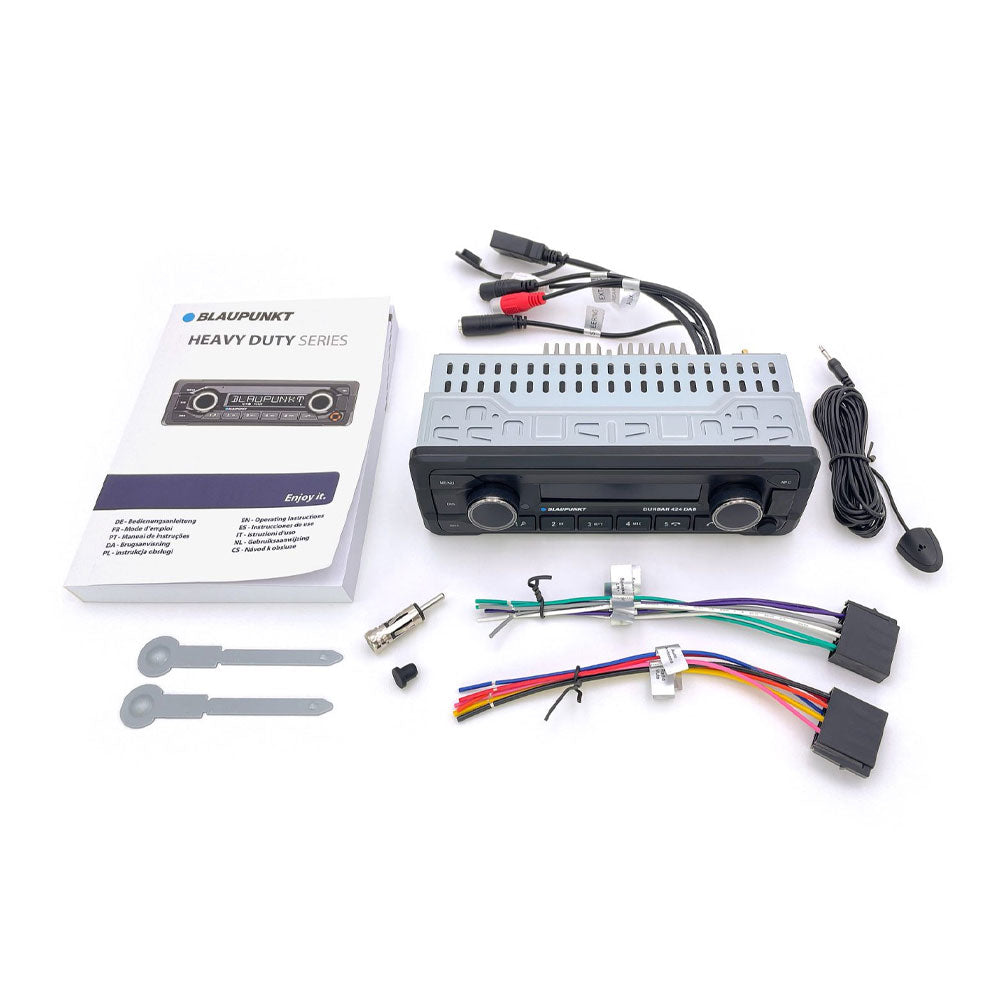

Scope Of Delivery

• User manual (languages): (DE, EN, FR, ES, PT, IT, DA, NL, PL, CS)
• External BT microphone: (5 104 020 001 001)
• Unlocking tool:
• Connectors (ISO A, B):
• Antenna adaptor (DIN/ ISO):
• DAB antenna: Optional accessories (e.g. 2 006 019 000 000)
• IR remote control (credit card size): Optional accessories (1 101 402 001 001)
• Wired remote control RC-24: Optional accessories (2 010 024 000 000)
