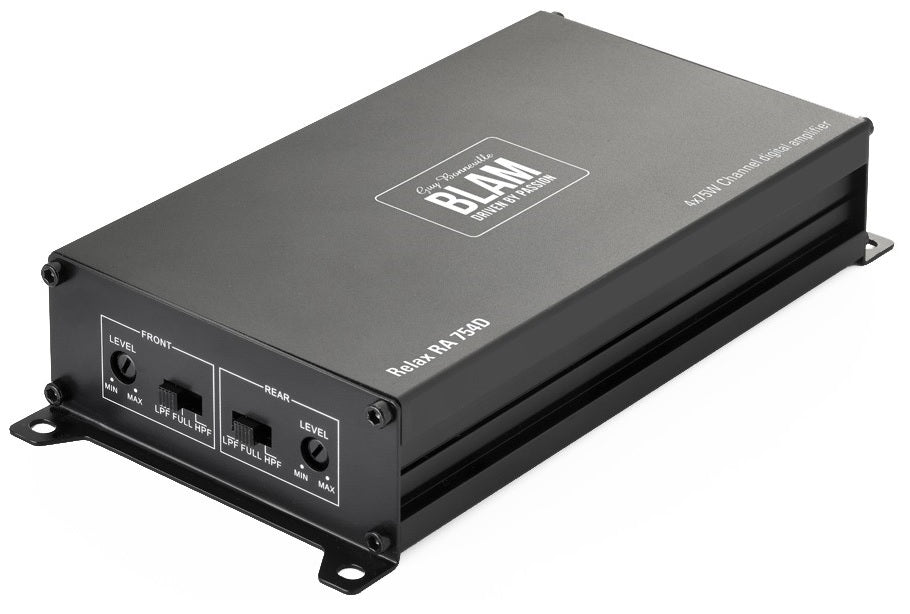

BLAM RA754D Ultra-compact D Class 4 X 75W OEM Compatible amplifier

BLAM Ultra-compact D Class 4 X 75W amplifier

To design this powerful, robust and compact amplifier, we have used the latest class D audio amplifier technologies.

This amplifier employs SMD (surface mount device) electronics components, reducing the overall size while still providing high-end audio performance.

Thanks to its high efficiency, it will provide the power required to reproduce the full dynamics of your favourite recording combined with unheard-of reliability.

Composition

• Auto-turn on
• RCA low level and high-level inputs: 0.3V /15V
• RMS Power (4 ? ): 4 × 50 Watts RMS
• RMS Power (2 ?): 4 × 75 Watts RMS
• Bridged Power (4 ?): 2 × Watts RMS
• Low pass crossover: 120 Hz
• High pass crossover: 100 Hz
• Signal/noise ratio: > 90 dB
• Protections: short circuit / low impedance / reversal polarity / heat protection
• Dimensions (L x W x H): 188 × 91.4 × 36 mm – 7.4’’ × 3.6’’× 1.4’’

Supplied Accessories

• Mounting screws
• User’s manual
