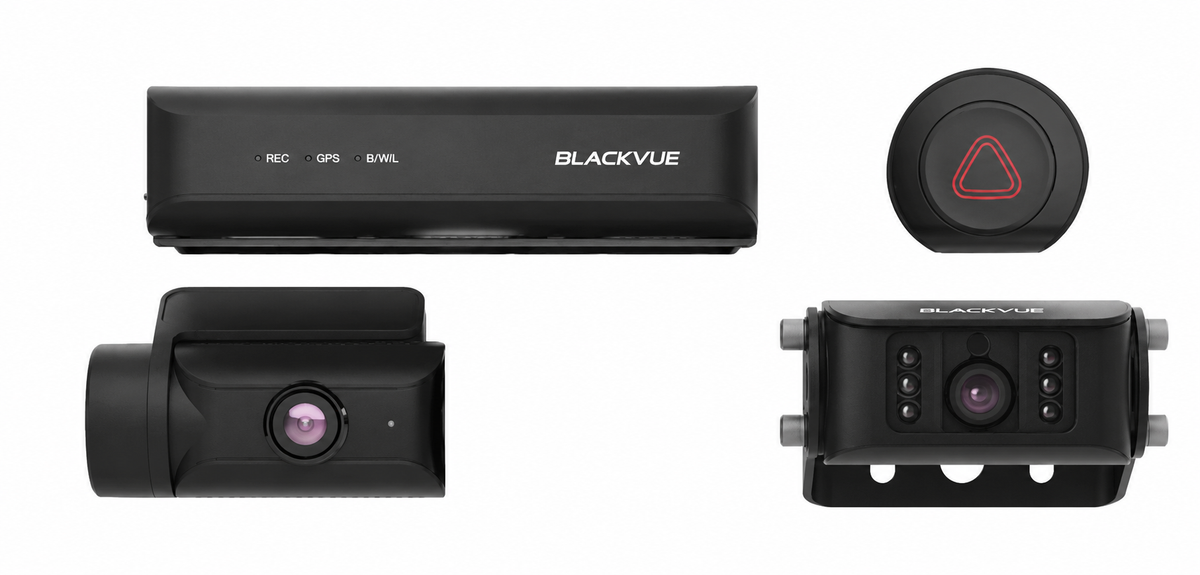

BlackVue DR770X 2-CHANNEL BOX PRO TRUCK 256GB Cloud DashCamFull HD External Waterproof (IP69K) Infrared Rear Camera.
DR770X-2CH Truck | HGV Dashcam of Reference
Blackvue DR770X | 2CH | TRUCK
The Perfect Dashcam for Trucks and Heavy Vehicles
The external waterproof rear cam with embedded IR lights and up to 15m (49ft) coaxial cable is ideal for most large vehicles.
Catch detailed footage of the front surroundings of your vehicle at 1080p Full HD 60FPS and rear at 1080p Full HD 30FPS.
The front and rear cameras both use cutting-edge Sony STARVIS sensors, with the rear camera being augmented by 6 IR LEDs for clarity in total darkness.
Dual Full HD Cloud dashcam
Night Footage Never Looked This Good
Dual STARVIS™ sensors in Full HD 1080p (front 60 / rear 30 frames per second).
Fluid videos of the front and back of your car at a wide 139° view angle.
The back-illuminated STARVIS image sensors produce clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range.
Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).
With the free BlackVue Cloud service, check on your car from anywhere, anytime.
Infrared External Rear Camera
With Rugged Metal Waterproof Casing
With its metal waterproof casing the rear camera of the DR770X-2CH TRUCK is built to withstand most weather conditions. Its Ingress Protection rating (IP69K) means it can even withstand power washing. It is designed to be installed at the rear of trucks or heavy vehicles. We recommend securing it in place on a flat surface using the provided screws. The luminosity sensor detects ambient brightness and automatically activates the six infrared lights to help identify vehicles and objects in the dark.
WATERPROOF COAXIAL CABLE
The 15m (49ft) high-quality waterproof coaxial cable connects the front and rear cameras.
The waterproof rear camera and the coaxial cable are screwed together to provide tight and water-resistant connection.
Its length makes it ideal for trucks and trailers and guarantees a pristine image even over long distance.
Ultrawide Infrared Interior Camera
The Infrared Camera secures the interior of your vehicle. The inconspicuous infrared LEDs automatically activate based on the ambient luminosity.
The camera’s spectacular clarity even in pitch black lighting conditions will procure peace of mind to taxi and rideshare drivers.
With its ultrawide 180-degree view angle, the camera can capture both the driver-side and passenger-side windows at the same time in most vehicles.
Using the BlackVue App or Viewer, you can further customize the way it operates.
- 180° Image Rotation to accommodate your setup: install the camera the way you like. If the image comes out upside down, just activate this feature and it will fix the image orientation.
- Security LED ON/OFF (for stealth in Parking Mode).
Seamless Pairing with the BlackVue App
Effortless setup. Secure. No password.
With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.
Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
Wi-Fi, GPS and Optional LTE
Wi-Fi: download videos to your phone at blazing speed. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience and use your BlackVue as a Wi-Fi hotspot for up to five devices.
(*) SIM card not included.
Native Parking Mode
Hardwiring cable included
DR770X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR970X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Set up (easily) and forget
BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.
This way, the dashcam is invisible to the driver’s eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on (no need to push any button).
Once set, you can forget about it, knowing it will reliably record your drive.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue DR770X-2CH can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden speed changes. While parked, your BlackVue also detects visual movements around your vehicle (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
(*) Parking Mode Kit or Battery is required.
Sleek Interface
Touch sensor – Tap the touch sensor to trigger Manual Event videos.
Format button – Hold to format the microSD card.
Secure microSD card access – Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser
BlackVue Cloud
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
LTE Connectivity Module (Optional)
Unlock BlackVue Cloud access. Share Wi-Fi in your car.
The CM100GLTE provides easy 4G LTE connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card. The CMG100LTE is powered and connects via the USB port of your dashcam.
When connected to the CM100GLTE, BlackVue DR970X Series can serve as a mobile hotspot providing wireless Internet access to up to five devices (smartphone, tablet, etc.).
Note: when purchasing, make sure the CMG100LTE you choose is compatible with your mobile carrier’s network.
Intelligent Parking Mode
BlackVue automatically switches to Parking Mode to monitor your parked vehicle. Thanks to video buffer, the few seconds leading to triggering events are also recorded. DR770X Series supports two Parking Mode options:
Motion & Impact Detection Parking Mode detects both:
- Motions recorded by the image sensor (marked “P” in the file list).
- Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.
High Frame Rate for Extra Fluidity
The advantage of 60FPS video capture
The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.
Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.
