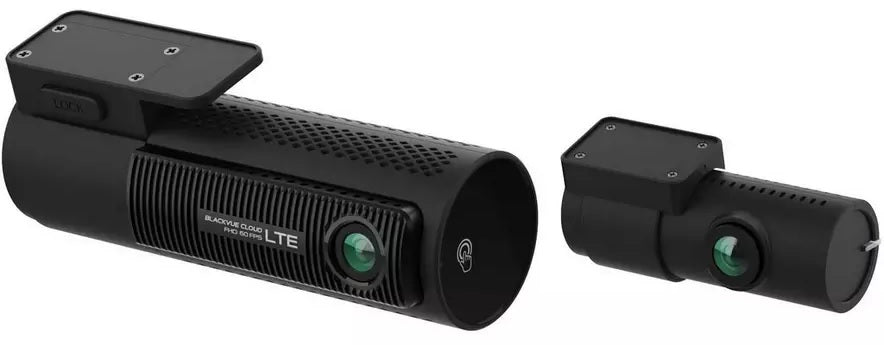

BlackVue DR770X-2CH LTE 1080p 64GB Full HD Wi-Fi GPS Cloud 2 Channel Dash Cam
DR770X-2CH LTE TRUCK (UK) | HD LTE CLOUD DASHCAM
LTE Connectivity. HD Resolution. Zero Compromise.
BlackVue DR770X-2CH Truck LTE
BlackVue SIM Card
Included with UK models
Get started with BlackVue Cloud out of the box with the included BlackVue SIM Card. Insert the SIM Card in the tray, power the BlackVue, then follow the step in the BlackVue App’s “Connect to Cloud” menu.
A Truck Dashcam Built for the Cloud
A Truck Dashcam Built for the Cloud
Built-in 4G LTE connectivity makes connecting to the Cloud hassle-free.

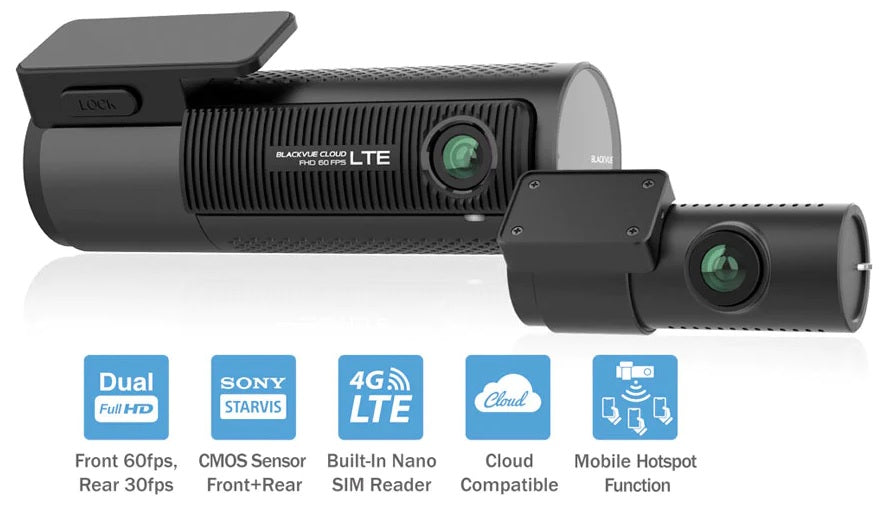

Dual Full HD 1080p cameras (front 60 / rear 30 frames per second) provide fluid videos of the front and back of your vehicle.
View angle: front camera: 139 degrees; rear camera: 116 degrees.
STARVIS imaging sensors—a reference in video clarity under low light—equip both front and rear cameras, so whether you are driving or parked, crucial details are captured perfectly.
STARVIS is a trademark of Sony Corporation.

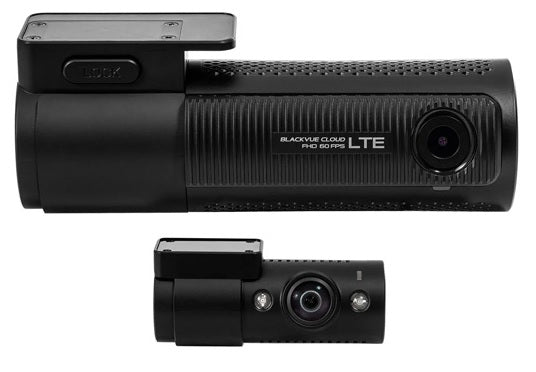

Infrared External Rear Camera
With Rugged Metal Waterproof Casing
With its metal waterproof casing the rear camera of the DR770X-2CH TRUCK is built to withstand most weather conditions. Its Ingress Protection rating (IP69K) means it can even withstand power washing. It is designed to be installed at the rear of trucks or heavy vehicles. We recommend securing it in place on a flat surface using the provided screws. The luminosity sensor detects ambient brightness and automatically activates the six infrared lights to help identify vehicles and objects in the dark.
Mobile Hotspot Function
Turn your BlackVue into a Wi-Fi router for your car
With Mobile Hotspot Function, your compatible BlackVue can turn into a mobile internet router for up to five devices concurrently. This means you and your passengers can now use your BlackVue’s internet on your laptop, portable game console, tablet or mobile.
To connect to the BlackVue, simply open your devices’ Wi-Fi menu, select the BlackVue and enter the dashcam’s Wi-Fi password.
Seamless Pairing with the BlackVue App
Effortless setup. Secure. No password.
With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.
Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
LTE, Wi-Fi and GPS All Built-in
GNSS (GPS+GLONASS)
Speed: speed data will be overlaid in the video (can be turned off in the settings).
You can set speed display in Kilometers per hour (Km/h) or Miles per hour (Mph).
Location: visualize your vehicle’s location in the BlackVue App or Viewer’s Map.
Connect to your dashcam over Wi-Fi or the Cloud
Wi-Fi lets you connect to your BlackVue with a smartphone or tablet.
LTE gives you access to your BlackVue over the Cloud from anywhere, anytime.
Native Parking Mode
Hardwiring cable included
DR770X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR970X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Sleek Interface
Touch sensor
Tap the touch sensor to trigger Manual Event videos.
Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.
Waterproof Coaxial Cable
The 15m (49ft) high-quality waterproof coaxial cable connects the front and rear cameras.
The waterproof rear camera and the coaxial cable are screwed together to provide tight and water-resistant connection.
Its length makes it ideal for trucks and trailers and guarantees a pristine image even over long distance.
Set up (easily) and forget
BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.
This way, the dashcam is invisible to the driver’s eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on (no need to push any button).
Once set, you can forget about it, knowing it will reliably record your drive.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue DR970X-2CH can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
(*) Parking Mode Kit or Battery is required.
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser
BlackVue Cloud
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Intelligent Parking Mode
BlackVue automatically switches to Parking Mode to monitor your parked vehicle. Thanks to video buffer, the few seconds leading to triggering events are also recorded. DR970X Series supports two Parking Mode options:
Motion & Impact Detection Parking Mode detects both:
- Motions recorded by the image sensor (marked “P” in the file list).
- Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.
Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 54 hours on a 32GB microSD card front and rear at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.
Specifications:
- Model Name
- DR770X-2CH LTE
- Colour / Size / Weight
- Front: Black / Width 137.6 mm x Height 43 mm / 161 g
- Rear: Black / Width 67.4 mm x Height 25 mm / 25 g
- Memory
- microSD Card (64GB)
- Recording Modes
- Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording.
- * Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) *
- When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
- Camera
- Front: 8-Megapixel CMOS Sensor
- Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 megapixels) Front: STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Rear: STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Viewing Angle
- Front: Diagonal 139°, Horizontal 116°, Vertical 61°
- Rear: Diagonal 139°, Horizontal 116°, Vertical 61°
- Resolution / Frame Rate
- Full HD (1920×1080) @60fps – Full HD (1920×1080) @30fps
- *Frame rate may vary during Wi-Fi streaming.
- Image Quality
- Highest(Extreme) / Highest / High / Normal
- Video Compression Mode
- MP4
- Wi-Fi
- Built-in (802.11n (2.4 − 2.4835 GHz))
- Bluetooth
- Bluetooth 4.2, BLE
- GPS
- Built-in
- Microphone
- Built-in
- Speaker (Voice Guidance)
- Built-in
- LED Indicators
- Front: Recording LED, GPS LED, LTE / Wi-Fi LED, Front Security LED
- Rear: Rear Security LED
- Sensor
- 3-Axis Acceleration Sensor
- Button
- Format button:
- Press and hold for 5 seconds and once voice commands start, release the button. Then press and hold for 5 seconds again to format the microSD card.
- Wi-Fi button:
- Press once and Voice commends start to turn on/off Wi-Fi.
- Proximity sensor:
- Touching the proximity sensor turns on/off audio recording or triggers manual recording depending on the firmware settings.
- Backup Battery
- Built-in super capacitor
- Input Power
- DC 12V – 24V (DC Plug: (Ø3.5 x Ø1.35), MAX 1A/12V)
- Power Consumption
- Normal Mode Avg. 470 mA/12 V, when GPS and Cloud is On)
- Normal Mode Avg. 410 mA/12 V, when GPS and Cloud is On)
- Parking Mode Avg. 370 mA/12 V, when GPS Off and Cloud is On)
- Parking Mode Avg. 310 mA/12 V, when GPS Off and Wi-Fi is Off)
- * Actual power consumption may vary depending on use conditions and environment.
- Operation Temperature
- -20 °C − 70 °C (-4 °F − 158 °F)
- Storage Temperature
- -20 °C − 70 °C (-4 °F − 158 °F)
- High Temperature Cut-Off
- Approx. 80 °C (176 °F)
- Certifications
- Front: JAPAN: Telec
- Australia: RCM
- Rear: FCC, CE, UKCA, RoHS, WEEE
- Software
- BlackVue Viewer
- * Windows XP or higher and Mac OS X Yosemite 10.10 or higher
- Application
- BlackVue Application (Android 4.2.2 or higher, iOS 9.0 or higher)
- Others
- Adaptive Format Free File Management System
- * STARVIS is a trademark of Sony Corporation.
