B-Tech BT8226 Double Arm Flat Screen Wall Mount with Tilt and Swivel

Designed to mount medium to large-sized screens, this universal double arm wall mount features an easy-to-tilt interface and three swivel points, for a quick, smooth repositioning of the screen - whether folded flat to the wall (at a depth of just 50mm) or at maximum extension. Cover plates and integrated cable management help hide all fixings for a neat and tidy mounting solution, ideal for both commercial and home installations.

Features

• Attractive cover plates included to hide fixings

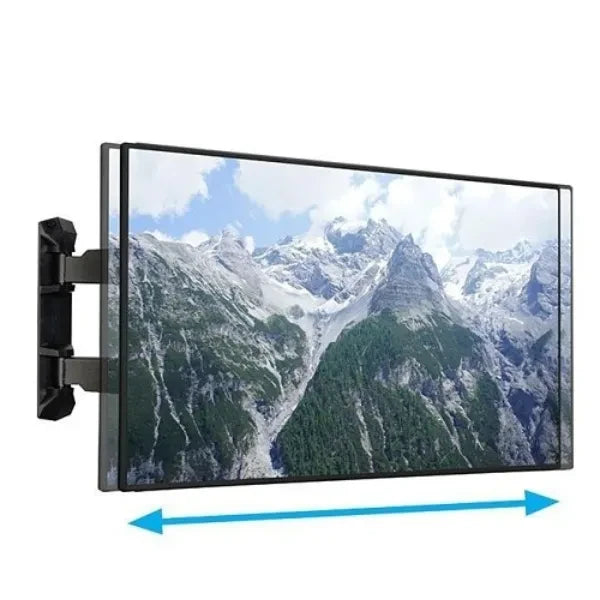

• Lateral adjustment of the screen once mounted
• Integrated cable management

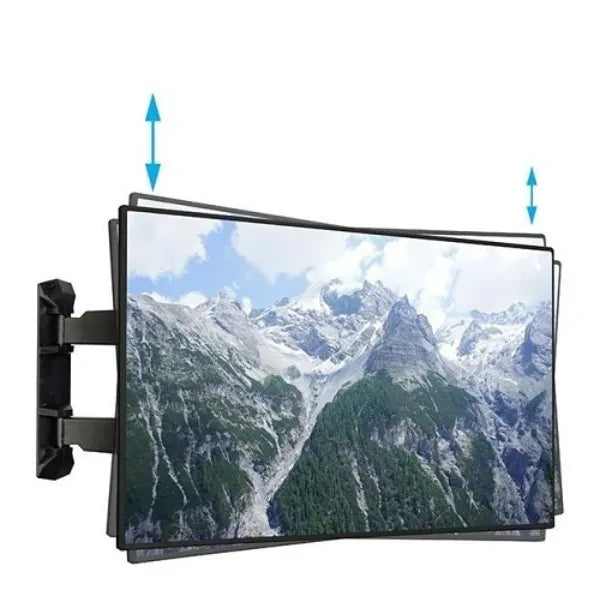

• Screen levelling of up to 3 ° in either direction
• Easy tilt and swivel adjustments
• Slim-line design allows close to the wall installation when folded flat
• Features three swivel points; ideal for corner mounting
• Toolless tilt with option to lock in position
• Toolless screen levelling
• Keyhole mounting and drilling template for a quick and easy installation
• Safety screws help prevent unauthorised removal of screens
• Simple ‘hook-on’ installation with all mounting hardware included
• 100% plastic free packaging

Specifications

• Recommended Screen Size: 32" (81cm) up to 65" (165cm)
• Max load: 35kg (77lbs)
• VESA® compatibility: up to 600 x 400

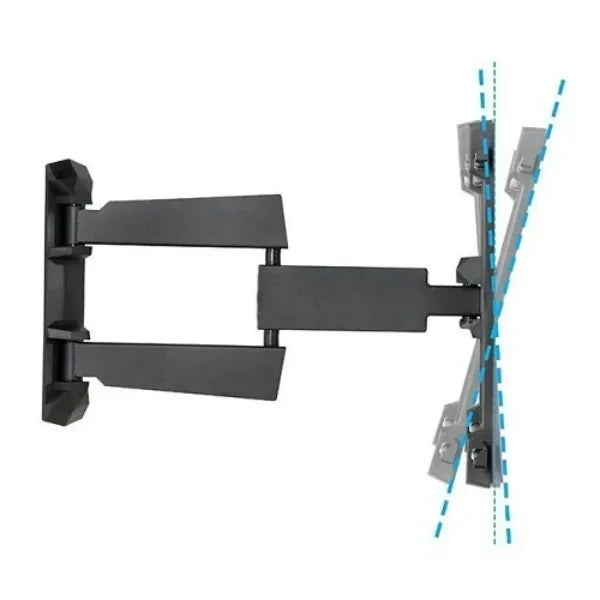

• Tilt: +14°/-3°
• Swivel: 180° at wall & interface, 360° at central pivot
• Distance from wall: Min: 50mm (2") - Max: 574mm (22.6")

Product Code: BT8226/B V2
