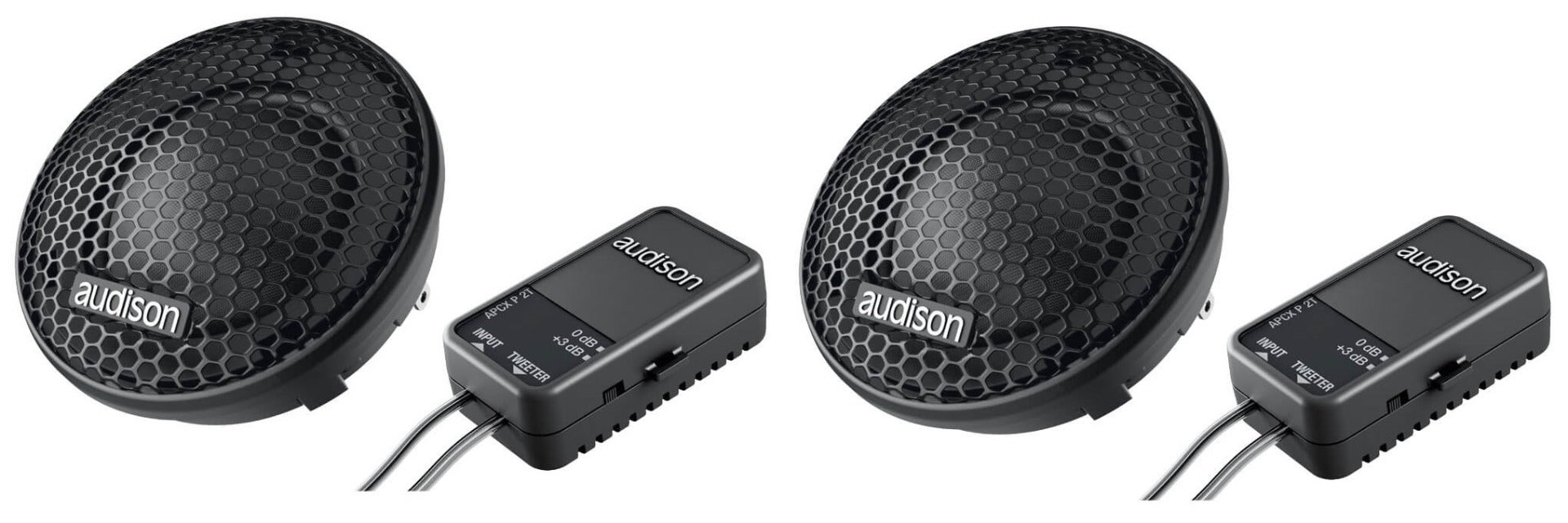

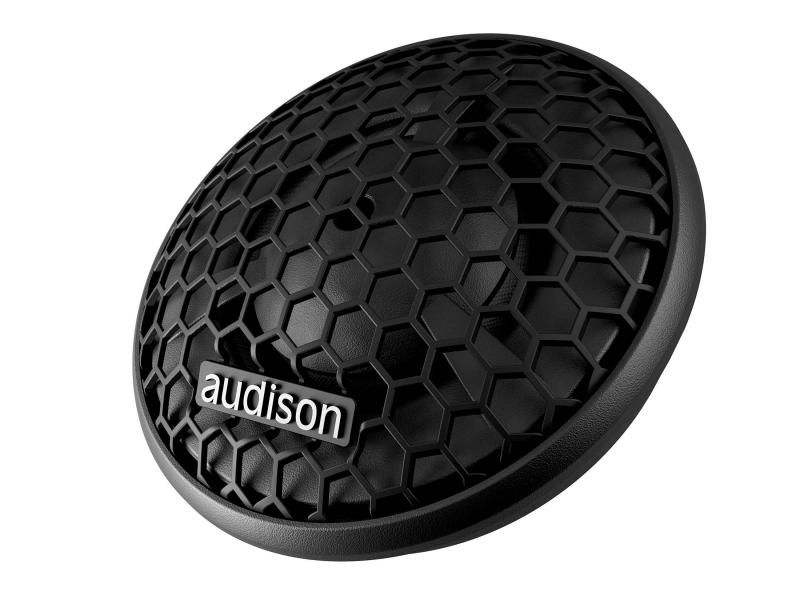

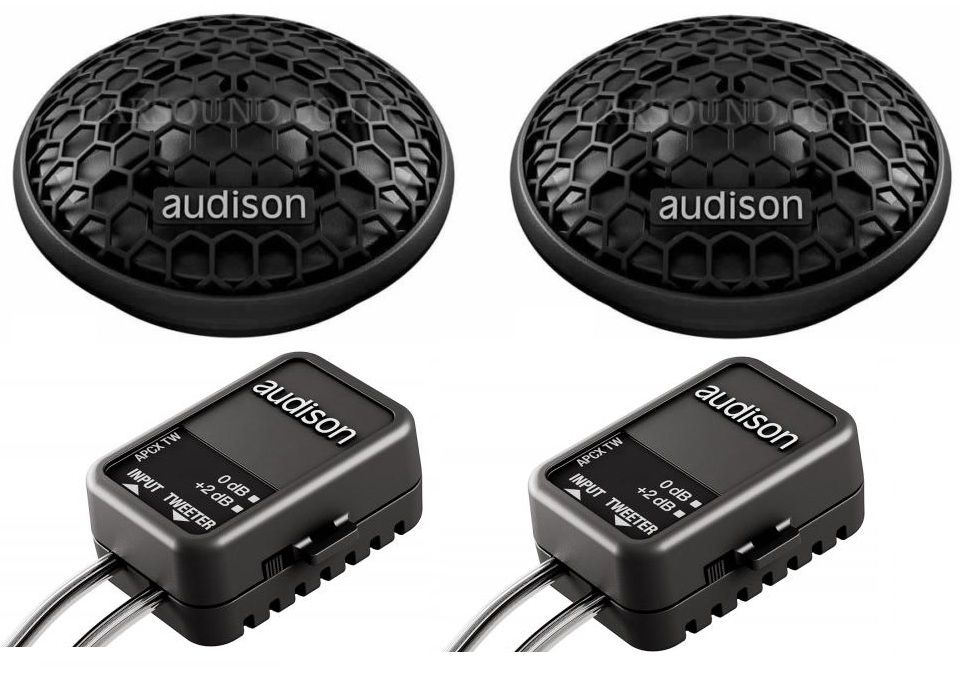

Audison Prima AP1P - 150 Watt Tetolon Fibre 29mm Tweeters

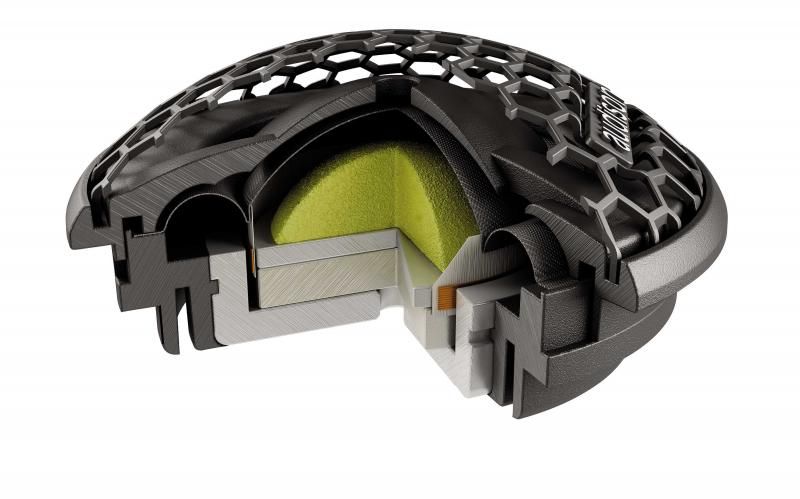

The Audison Prima AP 1P Tweeter uses AIF technology (Any Install Faceplate) to provide the installer with 3 different faceplates for application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1” CCAW voice coil ensures an outstanding dynamic response.

AIF Technology

To support OEM integration, AIF Technology provides the specialist with three different types of faceplates:

• OEM, for an easy and correct factory placement
• Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations
• Spoke grille: for maximum acoustic performance with a-pillar installations

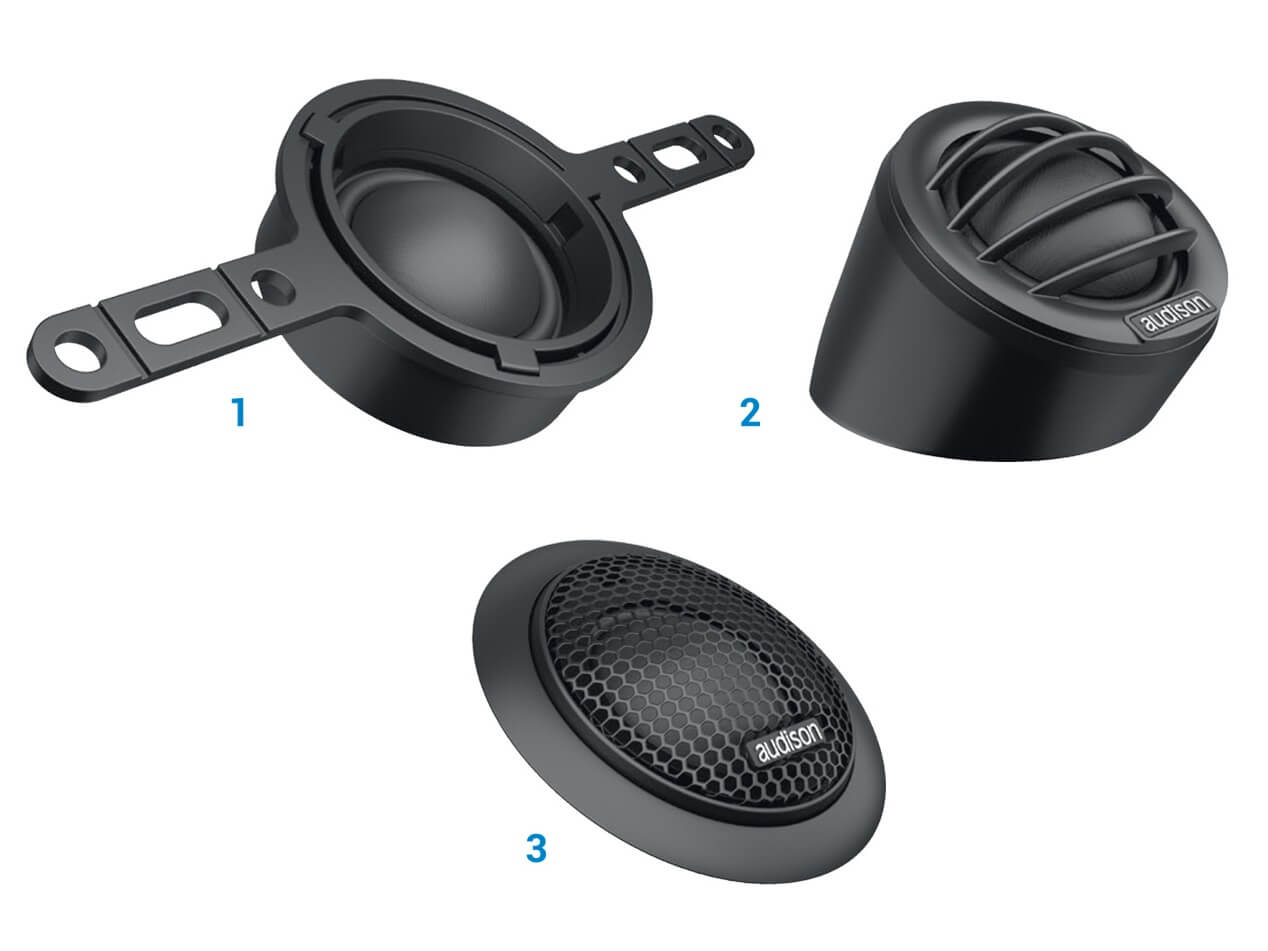

Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario. It is supplied with four mounting accessories that make the AP 1P install a breeze:

Product Features:

• Watchband
• Double-angle cup
• Flush Mounting Ring
• Metal mounting spring

Technical Specification:

• Size: 29 mm (1.14″)
• Power Handling: Hi-pass filtered 2.5 kHz @ 12 dB Oct. 150 W Peak Power
• Impedance: 8 Ω
• Frequency Response: 1.2 kHz - 25 kHz

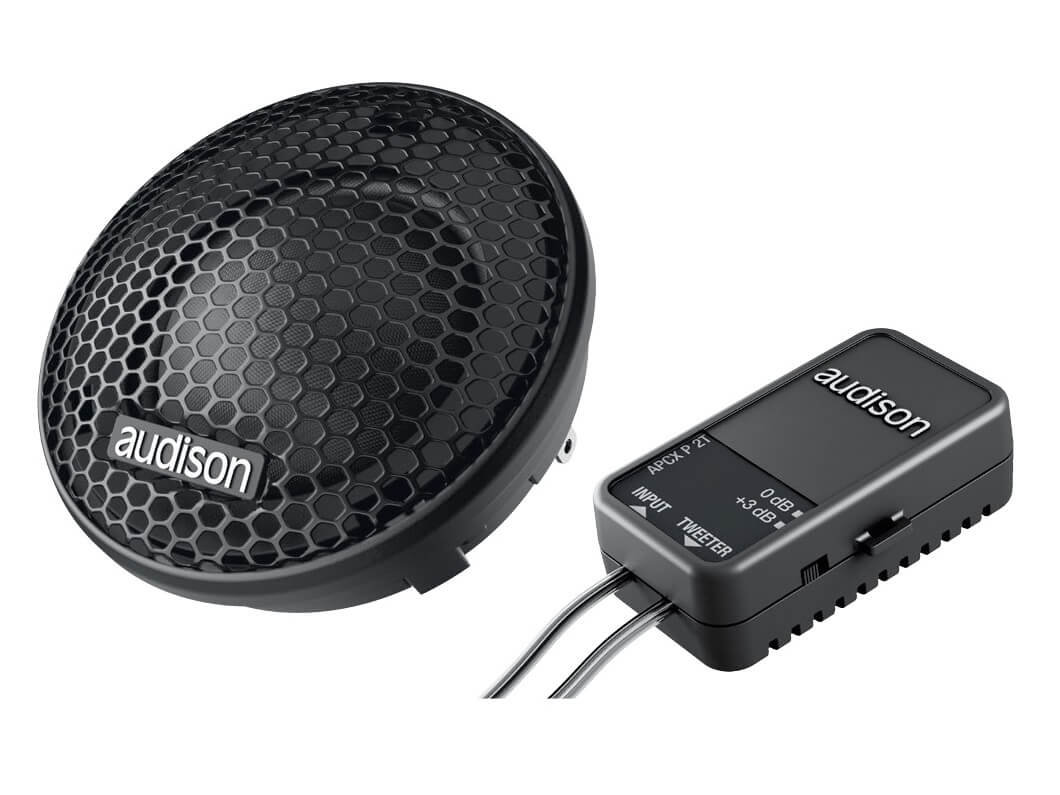

• Crossover Name: APCX P 2T
• Crossover Type: High Pass, 4kHz, 12 dB/oct
• Crossover Adjustment: Tweeter Level: 0 / +3 dB
• Sensitivity: 92 dB/Spl
• Magnet: Neodymium
• Tweeter Voice Coil Ø: 25 mm (1″)
• Dome: Tetolon fibre
