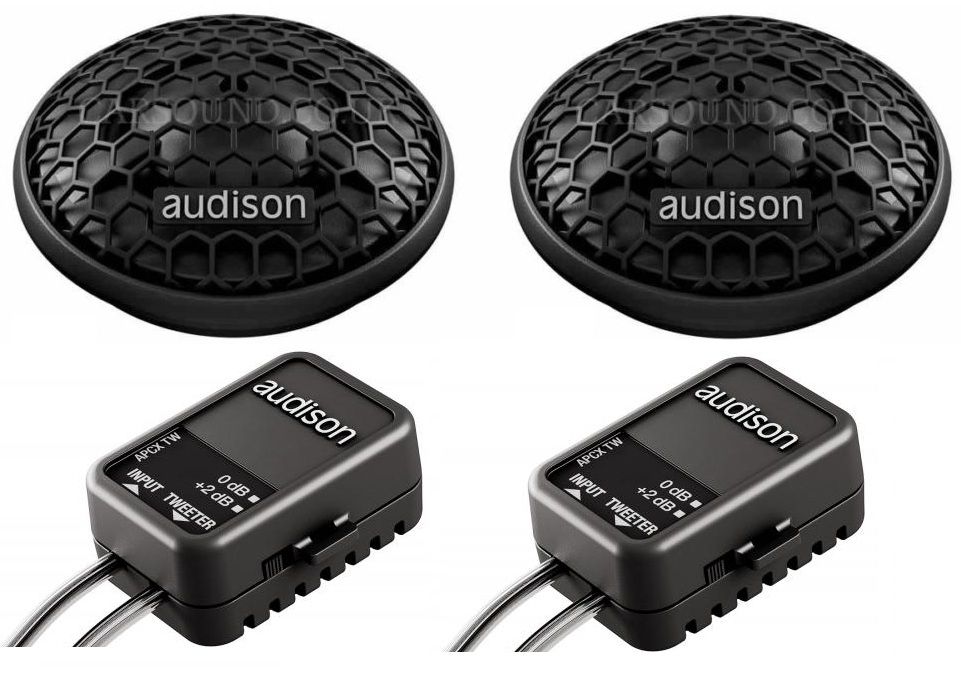

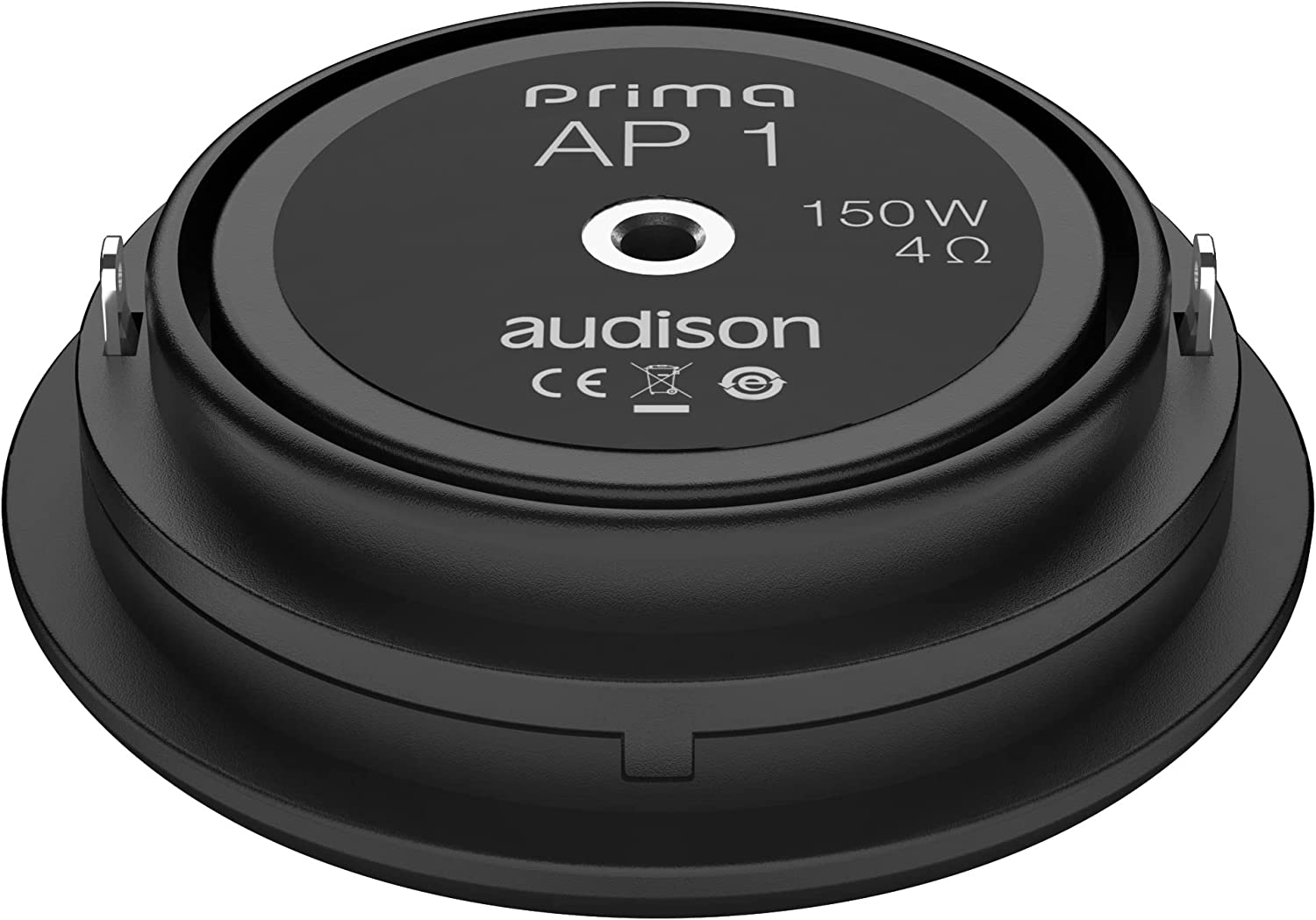

Audison Prima AP1 - 150 Watt Tetolon Fibre 26mm Tweeters

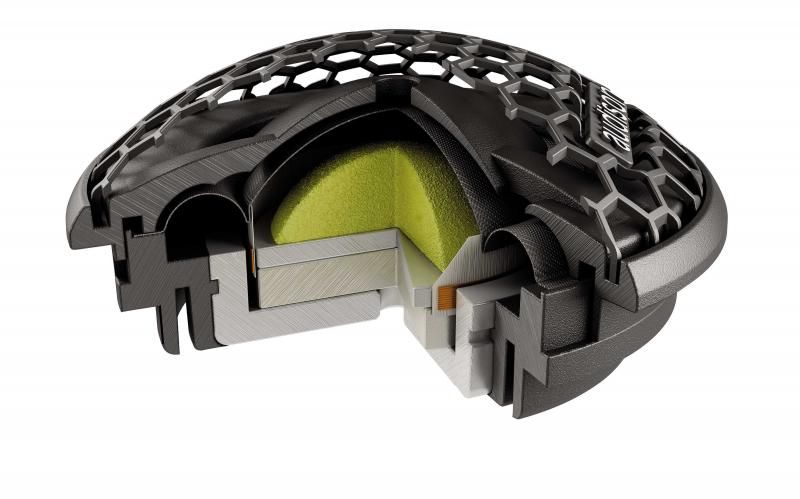

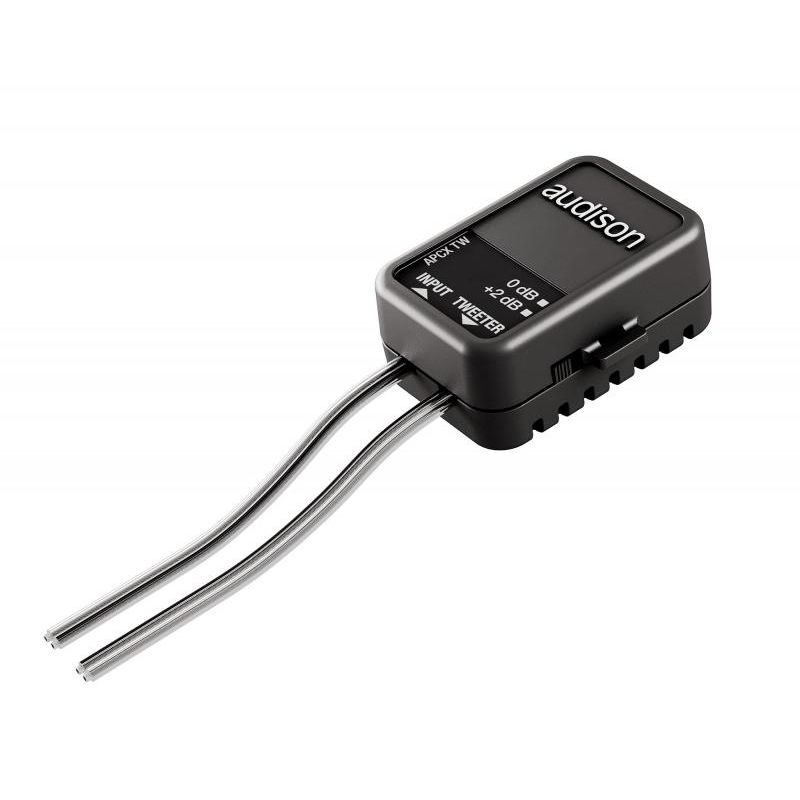

The AP 1 tweeter features a 26mm diameter emission diaphragm, an acoustic lens designed to compensate for frequency response within the 10kHz to 13kHz range, a neodymium REN magnet, and an extremely small size dedicated passive crossover.

AIF Technology

To support OEM integration, AIF Technology provides the specialist with three different types of faceplates:

• OEM, for an easy and correct factory placement

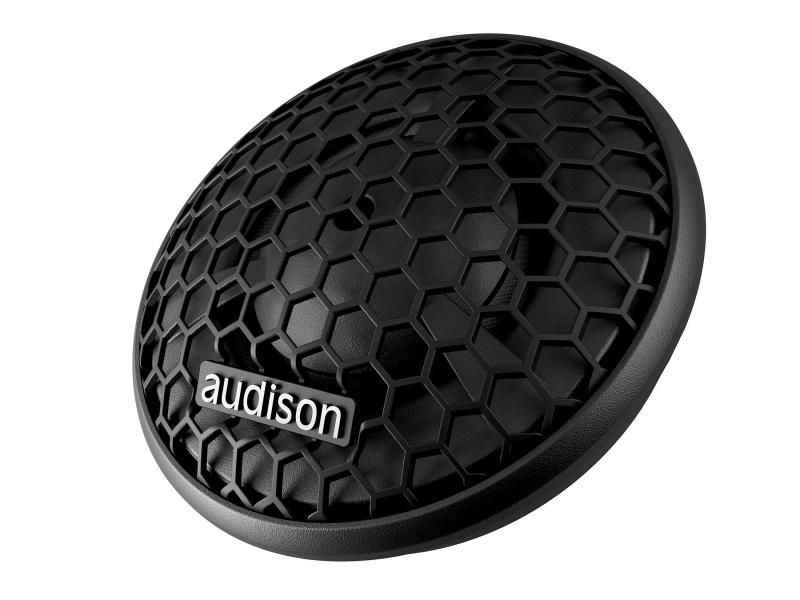

• Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations
• Spoke grille: for maximum acoustic performance with a-pillar installations

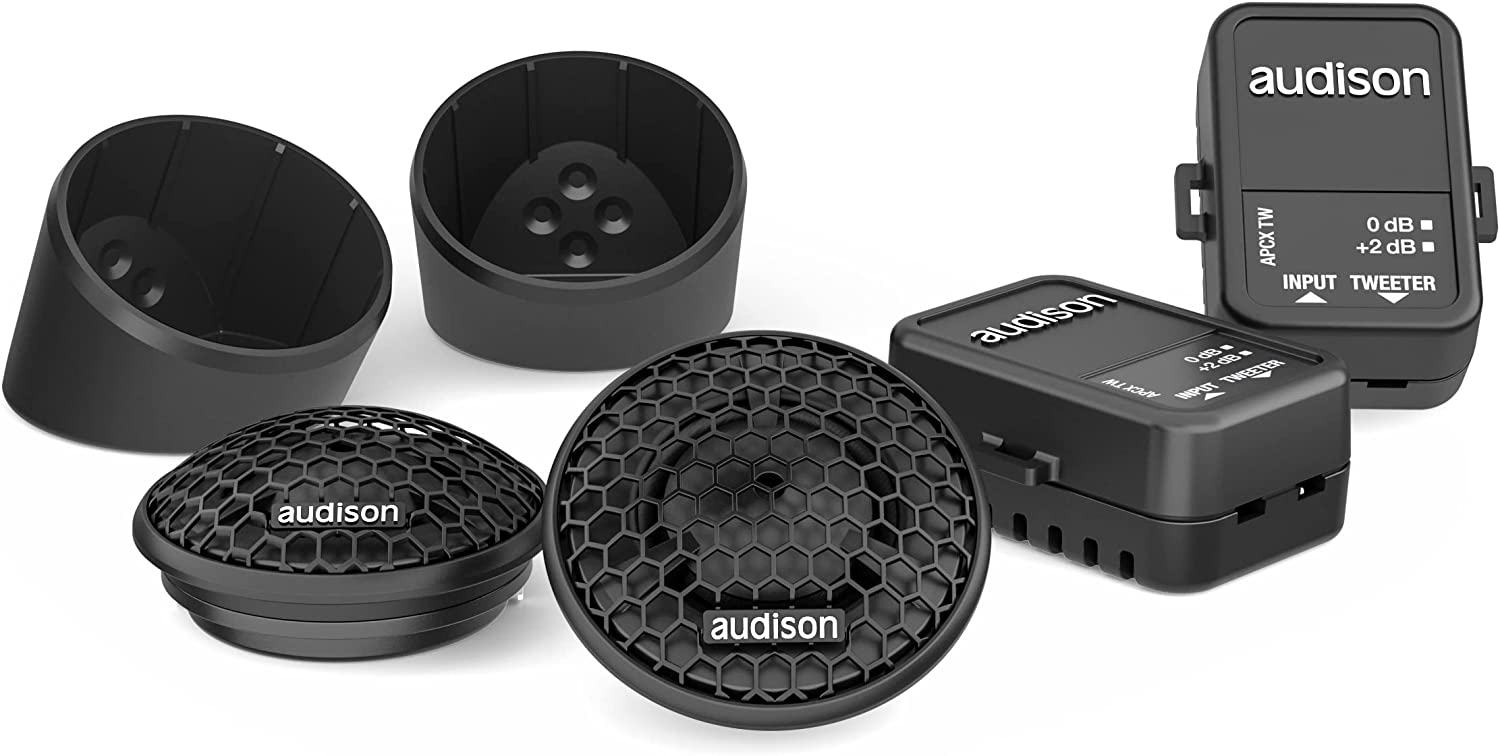

Product Features:

• Watchband
• Double-angle cup
• Flush Mounting Ring
• Metal mounting spring

Technical Specification:

• Component Tweeter
• Size mm (inch) 26 (1)
• Power Handling W peak 150
• Hi-pass filtered @ 3,5 kHz - 12 dB Oct
• Impedance Ω 4
• Frequency Response Hz 2k ÷ 20k
• Magnet size mm 19 x 3
• D x h (inch) (0.75 x 0.12)
• Weight of one speaker kg (lb) 0,07 (0,16)
• Voice Coil Ø mm (inch) 20 (0.8)

ELECTRO-ACOUSTIC PARAMETERS

• D mm 27.5
• Xmax mm -
• Re Ω 3,4
• Fs Hz 1500
• Le mH 0,02
• Vas l -
• Mms g 0,28
• Cms mm/N 0,04
• BL T•m 1,9
• Qts 0,85
• Qes 2,5
• Qms 1,3
• Spl dB 90
