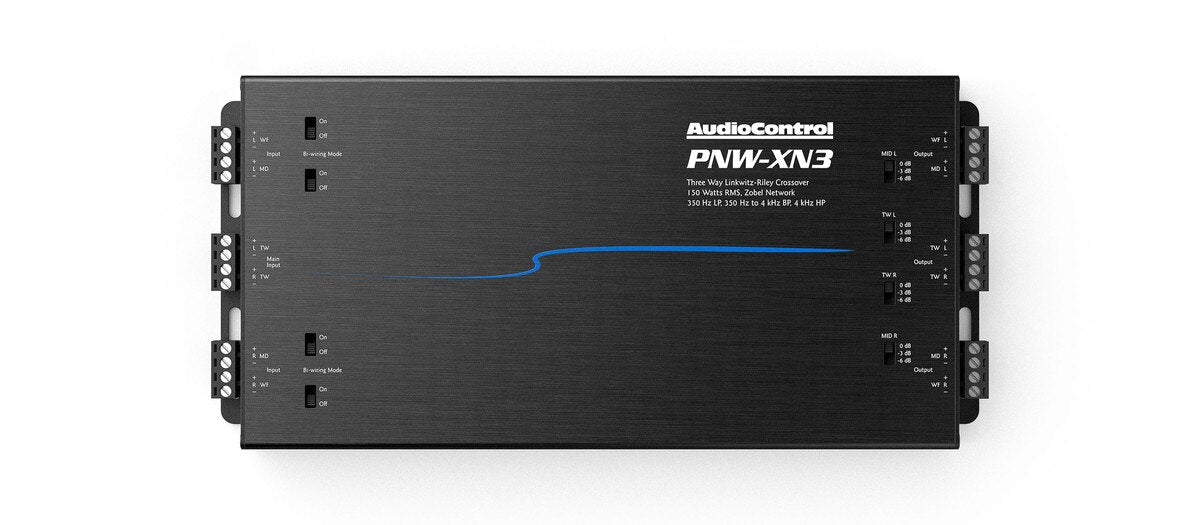

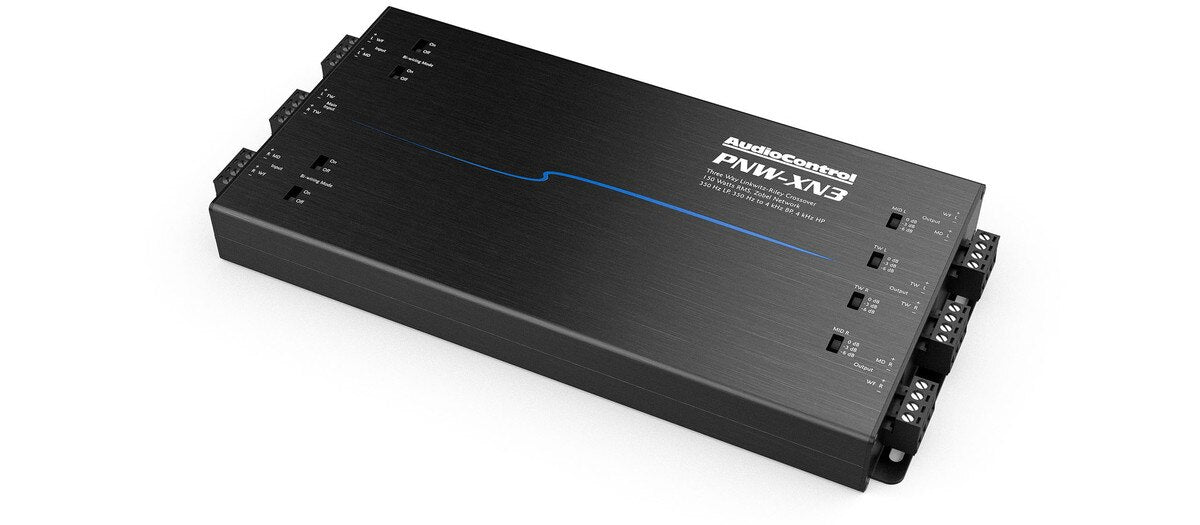

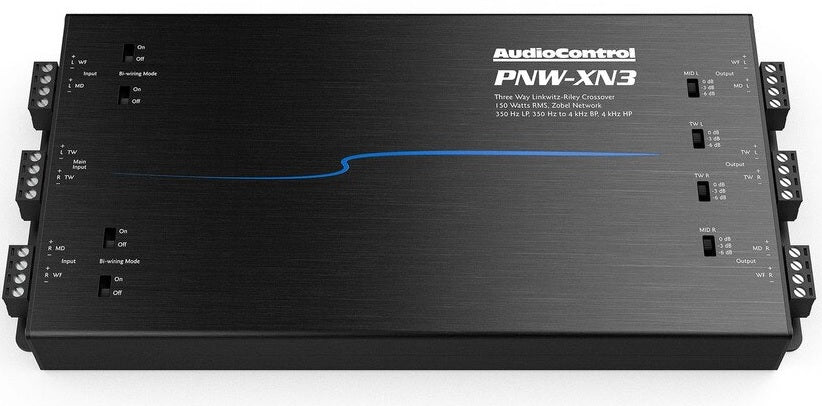

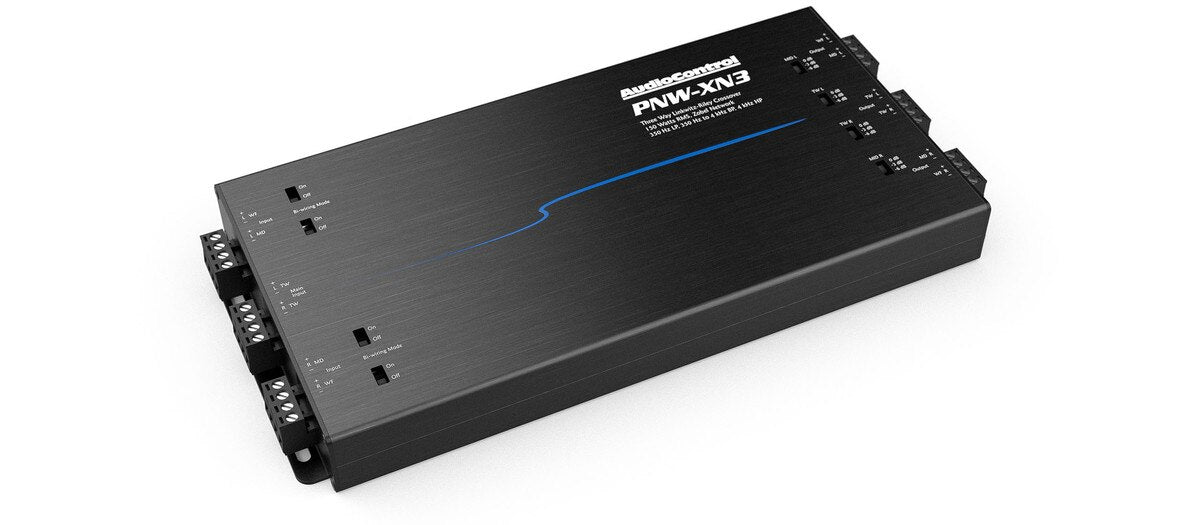

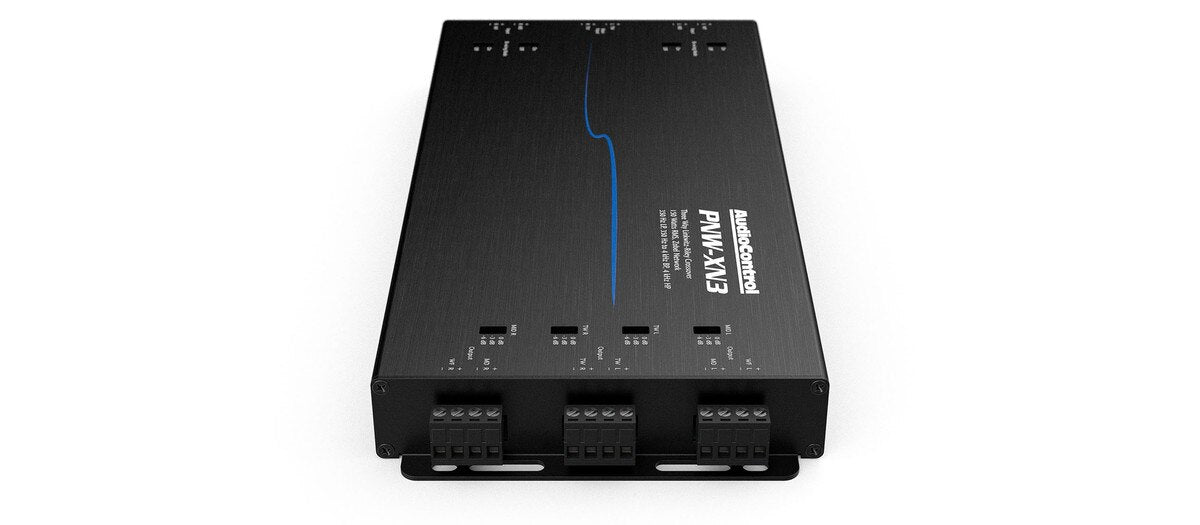

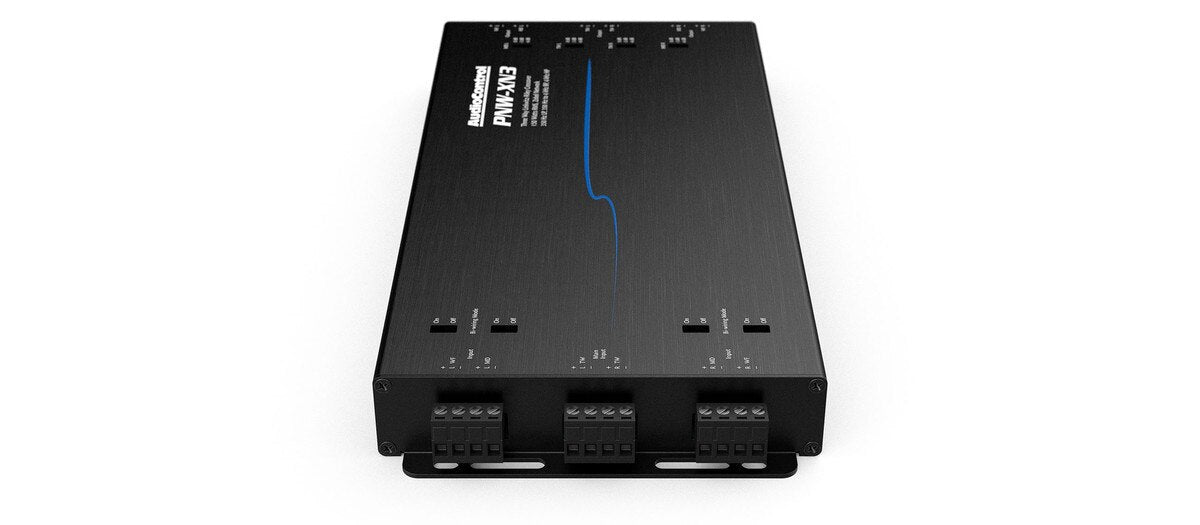

AudioControl PNW-XN3 3-Way Crossover Network for PNW Series
3-Way Crossover Network for PNW Series
The PNW-XN3 is a 3-way passive crossover network designed to expand an existing 2-way component speaker system into a full 3-way setup by adding a dedicated midrange driver to your midbass and tweeter combination. It is an ideal solution when active crossovers or a DSP are not available or simply do not fit the budget.
Compatible with both AudioControl PNW and Altitude series speakers, the PNW-XN3 simplifies system design and installation by combining all crossover functions into a single network. This eliminates the need for separate crossovers for each individual driver, reducing wiring complexity and saving valuable installation time. Only one PNW-XN3 is required per complete 3-way front stage, supporting a total of six speakers.

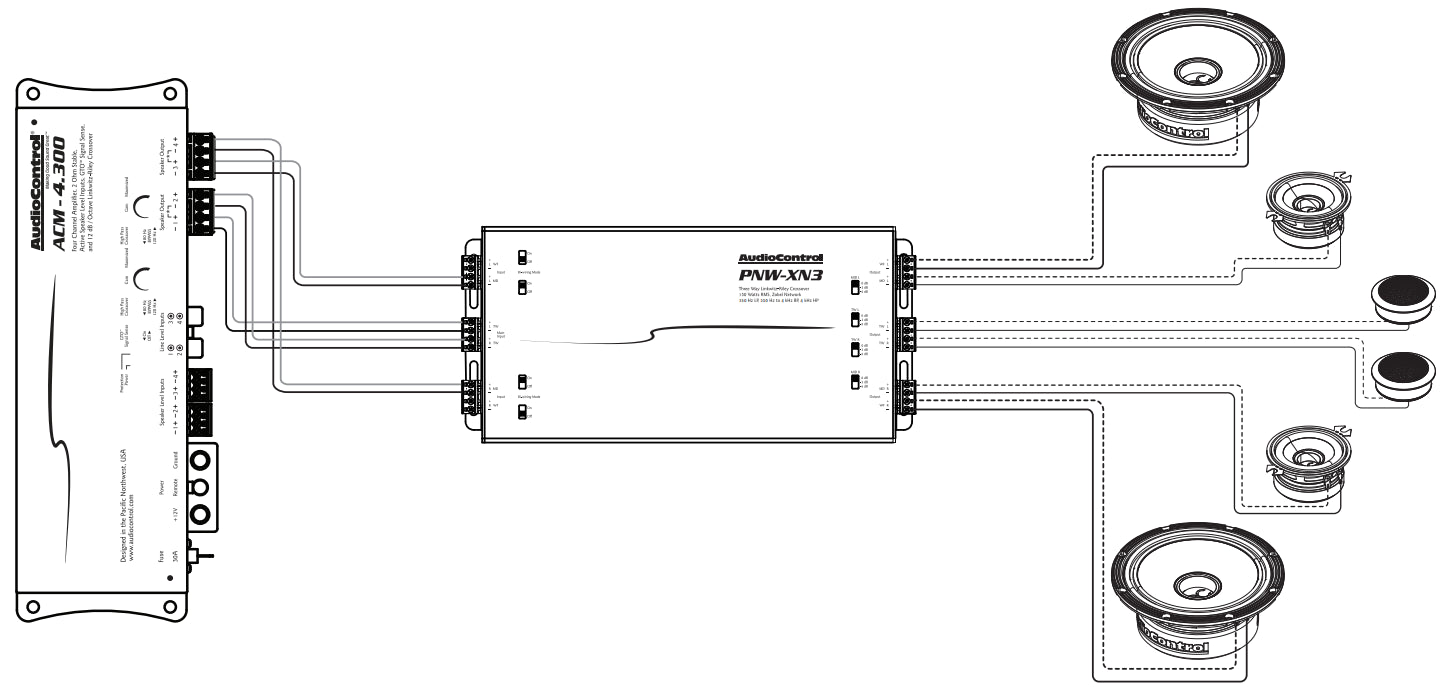

Then supplied with a full-range signal, the PNW-XN3 accurately divides frequencies and routes them to the appropriate drivers:
- Midbass frequencies to 6.5-inch or 6×9-inch woofers (WF outputs)
- Midrange frequencies to 2.75-inch or 3.5-inch midrange speakers (MD outputs)
- High frequencies to tweeters (TW outputs)
The flexible input section allows the PNW-XN3 to deliver six channels of output whether it is fed by 2, 4, or 6 channels of input. As a fully passive crossover network, it requires no power, ground, or turn-on connections, further streamlining installation and improving reliability.
Product Features:
- Crossover Type: 2nd order Linkwitz-Riley
- Filter Type: HP / BP / LP
- XO Frequency: 350Hz LP / 350-4k BP / 4K HP
- Slope (Octave): -12 dB
- Power Handling (RMS/Max): 150 Watts / 200 Watts
- Attenuation (Tw / Md): 0 / -3 / -6 dB
- Recommended Speaker Set 1: PNW-65CS2 + PNW-275
- Recommended Speaker Set 2: PNW-69CS2 + PNW-275
- Dimensions: 10.6"W x 5.12"D x 1.13"H
- Authorised Internet Dealer
- Full Manufacturer's Warranty
COMPATIBLE WITH
- PNW-65CS2
- PNW-69CS2
- PNW-275
