AudioControl PNW-69CS2 PNW Series 6X9" High-Fidelity Component Speakers (Pair)
The AudioControl experience
PNW Series 6x9" High-Fidelity Component Speakers
AudioControl is all about experience – in fact, over 45 years of experience engineering high-fidelity audio components. That expertise guarantees you an audio adventure that may change what you thought was possible in your car. The PNW-69CS2 6" x 9" component system will bring you authentic reproduction with the distinct placement of instruments across the soundstage, for next-level audio in your car.
The crossovers lead the way
AudioControl built this system around second-order Linkwitz-Riley crossover networks, which provide some awesome benefits:
- A natural transition between the frequencies directed to the woofer and the tweeter, thanks to the network's 12dB per octave slope. This minimal overlap means better sound quality and excellent power handling.
- Virtual elimination of unnatural peaks and valleys in the speaker's output, so you'll hear exactly what was recorded in the studio.
- A linear phase response, for outstanding imaging and soundstage.

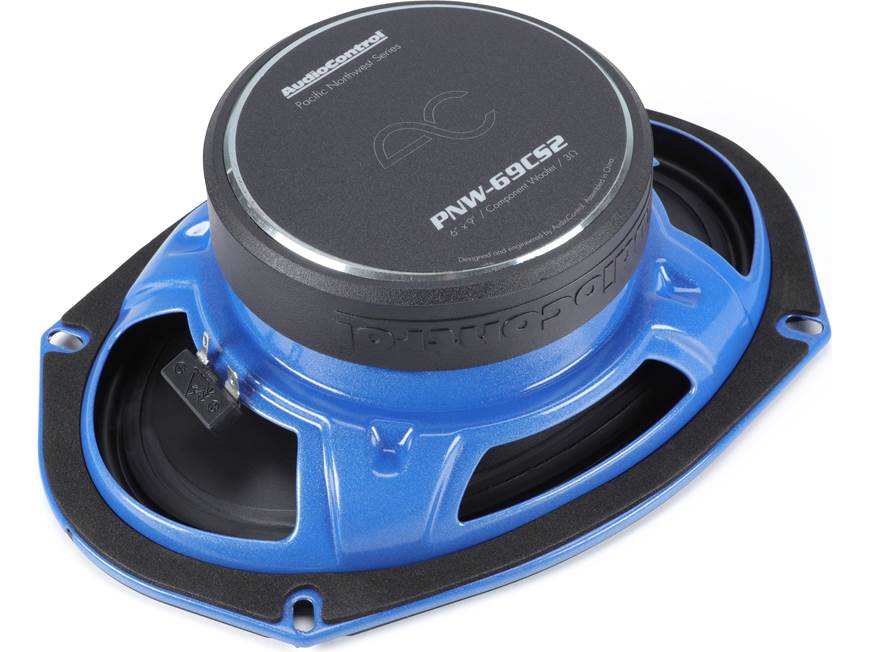

A beefy magnet and motor kick out the lows.
Awesome build quality

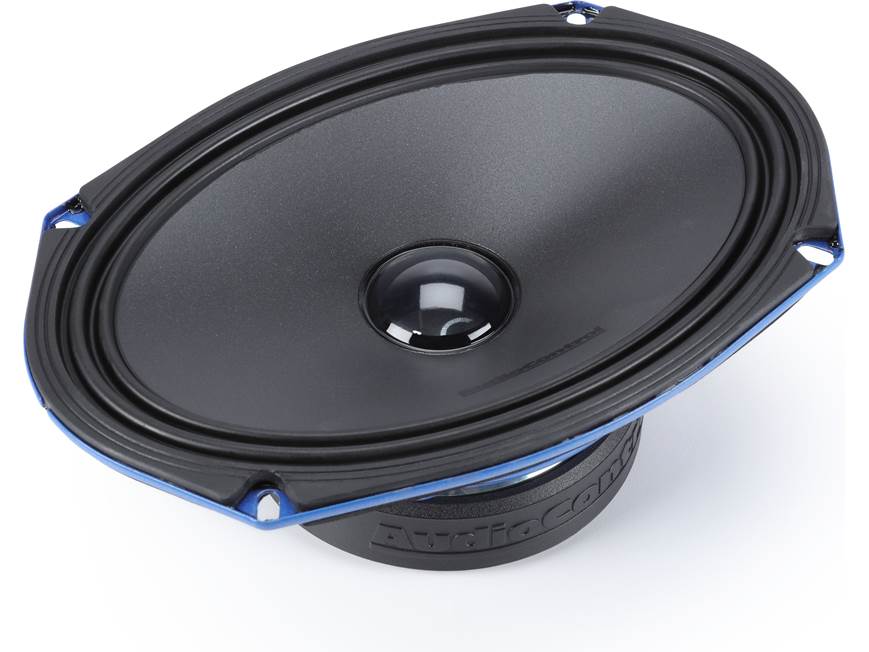

The woofer and tweeter also reflect the care that went into the crossover network. The woofer's rigid poly mica-coated cone moves freely and precisely, thanks to a double-roll surround. An edge-enhanced steel frame houses the cone and provides superior structural strength. The silk dome tweeter comes with hardware for installation, so you can place it in the best spot for optimal sound. Pair these component speakers with an amplifier kicking out 100 watts per channel, and let them show you what they can do.
Product Features:
- Edge-enhanced steel frame for added structural strength
- Black anodized voice coil former for superior heat dissipation
- Linear double-roll surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Rigid poly mica-coated cone for optimized sound reproduction
- Rear-damped hybrid silk dome tweeter for extended frequency response
- Concentric point source design for a seamless transition from midrange to tweeter
- Sonic diffuser and radiant collar for better off-axis frequency response
- High-quality mounting hardware included
Specification:
| Crossover Type | 2nd order Linkwitz-Riley |
|---|---|
| Power | 100W RMS / 125W Max |
| DC Resistance (Re) | 2.6 ohms |
| Filter Type | HP / LP |
| Frequency Response | 50-20k Hz |
| XO Frequency | 3.5kHz HP / LP |
| Slope (Octave) | -12 dB |
| Tweeter Voice Coil Diameter | 25 mm |
| Midrange Voice Coil Diameter | 35 mm |
| Overall Dimensions | 6 x 9 in / 167 x 235 mm |
| Overall Diameter (w/o Metal bracket) | 7.2 x 10.43 in / 183 x 265 mm |
| Cut Out Diameter | 5.74 x 8.34 in / 146 x 212 mm |
| Mounting Depth | 2.95 in / 75 mm |
| Mounting Height (w/o Grille) | .0.24 in / 6.3 mm |

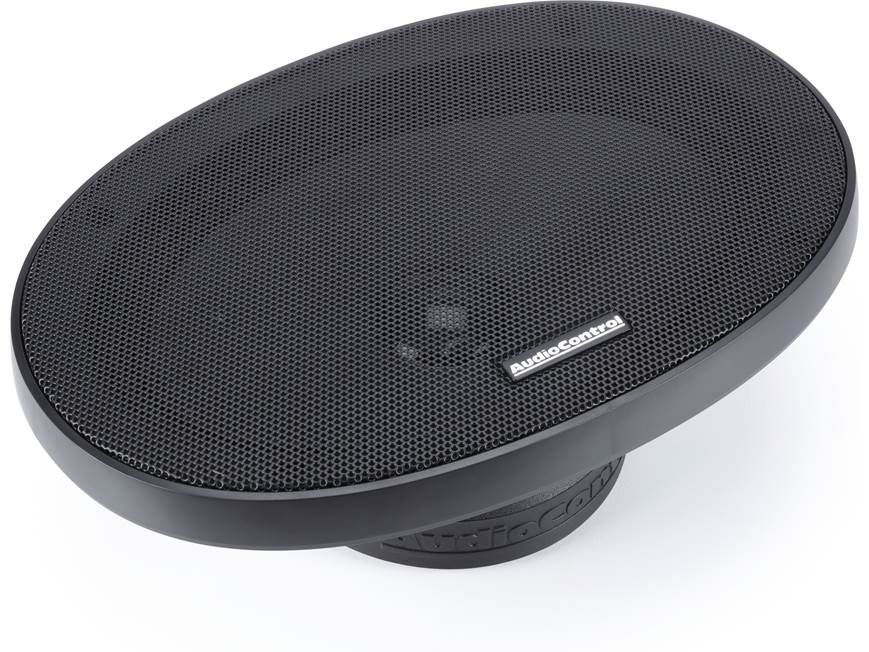

| Mounting Height (w/ Grille) | 0.98 in / 25 mm |
| Motor Diameter (w/ Cover) | 4.6 in / 117 mm |
| Overall Diameter (G) | 2.13 in / 54 mm |
| Cut Out Diameter (H) | 1.85 in / 47 mm |
| Mounting Depth | 0.63 in / 16 mm |

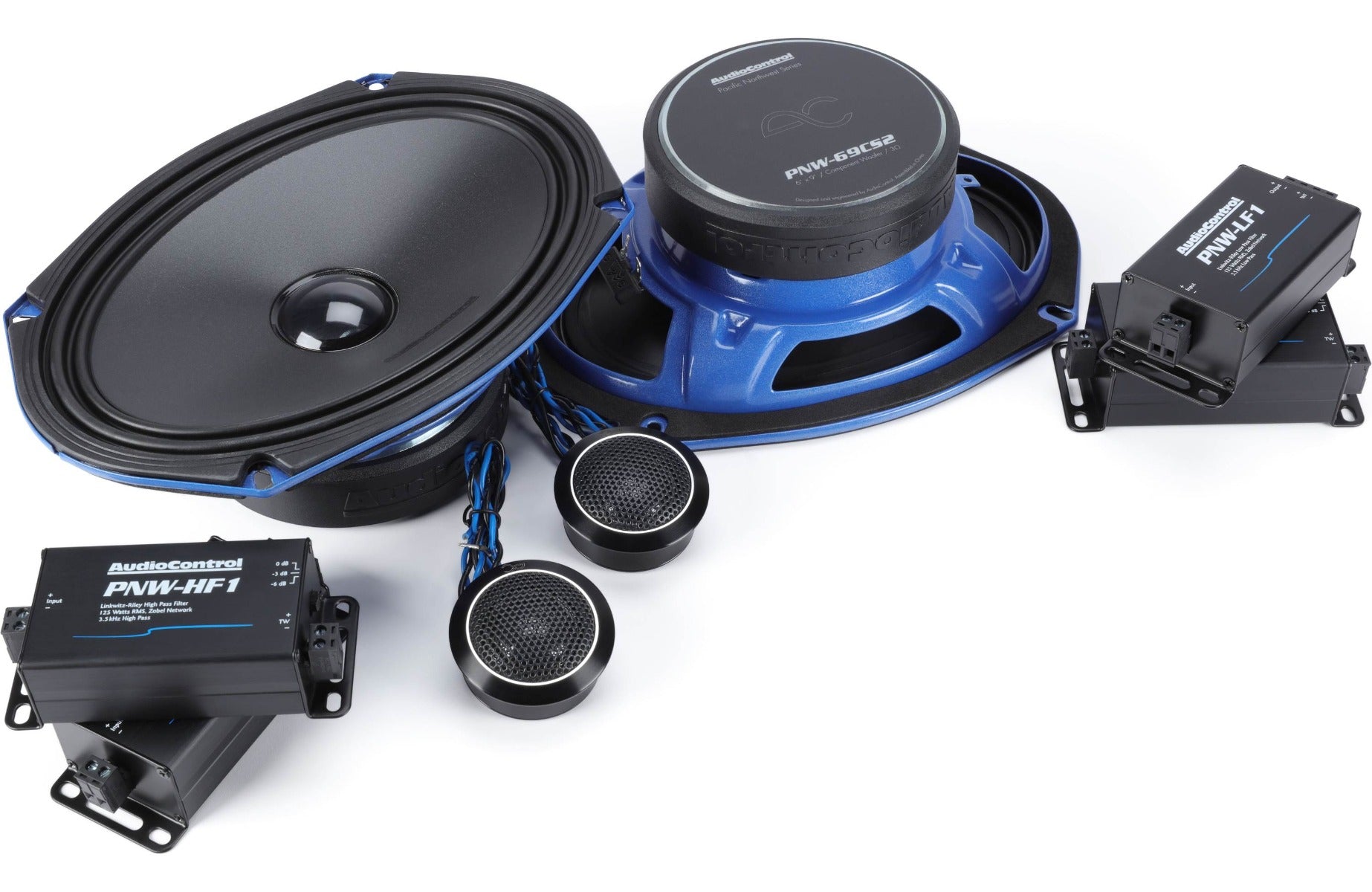

What's in the Box:
- Two woofers

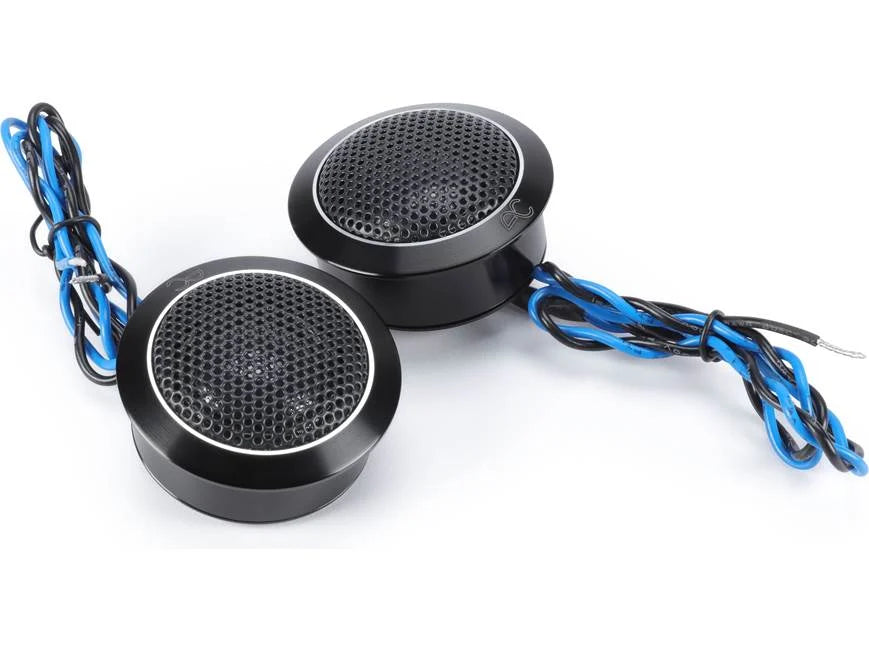

- Two PNW-1 Tweeters (16" speaker wire attached)
- 2 Flush mount tweeter housings (tweeters installed)
- 2 PNW-HF1 high-pass crossover networks

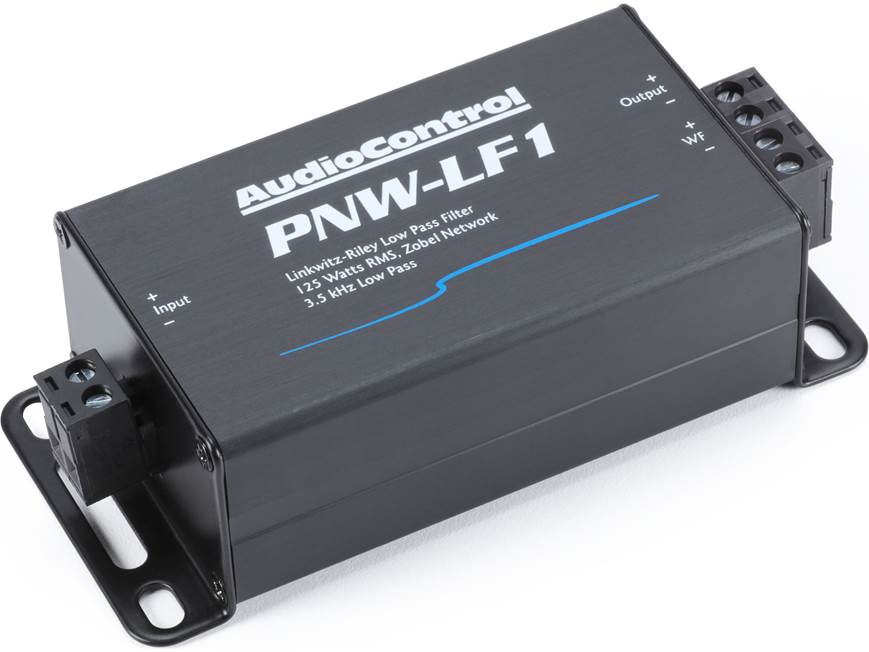

- 2 PNW-LF1 Low-pass crossover networks
- 4 Heat shrink crossover covers
- 2 U-Brackets
- Two M4x8mm Machine screws (2.5mm Allen head)
- Eight 1-1/8" Screws (2.5mm Allen head)
- 8 Speed clips
- User guide
- Template
