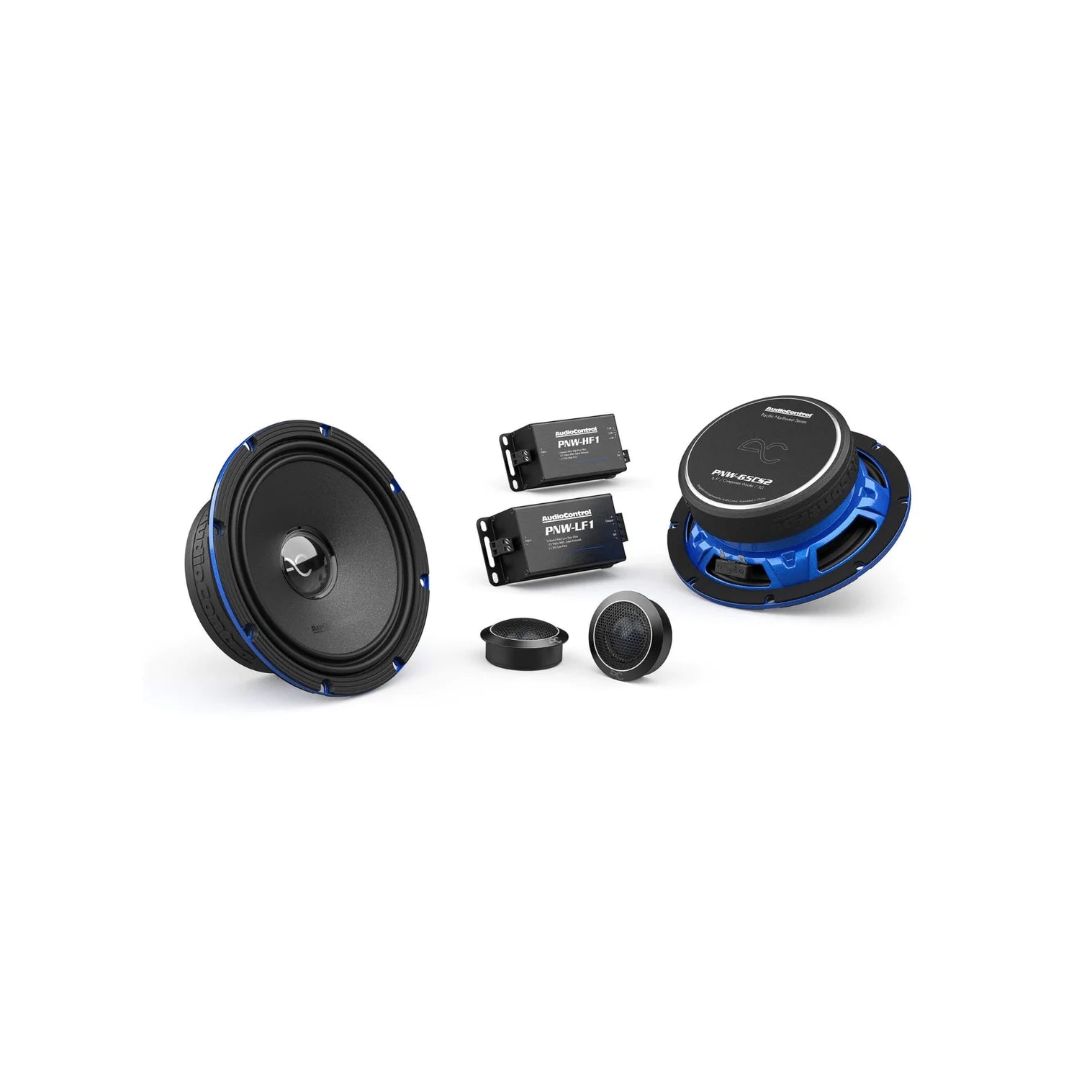

AudioControl PNW-65CS2 PNW Series 6.5" Component Speaker System (Pair)

PNW Series 6.5" High-Fidelity Component Speakers

Introducing the AudioControl PNW-65CS2, the epitome of 6.5-inch component speaker systems meticulously engineered to deliver exceptional audio performance and precision craftsmanship. Designed with AudioControl's renowned expertise and attention to detail, these speakers redefine the listening experience, providing crystal-clear sound reproduction and immersive sonic clarity.

Crafted with high-quality components and advanced engineering, the PNW-65CS2 component speakers deliver rich, detailed sound across the entire frequency spectrum. Whether you're listening to your favourite music, enjoying a podcast, or immersing yourself in a movie soundtrack, these speakers ensure every nuance and subtlety of the audio is faithfully reproduced with stunning accuracy.

The PNW-65CS2 speakers are meticulously designed to provide optimal sound dispersion and imaging, creating a lifelike listening experience that transports you to the heart of the music. With superior transient response and a wide frequency range, these speakers capture the full dynamics and emotion of your favourite tracks, bringing your audio content to life with stunning realism and detail.

Built to last and engineered for durability, the PNW-65CS2 speakers feature rugged construction and premium materials that withstand the rigors of daily use and deliver reliable performance year after year. Whether installed in your car, truck, SUV, or boat, these speakers are designed to excel in any environment, providing consistent and reliable audio quality in every situation.

With their sleek design and versatile mounting options, the PNW-65CS2 speakers seamlessly integrate into any vehicle's interior, adding a touch of elegance and sophistication to your audio setup. Whether you're upgrading your factory speakers or building a custom audio system from scratch, these speakers are the perfect choice for discerning audiophiles and music enthusiasts alike.

Experience the pinnacle of audio performance with the AudioControl PNW-65CS2 6.5-inch component speakers. Designed to deliver unparalleled sound quality and precision craftsmanship, these speakers set a new standard for automotive audio excellence. Upgrade your audio system today and immerse yourself in the breathtaking sound of the PNW-65CS2 speakers from AudioControl.

Features

• Edge-enhanced steel frame for added structural strength

• Black anodized voice coil former for superior heat dissipation

• Linear double-roll surround for precision cone movement

• Complex FEA-designed high-efficiency motor

• Rigid poly mica-coated cone for optimized sound reproduction

• Rear dampened hybrid silk dome tweeter for extended frequency response

• High-quality mounting hardware included

Specification

• Crossover Type: 2nd order Linkwitz-Riley
• Power: 100W RMS / 125W Max
• DC Resistance (Re): 2.3 ohms
• Filter Type: HP / LP
• Frequency Response: 60-20k Hz
• XO Frequency: 3.5kHz HP / LP
• Slope (Octave): -12 dB
• Tweeter Voice Coil Diameter: 25 mm
• Midrange Voice Coil Diameter: 35 mm

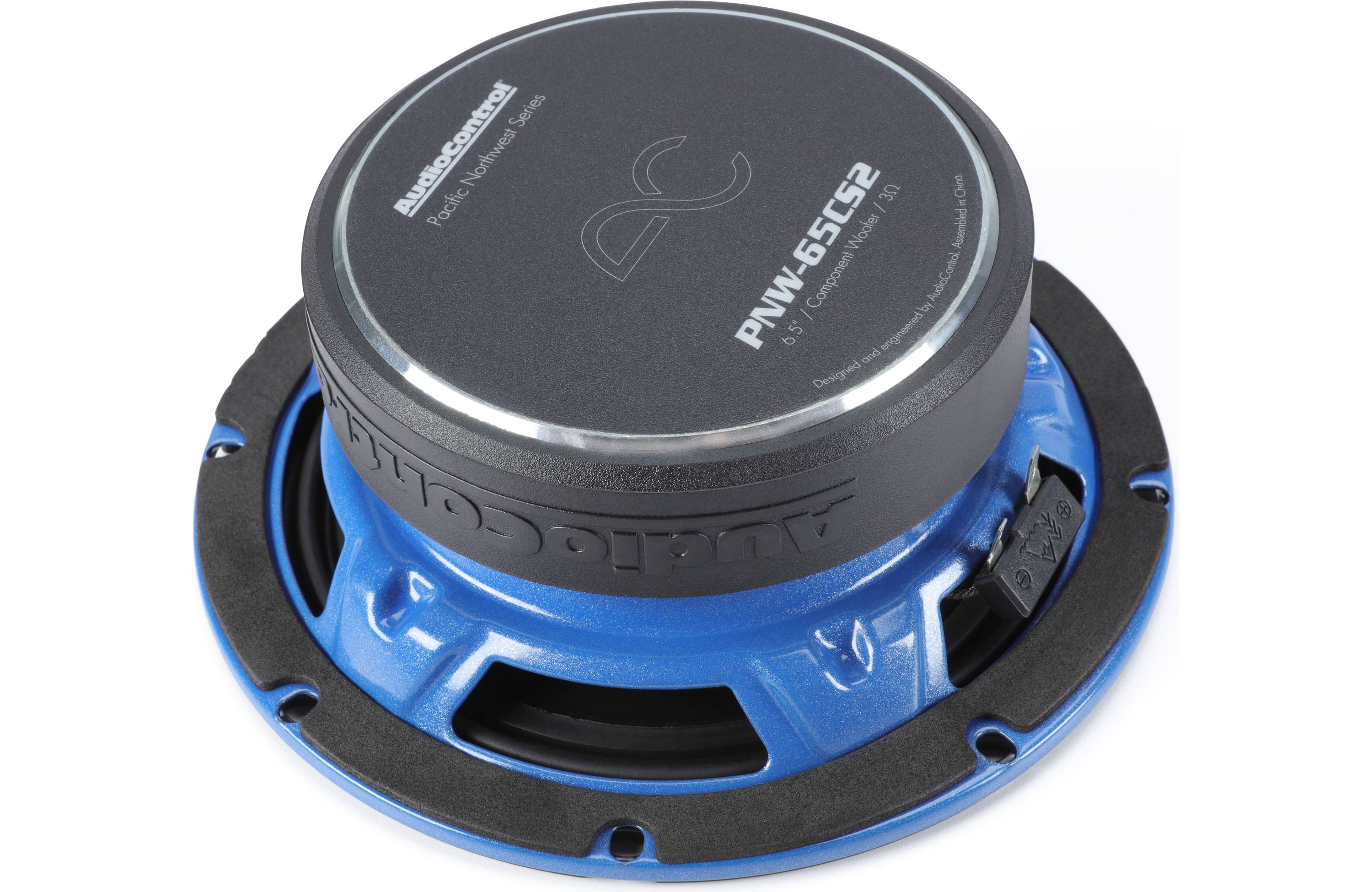

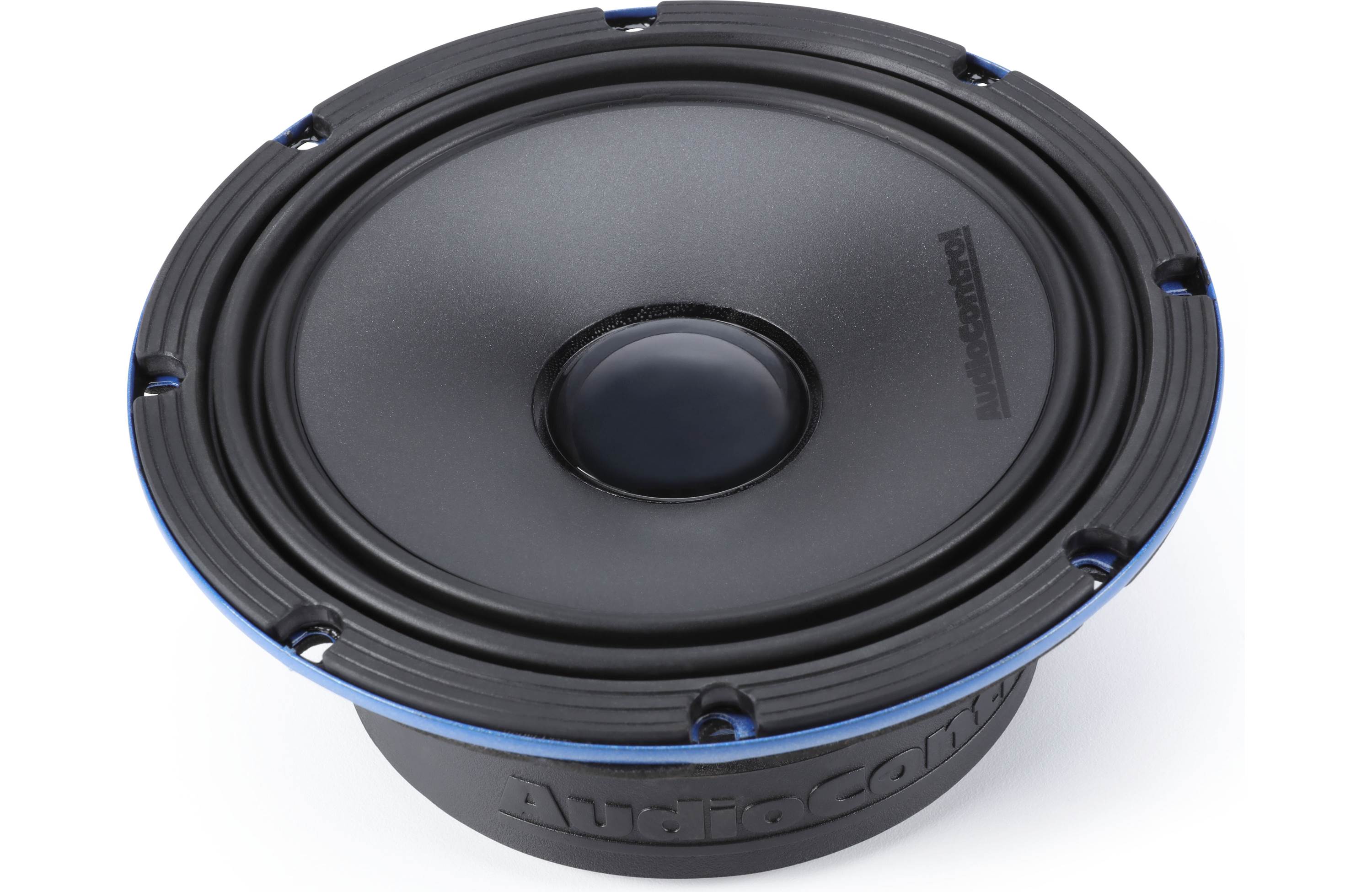

Midrange Dimensions

• Overall Diameter (w/o Grille) 6.5 in / 166 mm

• Cut Out Diameter: 5.59 in / 142 mm

• Mounting Depth: 2.36 in / 60 mm

• Mounting Height (w/o Grille): 0.20 in / 5.2 mm

• Mounting Height (w/ Grille): 0.86 in / 22 mm

• Motor Diameter (w/ Cover): 4.6 in / 117 mm

• Grille Overall Diameter: 7.05 in / 179 mm

Tweeter Dimensions

• Overall Diameter: 2.13 in / 54 mm

• Cut Out Diameter: 1.85 in / 47 mm

• Mounting Depth: 0.63 in / 16 mm

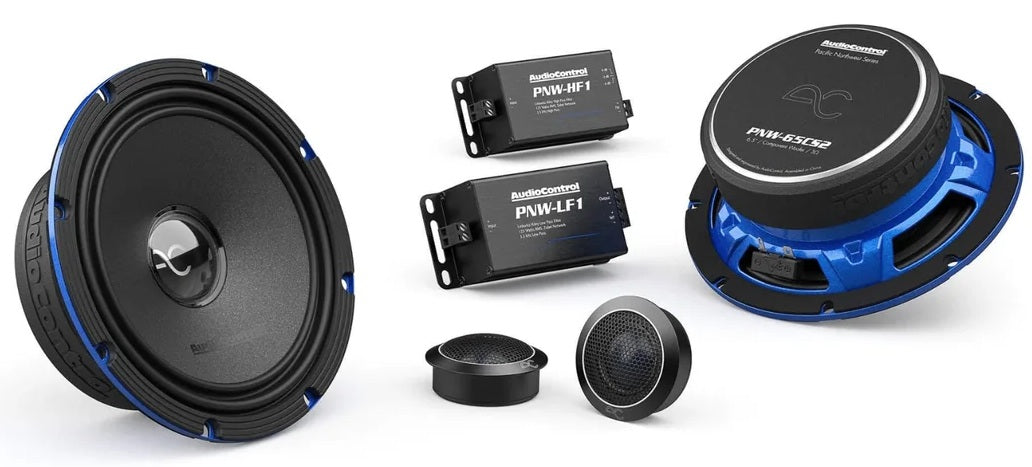

What's in the Box

• Two woofers

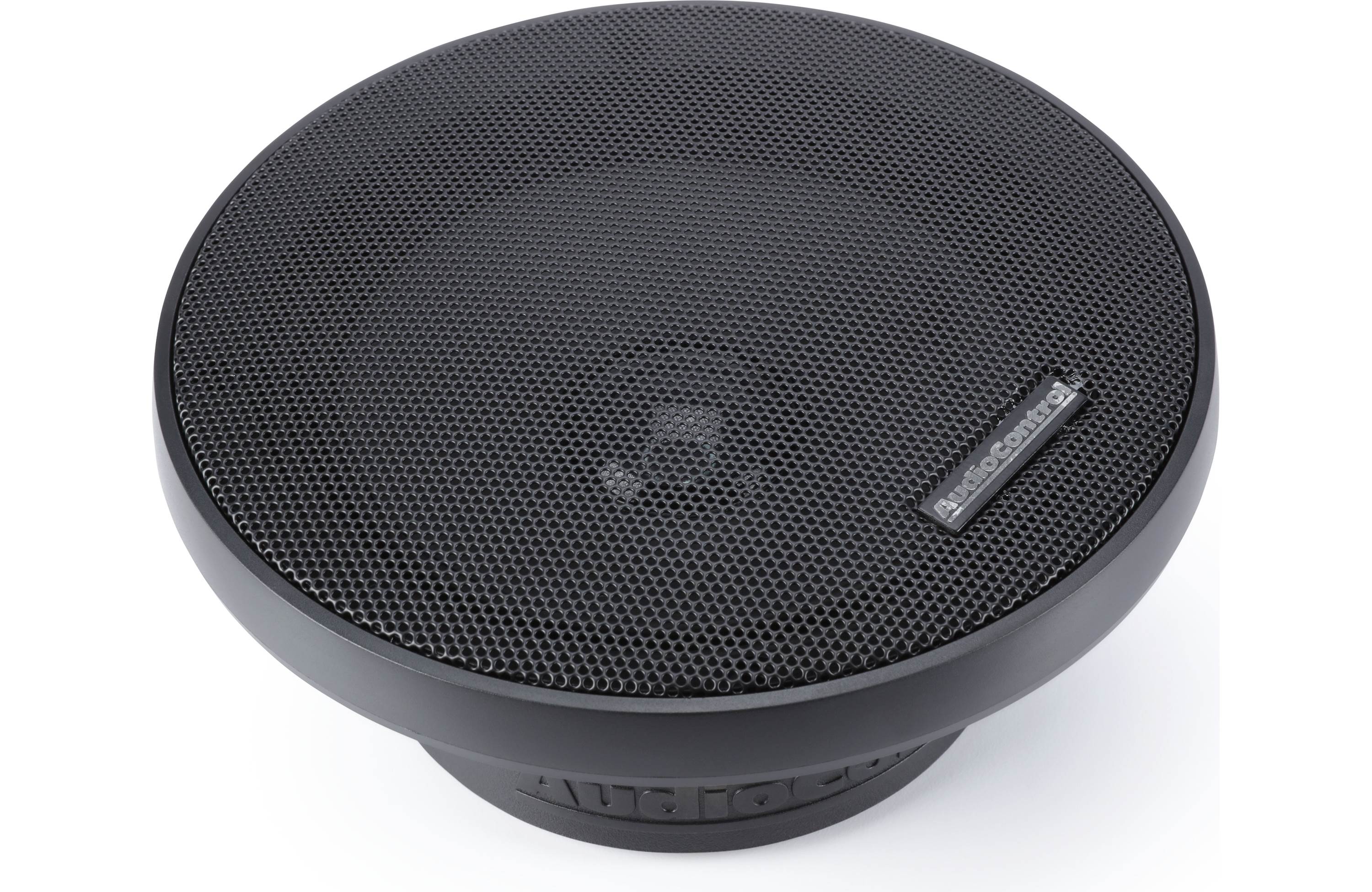

• Two woofer grilles

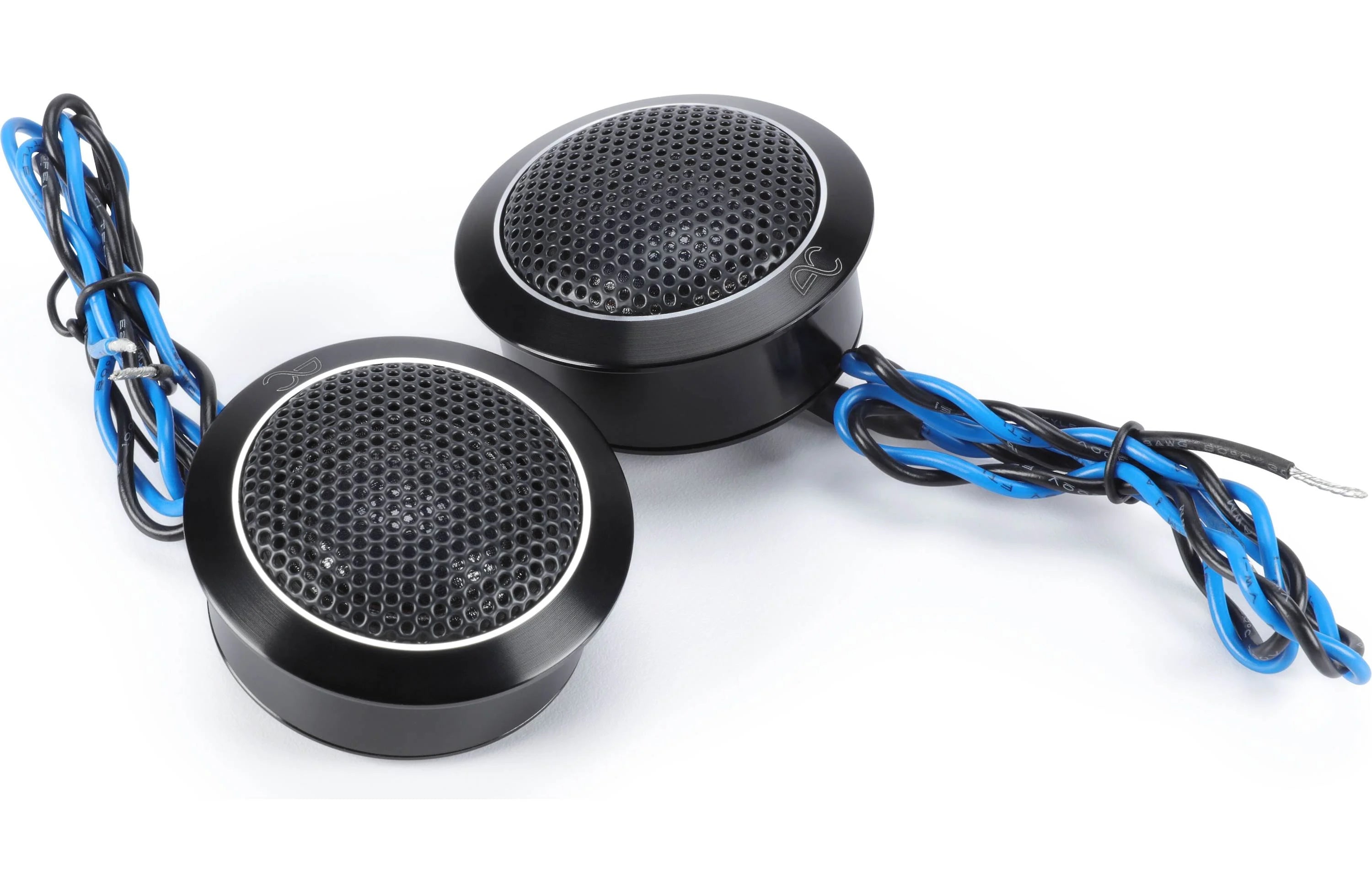

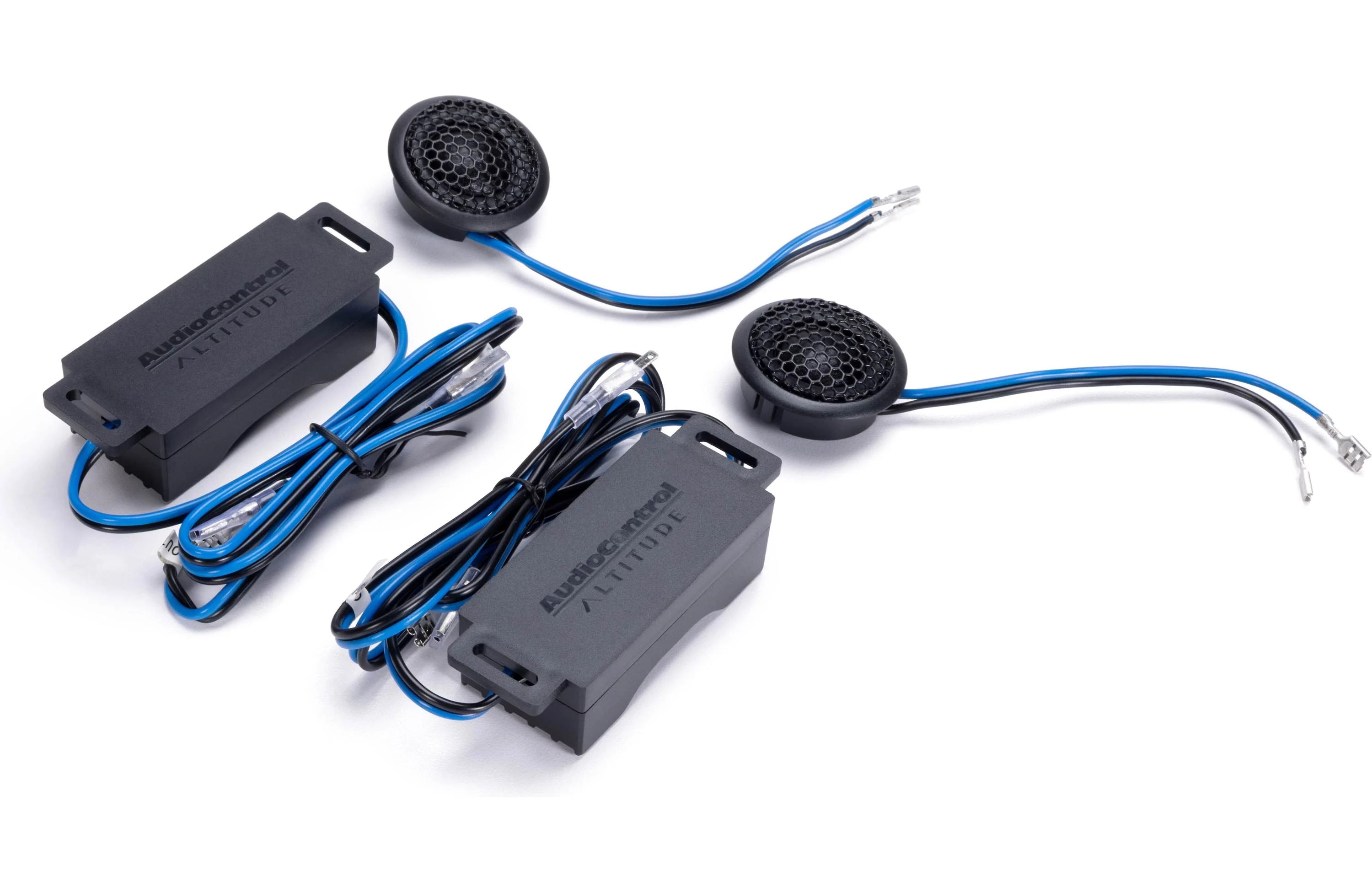

• Two PNW-1 Tweeters (16" speaker wire attached)
• 2 Flush mount tweeter housings (tweeters installed)
• 2 PNW-HF1 High-pass crossover networks
• 2 PNW-LF1 Low-pass crossover networks
• 4 Heat shrink crossover covers
• 2 U-Brackets
• Two M4x8mm Machine screws (2.5mm Allen head)
• Sixteen 1-1/8" Screws (2.5mm Allen head)
• 16 Speed clips
• User guide
• Template
